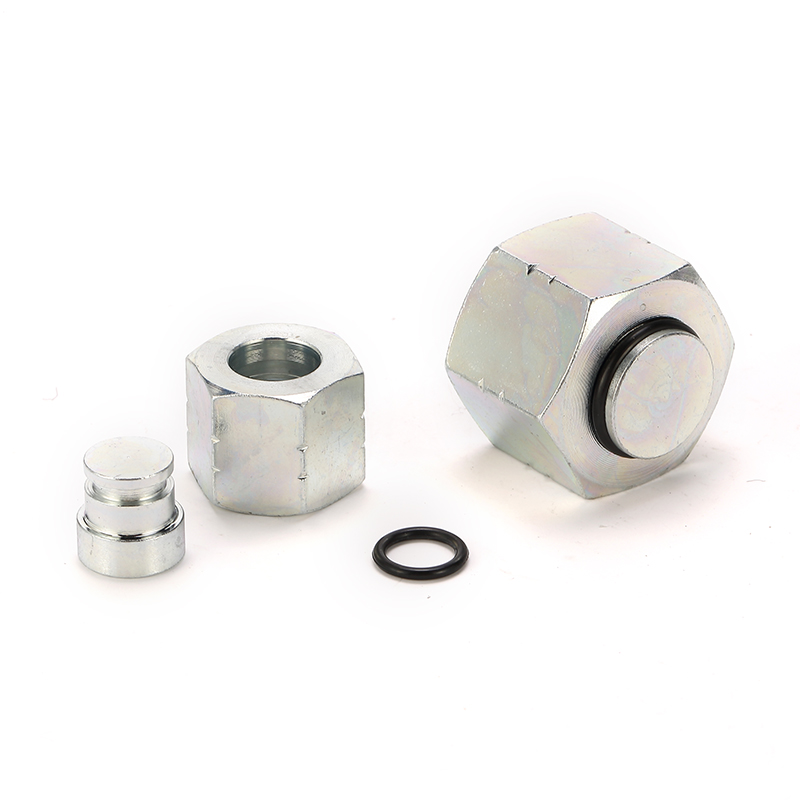

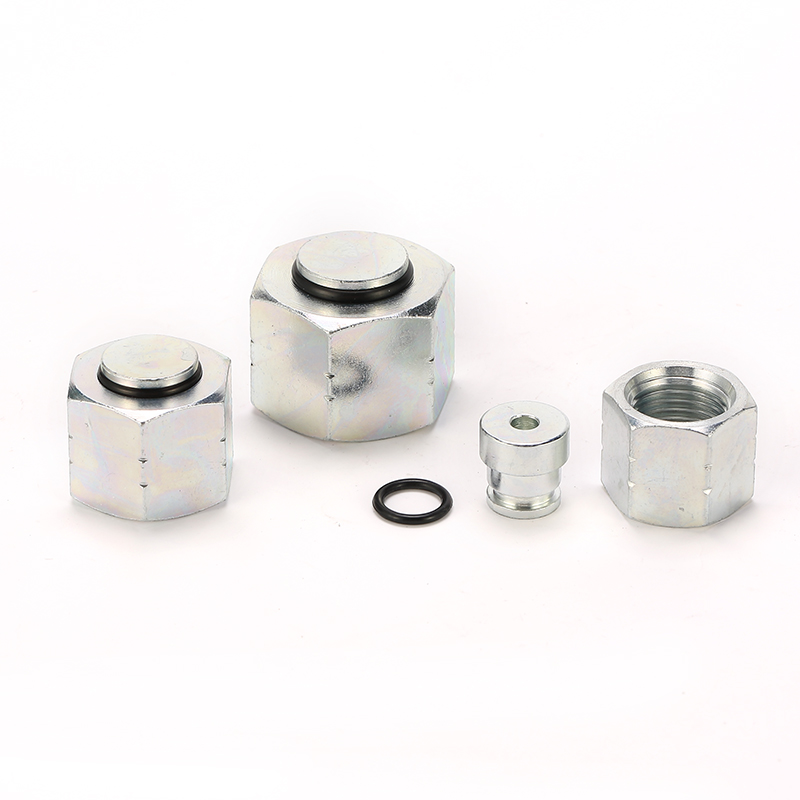

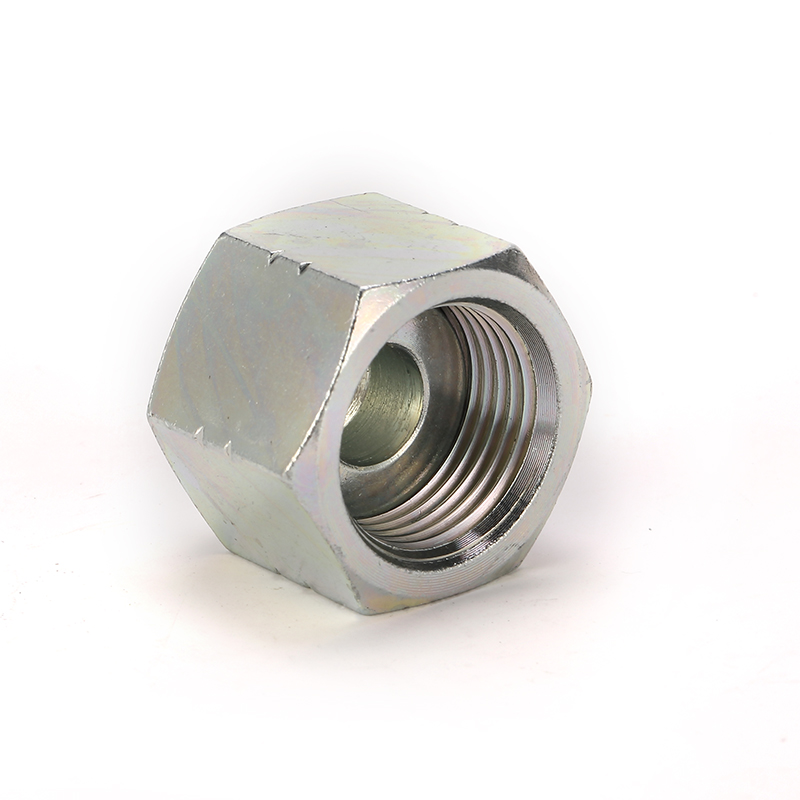

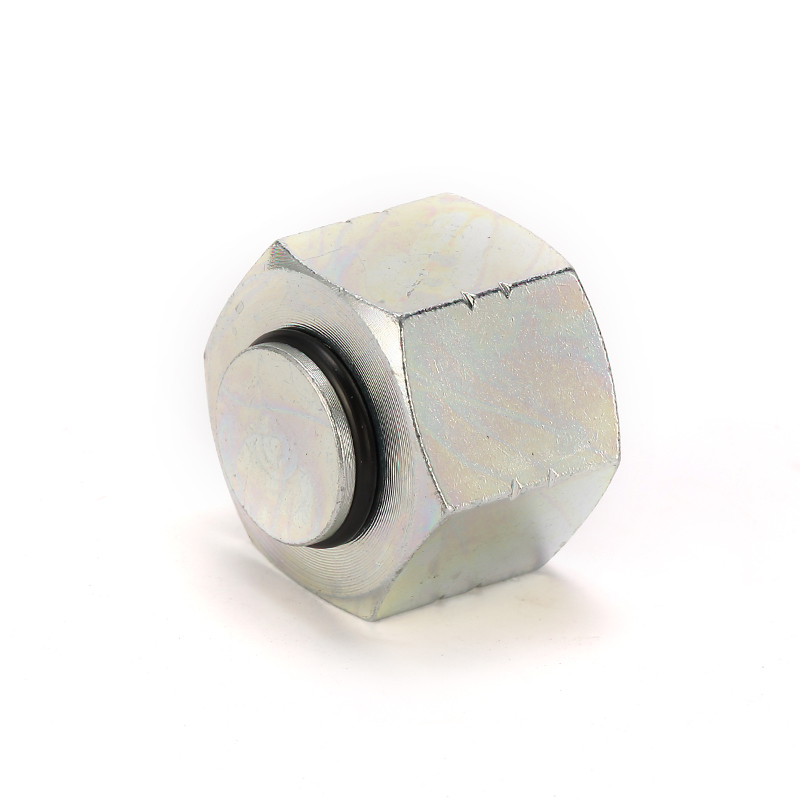

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

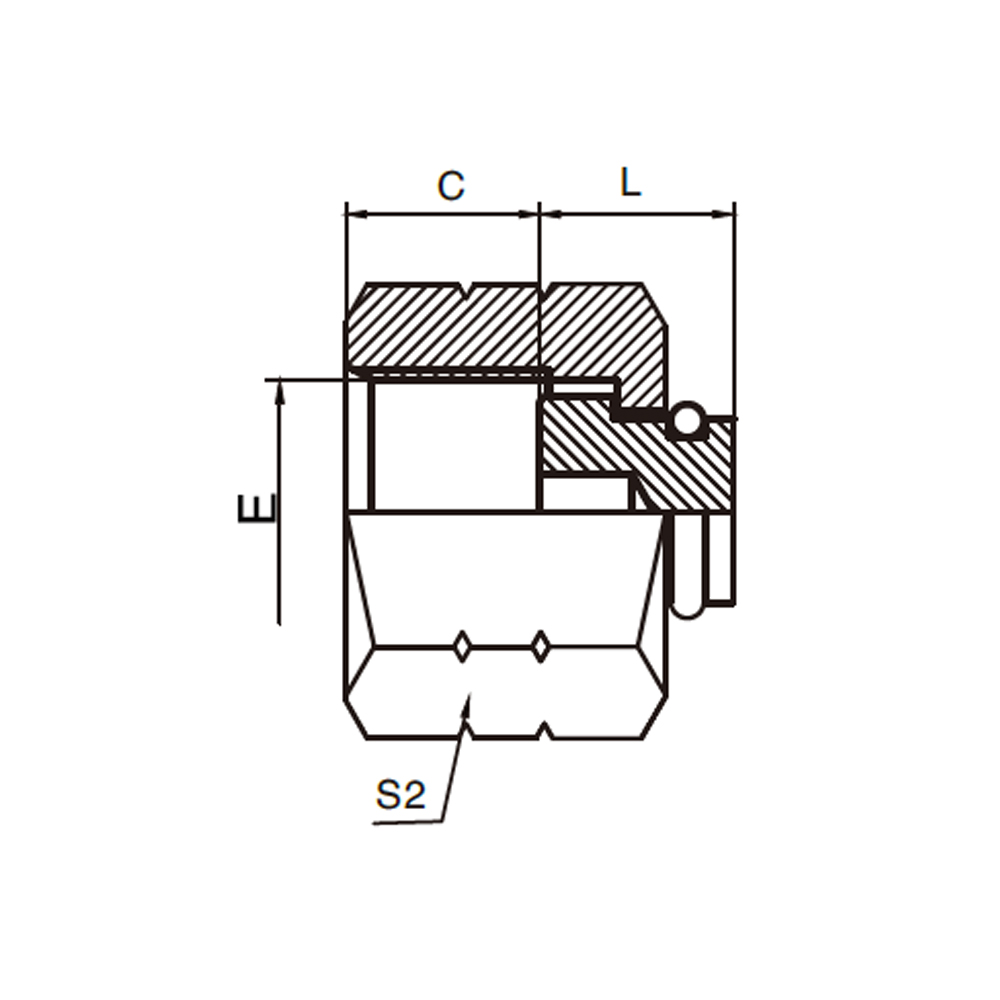

| PART NO. | THREAD | DIMENSIONS | ||
| E | C | L | S2 | |
| 9F-04 | 9/16″X18 | 8 | 12.5 | 19 |
| 9F-06 | 11/16″X16 | 9 | 13 | 22 |
| 9F-08 | 13/16″X16 | 11 | 14 | 27 |
| 9F-10 | 1″X14 | 12.5 | 15 | 30 |
| 9F-12 | 1.3/16″X12 | 13 | 16 | 36 |
| 9F-16 | 1.7/16″X12 | 14 | 18 | 41 |
| 9F-20 | 1.11/16″X12 | 15 | 19 | 50 |
| 9F-24 | 2″X12 | 15 | 21 | 60 |
