SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

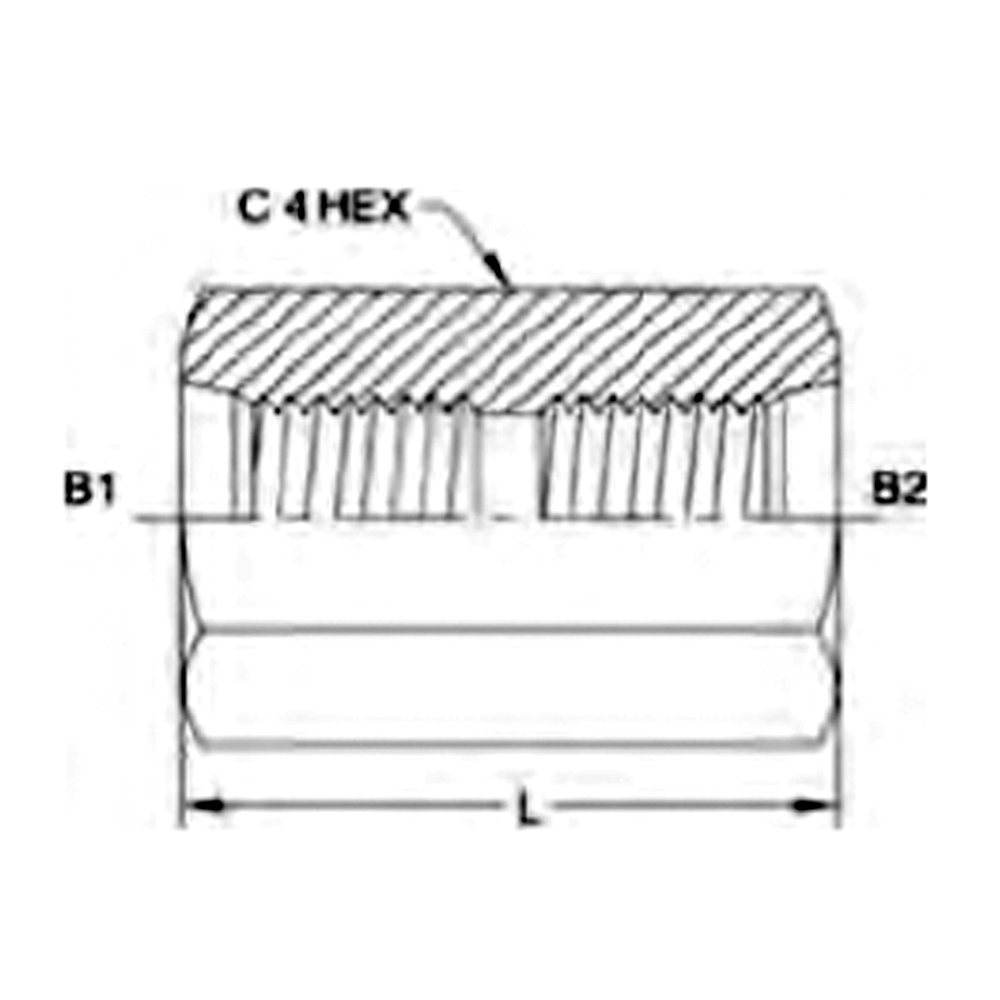

| PART NO | TUBE O.D.
(INCH) |
B1
SAEORB |
B2
SAEORB |
L
(INCH) |
C4 HEX
(INCH) |
| 6425-08-08 | 1/2 | 3/4-16 | 3/4-16 | 1.42 | 1.062 |
| 6425-10-10 | 5/8 | 7/8-14 | 7/8-14 | 1.60 | 1.125 |
| 6425-12-12 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1.84 | 1.375 |
| 6425-16-16 | 1 | 1-5/16-12 | 1-5/16-12 | 1.84 | 1.625 |
