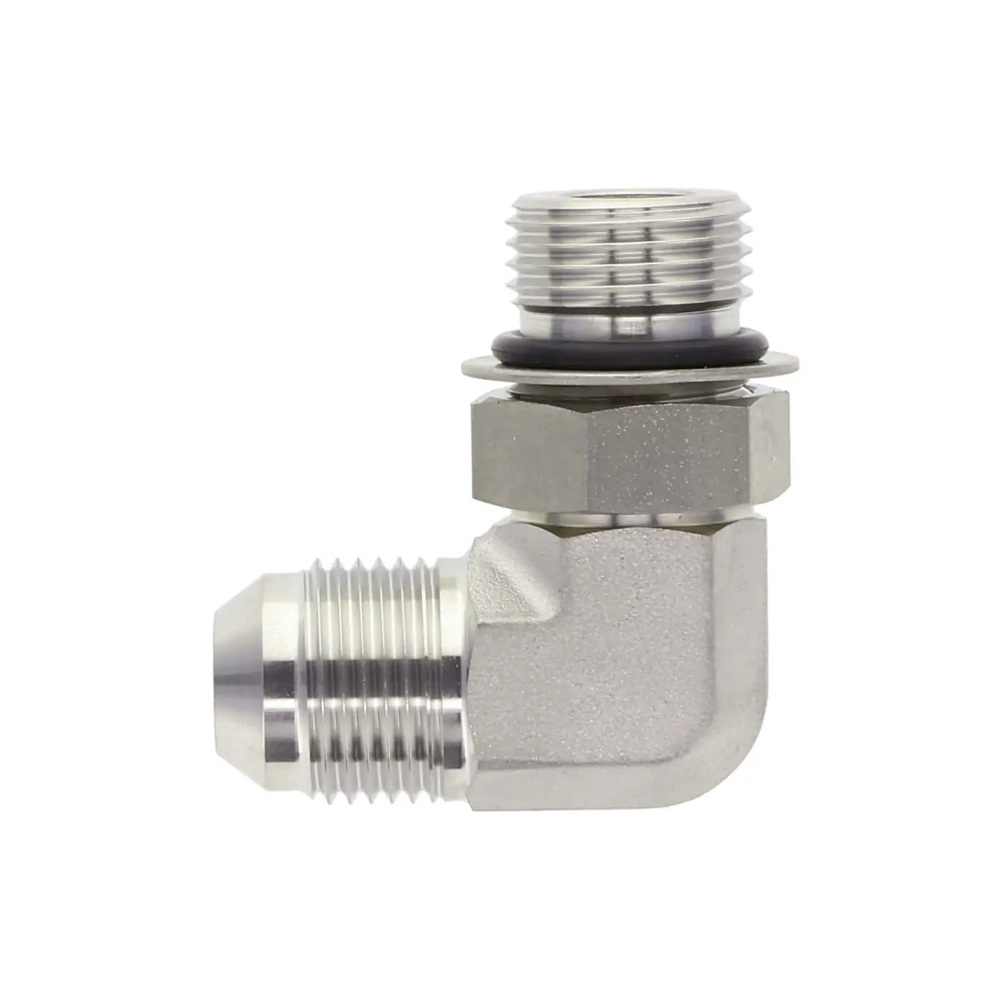

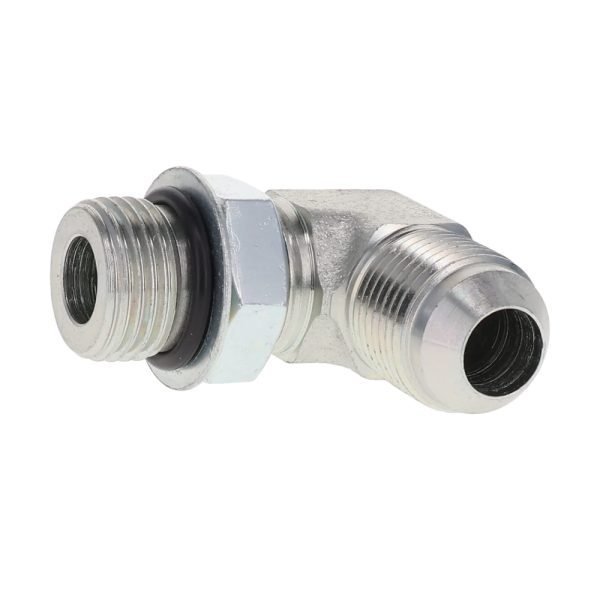

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
|

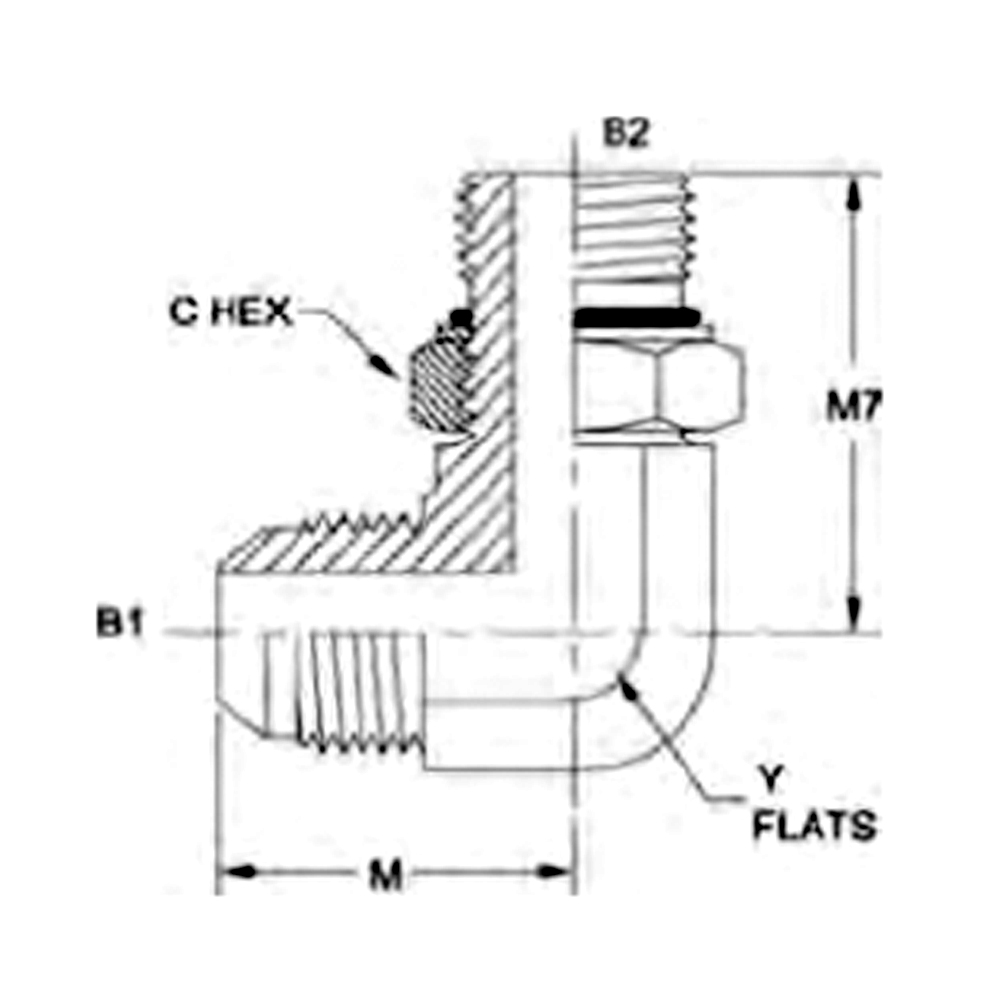

PART NO |
TUBE O.D.
(INCH) |
B1
SAE37 |
B2
SAE37 |
M
(INCH) |
M7
(INCH) |
C HEX
(INCH) |
Y FLATS (INCH) |
| 6801-02-02-NWO-FG | 1/8 | 5/16-24 | 5/16-24 | 0.77 | 0.94 | 0.438 | 0.438 |
| 6801 -02-04-NWO-FG | 1/8 | 5/16-24 | 7/16-20 | 0.78 | 1.03 | 0.563 | 0.438 |
| 6801 -03-03-NWO-FG | 3/16 | 3/8-24 | 3/8-24 | 0.83 | 0.94 | 0.500 | 0.438 |
| 6801-03-04-NWO-FG | 3/16 | 3/8-24 | 7/16-20 | 0.81 | 1.03 | 0.563 | 0.438 |
| 6801-04-02-NWO-FG | 1/4 | 7/16-20 | 5/16-24 | 0.89 | 0.92 | 0.438 | 0.438 |
| 6801-04-03-NWO-FG | 1/4 | 7/16-20 | 3/8-24 | 0.89 | 0.92 | 0.500 | 0.438 |
| 6801-04-04-NWO-FG | 1/4 | 7/16-20 | 7/16-20 | 0.89 | 1.03 | 0.563 | 0.438 |
| 6801-04-05-NWO-FG | 1/4 | 7/16-20 | 1/2-20 | 0.95 | 1.13 | 0.625 | 0.562 |
| 6801-04-06-NWO-FG | 1/4 | 7/16-20 | 9/16-18 | 1.05 | 1.25 | 0.688 | 0.562 |
| 6801-04-08-NWO-FG | 1/4 | 7/16-20 | 3/4-16 | 1.12 | 1.45 | 0.875 | 0.750 |
| 6801-05-04-NWO-FG | 5/16 | 1/2-20 | 7/16-20 | 0.95 | 1.13 | 0.563 | 0.562 |
| 6801-05-05-N WO-FG | 5/16 | 1/2-20 | 1/2-20 | 0.95 | 1.13 | 0.625 | 0.562 |
| 6801-05-06-NWO-FG | 5/16 | 1/2-20 | 9/16-18 | 1.05 | 1.25 | 0.688 | 0.562 |
| 6801-05-08-NWO-FG | 5/16 | 1/2-20 | 3/4-16 | 1.12 | 1.45 | 0.875 | 0.750 |
| 6801-05-10-NWO-FG | 5/16 | 1/2-20 | 7/8-14 | 1.21 | 1.70 | 1.000 | 0.875 |
| 6801-06-02-NWO-FG | 3/8 | 9/16-18 | 5/16-24 | 1.06 | 1.08 | 0.438 | 0.562 |
| 6801-06-04-NWO-FG | 3/8 | 9/16-18 | 7/16-20 | 1.06 | 1.19 | 0.563 | 0.562 |
| 6801-06-05-NWO-FG | 3/8 | 9/16-18 | 1/2-20 | 1.06 | 1.19 | 0.625 | 0.562 |
| 6801-06-06-N WO-FG | 3/8 | 9/16-18 | 9/16-18 | 1.06 | 1.25 | 0.688 | 0.562 |
| 6801-06-08-N WO-FG | 3/8 | 9/16-18 | 3/4-16 | 1.14 | 1.45 | 0.875 | 0.750 |
| 6801-06-10-NWO-FG | 3/8 | 9/16-18 | 7/8-14 | 1.22 | 1.70 | 1.000 | 0.875 |
| 6801-06-12-NWO-FG | 3/8 | 9/16-18 | 1-1/16-12 | 1.31 | 1.94 | 1.250 | 1.062 |
| 6801-08-04-NWO-FG | 1/2 | 3/4-16 | 7/16-20 | 1.25 | 1.26 | 0.563 | 0.750 |
| 6801-08-05-NWO-FG | 1/2 | 3/4-16 | 1/2-20 | 1.25 | 1.26 | 0.625 | 0.750 |
| 6801-08-06-NWO-FG | 1/2 | 3/4-16 | 9/16-18 | 1.25 | 1.32 | 0.688 | 0.750 |
| 6801-08-08-NWO-FG | 1/2 | 3/4-16 | 3/4-16 | 1.25 | 1.45 | 0.875 | 0.750 |
| 6801-08-10-N WO-FG | 1/2 | 3/4-16 | 7/8-14 | 1.33 | 1.70 | 1.000 | 0.875 |
| 6801-08-12-NWO-FG | 1/2 | 3/4-16 | 1-1/16-12 | 1.42 | 1.94 | 1.250 | 1.062 |
| 6801-08-16-N WO-FG | 1/2 | 3/4-16 | 1-5/16-12 | 1.52 | 2.05 | 1.500 | 1.312 |
| 6801-10-06-NWO-FG | 5/8 | 7/8-14 | 9/16-18 | 1.45 | 1.41 | 0.688 | 0.875 |
