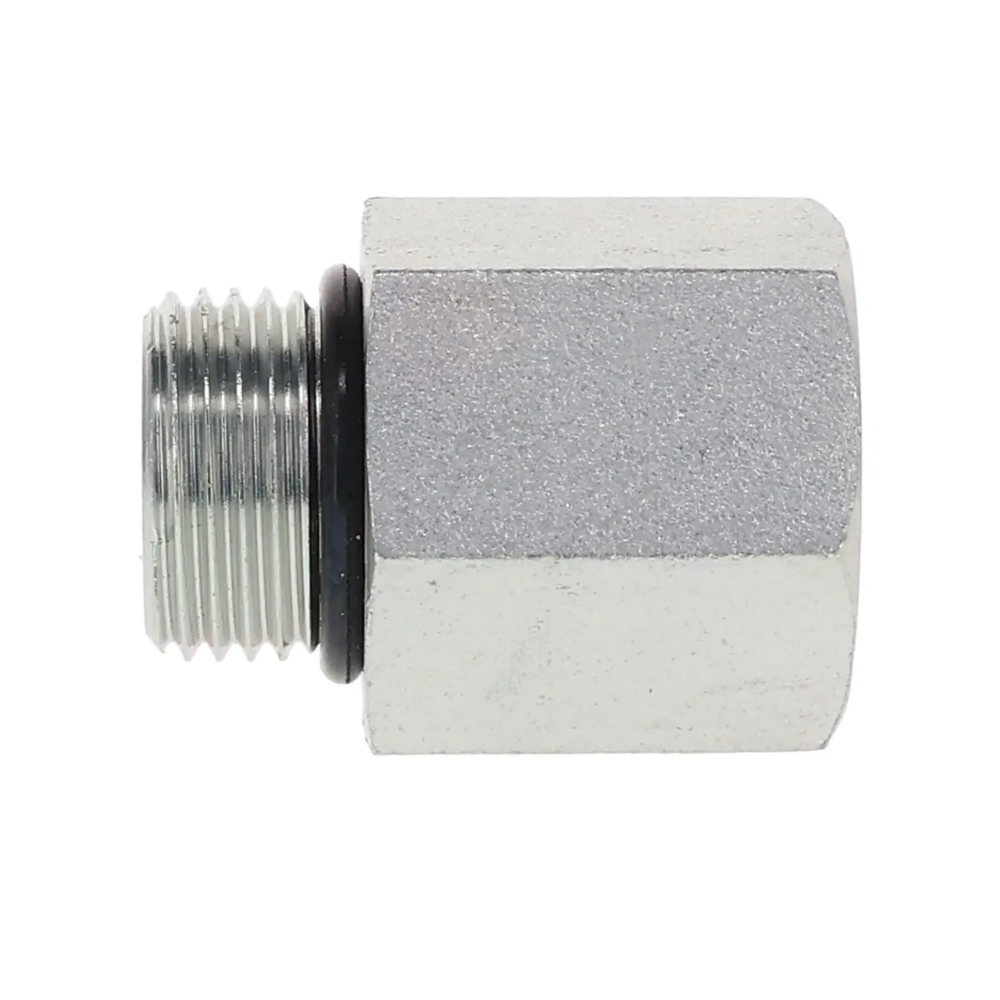

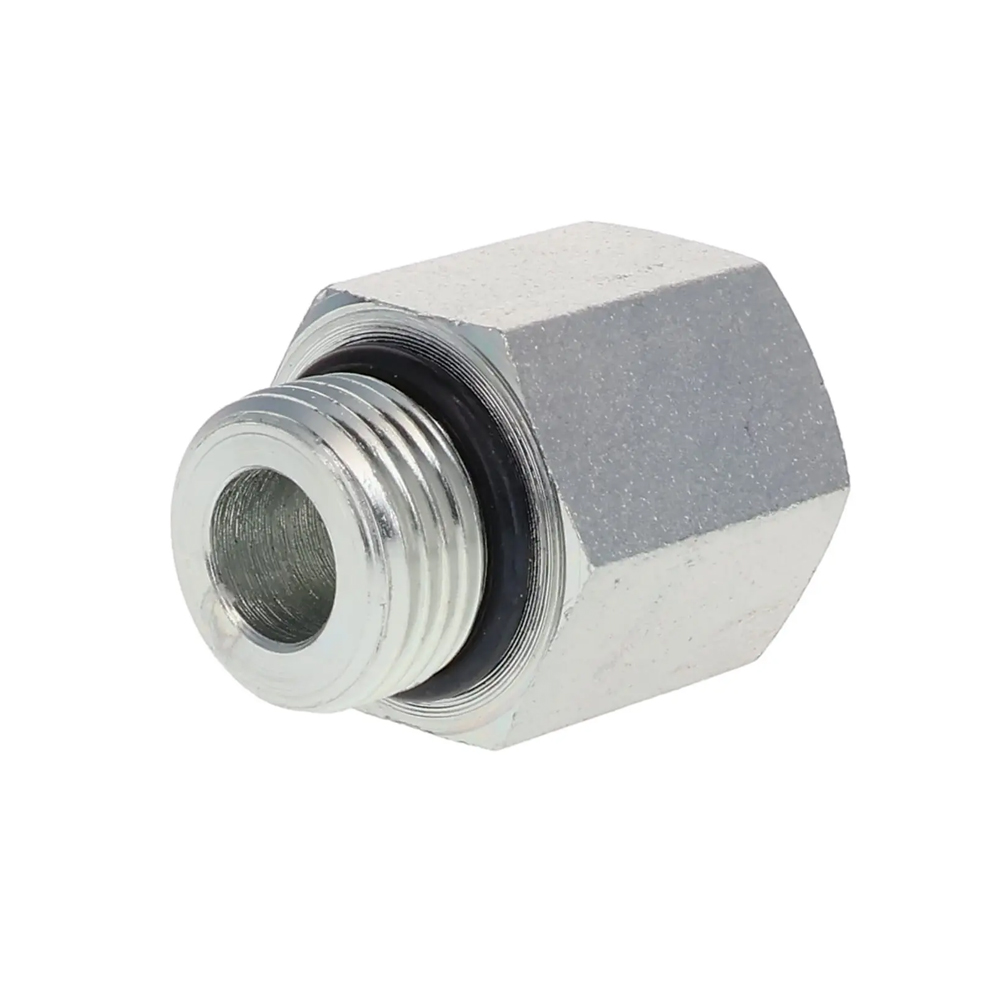

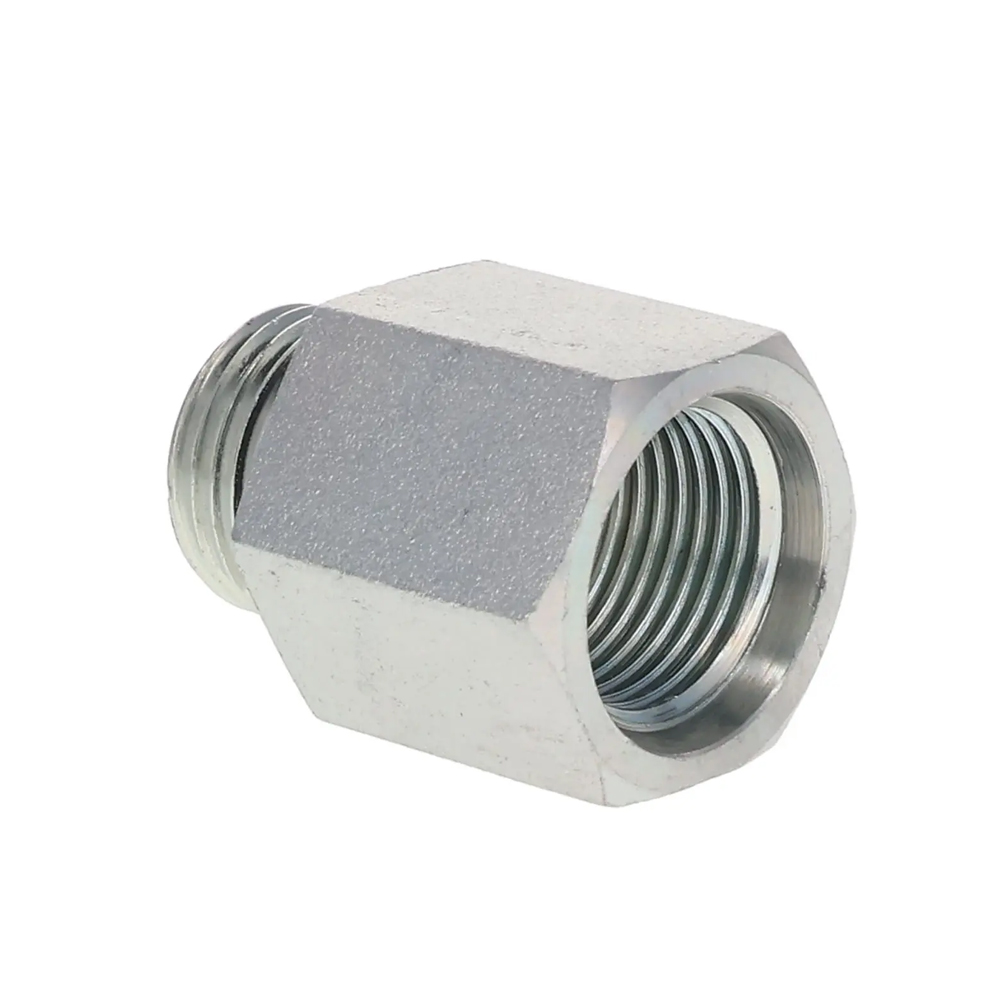

6410 ORB Male x Female SAE Reducer Adapter

Description:

6410 male-to-female SAE ORB adapter can be called a straight reducer or extender. The SAE ORB male plug fitting features a straight thread with an O-ring groove, which can create a reliable seal.

"*" indicates required fields

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

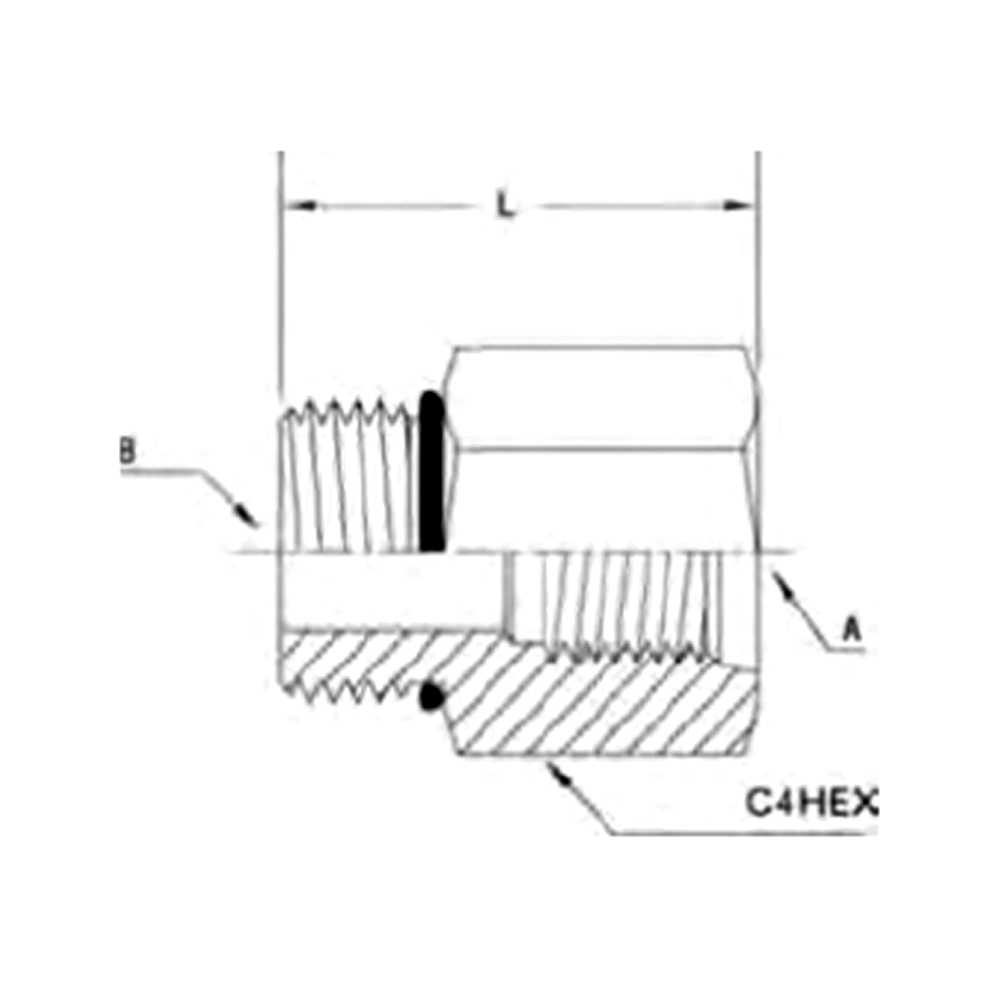

PART NO	B SAEORB	A SAEORB	B DRILL	L (INCH)	C4 HEX (INCH)
6410-02-04-0	5/16-24	7/16-20	0.062	1.13	0.688
6410-03-04-0	3/8-24	7/16-20	0.125	1.13	0.688
6410-04-02-0	7/16-20	5/16-24	0.172	1.08	0.562
6410-04-04-0	7/16-20	7/16-20	0.172	1.08	0.688
6410-04-05-0	7/16-20	1/2-20	0.172	1.24	0.750
6410-04-06-0	7/16-20	9/16-18	0.172	1.24	0.812
6410-04-08-0	7/16-20	3/4-16	0.172	1.35	1.062
6410-05-04-0	1/2-20	7/16-20	0.234	1.08	0.688
6410-05-06-0	1/2-20	9/16-18	0.234	1.24	0.812
6410-06-04-0	9/16-18	7/16-20	0.297	1.12	0.688
6410-06-06-0	9/16-18	9/16-18	0.297	1.16	0.812
6410-06-08-0	9/16-18	3/4-16	0.297	1.38	1.062
6410-06-10-0	9/16-18	7/8-14	0.297	1.48	1.125
6410-08-03-0	3/4-16	3/8-24	0.391	0.85	0.875
6410-08-04-0	3/4-16	7/16-20	0.391	1.16	0.875
6410-08-05-0	3/4-16	1/2-20	0.391	1.21	0.875
6410-08-06-0	3/4-16	9/16-18	0.391	1.21	0.875
6410-08-08-0	3/4-16	3/4-16	0.391	1.47	1.062
6410-08-10-0	3/4-16	7/8-14	0.391	1.56	1.125
6410-08-12-0	3/4-16	1-1/16-12	0.391	1.73	1.375
6410-10-04-0	7/8-14	7/16-20	0.484	0.91	1.000
6410-10-05-0	7/8-14	1/2-20	0.484	1.27	1.000
6410-10-06-0	7/8-14	9/16-18	0.484	1.27	1.000
6410-10-08-0	7/8-14	3/4-16	0.484	1.38	1.062
6410-10-12-0	7/8-14	1-1/16-12	0.484	1.79	1.375
6410-10-16-0	7/8-14	1-5/16-12	0.484	1.79	1.625
6410-12-04-0	1-1/16-12	7/16-20	0.609	1.00	1.250
6410-12-06-0	1-1/16-12	9/16-18	0.609	1.00	1.250
6410-12-08-0	1-1/16-12	3/4-16	0.609	1.48	1.250
6410-12-10-0	1-1/16-12	7/8-14	0.609	1.57	1.250
6410-12-12-0	1-1/16-12	1-1/16-12	0.609	1.73	1.375
6410-12-14-0	1-1/16-12	1-3/16-12	0.609	1.88	1.625
6410-12-16-0	1-1/16-12	1-5/16-12	0.609	1.88	1.625

Click to enlarge

Category: SAE ORB Adapters Tags: Male, ORB, 6410, Female

Description
Package& Shipping

Description

PART NO	B SAEORB	A SAEORB	B DRILL	L (INCH)	C4 HEX (INCH)
6410-02-04-0	5/16-24	7/16-20	0.062	1.13	0.688
6410-03-04-0	3/8-24	7/16-20	0.125	1.13	0.688
6410-04-02-0	7/16-20	5/16-24	0.172	1.08	0.562
6410-04-04-0	7/16-20	7/16-20	0.172	1.08	0.688
6410-04-05-0	7/16-20	1/2-20	0.172	1.24	0.750
6410-04-06-0	7/16-20	9/16-18	0.172	1.24	0.812
6410-04-08-0	7/16-20	3/4-16	0.172	1.35	1.062
6410-05-04-0	1/2-20	7/16-20	0.234	1.08	0.688
6410-05-06-0	1/2-20	9/16-18	0.234	1.24	0.812
6410-06-04-0	9/16-18	7/16-20	0.297	1.12	0.688
6410-06-06-0	9/16-18	9/16-18	0.297	1.16	0.812
6410-06-08-0	9/16-18	3/4-16	0.297	1.38	1.062
6410-06-10-0	9/16-18	7/8-14	0.297	1.48	1.125
6410-08-03-0	3/4-16	3/8-24	0.391	0.85	0.875
6410-08-04-0	3/4-16	7/16-20	0.391	1.16	0.875
6410-08-05-0	3/4-16	1/2-20	0.391	1.21	0.875
6410-08-06-0	3/4-16	9/16-18	0.391	1.21	0.875
6410-08-08-0	3/4-16	3/4-16	0.391	1.47	1.062
6410-08-10-0	3/4-16	7/8-14	0.391	1.56	1.125
6410-08-12-0	3/4-16	1-1/16-12	0.391	1.73	1.375
6410-10-04-0	7/8-14	7/16-20	0.484	0.91	1.000
6410-10-05-0	7/8-14	1/2-20	0.484	1.27	1.000
6410-10-06-0	7/8-14	9/16-18	0.484	1.27	1.000
6410-10-08-0	7/8-14	3/4-16	0.484	1.38	1.062
6410-10-12-0	7/8-14	1-1/16-12	0.484	1.79	1.375
6410-10-16-0	7/8-14	1-5/16-12	0.484	1.79	1.625
6410-12-04-0	1-1/16-12	7/16-20	0.609	1.00	1.250
6410-12-06-0	1-1/16-12	9/16-18	0.609	1.00	1.250
6410-12-08-0	1-1/16-12	3/4-16	0.609	1.48	1.250
6410-12-10-0	1-1/16-12	7/8-14	0.609	1.57	1.250
6410-12-12-0	1-1/16-12	1-1/16-12	0.609	1.73	1.375
6410-12-14-0	1-1/16-12	1-3/16-12	0.609	1.88	1.625
6410-12-16-0	1-1/16-12	1-5/16-12	0.609	1.88	1.625

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
