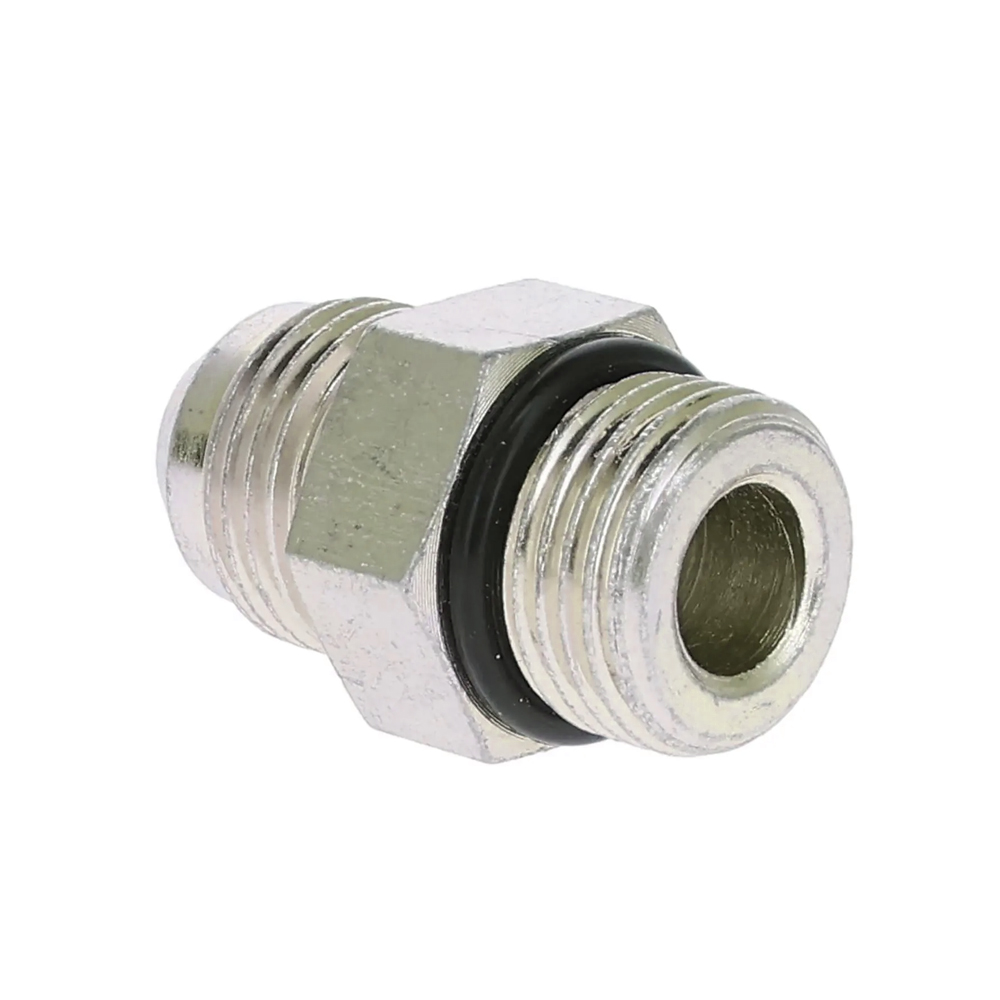

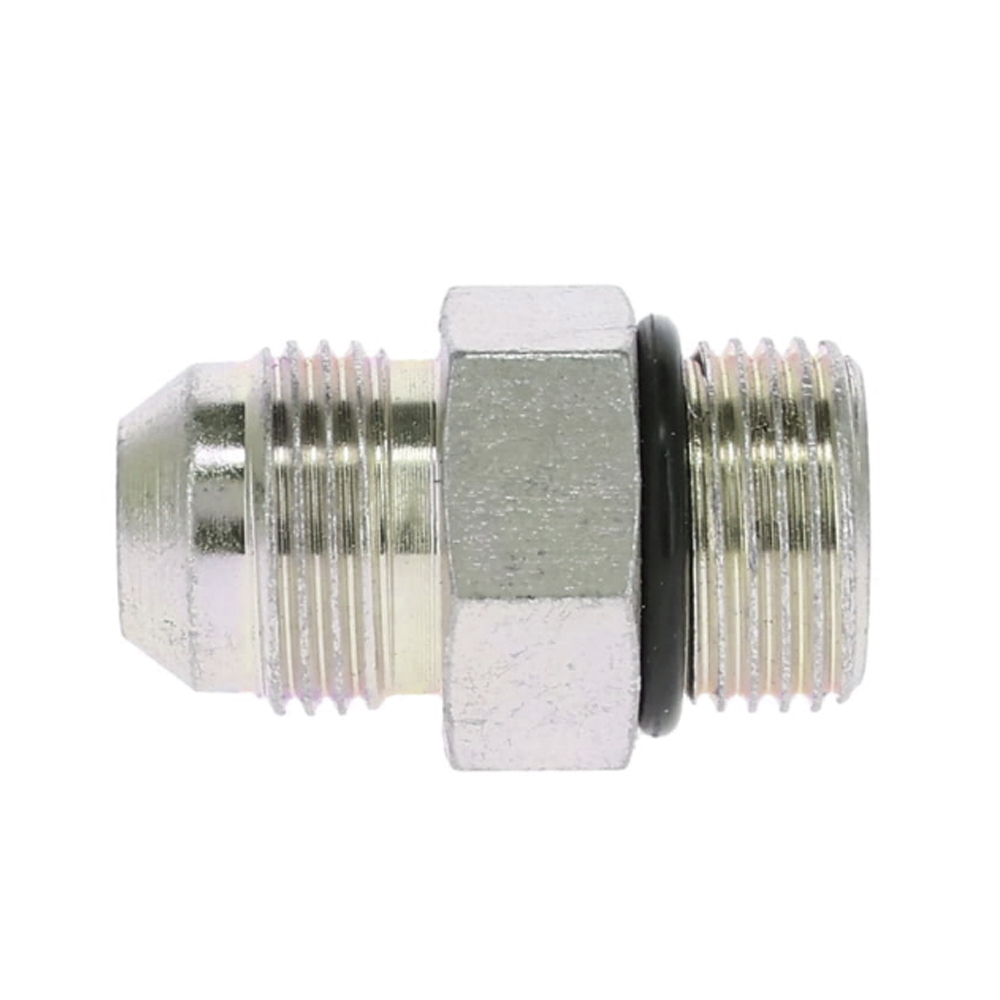

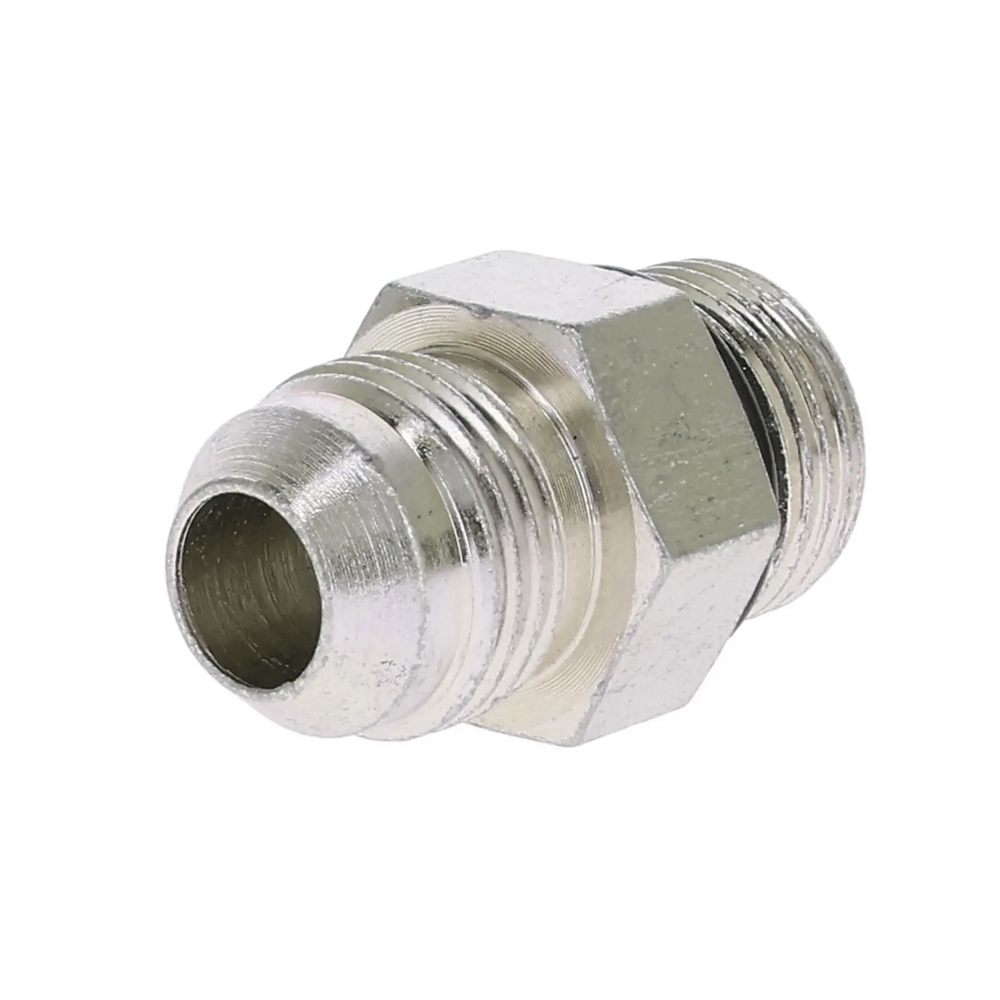

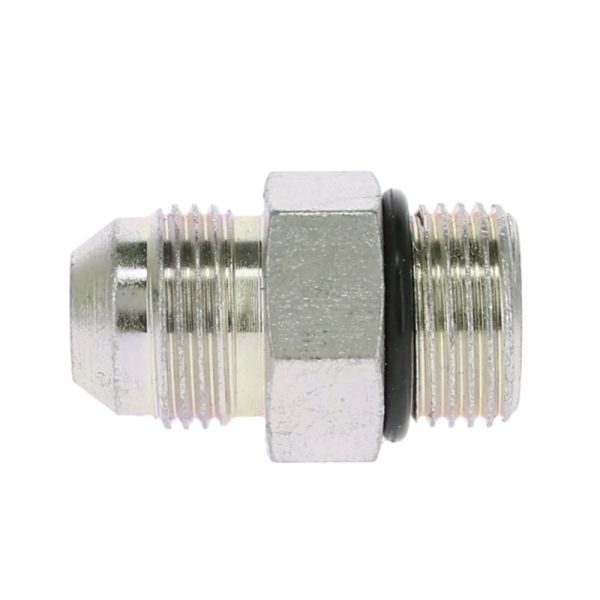

6400 JIC SAE Flare Male x O-ring Boss Adapter

Description:

6400 male SAE JIC thread×ORB SAE fitting is a hybrid component designed to facilitate connections between JIC 37-degree flare and ORB straight thread.

"*" indicates required fields

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

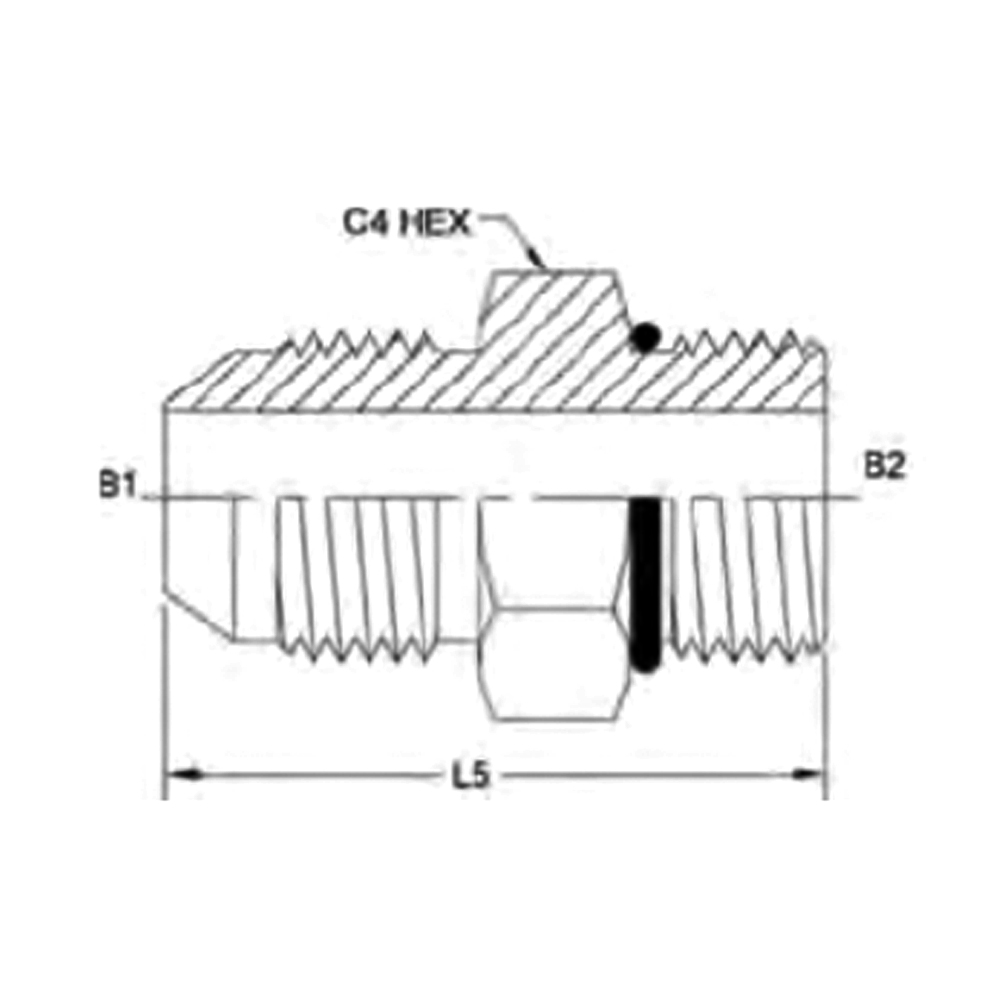

PART NO	TUBE O.D.(INCH)	B1 SAE37	B2 SAEORB	L5 (INCH)	C4 HEX (INCH)
6400-02-02-0	1/8	5/16-24	5/16-24	1.06	0.438
6400-02-06-0	1/8	5/16-24	9/16-18	1.19	0.688
6400-03-02-0	3/16	3/8-24	5/16-24	1.10	0.500
6400-03-03-0	3/16	3/8-24	3/8-24	1.10	0.500
6400-03-04-0	1/4	3/8-24	7/16-20	1.16	0.562
6400-04-02-0	1/4	7/16-20	5/16-24	1.17	0.500
6400-04-03-0	1/4	7/16-20	3/8-24	1.17	0.562
6400-04-04-0	1/4	7/16-20	7/16-20	1.23	0.562
6400-04-05-0	1/4	7/16-20	1/2-20	1.23	0.625
6400-04-06-0	1/4	7/16-20	9/16-18	1.29	0.688
6400-04-08-0	1/4	7/16-20	3/4-16	1.37	0.875
6400-04-10-0	1/4	7/16-20	7/8-14	1.49	1.000
6400-04-12-0	1/4	7/16-20	1-1/16-12	1.66	1.250
6400-05-04-0	5/16	1/2-20	7/16-20	1.23	0.562
6400-05-05-0	5/16	1/2-20	1/2-20	1.23	0.625
6400-05-06-0	5/16	1/2-20	9/16-18	1.29	0.688
6400-05-08-0	5/16	1/2-20	3/4-16	1.37	0.875
6400-05-10-0	5/16	1/2-20	7/8-14	1.49	1.000
6400-06-03-0	3/8	9/16-18	3/8-24	1.30	0.687
6400-06-04-0	3/8	9/16-18	7/16-20	1.27	0.687
6400-06-05-0	3/8	9/16-18	1/2-20	1.27	0.687
6400-06-06-0	3/8	9/16-18	9/16-18	1.30	0.688
6400-06-08-0	3/8	9/16-18	3/4-16	1.38	0.875
6400-06-10-0	3/8	9/16-18	7/8-14	1.50	1.000
6400-06-12-0	3/8	9/16-18	1-1/16-12	1.66	1.250
6400-06-16-0	3/8	9/16-18	1-5/16-12	1.68	1.500
6400-08-04-0	1/2	3/4-16	7/16-20	1.49	0.875
6400-08-05-0	1/2	3/4-16	1/2-20	1.49	0.875
6400-08-06-0	1/2	3/4-16	9/16-18	1.44	0.812
6400-08-08-0	1/2	3/4-16	3/4-16	1.48	0.875
6400-08-10-0	1/2	3/4-16	7/8-14	1.60	1.000
6400-08-12-0	1/2	3/4-16	1-1/16-12	1.76	1.250

Click to enlarge

Category: SAE ORB Adapters Tags: Male, JIC, ORB, 6400

Description
Package& Shipping

Description

PART NO	TUBE O.D.(INCH)	B1 SAE37	B2 SAEORB	L5 (INCH)	C4 HEX (INCH)
6400-02-02-0	1/8	5/16-24	5/16-24	1.06	0.438
6400-02-06-0	1/8	5/16-24	9/16-18	1.19	0.688
6400-03-02-0	3/16	3/8-24	5/16-24	1.10	0.500
6400-03-03-0	3/16	3/8-24	3/8-24	1.10	0.500
6400-03-04-0	1/4	3/8-24	7/16-20	1.16	0.562
6400-04-02-0	1/4	7/16-20	5/16-24	1.17	0.500
6400-04-03-0	1/4	7/16-20	3/8-24	1.17	0.562
6400-04-04-0	1/4	7/16-20	7/16-20	1.23	0.562
6400-04-05-0	1/4	7/16-20	1/2-20	1.23	0.625
6400-04-06-0	1/4	7/16-20	9/16-18	1.29	0.688
6400-04-08-0	1/4	7/16-20	3/4-16	1.37	0.875
6400-04-10-0	1/4	7/16-20	7/8-14	1.49	1.000
6400-04-12-0	1/4	7/16-20	1-1/16-12	1.66	1.250
6400-05-04-0	5/16	1/2-20	7/16-20	1.23	0.562
6400-05-05-0	5/16	1/2-20	1/2-20	1.23	0.625
6400-05-06-0	5/16	1/2-20	9/16-18	1.29	0.688
6400-05-08-0	5/16	1/2-20	3/4-16	1.37	0.875
6400-05-10-0	5/16	1/2-20	7/8-14	1.49	1.000
6400-06-03-0	3/8	9/16-18	3/8-24	1.30	0.687
6400-06-04-0	3/8	9/16-18	7/16-20	1.27	0.687
6400-06-05-0	3/8	9/16-18	1/2-20	1.27	0.687
6400-06-06-0	3/8	9/16-18	9/16-18	1.30	0.688
6400-06-08-0	3/8	9/16-18	3/4-16	1.38	0.875
6400-06-10-0	3/8	9/16-18	7/8-14	1.50	1.000
6400-06-12-0	3/8	9/16-18	1-1/16-12	1.66	1.250
6400-06-16-0	3/8	9/16-18	1-5/16-12	1.68	1.500
6400-08-04-0	1/2	3/4-16	7/16-20	1.49	0.875
6400-08-05-0	1/2	3/4-16	1/2-20	1.49	0.875
6400-08-06-0	1/2	3/4-16	9/16-18	1.44	0.812
6400-08-08-0	1/2	3/4-16	3/4-16	1.48	0.875
6400-08-10-0	1/2	3/4-16	7/8-14	1.60	1.000
6400-08-12-0	1/2	3/4-16	1-1/16-12	1.76	1.250

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
