JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

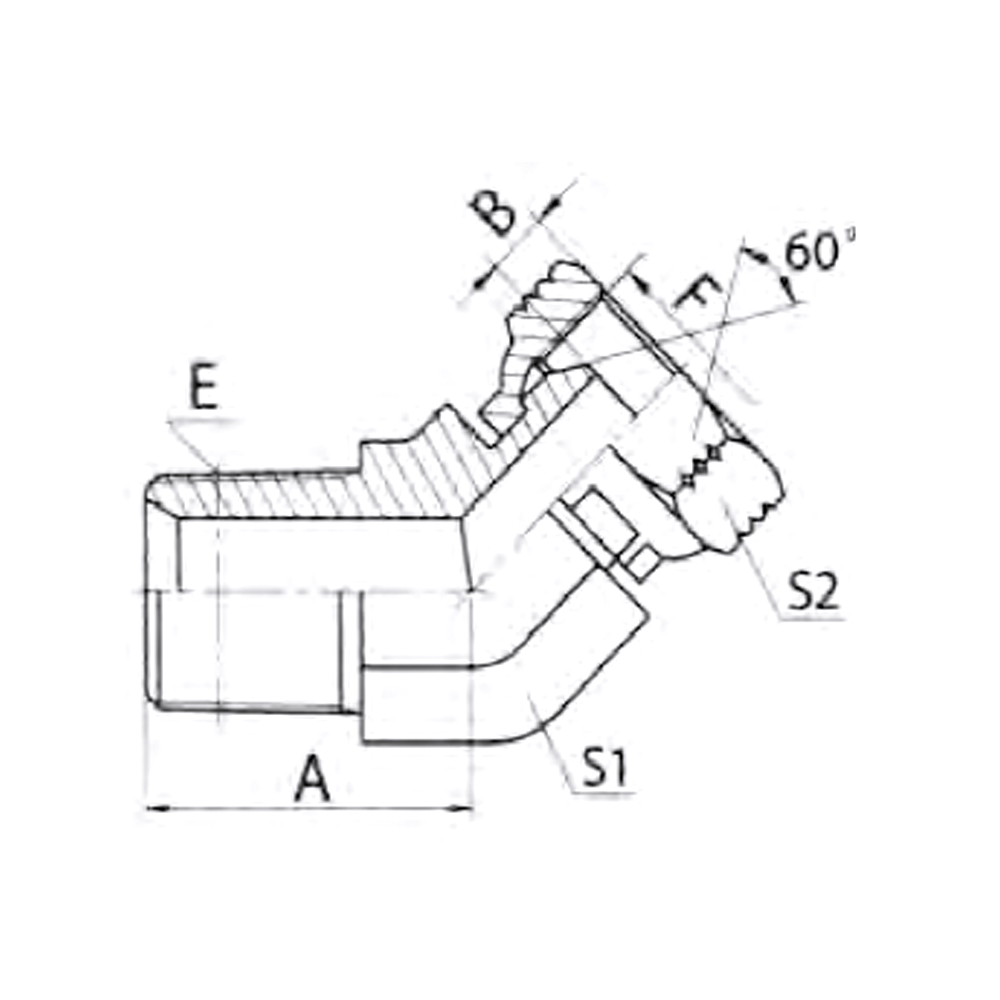

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | S1 | S2 | |
| 2NU4-02 | Z1/8″X27 | 1/8″X27 | 17 | 6 | 11 | 15 |
| 2NU4-04 | Z1/4″X18 | 1/4″X18 | 21 | 5 | 14 | 19 |
| 2NU4-04-06 | Z1/4″X18 | 3/8″X18 | 21 | 6.5 | 14 | 22 |
| 2NU4-06 | Z3/8″X18 | 3/8″X18 | 24 | 6.5 | 19 | 22 |
| 2NU4-06-04 | Z3/8″X18 | 1/4″X18 | 24 | 5 | 19 | 19 |
| 2NU4-06-08 | Z3/8″X18 | 1/2″X14 | 24 | 7.8 | 19 | 27 |
| 2NU4-08 | Z1/2″X14 | 1/2″X14 | 29.5 | 7.8 | 22 | 27 |
| 2NU4-08-06 | Z1/2″X14 | 3/8″X18 | 29.5 | 6.5 | 22 | 22 |
| 2NU4-08-12 | Z1/2″X14 | 3/4″X14 | 31 | 10.5 | 27 | 32 |
| 2NU4-12 | Z3/4″X14 | 3/4″X14 | 35 | 10.5 | 27 | 32 |
| 2NU4-12-08 | Z3/4″X14 | 1/2″X14 | 35 | 7.8 | 27 | 27 |
| 2NU4-12-16 | Z3/4″X14 | 1″X11.5 | 35.5 | 11 | 30 | 41 |
| 2NU4-16 | Z1″X11.5 | 1″X11.5 | 39 | 11 | 33 | 41 |
| 2NU4-16-12 | Z1″X11.5 | 3/4″X14 | 39 | 10.5 | 33 | 32 |
| 2NU4-20 | Z1.1/4″X11.5 | 1.1/4″X11.5 | 42.5 | 11.5 | 41 | 50 |
| 2NU4-24 | Z1.1/2″X11.5 | 1.1/2″X11.5 | 45 | 12.5 | 48 | 55 |
| 2NU4-32 | Z2″X11 | 2″X11.5 | 50 | 16 | 63 | 70 |
