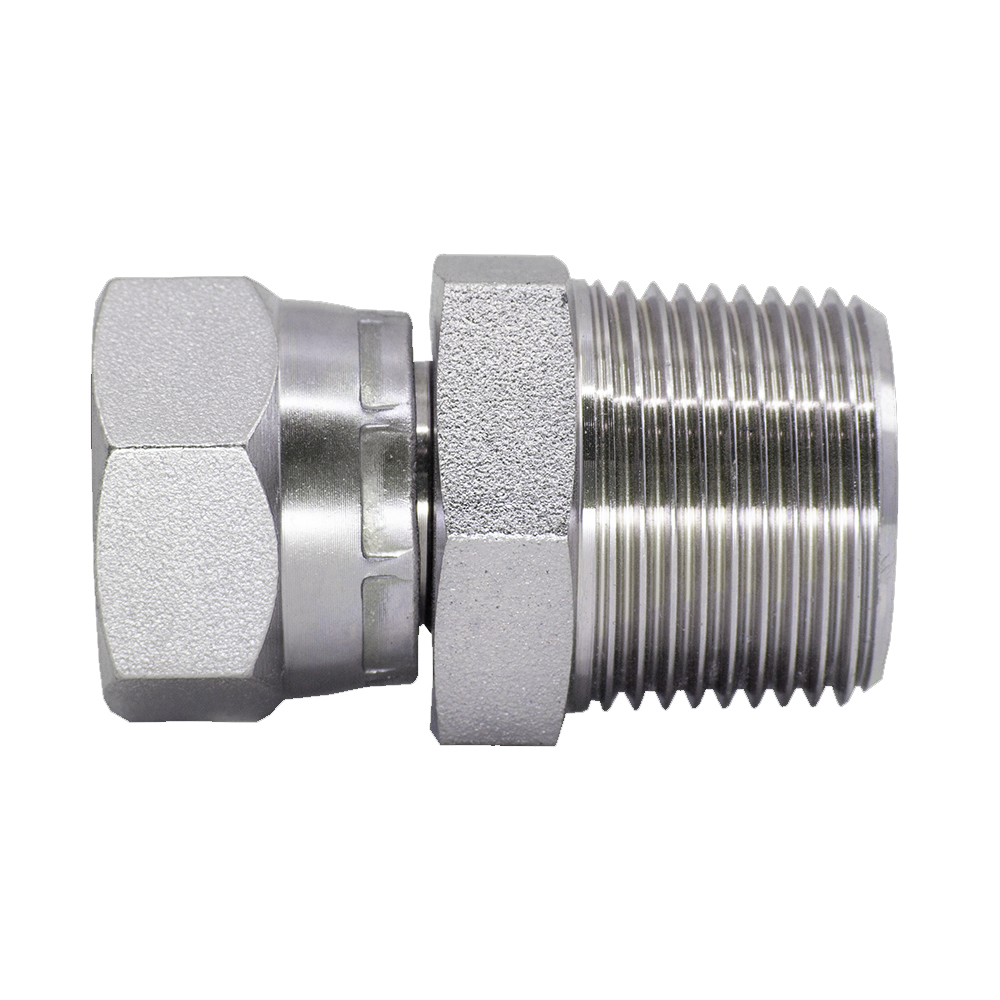

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S1 | S2 | |
| 2TB-02SP | R1/8″X28 | G1/8″X28 | 10 | 6 | 25 | 12 | 14 |
| 2TB-04SP | R1/4″X19 | G1/4″X19 | 14.5 | 5 | 31.5 | 17 | 19 |
| 2TB-06SP | R3/8″X19 | G3/8″X19 | 15 | 6.5 | 33 | 19 | 22 |
| 2TB-06-04SP | R3/8″X19 | G1/4″X19 | 15 | 5 | 32 | 19 | 19 |
| 2TB-06-08SP | R3/8″X19 | G1/2″X14 | 15 | 7.8 | 35 | 19 | 27 |
| 2TB-08SP | R1/2″X14 | G1/2″X14 | 20 | 7.8 | 42 | 22 | 27 |
| 2TB-08-06SP | R1/2″X14 | G3/8″X19 | 20 | 6.5 | 40 | 22 | 22 |
| 2TB-08-12SP | R1/2″X14 | G3/4″X14 | 20 | 10.5 | 45 | 27 | 32 |
| 2TB-12SP | R3/4″X14 | G3/4″X14 | 20 | 10.5 | 45 | 30 | 32 |
| 2TB-12-08SP | R3/4″X14 | G1/2″X14 | 20 | 7.8 | 44 | 30 | 27 |
| 2TB-12-16SP | R3/4″X14 | G1″X11 | 20 | 11 | 47 | 32 | 41 |
| 2TB-16SP | R1″X11 | G1″X11 | 25.5 | 11 | 52.5 | 36 | 41 |
| 2TB-16-12SP | R1″X11 | G3/4″X14 | 25.5 | 10.5 | 51.5 | 36 | 32 |
| 2TB-20-16SP | R1.1/4″X11 | G1″X11 | 26.5 | 11 | 55.5 | 46 | 41 |
| 2TB-20SP | R1.1/4″X11 | G1.1/4″X11 | 26.5 | 11.5 | 58 | 46 | 50 |
| 2TB-24SP | R1.1/2″X11 | G1.1/2″X11 | 26.5 | 12.5 | 60.5 | 50 | 55 |
| 2TB-32SP | R2″X11 | G2″X11 | 30 | 17 | 68 | 65 | 70 |
