Home Hydraulic Hose Fittings JIC 37° Hose Fittings 26711 JIC 74°Cone Seat Hydraulic Hose Fittings
16711 JIC 37° Male Hose Pipe Fittings
Back to products

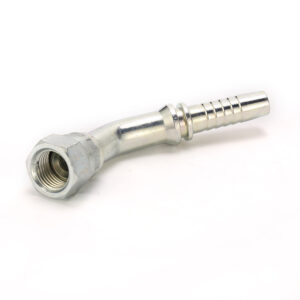

26741 45 Elbow JIC 74° Cone Seat Hose Fittings
Click to enlarge

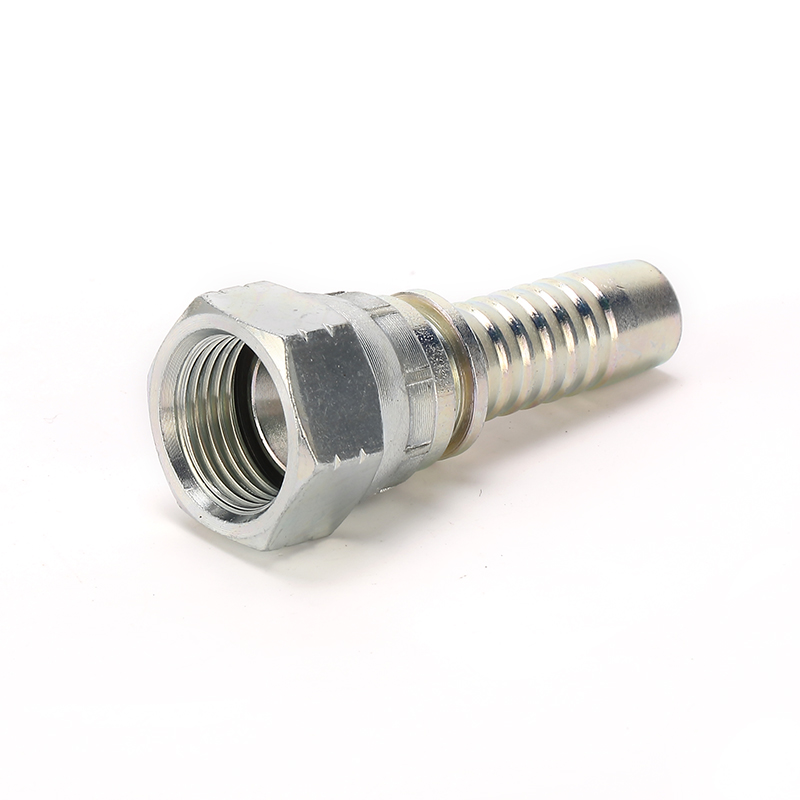

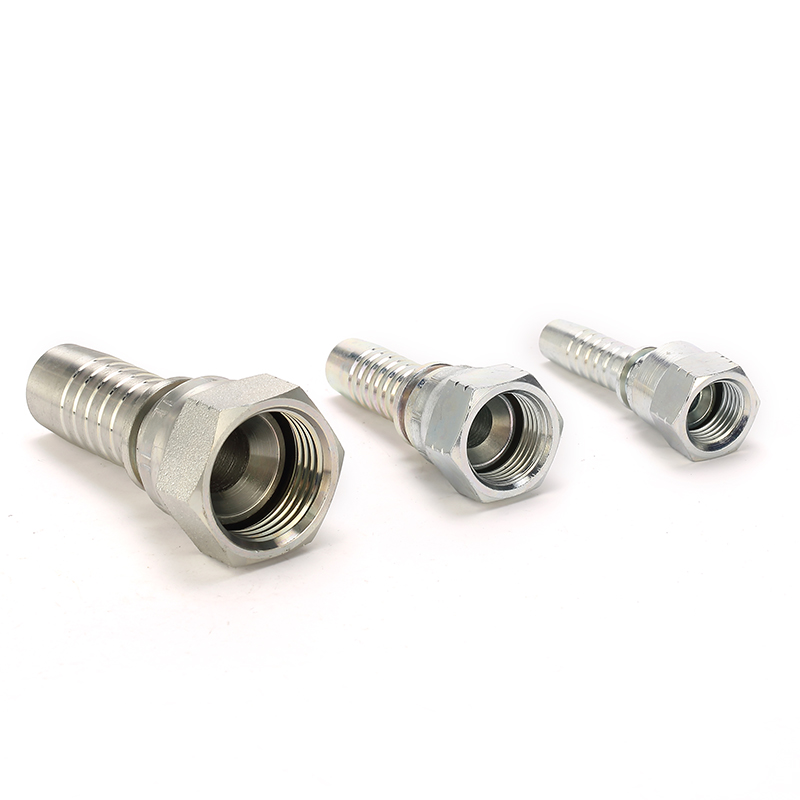

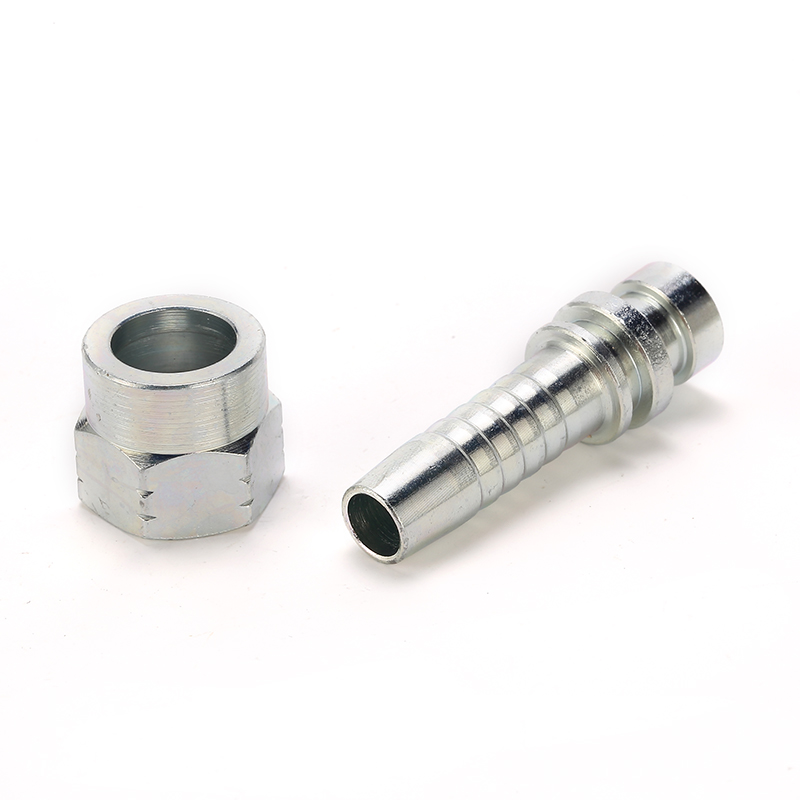

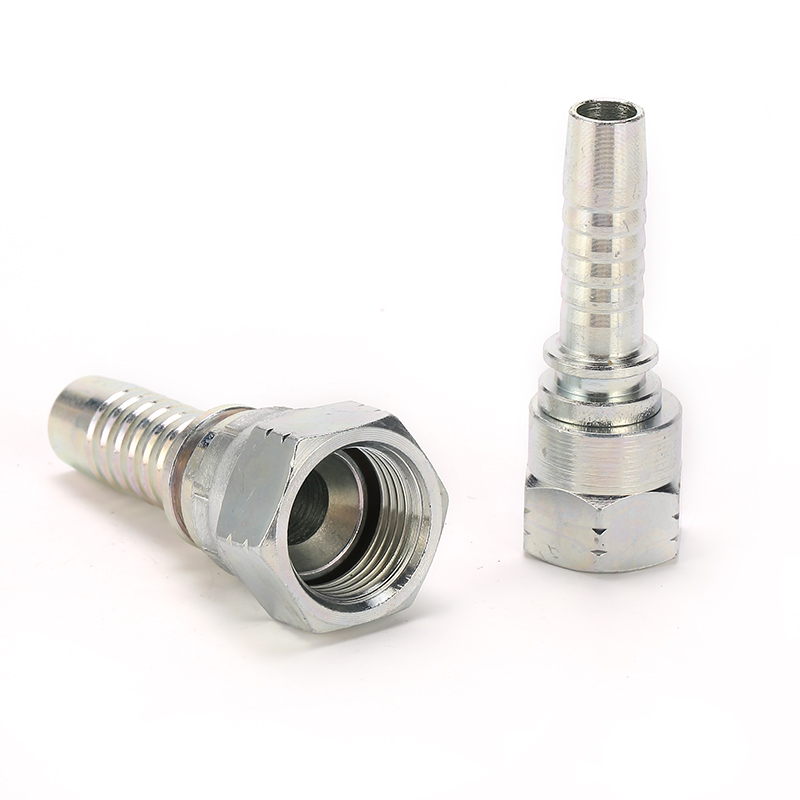

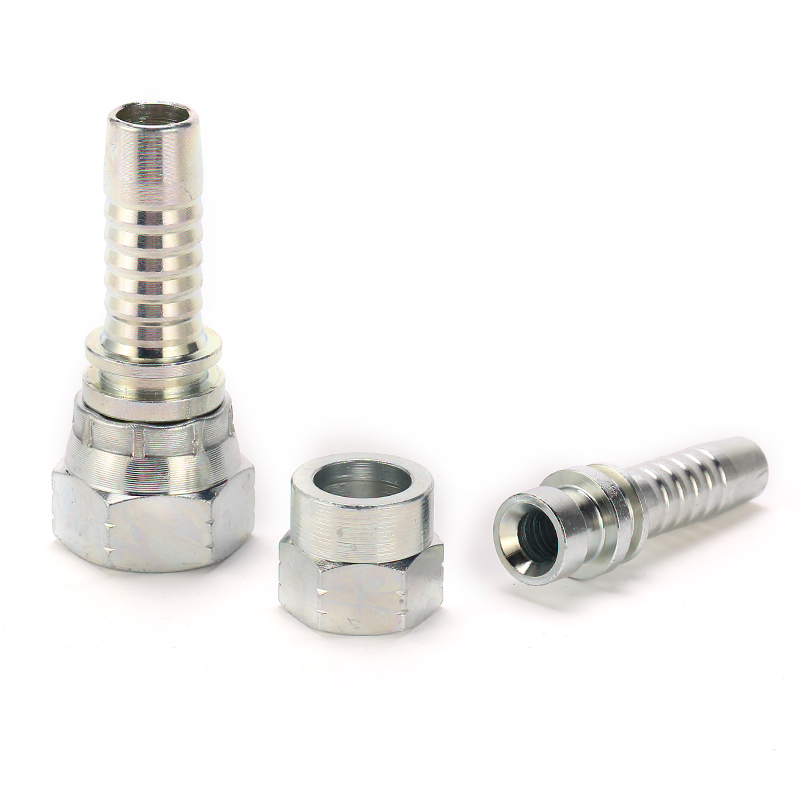

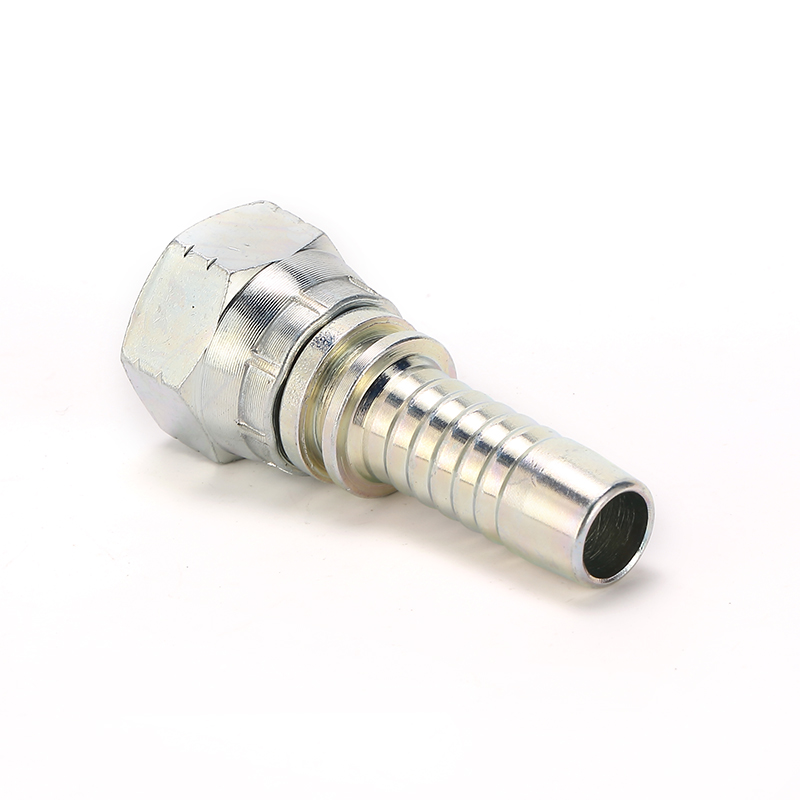

26711 JIC 74°Cone Seat Hydraulic Hose Fittings

Description:

The 26711 JIC hydraulic hose fitting is a female fitting designed with a 37-degree cone. As defined by SAE J514, JIC fittings are a compression fitting that features a 37-degree flared seating surface and parallel threads. JIC fittings are widely used for hydraulic connections in many fluid power systems.

INQUIRE NOW

"*" indicates required fields

Category: JIC 37° Hose Fittings Tags: Female, Carbon Steel, JIC, hydraulic fitting
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

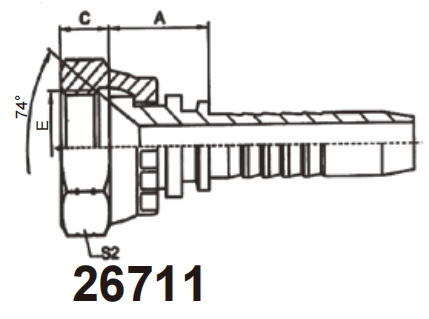

PART NO THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
26711-04-03 7/16″X20 5 03 14.5 9 15
26711-04-04 7/16″X20 6 04 15 9 15
26711-05-04 1/2″X20 6 04 15.5 9.5 17
26711-05-05 1/2″X20 8 05 15.5 9.5 17
26711-05-06 1/2″X20 10 06 15.5 9.5 17
26711-06-04 9/16″X18 6 04 15.5 10.5 19
26711-06-05 9/16″X18 8 05 15.5 10.5 19
26711-06-06 9/16″X18 10 06 15.5 10.5 19
26711-06-08 9/16″X18 12 08 16 10.5 19
26711-08-06 3/4″X16 10 06 17.5 11 24
26711-08-08 3/4″X16 12 08 18 11 24
26711-08-10 3/4″X16 16 10 19.5 11 24
26711-10-08 7/8″X14 12 08 18.5 13 27
26711-10-10 7/8″X14 16 10 20 13 27
26711-10-12 7/8″X14 20 12 20 13 27
26711-12-08T 1.1/16″X12 12 08 19 15 32
26711-12-10 1.1/16″X12 16 10 21.5 15 32
26711-12-12 1.1/16″X12 20 12 21.5 15 32
26711-12-16 1.1/16″X12 25 16 23 15 32
26711-14-12 1.3/16″X12 20 12 21.5 15 36
26711-16-12T 1.5/16″X12 20 12 18.5 16 41
26711-16-16 1.5/16″X12 25 16 23 16 41
26711-16-20 1.5/16″X12 32 20 24 16 41
26711-20-16T 1.5/8″X12 25 16 23 17 50
26711-20-20W 1.5/8″X12 32 20 26 17 50
26711-24-20W 1.7/8″X12 32 20 26.5 20 55
26711-24-24W 1.7/8″X12 40 24 26.5 20 55
26711-32-24T 2.1/2″X12 40 24 27 23.5 75
26711-32-32T 2.1/2″X12 50 32 27 23.5 75
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
