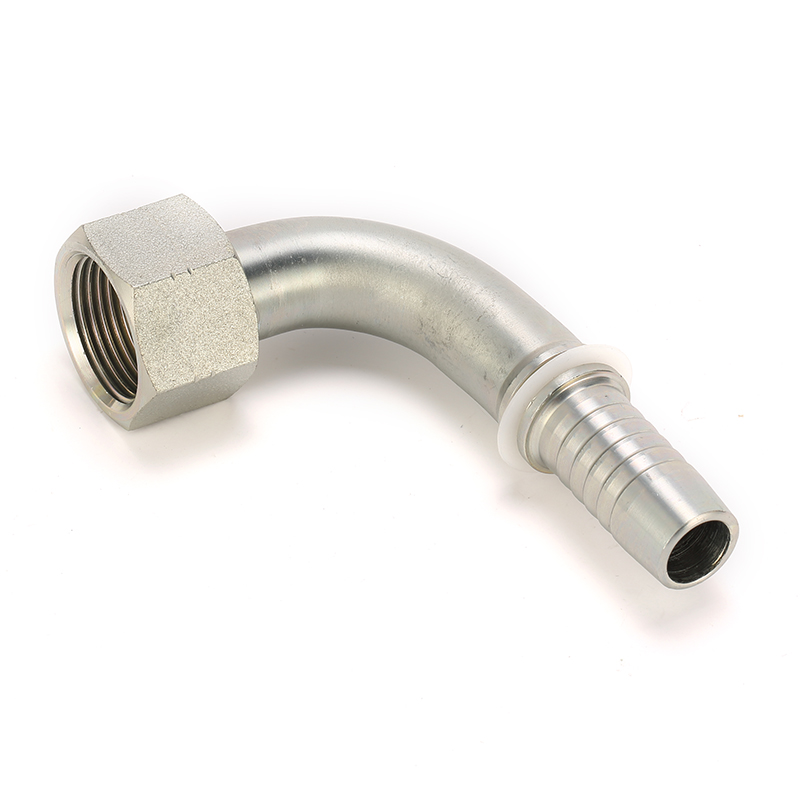

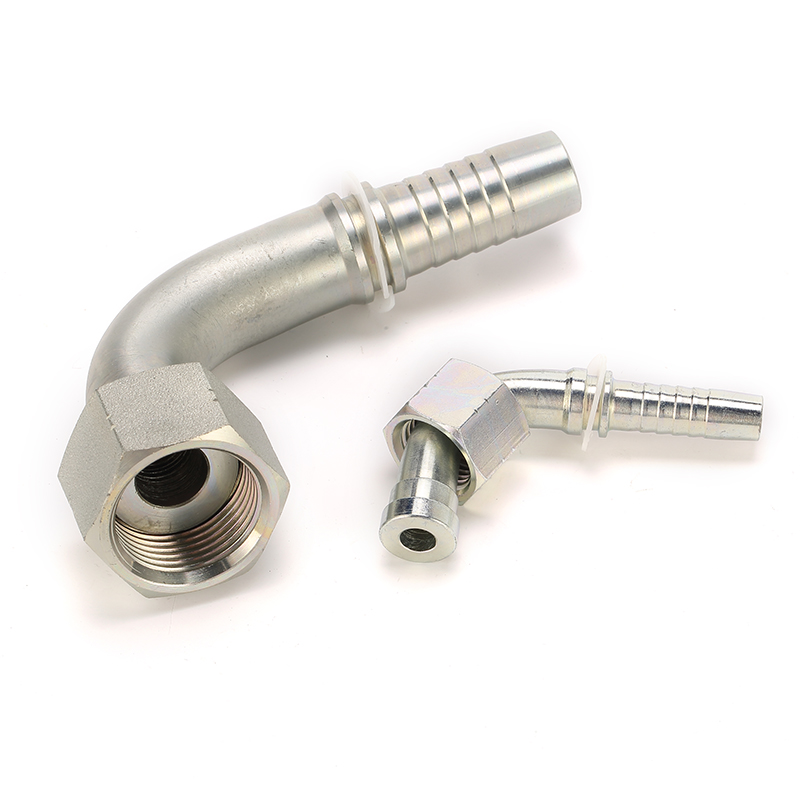

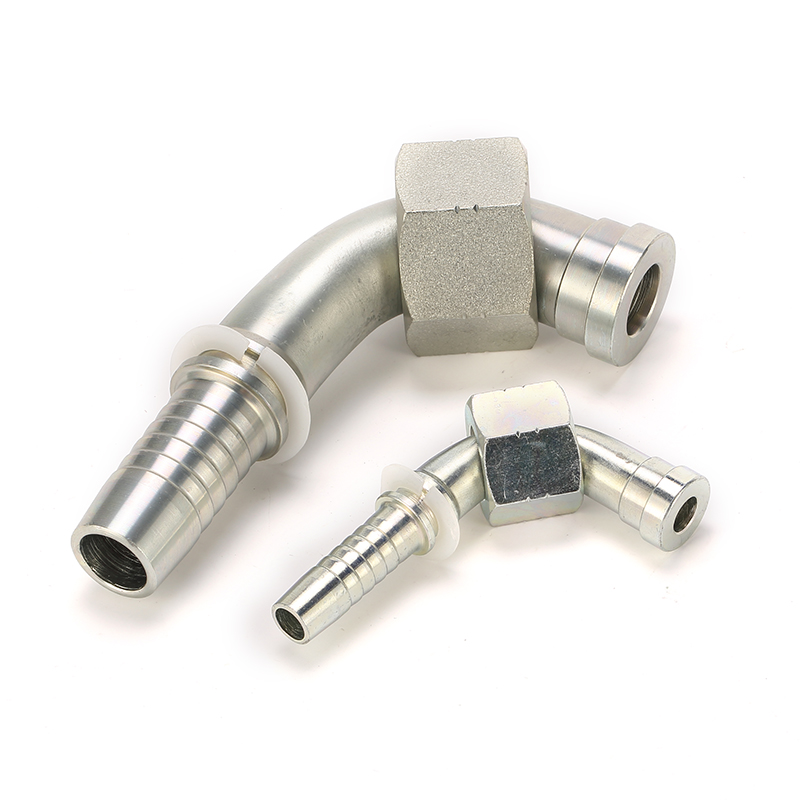

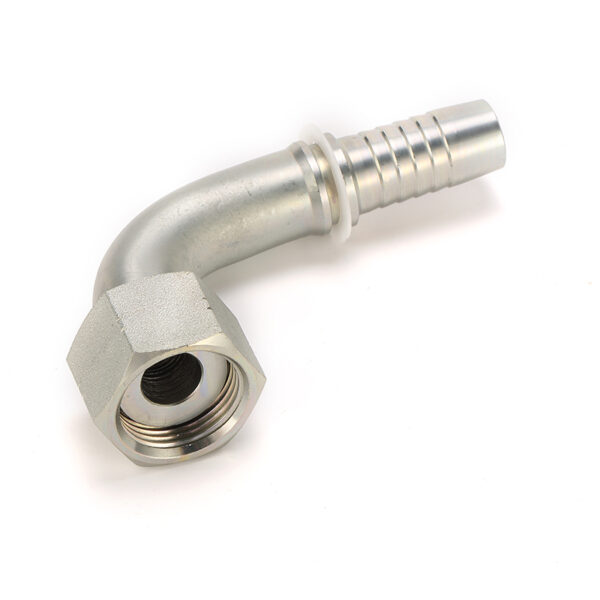

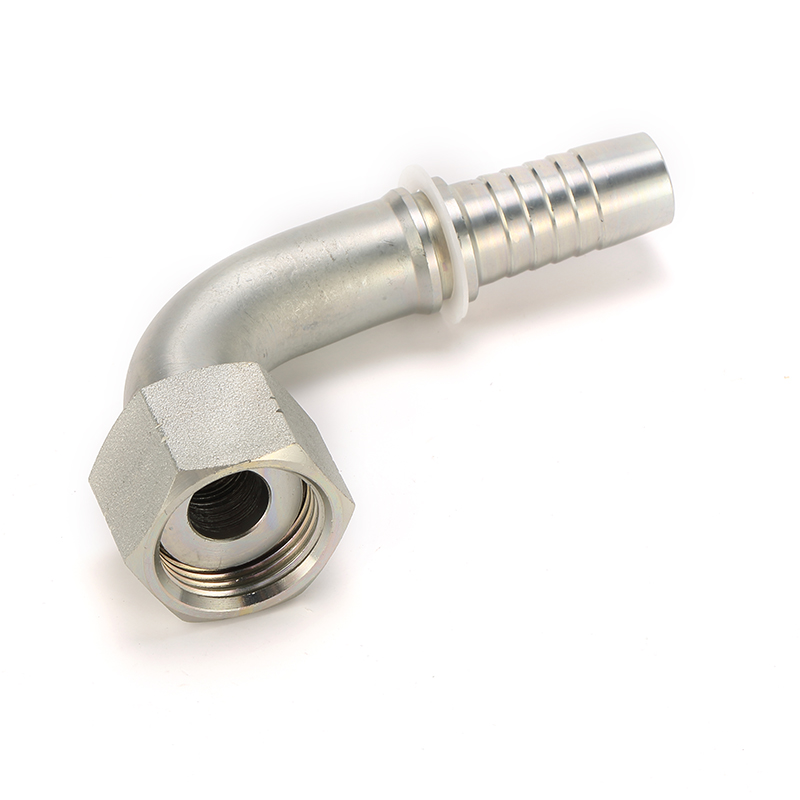

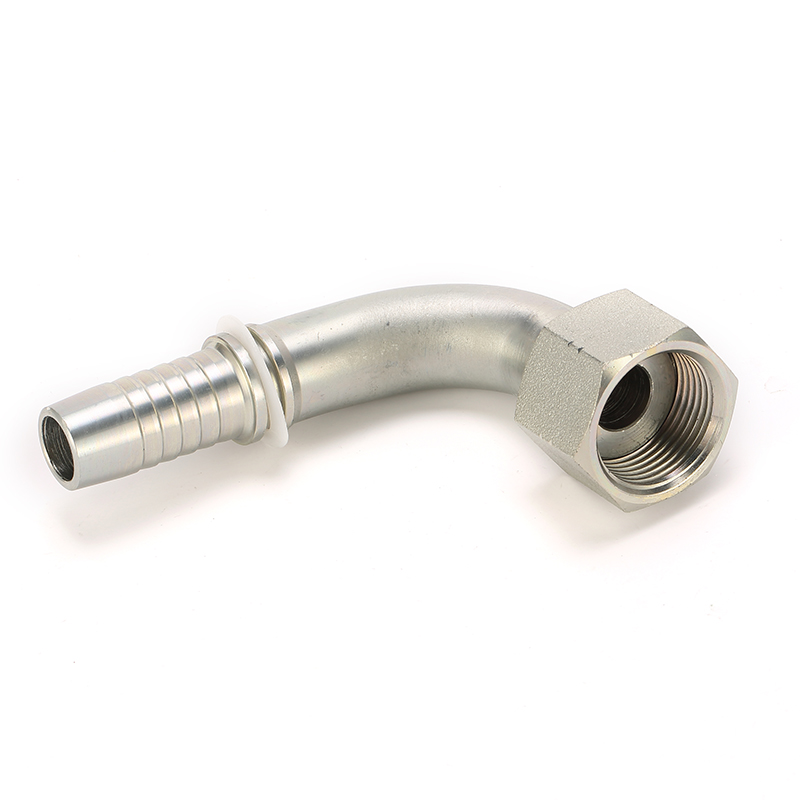

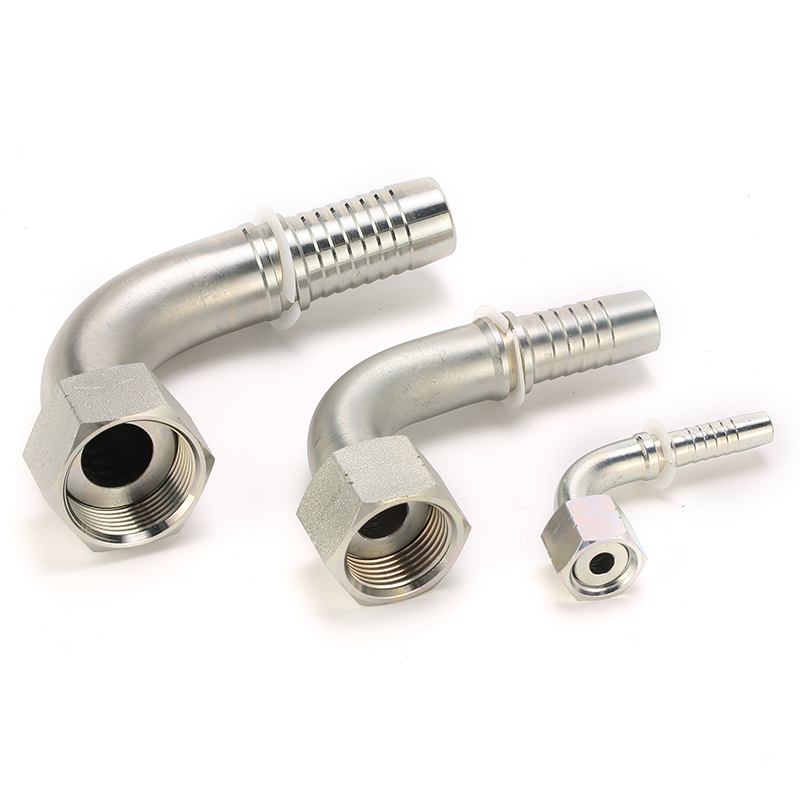

24291 90 Elbow ORFS Female O-Ring Hose Fittings

Description:

The 24291 ORFS hydraulic hose fitting is a female 90 degree elbow fitting designed with a flat face seal to prevent fluid leakage. ORFS fittings are widely used in applications where there are substantial vibrations.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS

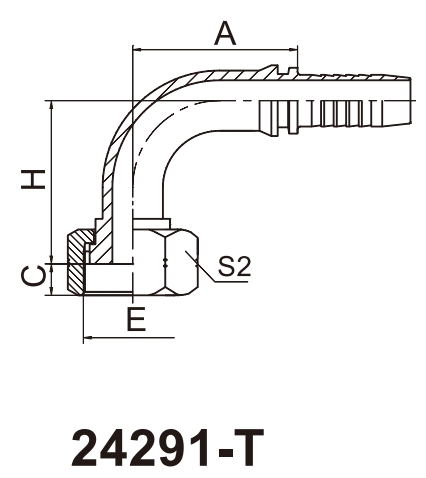

PART NO.	THREAD E	DN	DASH	A	H	C	S2
24291-04-04	9/16″X18	6	04	30	41	8.5	19
24291-04-05	9/16″X18	8	05	33	44	8.5	19
24291-06-05T	11/16″X16	8	05	33	37.5	10	22
24291-06-06	11/16″X16	10	06	35.3	49.3	10	22
24291-06-08	11/16″X16	12	08	41	55	10	22
24291-08-06T	13/16″X16	10	06	35.3	39.8	11	27
24291-08-08	13/16″X16	12	08	41	57.5	11	27
24291-08-10	13/16″X16	16	10	56.5	61.5	11	27
24291-10-08T	1″X14	12	08	41	46	13.5	30
24291-10-10	1″X14	16	10	56	66	13.5	30
24291-10-12	1″X14	20	12	65.5	75.5	13.5	30
24291-12-10T	1.3/16″X12	16	10	56	51.5	15	36
24291-12-12	1.3/16″X12	20	12	65.5	77	15	36
24291-12-16	1.3/16″X12	25	16	76.7	83.5	15	36
24291-16-12T	1.7/16″X12	20	12	65.5	63	14.8	41
24291-16-14T	1.7/16″X12	22	14	71.2	63	14.8	41
24291-16-16T	1.7/16″X12	25	16	76.9	67.5	14.8	41
24291-20-16T	1.11/16″X12	25	16	76.7	67.5	15	50
24291-20-20W	1.11/16″X12	32	20	93	100	15	50
24291-24-20T	2″X12	32	20	91.5	78.5	14.8	60
24291-24-24T	2″X12	40	24	109.4	92	14.8	60
