Home Hose Assembly Industry Hose Steam Hose EPDM Single Braided Steam Hose 230℃
2 Wire Braid EN 857 2SC 1/2" Hydraulic Hose
Back to products
Multipurpose Smooth Surfaces Rubber Fuel Oil Hose
Click to enlarge

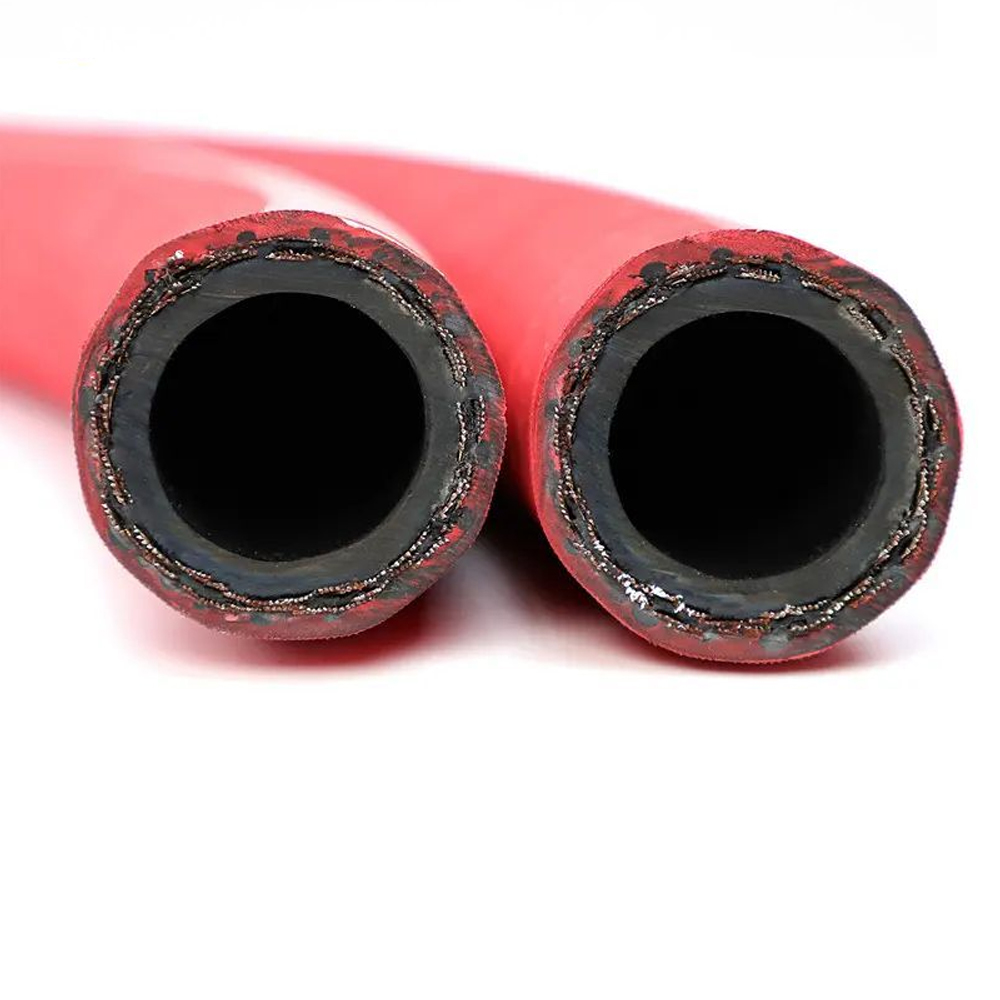

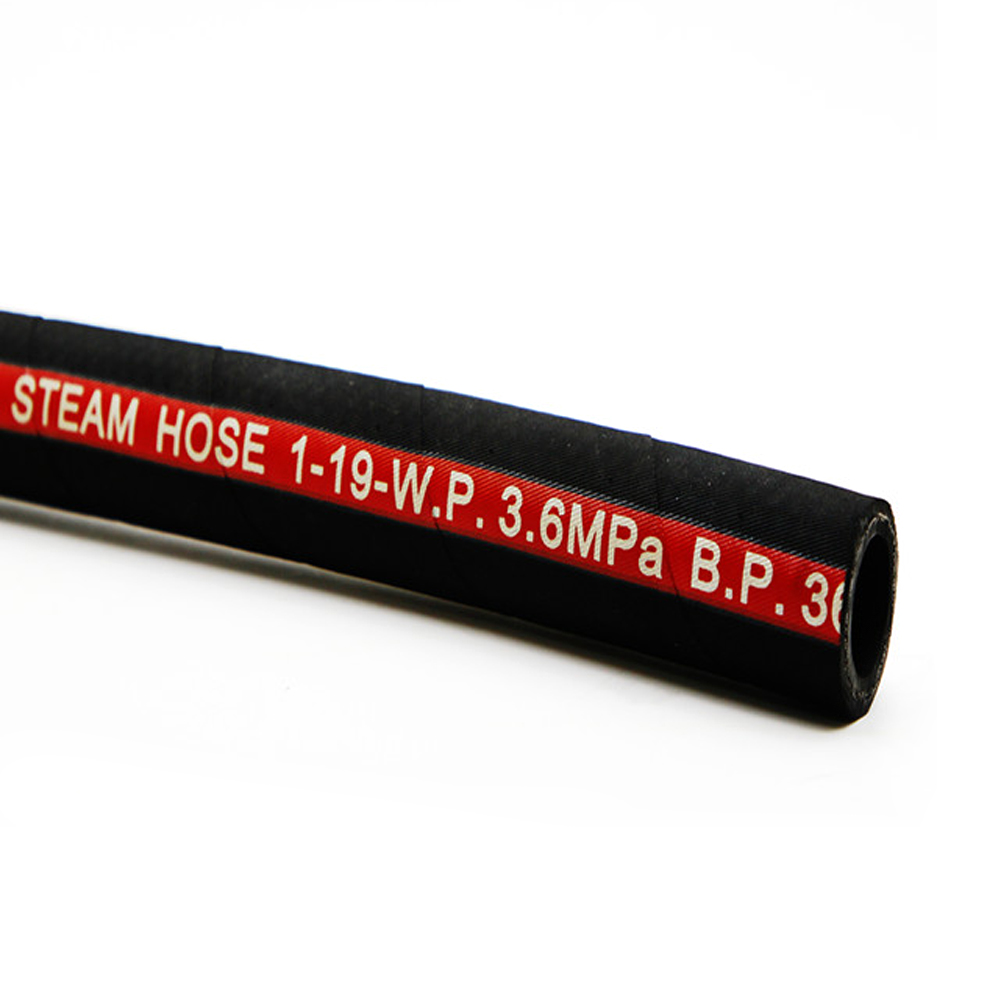

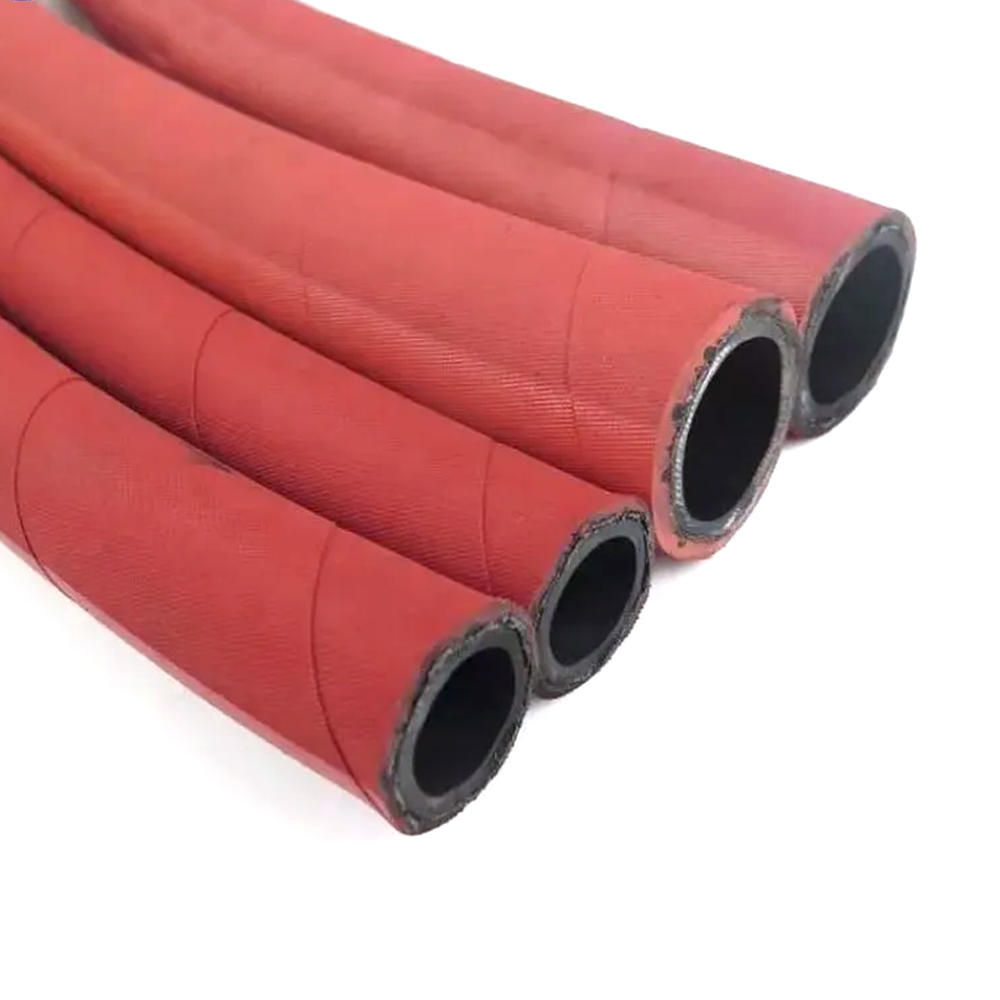

EPDM Single Braided Steam Hose 230℃

Description:

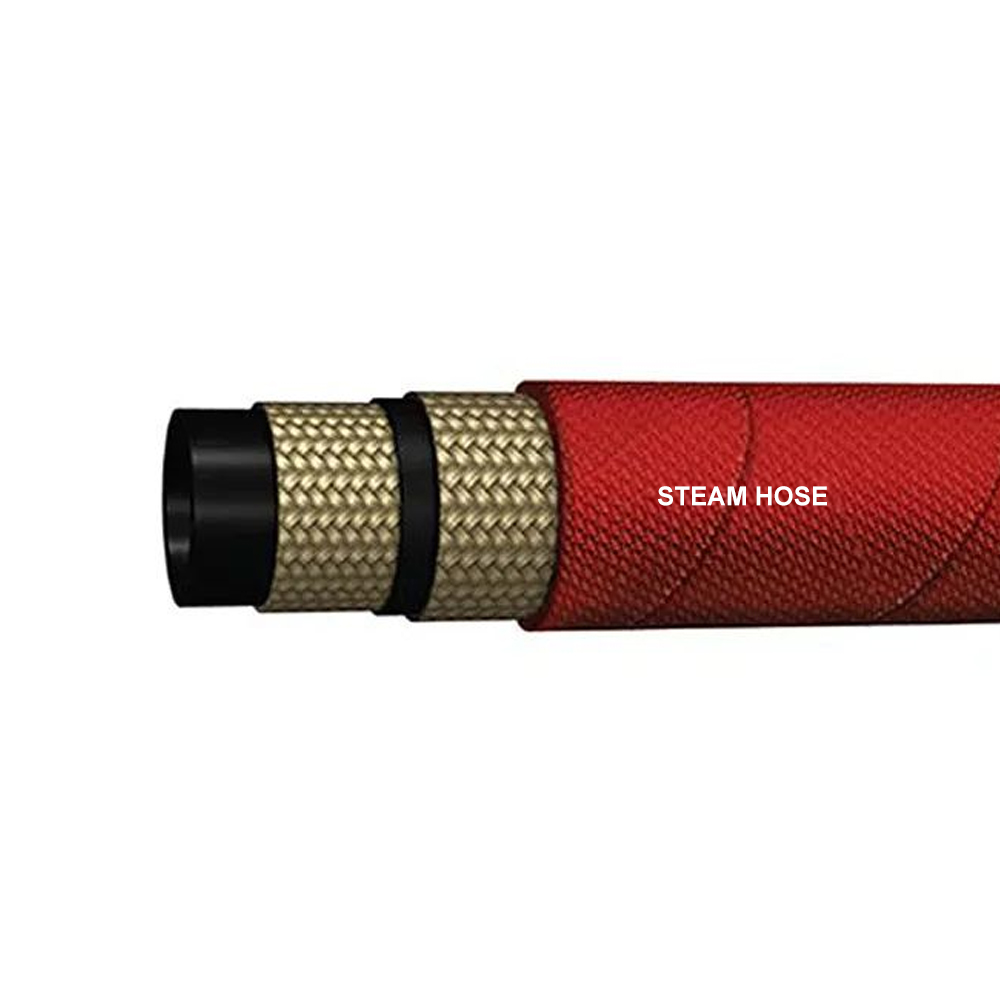

Inner Tube:EPDM synthetic rubber.

Reinforcement:  One or two high tensile steel wire braided.

Cover: high tensile synthetic EPDM rubber.

Temperature Range:-40℃~+220℃ (-40°F~428°F)

INQUIRE NOW

"*" indicates required fields

Category: Steam Hose Tags: epdm, Steam hsoe
Share:
  • Description
  • Package& Shipping
Description

The steam hose is an EPDM rubber hose designed for high-temperature steam transfer. Commonly used in chemical plants, power generation, refineries, and various industrial settings, it is engineered to withstand extreme heat and pressure. These hoses are typically constructed from durable materials like synthetic rubber, neoprene, or silicone for enhanced performance.

Part No. Dash I.D.  O.D. W.P B.P Layer
Inch mm mm Bar PSI Bar PSI ply
ST250-06 3/8″ 10.5 18 17 250 51 750 1
ST250-08 1/2″ 12.7 21 17 250 51 750 1
ST250-10 5/8″ 15.9 25 17 250 51 750 1
ST250-12 3/4″ 19.1 28 17 250 51 750 1
ST250-16 1″ 25.4 34.5 17 250 51 750 1
ST250-20 1-1/4″ 31.8 42 17 250 51 750 1
ST250-24 1-1/2″ 38.2 49 17 250 51 750 1
ST250-32 2″ 50.8 62 17 250 51 750 1
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
