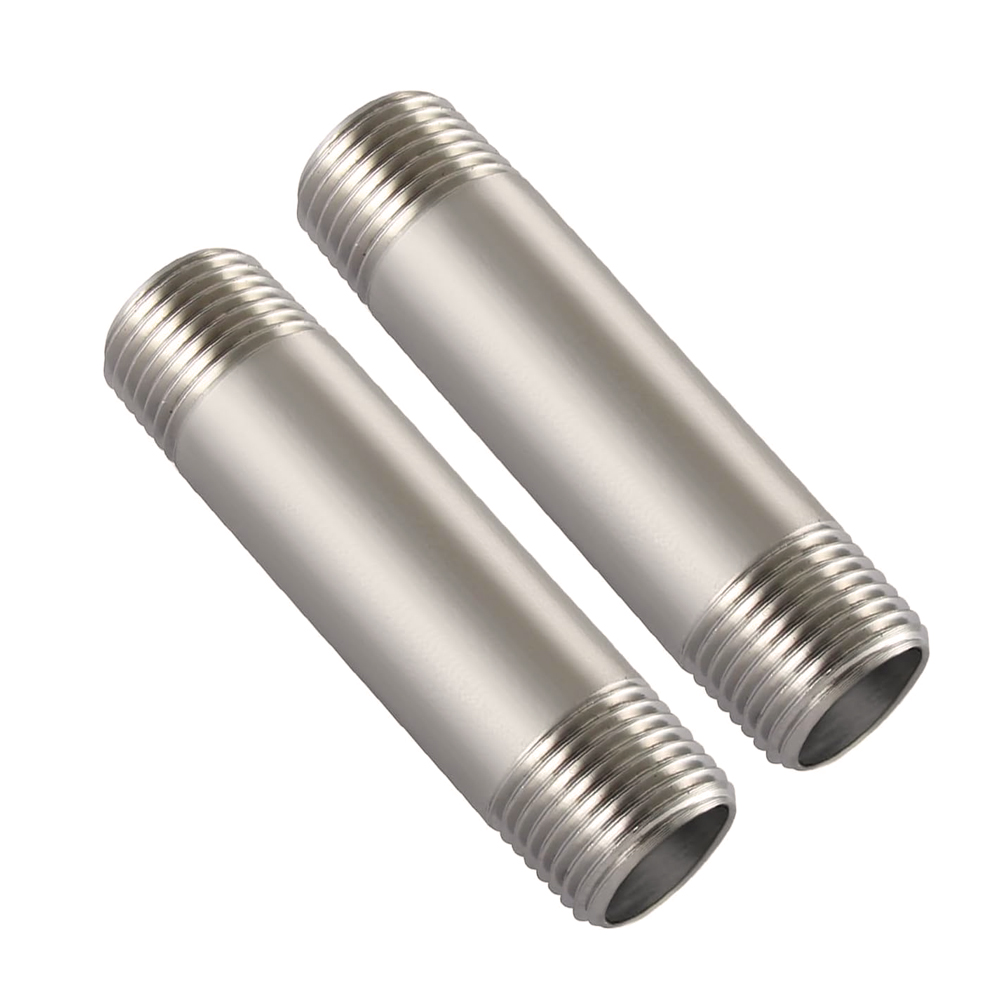

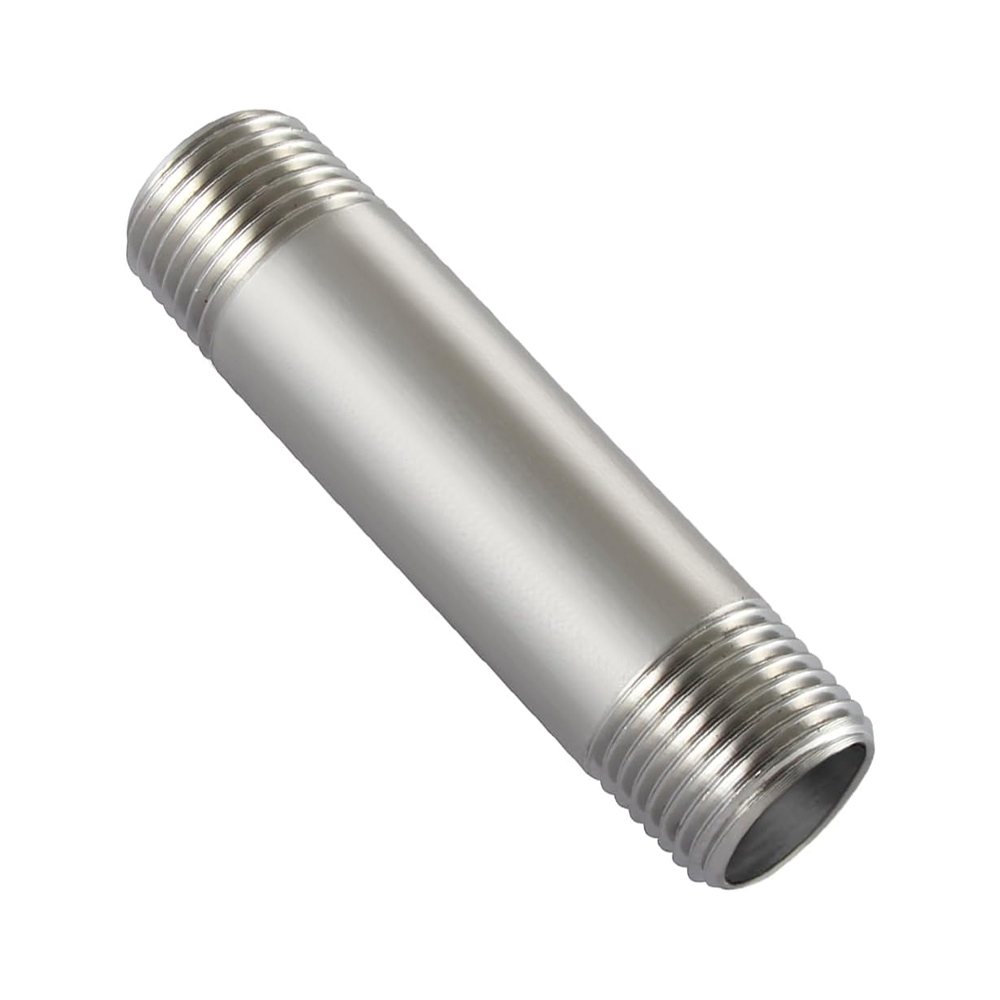

5404N NPT Male Pipe Nipple

Description:

5404N male NPT hydraulic fitting is a straight nipple that is available in plumbing and hydraulic systems.

"*" indicates required fields

Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	PIPE O.D.	THREAD		DIMENSIONS（INCH）
PART NO.	PIPE O.D.	A1 NPTF	A2 NPTF	A1 DRILL	A2 DRILL	L
5404-N-02 X 0.750	1/8	1/8-27	1/8-27	0.188	0.188	0.75
5404-N-02 X 1.000	1/8	1/8-27	1/8-27	0.188	0.188	1
5404-N-02 X 1.500	1/8	1/8-27	1/8-27	0.188	0.188	1.5
5404-N-02 X 2.000	1/8	1/8-27	1/8-27	0.188	0.188	2
5404-N-02 X 2.500	1/8	1/8-27	1/8-27	0.188	0.188	2.5
5404-N-02 X 3.000	1/8	1/8-27	1/8-27	0.188	0.188	3
5404-N-02 X 3.500	1/8	1/8-27	1/8-27	0.188	0.188	3.5
5404-N-02 X 4.000	1/8	1/8-27	1/8-27	0.188	0.188	4
5404-N-02 X 4.500	1/8	1/8-27	1/8-27	0.188	0.188	4.5
5404-N-02 X 5.000	1/8	1/8-27	1/8-27	0.188	0.188	5
5404-N-02 X 6.000	1/8	1/8-27	1/8-27	0.188	0.188	6
5404-N-04 X0.875	1/4	1/4-18	1/4-18	0.281	0.281	0.875
5404-N-04 X 1.500	1/4	1/4-18	1/4-18	0.281	0.281	1.5
5404-N-04 X 2.000	1/4	1/4-18	1/4-18	0.281	0.281	2
5404-N-04 X 2.500	1/4	1/4-18	1/4-18	0.281	0.281	2.5
5404-N-04 X 3.000	1/4	1/4-18	1/4-18	0.281	0.281	3
5404-N-04 X 3.500	1/4	1/4-18	1/4-18	0.281	0.281	3.5
5404-N-04 X4.000	1/4	1/4-18	1/4-18	0.281	0.281	4
5404-N-04 X4.500	1/4	1/4-18	1/4-18	0.281	0.281	4.5
5404-N-04 X 5.000	1/4	1/4-18	1/4-18	0.281	0.281	5
5404-N-04 X 5.500	1/4	1/4-18	1/4-18	0.281	0.281	5.5
5404-N-04 X 6.000	1/4	1/4-18	1/4-18	0.281	0.281	6
5404-N-06 X 1.000	3/8	3/8-18	3/8-18	0.406	0.406	1
5404-N-06 X 1.500	3/8	3/8-18	3/8-18	0.406	0.406	1.5
5404-N-06 X 2.000	3/8	3/8-18	3/8-18	0.406	0.406	2
5404-N-06 X 2.500	3/8	3/8-18	3/8-18	0.406	0.406	2.5
5404-N-06 X 3.500	3/8	3/8-18	3/8-18	0.406	0.406	3.5
5404-N-06 X 4.000	3/8	3/8-18	3/8-18	0.406	0.406	4
5404-N-06 X 5.000	3/8	3/8-18	3/8-18	0.406	0.406	5
5404-N-06 X 5.500	3/8	3/8-18	3/8-18	0.406	0.406	5.5
5404-N-06 X 6.000	3/8	3/8-18	3/8-18	0.406	0.406	6
5404-N-06 X 7.000	3/8	3/8-18	3/8-18	0.406	0.406	7

Click to enlarge

Category: NPT(F) Hydraulic Adapter Tags: NPT, Male, 5404N, nipple

Description
Package& Shipping

Description

PART NO.	PIPE O.D.	THREAD		DIMENSIONS（INCH）
PART NO.	PIPE O.D.	A1 NPTF	A2 NPTF	A1 DRILL	A2 DRILL	L
5404-N-02 X 0.750	1/8	1/8-27	1/8-27	0.188	0.188	0.75
5404-N-02 X 1.000	1/8	1/8-27	1/8-27	0.188	0.188	1
5404-N-02 X 1.500	1/8	1/8-27	1/8-27	0.188	0.188	1.5
5404-N-02 X 2.000	1/8	1/8-27	1/8-27	0.188	0.188	2
5404-N-02 X 2.500	1/8	1/8-27	1/8-27	0.188	0.188	2.5
5404-N-02 X 3.000	1/8	1/8-27	1/8-27	0.188	0.188	3
5404-N-02 X 3.500	1/8	1/8-27	1/8-27	0.188	0.188	3.5
5404-N-02 X 4.000	1/8	1/8-27	1/8-27	0.188	0.188	4
5404-N-02 X 4.500	1/8	1/8-27	1/8-27	0.188	0.188	4.5
5404-N-02 X 5.000	1/8	1/8-27	1/8-27	0.188	0.188	5
5404-N-02 X 6.000	1/8	1/8-27	1/8-27	0.188	0.188	6
5404-N-04 X0.875	1/4	1/4-18	1/4-18	0.281	0.281	0.875
5404-N-04 X 1.500	1/4	1/4-18	1/4-18	0.281	0.281	1.5
5404-N-04 X 2.000	1/4	1/4-18	1/4-18	0.281	0.281	2
5404-N-04 X 2.500	1/4	1/4-18	1/4-18	0.281	0.281	2.5
5404-N-04 X 3.000	1/4	1/4-18	1/4-18	0.281	0.281	3
5404-N-04 X 3.500	1/4	1/4-18	1/4-18	0.281	0.281	3.5
5404-N-04 X4.000	1/4	1/4-18	1/4-18	0.281	0.281	4
5404-N-04 X4.500	1/4	1/4-18	1/4-18	0.281	0.281	4.5
5404-N-04 X 5.000	1/4	1/4-18	1/4-18	0.281	0.281	5
5404-N-04 X 5.500	1/4	1/4-18	1/4-18	0.281	0.281	5.5
5404-N-04 X 6.000	1/4	1/4-18	1/4-18	0.281	0.281	6
5404-N-06 X 1.000	3/8	3/8-18	3/8-18	0.406	0.406	1
5404-N-06 X 1.500	3/8	3/8-18	3/8-18	0.406	0.406	1.5
5404-N-06 X 2.000	3/8	3/8-18	3/8-18	0.406	0.406	2
5404-N-06 X 2.500	3/8	3/8-18	3/8-18	0.406	0.406	2.5
5404-N-06 X 3.500	3/8	3/8-18	3/8-18	0.406	0.406	3.5
5404-N-06 X 4.000	3/8	3/8-18	3/8-18	0.406	0.406	4
5404-N-06 X 5.000	3/8	3/8-18	3/8-18	0.406	0.406	5
5404-N-06 X 5.500	3/8	3/8-18	3/8-18	0.406	0.406	5.5
5404-N-06 X 6.000	3/8	3/8-18	3/8-18	0.406	0.406	6
5404-N-06 X 7.000	3/8	3/8-18	3/8-18	0.406	0.406	7

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

5404N NPT Male Pipe Nipple

Package:

Delivery Time:
