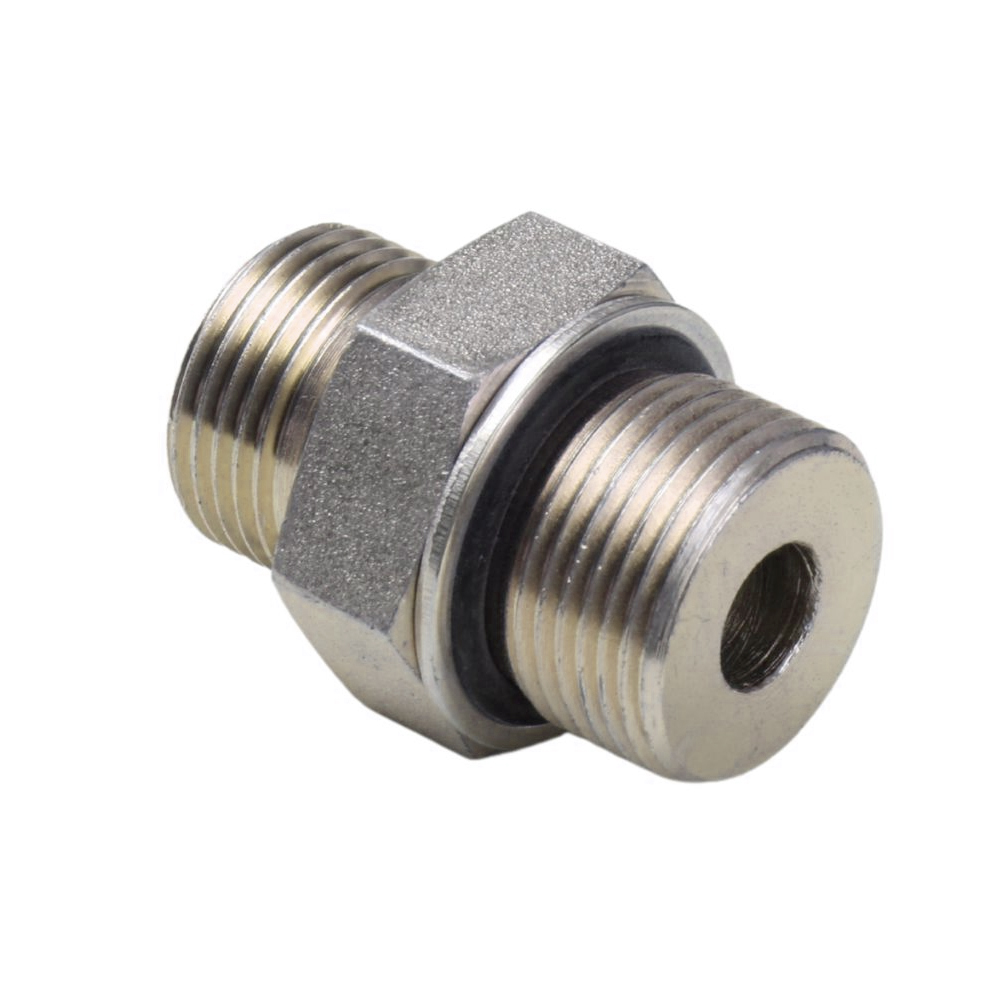

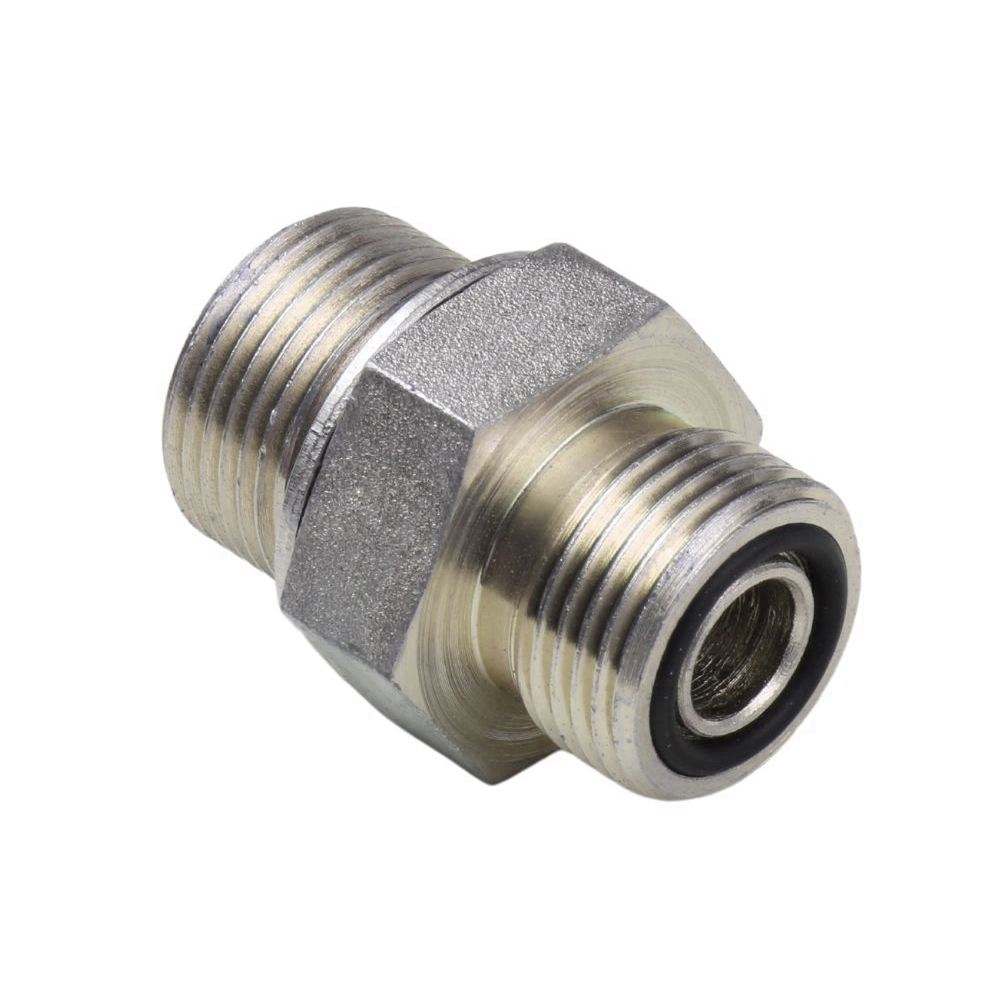

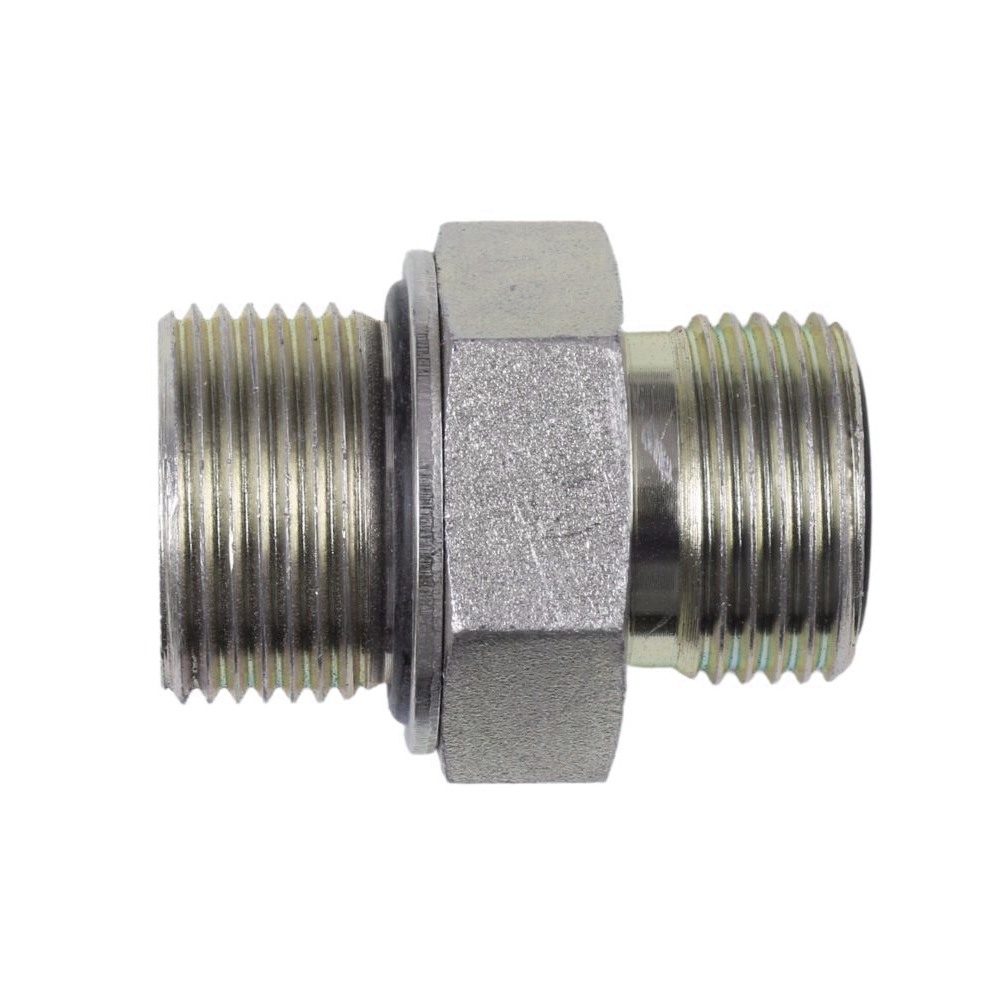

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

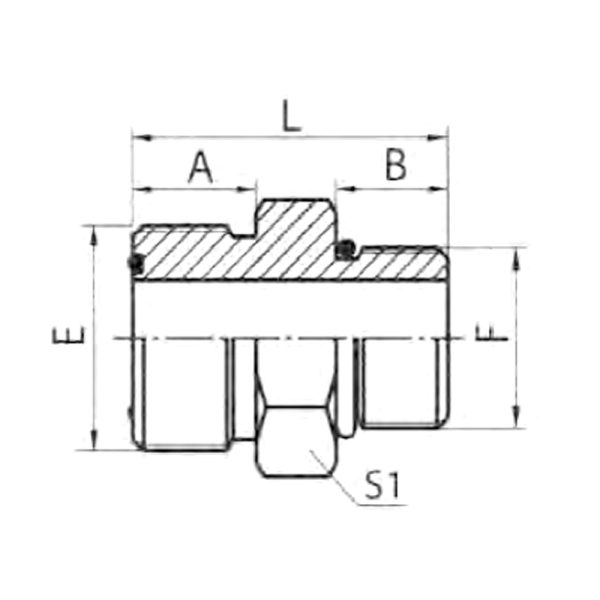

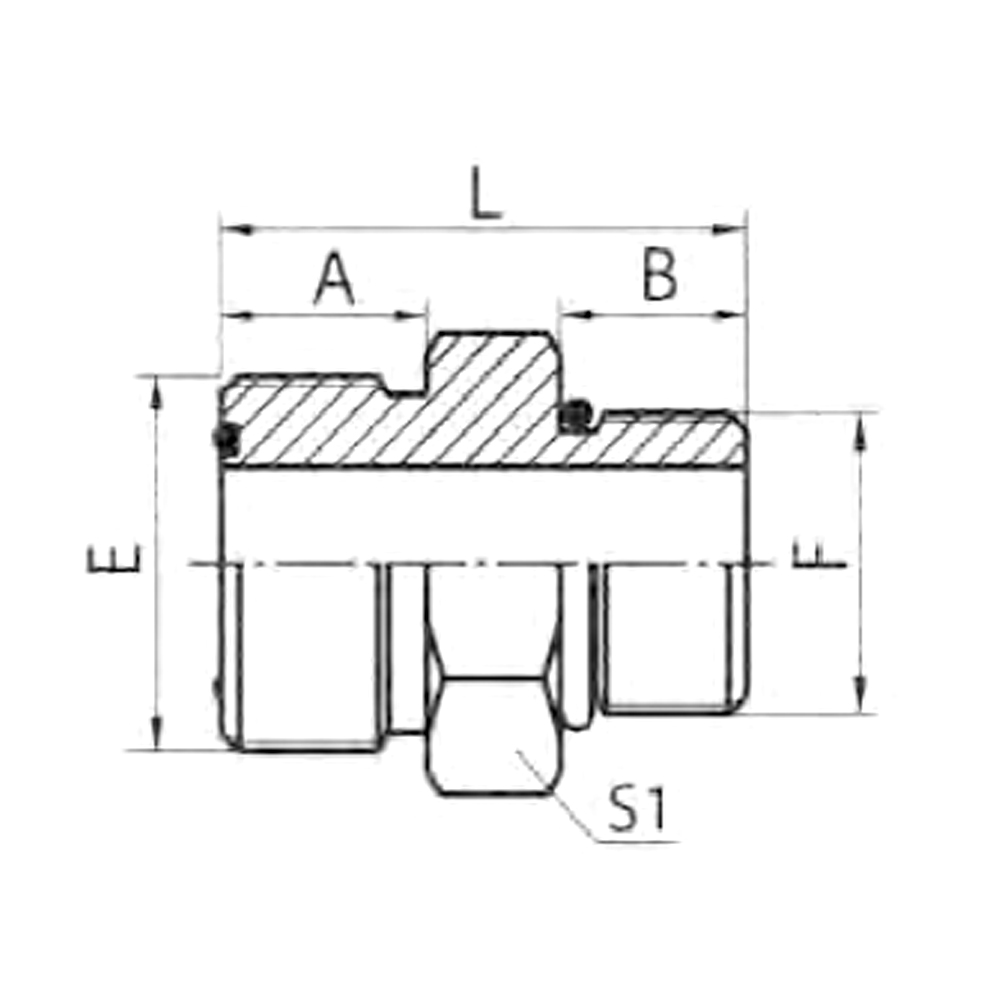

| PART NO. | THREAD | O-RING | DIMENSIONS | |||||
| E | F | E | F | A | B | L | S1 | |
| 1FH-04-10 | 9/16″X18 | M10X1 | O011 | O08.1X1.6 | 9.8 | 9.5 | 28 | 17 |
| 1FH-04-12 | 9/16″X18 | M12X1.5 | O011 | O09.3X2.4 | 9.8 | 11 | 29.5 | 17 |
| 1FH-06-12 | 11/16″X16 | M12X1.5 | O012 | O09.3X2.4 | 11.2 | 11 | 31 | 19 |
| 1FH-06-14 | 11/16″X16 | M14X1.5 | O012 | O11.3X2.4 | 11.2 | 11 | 31 | 19 |
| 1FH-06-16 | 11/16″X16 | M16X1.5 | O012 | O13.3X2.4 | 11.2 | 12.5 | 33.5 | 22 |
| 1FH-08-16 | 13/16″X16 | M16X1.5 | O014 | O13.3X2.4 | 12.8 | 12.5 | 36 | 22 |
| 1FH-08-18 | 13/16″X16 | M18X1.5 | O014 | O15.3X2.4 | 12.8 | 14 | 36.5 | 24 |
| 1FH-08-22 | 13/16″X16 | M22X1.5 | O014 | O19.3X2.4 | 12.8 | 15 | 37.5 | 27 |
| 1FH-10-22 | 1″X14 | M22X1.5 | O016 | O19.3X2.4 | 15.5 | 15 | 40.5 | 27 |
| 1FH-12-22 | 1.3/16″X12 | M22X1.5 | O018 | O19.3X2.4 | 17 | 15 | 45.5 | 32 |
| 1FH-12-27 | 1.3/16″X12 | M27X2 | O018 | O23.5X3.0 | 17 | 18.5 | 49 | 32 |
| 1FH-16-33 | 1.7/16″X12 | M33X2 | O021 | O29.5X3.0 | 17.5 | 18.5 | 51 | 41 |
| 1FH-20-42 | 1.11/16″X12 | M42X2 | O025 | O38.5X3.0 | 17.5 | 19 | 54.5 | 50 |
