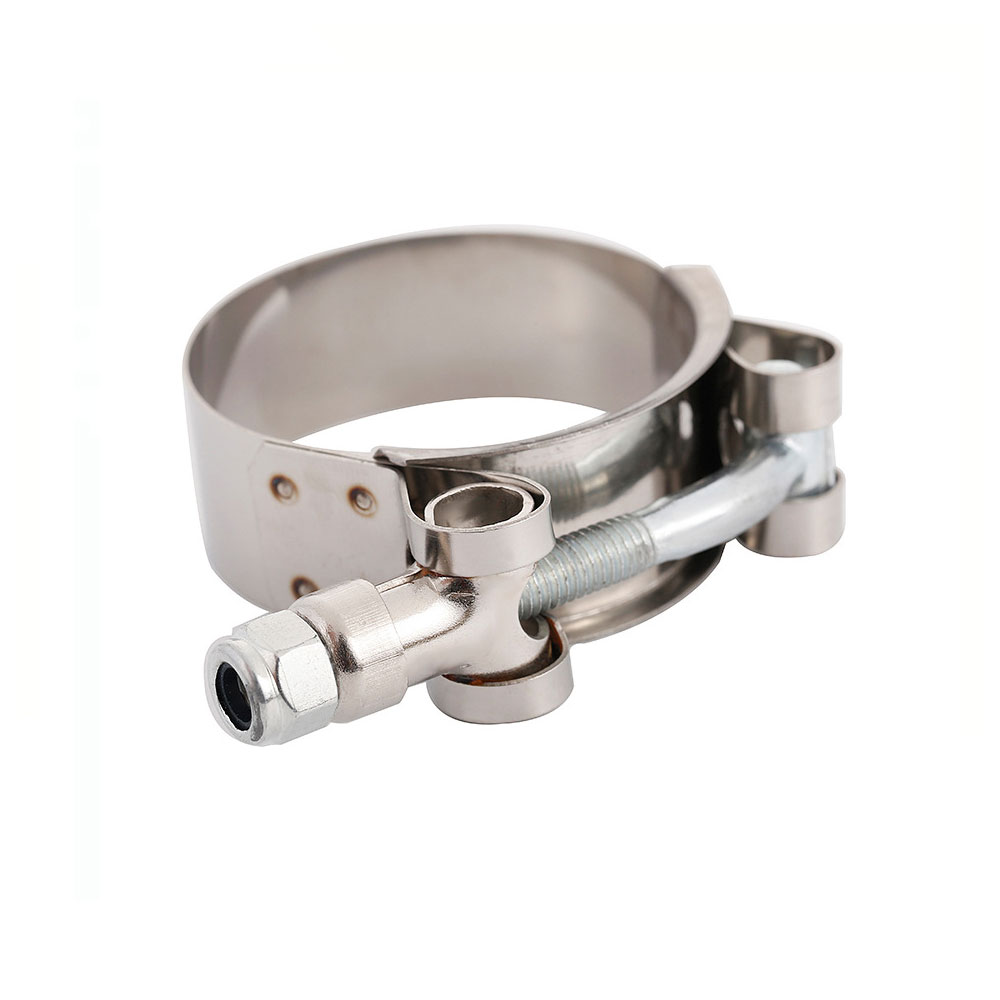

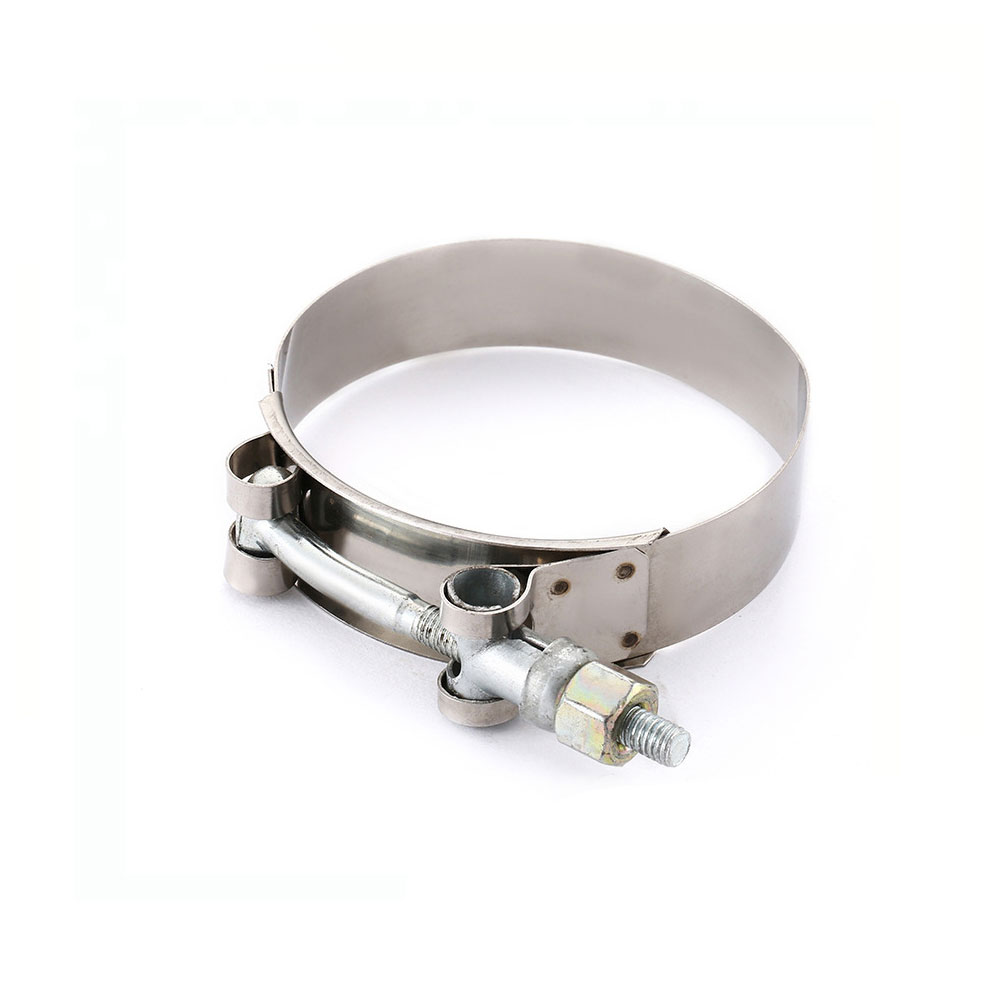

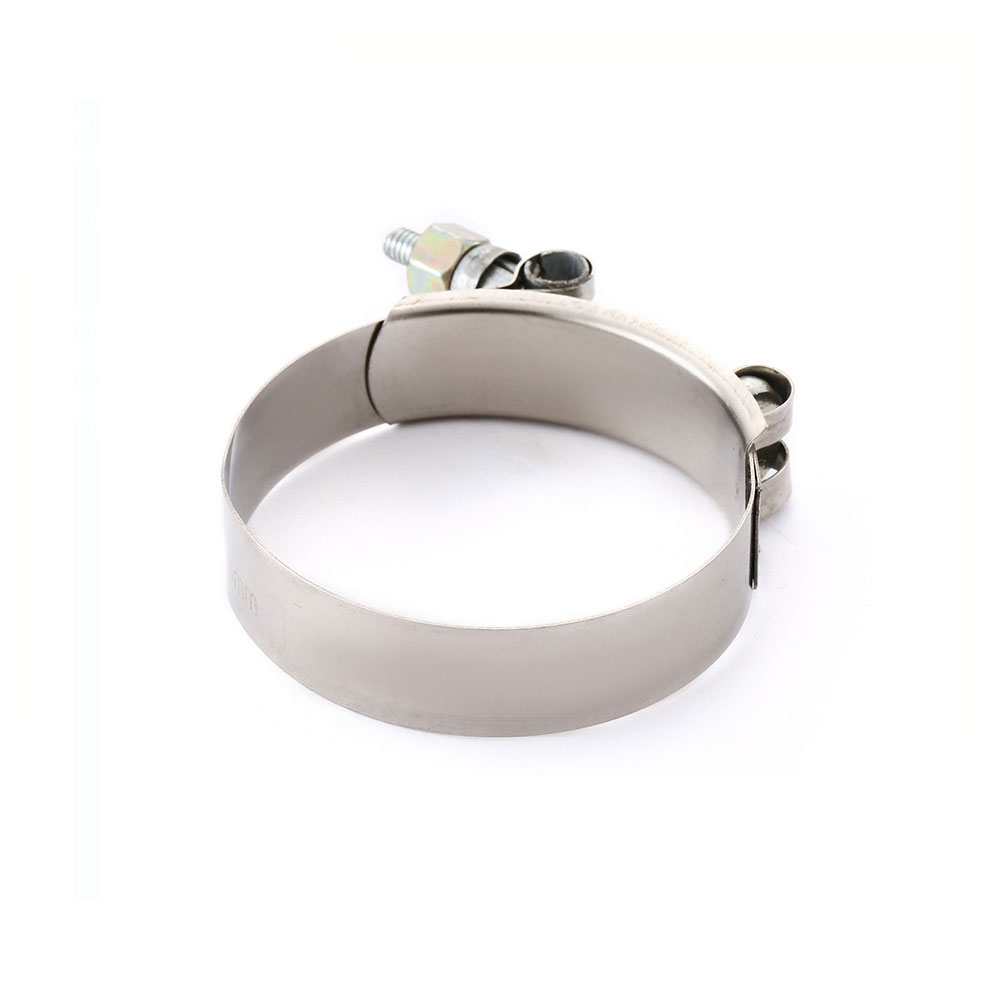

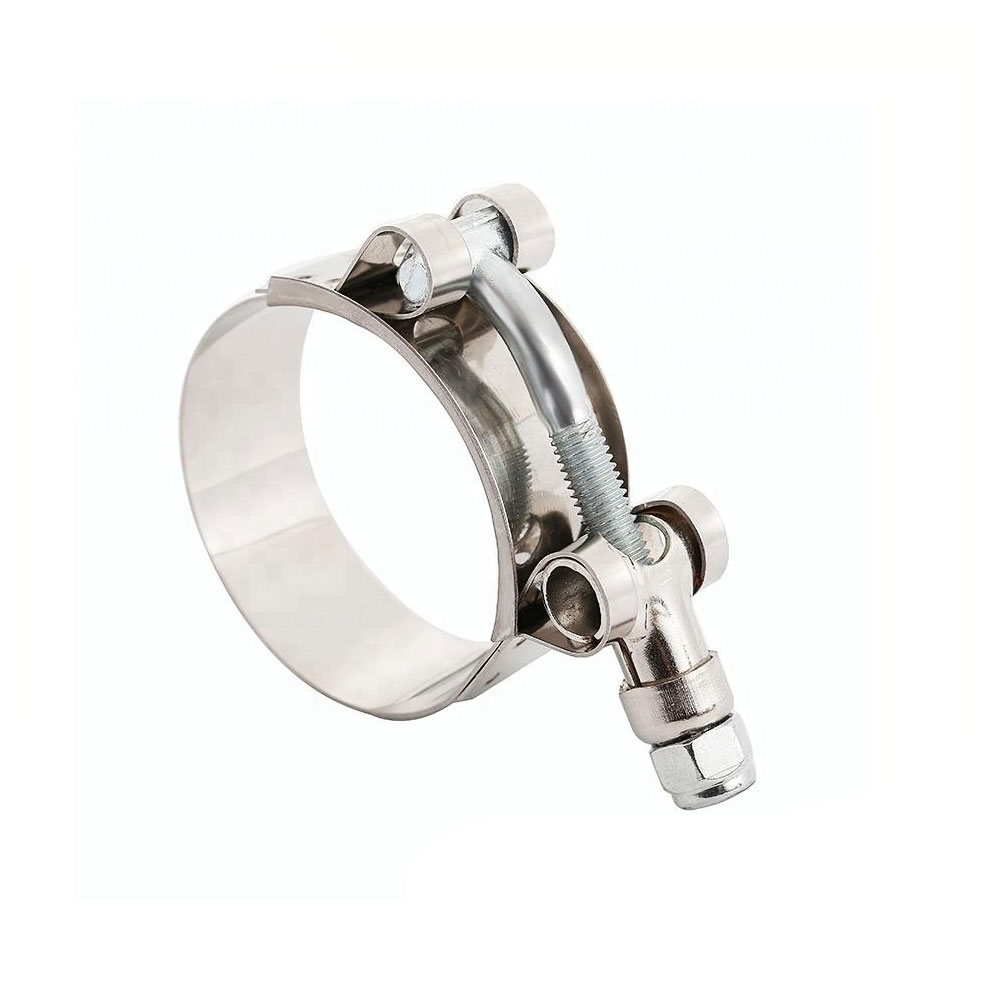

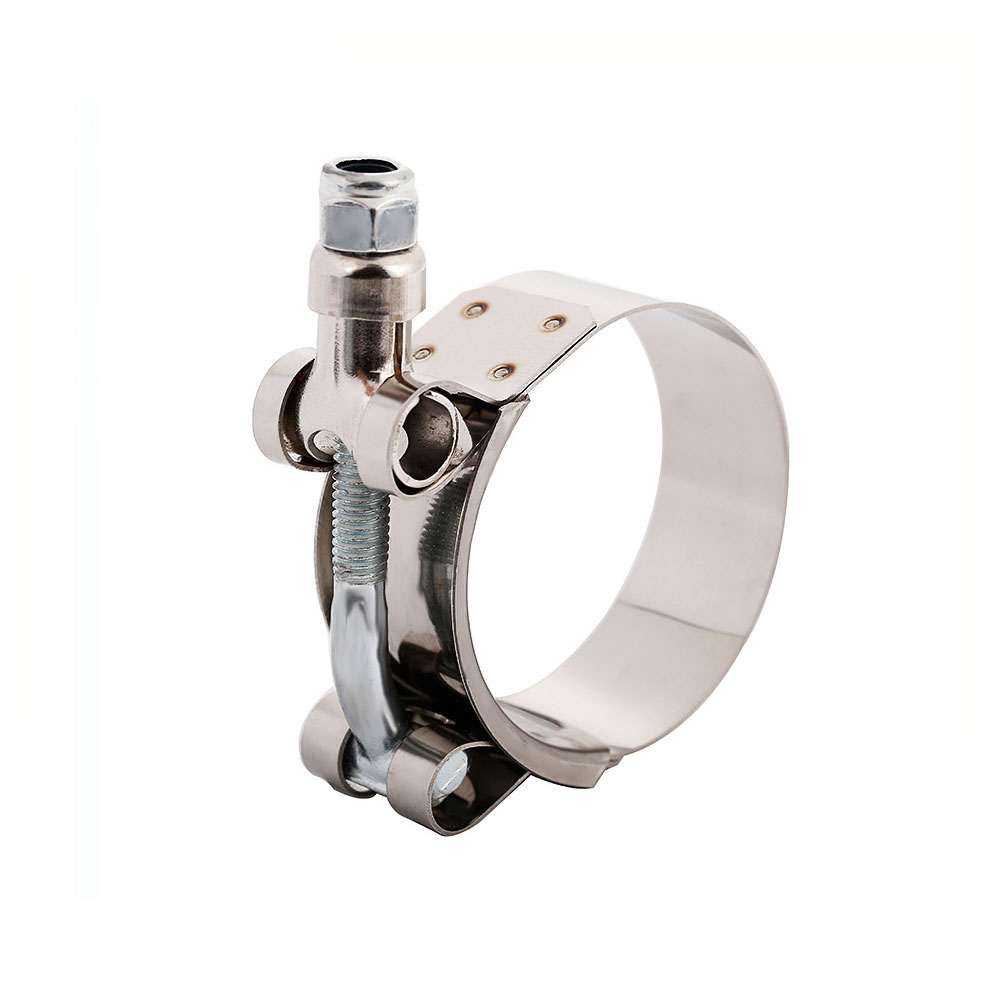

T Bolt Hose Clamps are heavy-duty fastening solutions engineered for high-pressure and high-vibration environments. With a reinforced band and a secure T-bolt locking mechanism, they deliver exceptional clamping force and a complete 360-degree seal, guaranteeing leak-proof connections for hoses and ducts. Suitable for a wide range of applications across automotive, industrial, marine, and agricultural sectors.
| Size | screw | Band Size | Thickness | Install Torque |
| mm | mm | mm | mm | Nm |
| 34-40 | M6*75 | 19 | 0.6 | 9 |
| 40-46 | 19 | 0.6 | ||
| 43-49 | 19 | 0.6 | ||
| 46-52 | 19 | 0.6 | ||
| 51-57 | 19 | 0.6 | ||
| 58-65 | 19 | 0.6 | ||
| 64-72 | M8*85 | 19 | 0.6 | |
| 66-76 | 19 | 0.6 | ||
| 70-78 | 19 | 0.6 | ||
| 76-84 | 19 | 0.6 | ||
| 79-89 | 19 | 0.6 | ||
| 83-91 | 19 | 0.6 | ||
| 89-97 | 19 | 0.6 | ||
| 95-103 | 19 | 0.6 | ||
| 102-110 | 19 | 0.6 | ||
| 108-116 | 19 | 0.6 | ||
| 114-122 | 19 | 0.6 | ||
| 121-129 | 19 | 0.6 | ||
| 127-135 | M10*95 | 19 | 0.6 | |
| 133-141 | 19 | 0.6 | ||
| 140-148 | 19 | 0.6 | ||
| 146-154 | 19 | 0.6 | ||
| 152-160 | 19 | 0.6 | ||
| 159-167 | 19 | 0.6 | ||
| 165-173 | 19 | 0.6 | ||
| 171-179 | 19 | 0.6 | ||
| 178-186 | 19 | 0.6 | ||
| 184-192 | 19 | 0.6 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
