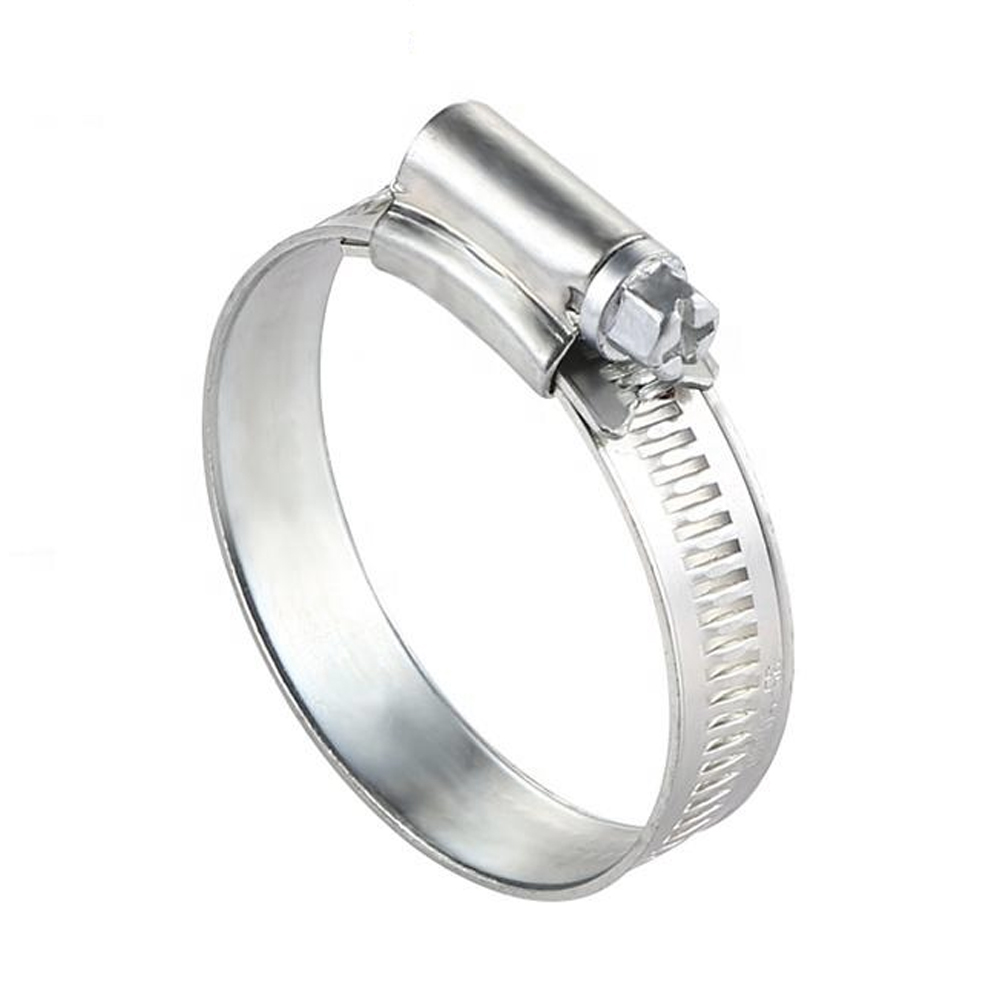

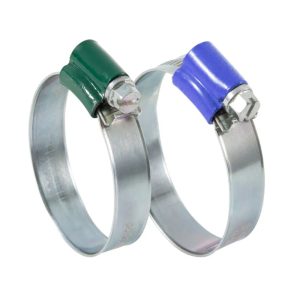

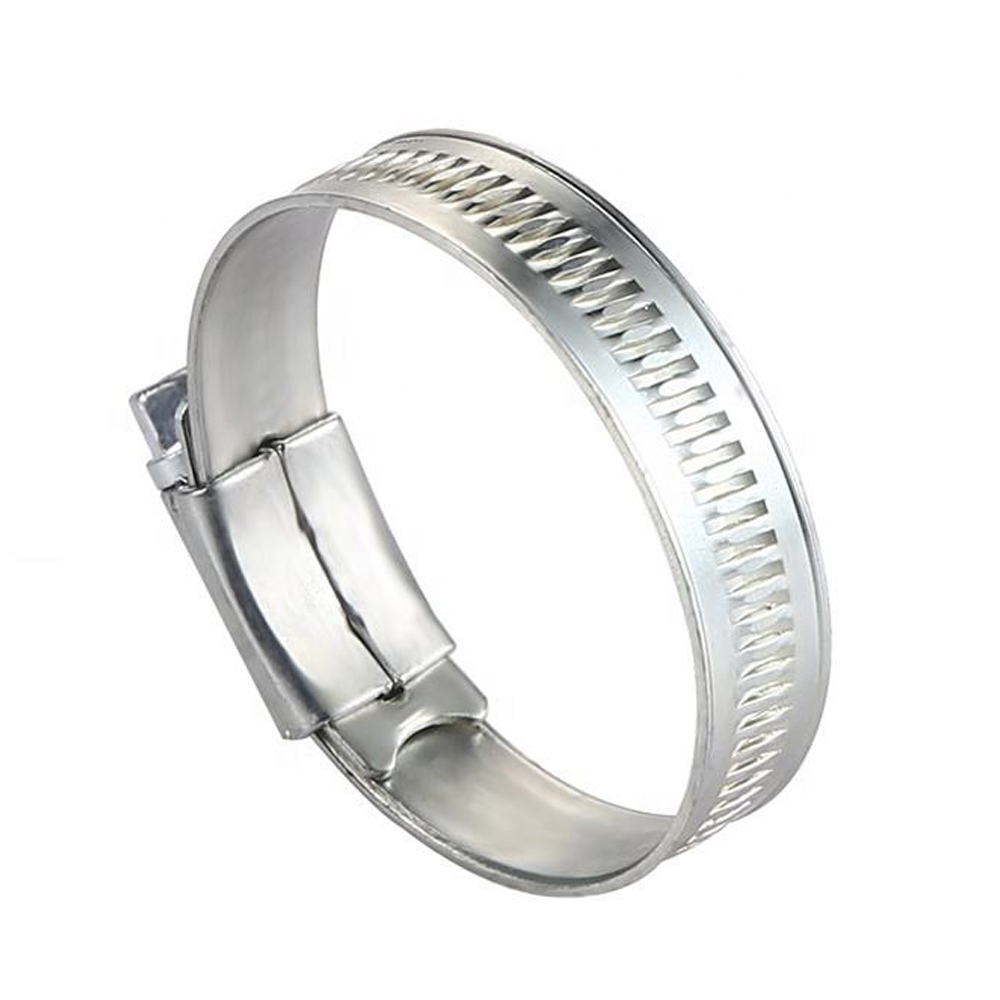

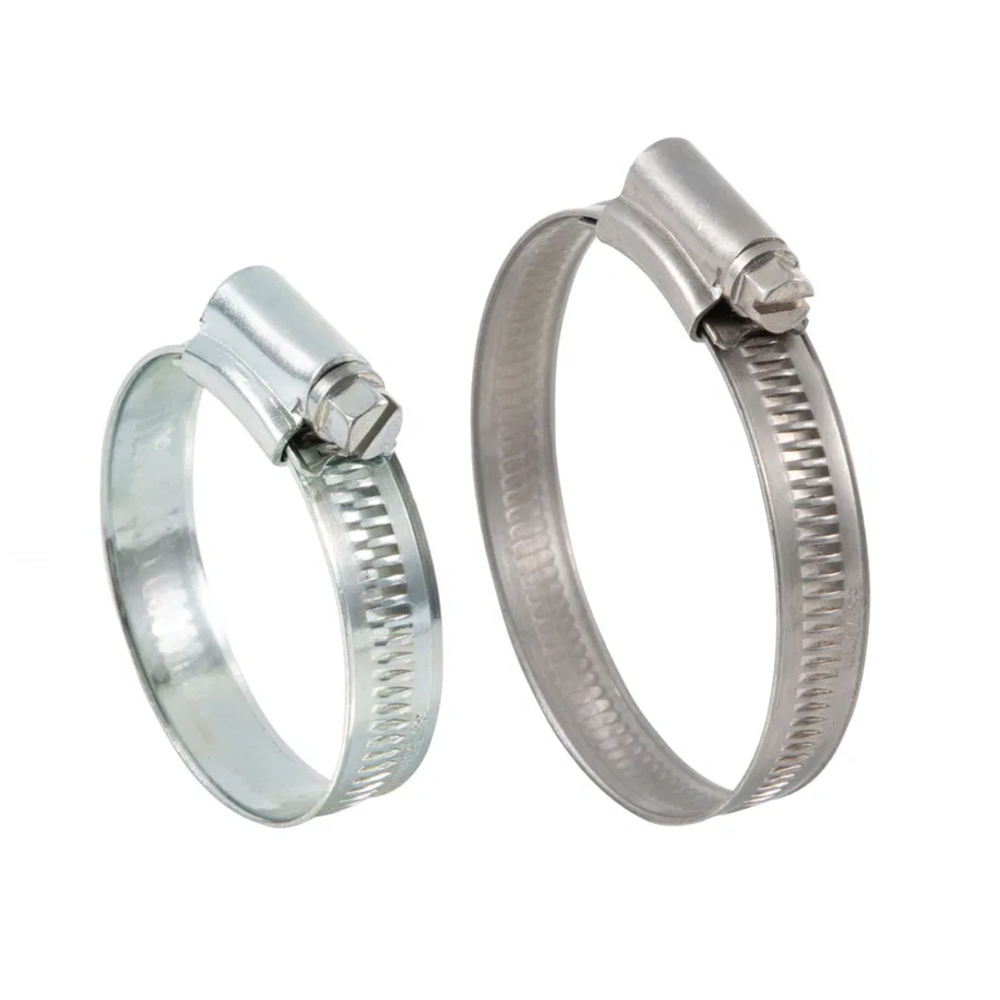

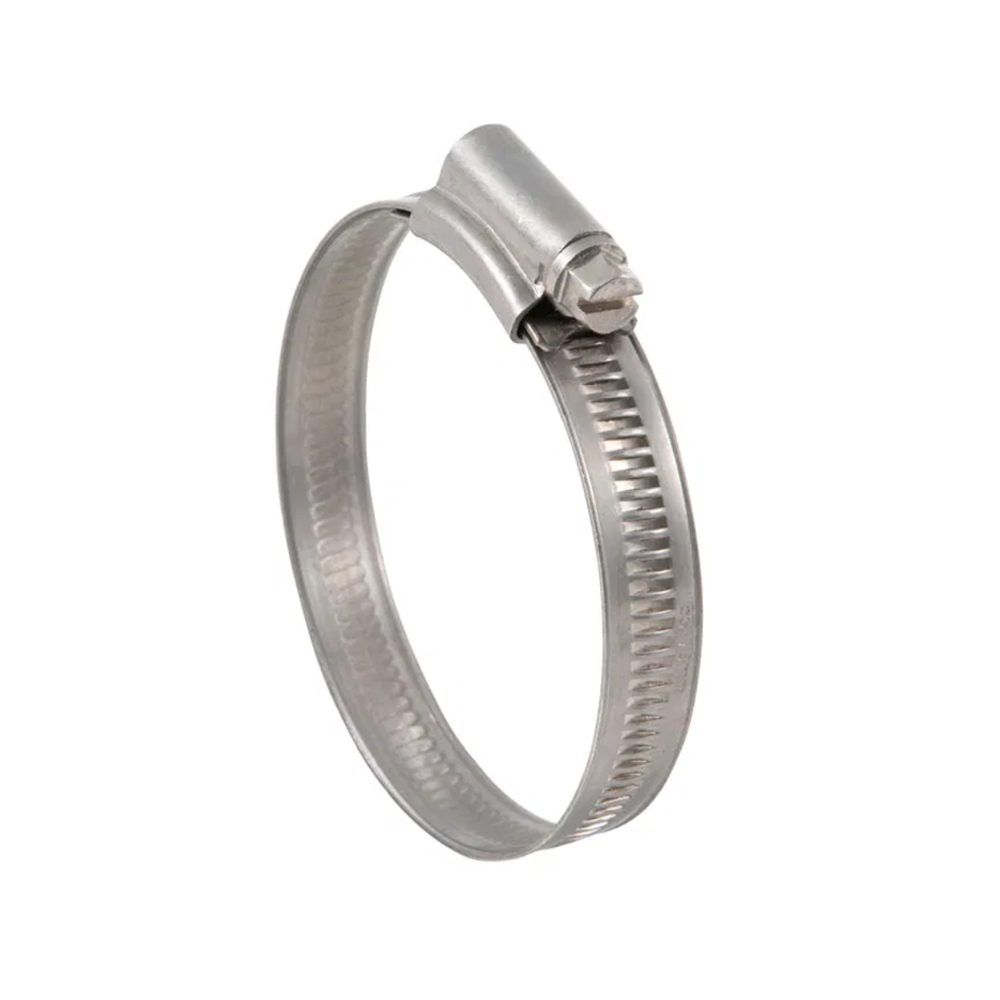

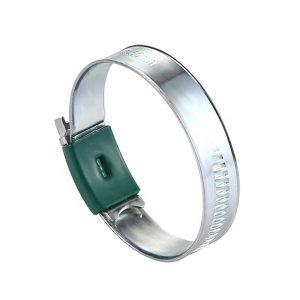

British Type Hose Clamps, also known as Jubilee Clips, are a widely recognized and reliable fastening solution for securing hoses and pipes. Characterized by their perforated band and captive screw housing, these clamps offer a strong and adjustable grip for secure and leak-proof connections.
| Size | Band Width | Thickness | Install Torque | Pcs/CTN |
| mm | mm | mm | Nm | |
| 9-12 | 9.7 | 0.8 | 3 | 2000 |
| 11-16 | 9.7 | 0.8 | 3 | 2000 |
| 13-20 | 9.7 | 0.8 | 3 | 2000 |
| 16-22 | 11.7 | 0.9 | 4.8 | 1000 |
| 18-25 | 11.7 | 0.9 | 4.8 | 1000 |
| 22-30 | 11.7 | 0.9 | 4.8 | 1000 |
| 25-35 | 11.7 | 0.9 | 4.8 | 500 |
| 27-40 | 11.7 | 0.9 | 4.8 | 500 |
| 35-50 | 11.7 | 0.9 | 5.2 | 500 |
| 40-55 | 11.7 | 0.9 | 5.2 | 500 |
| 45-60 | 11.7 | 0.9 | 5.2 | 500 |
| 55-70 | 11.7 | 0.9 | 5.2 | 250 |
| 60-80 | 11.7 | 0.9 | 5.2 | 200 |
| 70-90 | 11.7 | 0.9 | 5.2 | 200 |
| 85-100 | 11.7 | 0.9 | 5.2 | 200 |
| 90-120 | 11.7 | 0.9 | 5.2 | 200 |
| 120-140 | 11.7 | 0.9 | 5.2 | 200 |
| 140-160 | 11.7 | 0.9 | 5.2 | 100 |
| 160-180 | 11.7 | 0.9 | 5.2 | 100 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
