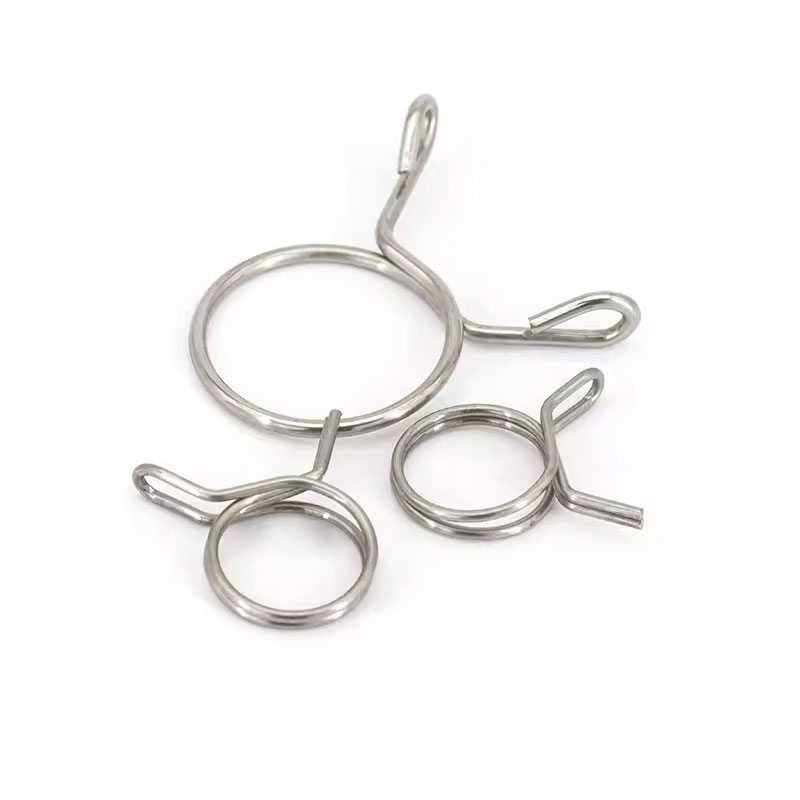

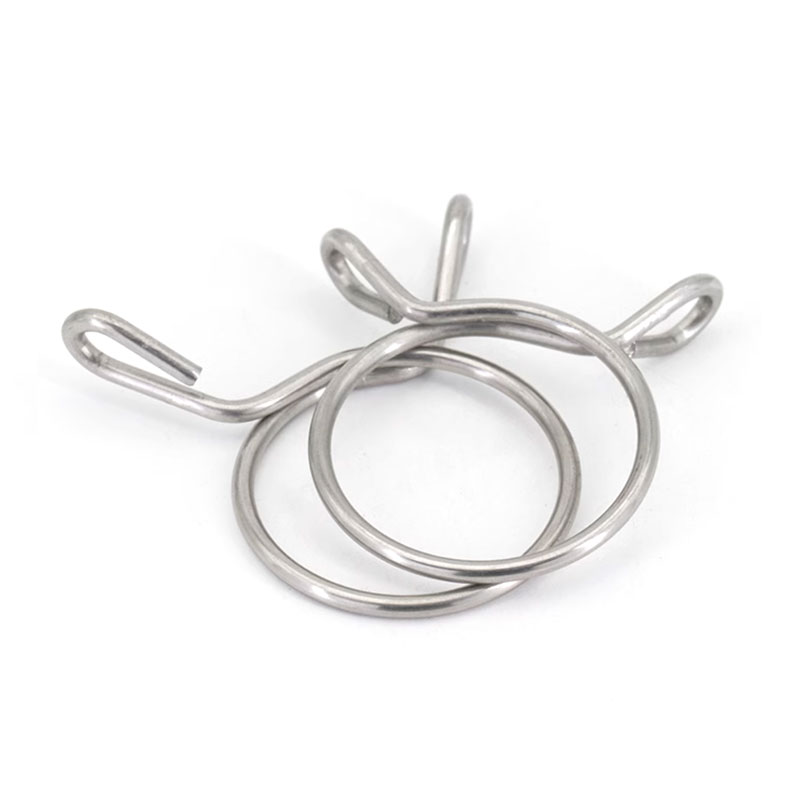

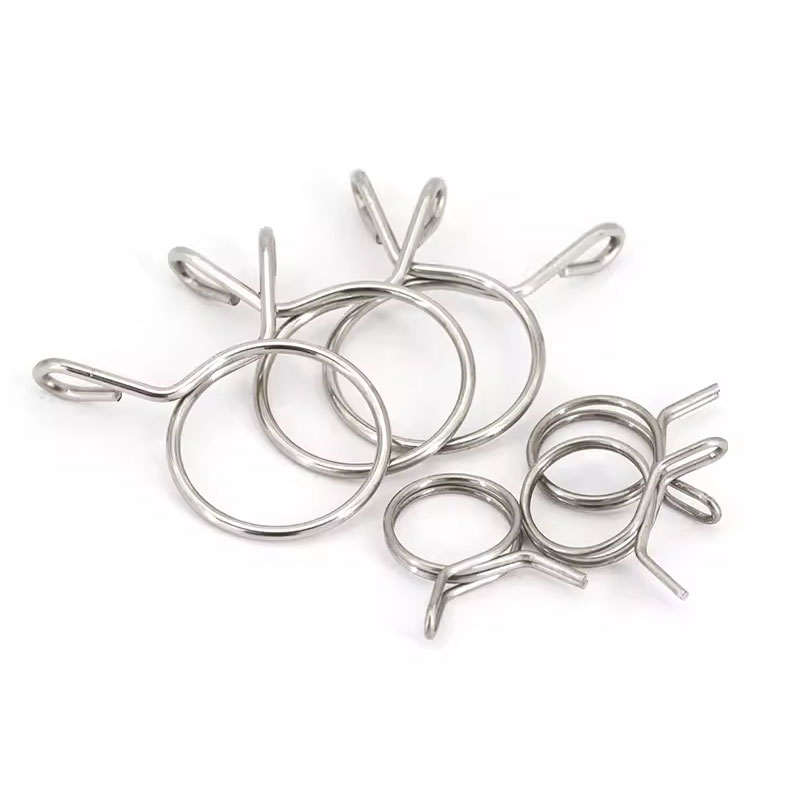

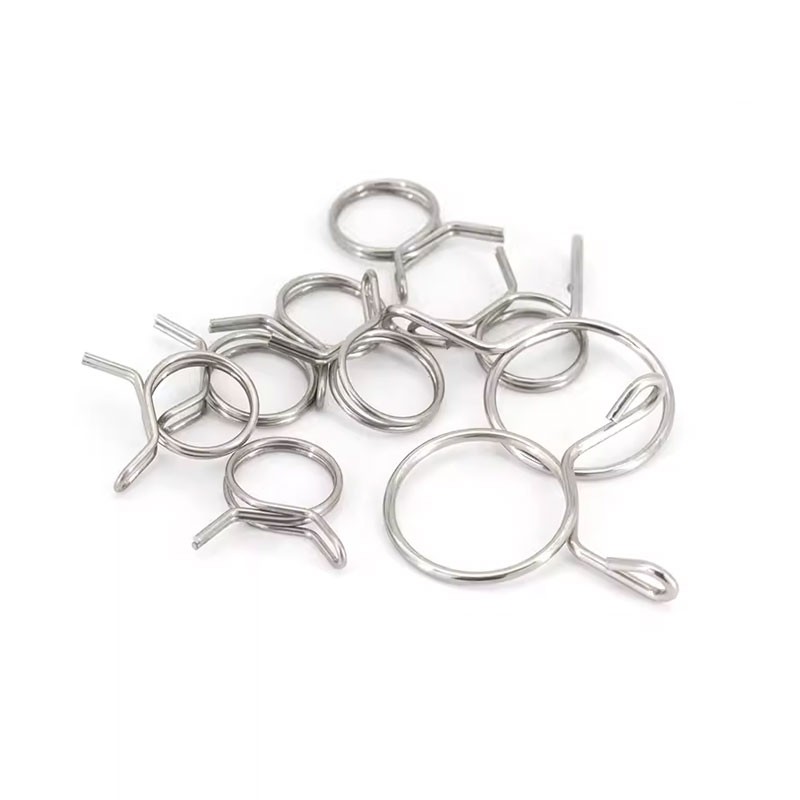

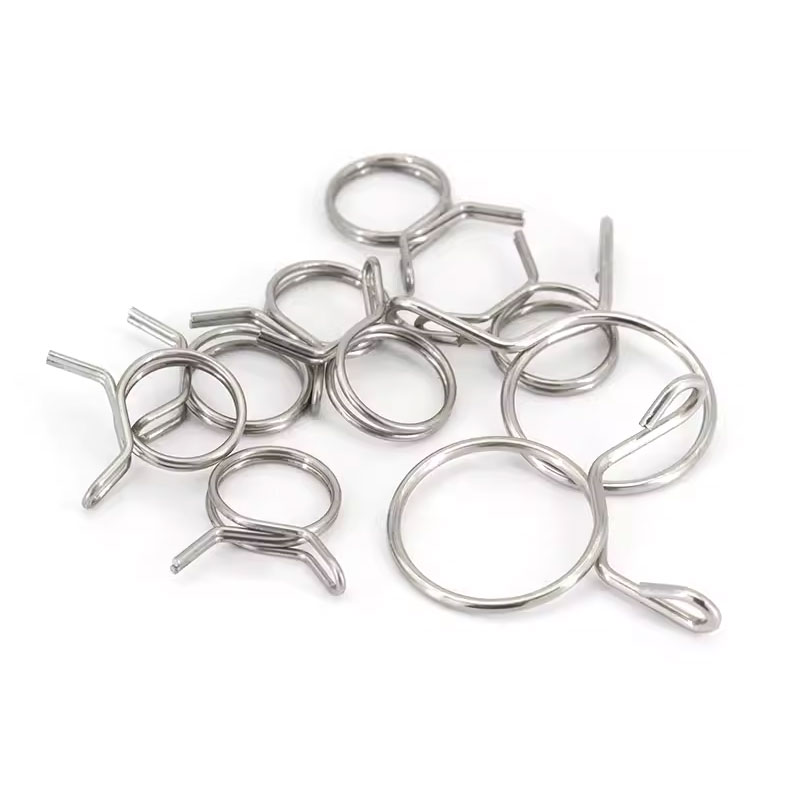

Double Wire Hose Clamps (also called twin-wire or spring wire hose clamps) deliver steady, reliable clamping force in environments subject to temperature swings or vibrations—conditions that cause hoses to repeatedly expand and contract. Their design consists of two parallel wires formed into a ring, with looped ends that are tightened via a screw or similar fastener. This creates uniform pressure around the hose, ensuring a tight, leak-proof seal ideal for automotive, industrial, and agricultural uses.
| Size | Wire Dia | Ear Length | Max ID | Weight | Pcs/CTN |
| mm | mm | mm | g | ||
| M3 | 3.0×0.8 | 10±0.5 | 3.5 | 0.18 | 1000 |
| M3.5 | 3.5×0.8 | 10±0.5 | 4.4 | 0.18 | 1000 |
| M4 | 4.0×0.8 | 10±0.5 | 4.8 | 0.19 | 1000 |
| M4.5 | 4.5×0.8 | 10±0.5 | 5.6 | 0.22 | 1000 |
| M5 | 5.0×0.8 | 10±0.5 | 5.8 | 0.22 | 1000 |
| M6 | 6.0×0.8 | 10±0.5 | 7.3 | 0.23 | 1000 |
| M7 | 7.0×1.0 | 10±0.5 | 8.3 | 0.38 | 1000 |
| M8 | 8.0×1.0 | 10±0.5 | 9.3 | 0.39 | 1000 |
| M9 | 9.0×1.0 | 10±0.5 | 10.4 | 0.43 | 1000 |
| M10 | 10×1.2 | 10±0.5 | 11.5 | 0.66 | 1000 |
| M11 | 11×1.2 | 10±0.5 | 12.3 | 0.69 | 1000 |
| M12 | 12×1.2 | 10±0.5 | 13.7 | 0.72 | 1000 |
| M13 | 13×1.2 | 12±1.0 | 15 | 1.1 | 1000 |
| M14 | 14×1.4 | 12±1.0 | 15.7 | 1.16 | 1000 |
| M15 | 15×1.4 | 12±1.0 | 17.5 | 1.24 | 1000 |
| M16 | 16×1.6 | 14±1.0 | 18.7 | 1.75 | 1000 |
| M17 | 17×1.6 | 14±1.0 | 19.5 | 1.95 | 1000 |
| M18 | 18×1.8 | 14±1.0 | 20.3 | 2.44 | 1000 |
| M19 | 19×1.8 | 14±1.0 | 21.3 | 2.5 | 500 |
| M20 | 20×1.8 | 15±1.0 | 23.3 | 2.67 | 500 |
| M21 | 21×1.8 | 15±1.0 | 23.9 | 2.7 | 500 |
| M22 | 22×1.8 | 15±1.0 | 25.1 | 2.81 | 500 |
| M23 | 23×1.8 | 15±1.0 | 25.8 | 2.85 | 500 |
| M24 | 24×2.0 | 16±1.0 | 26.3 | 3.62 | 500 |
| M25 | 25×2.0 | 16±1.0 | 27.8 | 3.73 | 500 |
| M26 | 26×2.0 | 16±1.0 | 29.4 | 3.76 | 500 |
| M27 | 27×2.0 | 16±1.0 | 30.2 | 3.85 | 500 |
| M28 | 28×2.0 | 16±1.0 | 31.4 | 4.05 | 500 |
| M29 | 29×2.0 | 16±1.0 | 34.5 | 4.18 | 500 |
Larger sizes are available according to customer’s requirement.
