Stainless Steel Double Wire Hose Clamps

Material：W1, W4, W5

Wire Dia: 1.5-2.5mm

"*" indicates required fields

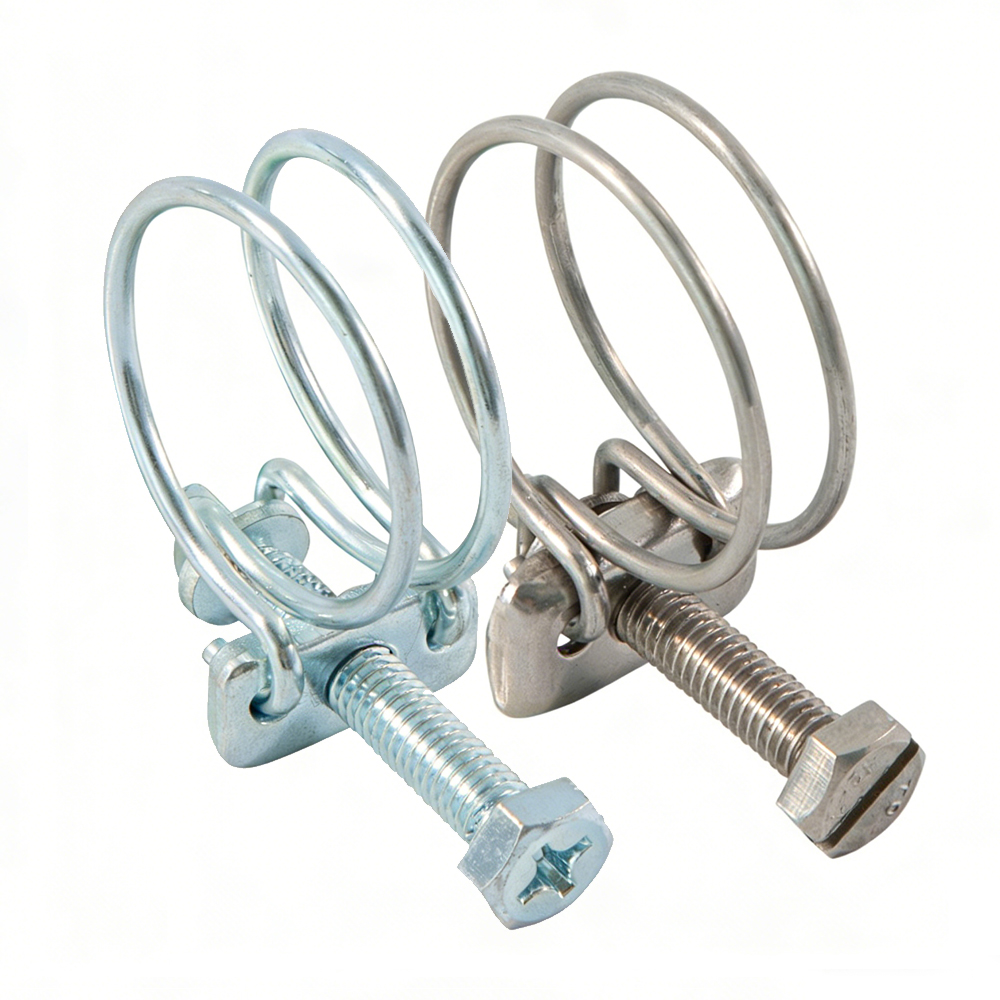

Double Wire Hose Clamps (also called twin-wire or spring wire hose clamps) deliver steady, reliable clamping force in environments subject to temperature swings or vibrations—conditions that cause hoses to repeatedly expand and contract. Their design consists of two parallel wires formed into a ring, with looped ends that are tightened via a screw or similar fastener. This creates uniform pressure around the hose, ensuring a tight, leak-proof seal ideal for automotive, industrial, and agricultural uses.

Size	Wire Dia(W1)	Screw	Wire Dia(W4)	Screw	Pcs/CTN
mm	mm	mm	mm	mm
11-14	1.5	M5×30	2	M6×30	1000
13-16	1.5	M5×30	2	M6×30	1000
15-18	1.5	M5×30	2	M6×30	1000
17-20	1.8	M5×30	2	M6×30	1000
19-22	1.8	M5×30	2	M6×30	1000
20-24	1.8	M5×30	2	M6×30	1000
22-26	1.8	M5×30	2	M6×30	1000
24-28	1.8	M5×30	2	M6×35	1000
26-30	2.2	M6×40	2	M6×35	500
28-32	2.2	M6×40	2	M6×40	500
31-35	2.2	M6×40	2	M6×40	500
34-38	2.2	M6×40	2	M6×40	500
35-40	2.2	M6×40	2	M6×40	500
37-42	2.2	M6×40	2	M6×40	500
40-45	2.2	M6×40	2	M6×40	500
43-48	2.2	M6×50	2	M6×40	500
45-50	2.2	M6×50	2.3	M6×40	500
47-52	2.2	M6×50	2.3	M6×50	500
50-55	2.2	M6×50	2.3	M6×50	500
53-58	2.2	M6×50	2.3	M6×50	500
55-60	2.2	M6×60	2.3	M6×50	500
54-62	2.2	M6×60	2.3	M6×50	500
60-65	2.5	M6×60	2.3	M6×50	500
63-68	2.5	M6×60	2.3	M6×50	500
65-70	2.5	M6×70	2.3	M6×50	250
70-75	2.5	M6×70	2.3	M6×50	250
75-80	2.5	M6×70	2.3	M6×50	250
80-85	2.5	M6×70	2.3	M6×50	250
84-90	2.5	M8×70	2.3	M6×50	250
89-95	2.5	M8×70	2.3	M6×50	250
94-100	2.5	M8×80	2.3	M6×50	250
98-105	2.5	M8×80	2.3	M6×60	250
103-110	2.5	M8×80	2.3	M6×60	250
108-115	2.5	M8×80	2.3	M6×60	250
113-120	2.5	M8×80	2.3	M6×60	250

Larger sizes are available according to customer’s requirement.

NOTE:

W1: All material Galvanized Carbon Steel, Zinc Plated Steel

W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,

W4: All material Stainless steel 201,301,304,

W5: All material Stainless steel 316.

Click to enlarge

Category: Double wire Hose Clamps Tags: stainless steel w4, Double Wire Hose Clamps

Description
Package& Shipping

Description

Size	Wire Dia(W1)	Screw	Wire Dia(W4)	Screw	Pcs/CTN
mm	mm	mm	mm	mm
11-14	1.5	M5×30	2	M6×30	1000
13-16	1.5	M5×30	2	M6×30	1000
15-18	1.5	M5×30	2	M6×30	1000
17-20	1.8	M5×30	2	M6×30	1000
19-22	1.8	M5×30	2	M6×30	1000
20-24	1.8	M5×30	2	M6×30	1000
22-26	1.8	M5×30	2	M6×30	1000
24-28	1.8	M5×30	2	M6×35	1000
26-30	2.2	M6×40	2	M6×35	500
28-32	2.2	M6×40	2	M6×40	500
31-35	2.2	M6×40	2	M6×40	500
34-38	2.2	M6×40	2	M6×40	500
35-40	2.2	M6×40	2	M6×40	500
37-42	2.2	M6×40	2	M6×40	500
40-45	2.2	M6×40	2	M6×40	500
43-48	2.2	M6×50	2	M6×40	500
45-50	2.2	M6×50	2.3	M6×40	500
47-52	2.2	M6×50	2.3	M6×50	500
50-55	2.2	M6×50	2.3	M6×50	500
53-58	2.2	M6×50	2.3	M6×50	500
55-60	2.2	M6×60	2.3	M6×50	500
54-62	2.2	M6×60	2.3	M6×50	500
60-65	2.5	M6×60	2.3	M6×50	500
63-68	2.5	M6×60	2.3	M6×50	500
65-70	2.5	M6×70	2.3	M6×50	250
70-75	2.5	M6×70	2.3	M6×50	250
75-80	2.5	M6×70	2.3	M6×50	250
80-85	2.5	M6×70	2.3	M6×50	250
84-90	2.5	M8×70	2.3	M6×50	250
89-95	2.5	M8×70	2.3	M6×50	250
94-100	2.5	M8×80	2.3	M6×50	250
98-105	2.5	M8×80	2.3	M6×60	250
103-110	2.5	M8×80	2.3	M6×60	250
108-115	2.5	M8×80	2.3	M6×60	250
113-120	2.5	M8×80	2.3	M6×60	250

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

Stainless Steel Double Wire Hose Clamps

Package:

Delivery Time:
