Home Hydraulic Hose Fittings Metric Hose Fittings 90011 Metric Straight Standpipe Fittings
15611SW NPT Swivel Male Hose Fittings
Back to products
00621 Crimp Hose Ferrules For R12
Click to enlarge

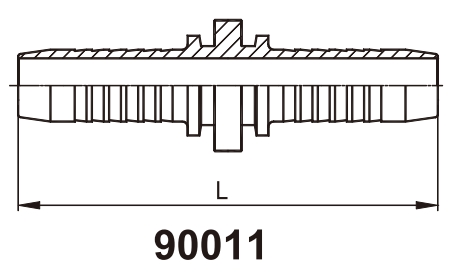

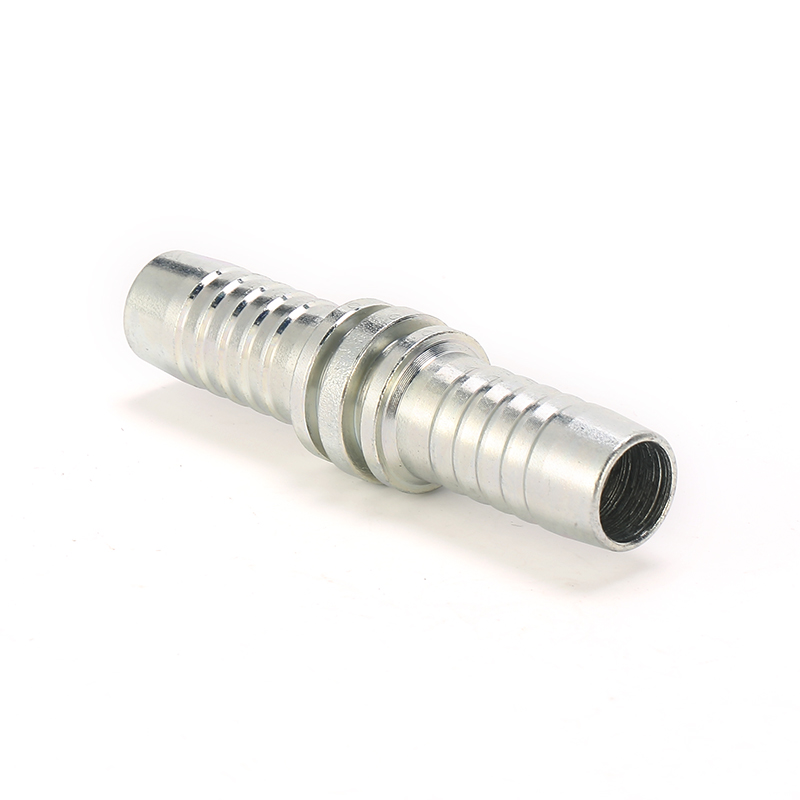

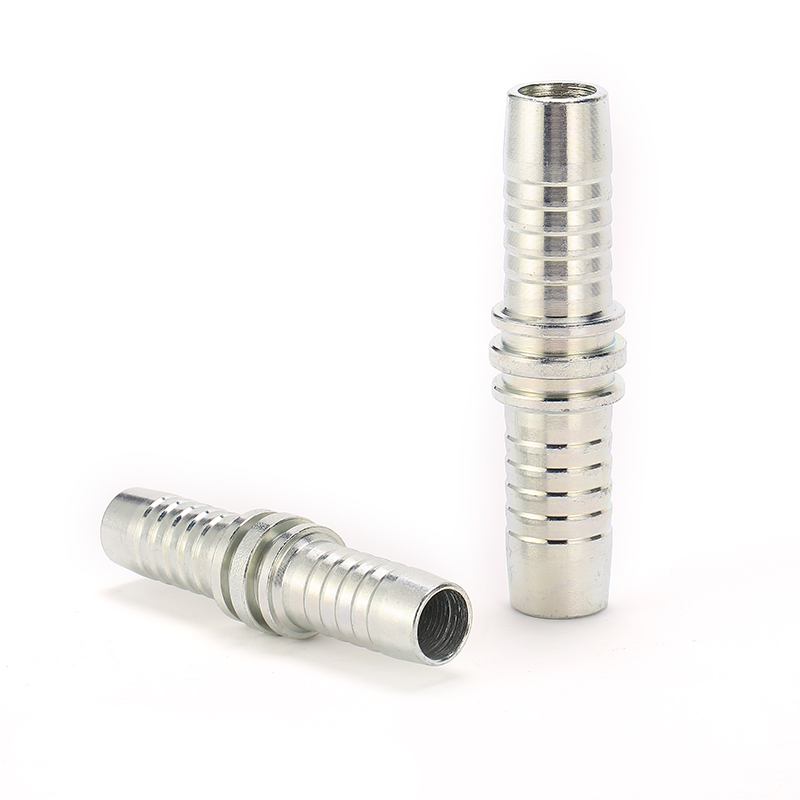

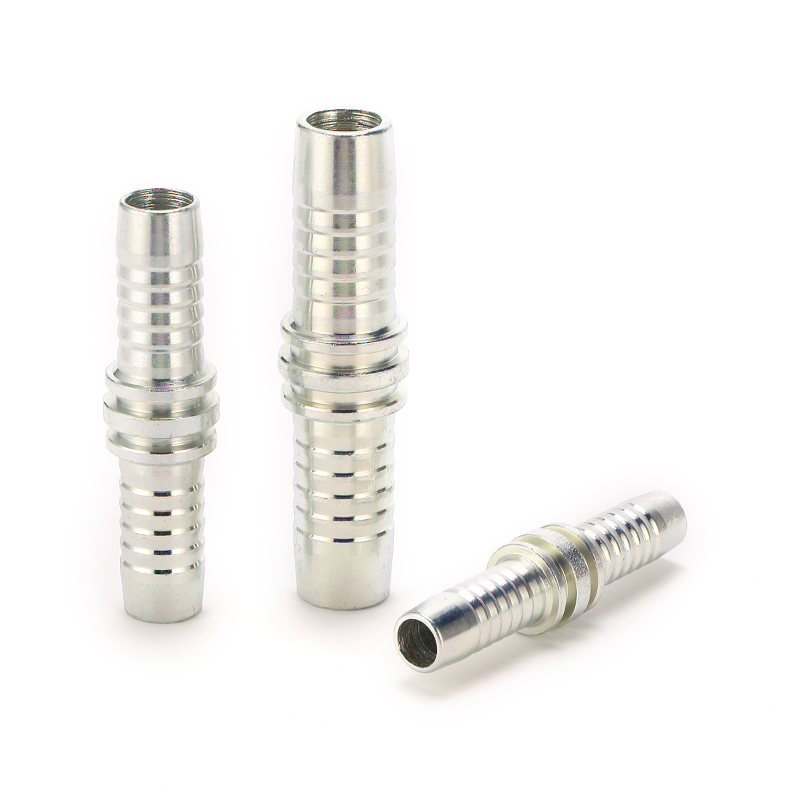

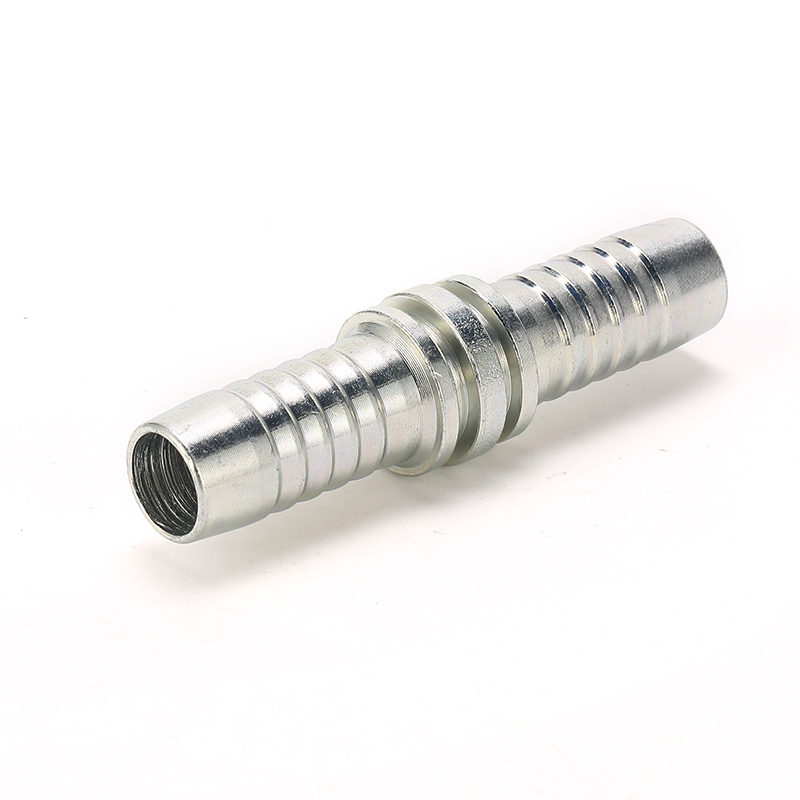

90011 Metric Straight Standpipe Fittings

Description:

The 90011 metric standpipe fitting is a straight fitting that has a metric thread on one end and a smooth hose tail on the other. The smooth hose tail is intended for use with a hose that matches its corresponding inside diameter.

.

INQUIRE NOW

"*" indicates required fields

Category: Metric Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART NO HOSE  BORE
DN DASH L
90011-04 6 04 69
90011-05 8 05 69
90011-06 10 06 73
90011-08 12 08 77
90011-10 16 10 83
90011-12 20 12 93
90011-16 25 16 114
90011-20 32 20 132
90011-24 40 24 162
90011-32 50 32 170
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
