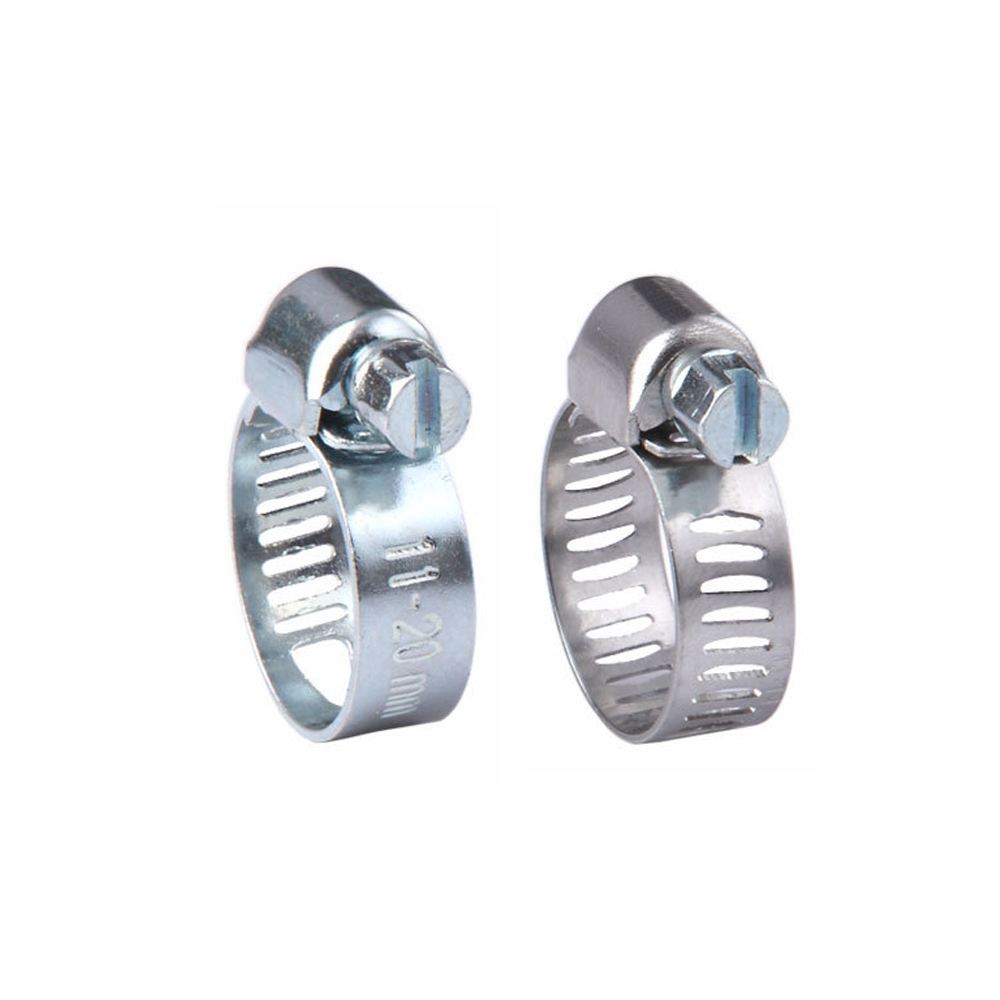

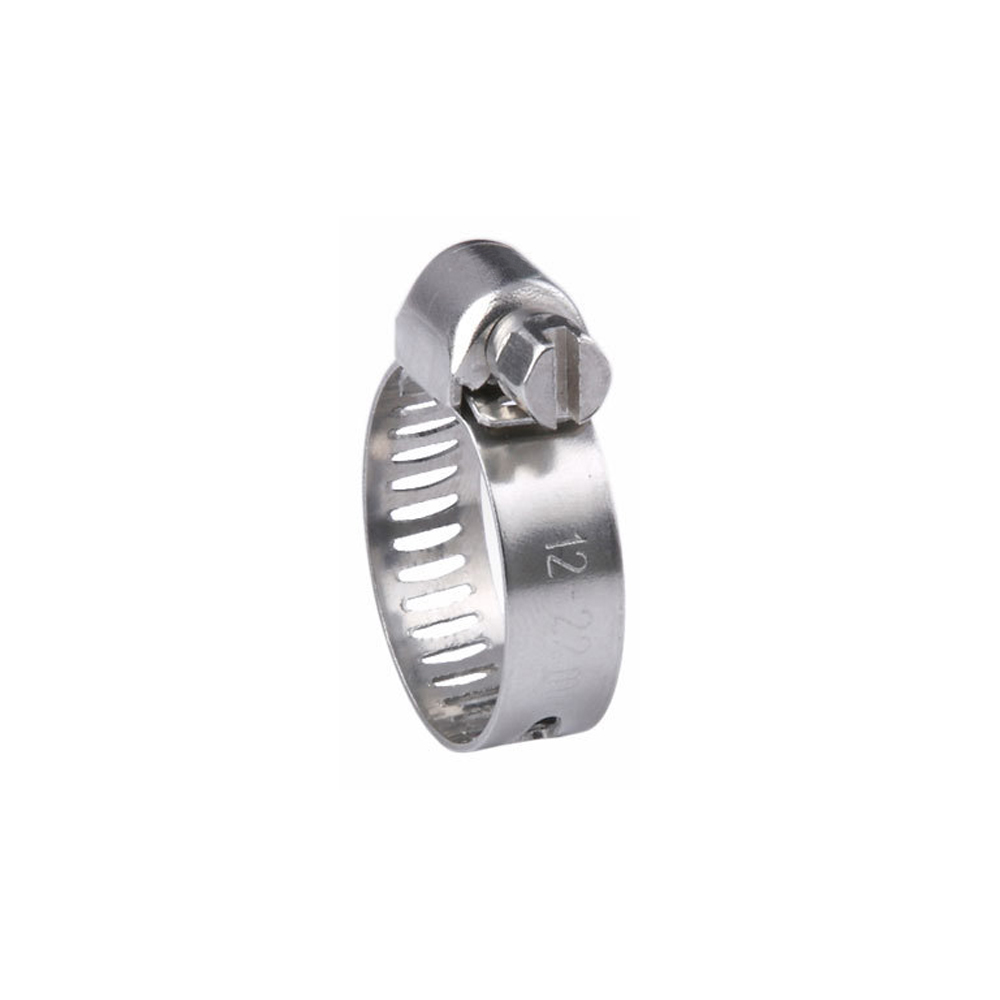

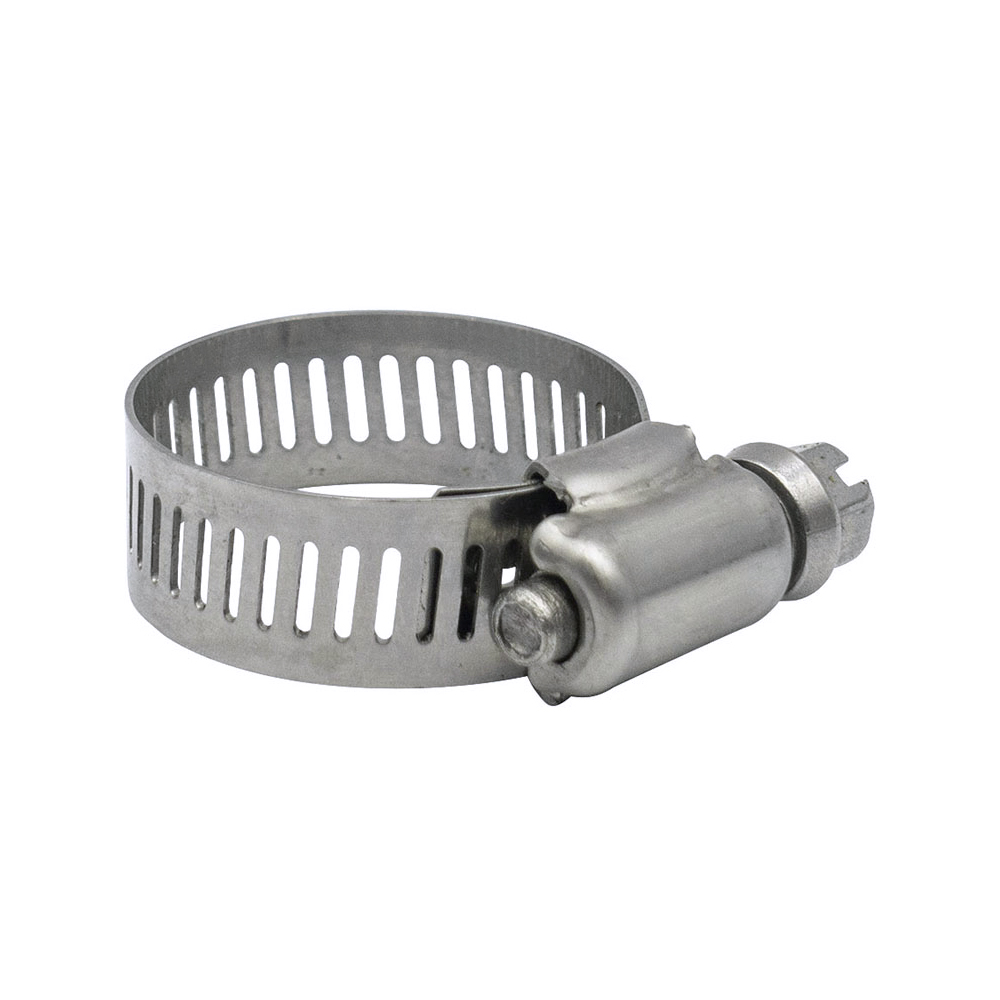

American-style hose clamps, also known as worm-gear hose clamps, are versatile fasteners with a wide range of applications. They are specifically designed to secure hoses to fittings such as barb connectors, threaded fittings, and pipe nozzles. Their distinctive feature lies in the mechanism incorporating a ratchet band and screw, enabling effortless adjustment while ensuring a tight and reliable seal.
| SAE NO | Size | Size | Band Width | Thickness | Max Torque | Pcs/CTN |
| mm | inch | mm | mm | Nm | ||
| 4 | 6-16 | 0.25″-0.62″ | 8 | 0.6 | 2 | 2500 |
| 6 | 11-20 | 0.44″-0.78″ | 8 | 0.6 | 2 | 2500 |
| 8 | 13-23 | 0.5″-0.91″ | 8 | 0.6 | 2 | 1000 |
| 10 | 14-27 | 0.56″-1.06″ | 8 | 0.6 | 2 | 1000 |
| 12 | 18-32 | 0.69″-1.25″ | 8 | 0.6 | 2 | 1000 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
