BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

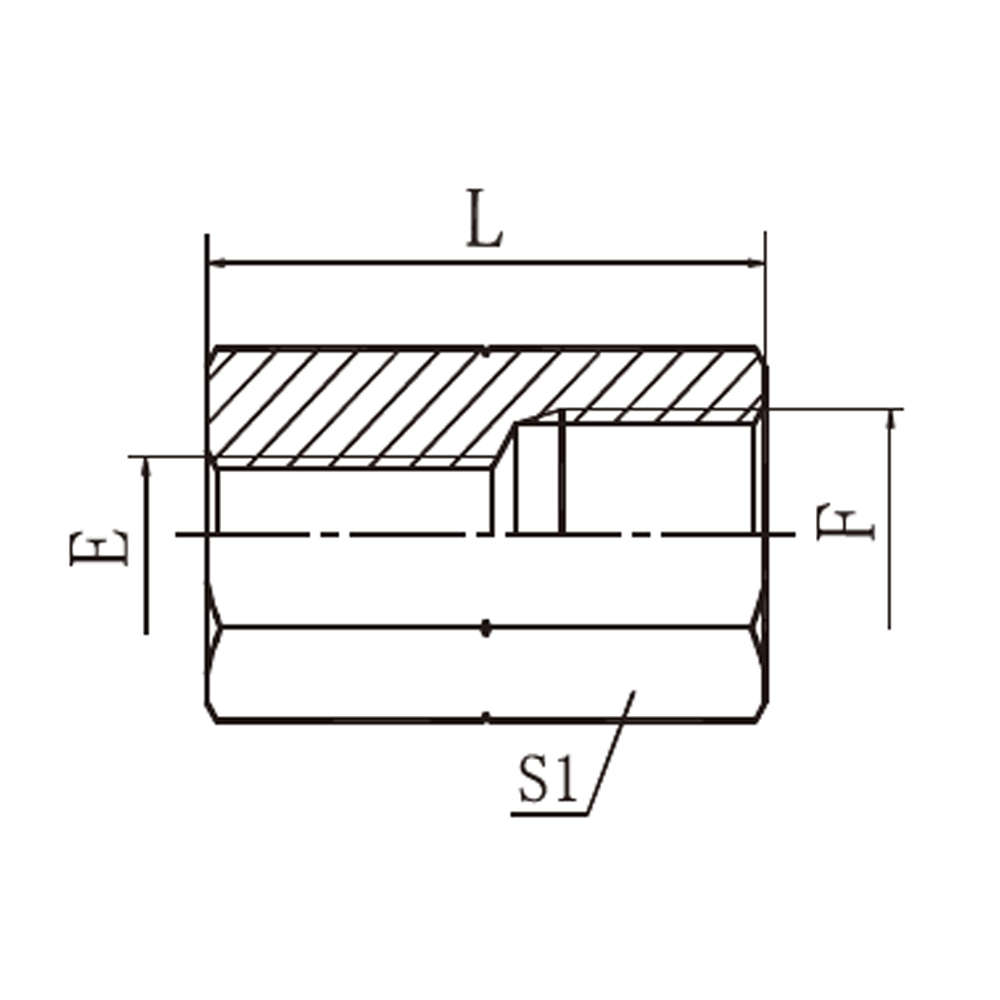

| PART NO. | THREAD | DIMENSIONS | ||
| E | F | L | S1 | |
| 7T-02 | R1/8″X28 | R1/8″X28 | 20 | 14 |
| 7T-02-04 | R1/8″X28 | R1/4″X19 | 30 | 19 |
| 7T-04 | R1/4″X19 | R1/4″X19 | 30 | 19 |
| 7T-04-06 | R1/4″X19 | R3/8″X19 | 30 | 22 |
| 7T-04-08 | R1/4″X19 | R1/2″X14 | 40 | 27 |
| 7T-06 | R3/8″X19 | R3/8″X19 | 30 | 22 |
| 7T-06-08 | R3/8″X19 | R1/2″X14 | 40 | 27 |
| 7T-06-12 | R3/8″X19 | R3/4″X14 | 37 | 36 |
| 7T-08 | R1/2″X14 | R1/2″X14 | 40 | 27 |
| 7T-08-12 | R1/2″X14 | R3/4″X14 | 42 | 36 |
| 7T-12 | R3/4″X14 | R3/4″X14 | 42 | 36 |
| 7T-12-16 | R3/4″X14 | R1″X11 | 50 | 41 |
| 7T-16 | R1″X11 | R1″X11 | 50 | 41 |
| 7T-16-20 | R1″X11 | R1.1/4″X11 | 52 | 50 |
| 7T-20 | R1.1/4″X11 | R1.1/4″X11 | 55 | 50 |
| 7T-24 | R1.1/2″X11 | R1.1/2″X11 | 55 | 55 |
| 7T-32 | R2″X11 | R2″X11 | 65 | 70 |
