Home Hydraulic Hose Fittings Banjo Fittings 700M Metric Thread Banjo Bolt
720B BSP Thread Banjo Bolt
Back to products
15611SW NPT Swivel Male Hose Fittings
Click to enlarge

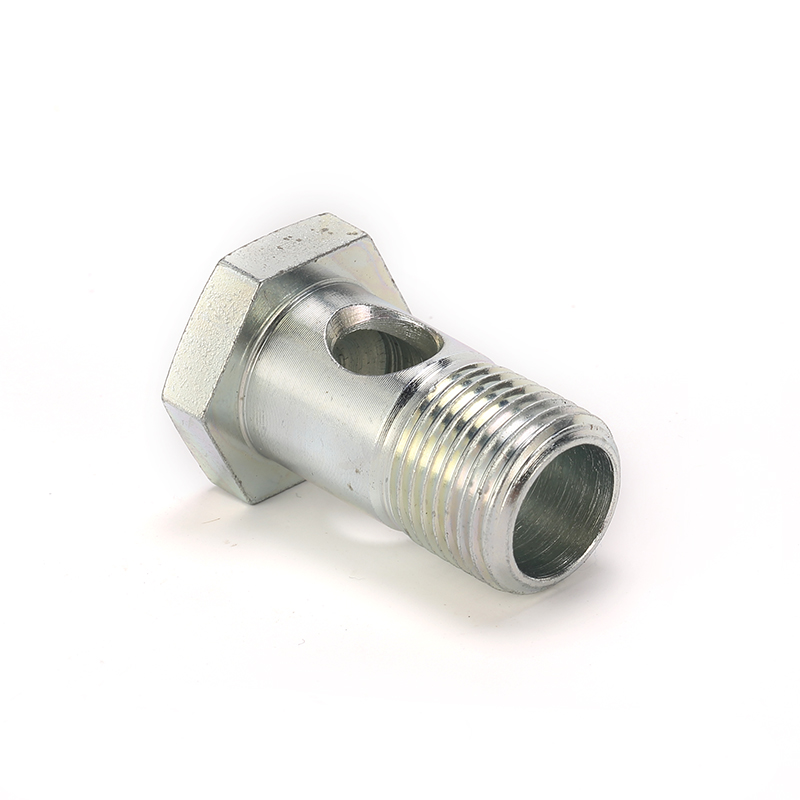

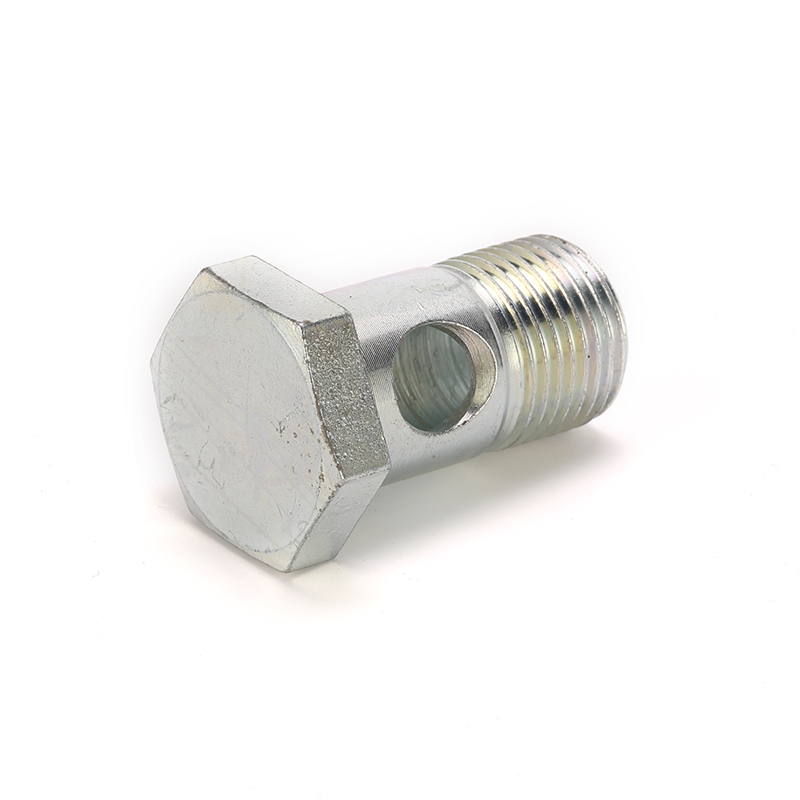

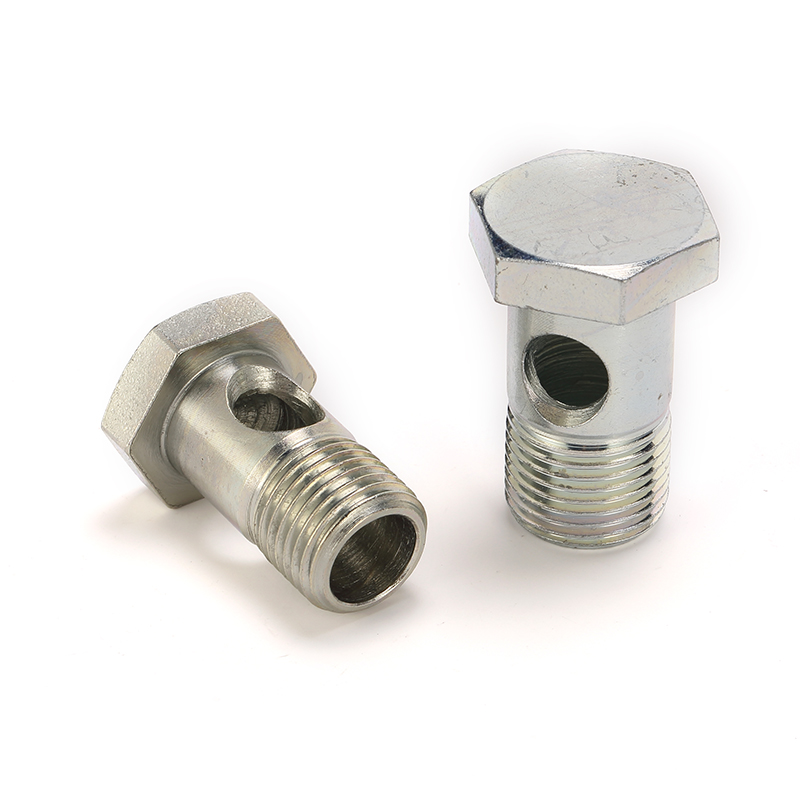

700M Metric Thread Banjo Bolt

Description:

The 700M Metric Banjo bolt fitting is a kind of hydraulic banjo bolt fitting that is frequently utilized in fluid power systems. The extremity of the banjo bolt is devised to be used in conjunction with a Banjo fitting. A Banjo fitting is a type of hydraulic fitting which has a hole through which the bolt can pass.

INQUIRE NOW

"*" indicates required fields

Category: Banjo Fittings Tags: Female, Carbon Steel, BSP, Banjo
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART NO. THREAD E DIMENSIONS
A B C S1
700M-10 M10x1 19 5.5 6 14
700M-12 M12x1.5 24 7 6 17
700M-14 M14x1.5 26 9 6 19
700M-16 M16x1.5 28 11 6 22
700M-18 M18x1.5 32 13 6 24
700M-22 M22x1.5 39 16 7 27
700M-26 M26x1.5 45 20 7 32
700M-30 M30x1.5 51 24 7 36
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

Related products

50011 Metric Straight Standpipe Fittings

Metric Hose Fittings

20491C-T 90 Elbow Metric Female 24° Multiseal L.T. Fittings

Metric Hose Fittings

20441-T 45 Elbow Metric Female 24°Cone O-Ring L.T. Fittings

Metric Hose Fittings

20411-T Metric Female 24°Cone O-Ring L.T. Fittings

Metric Hose Fittings

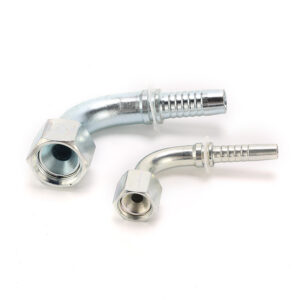

20791 Metric 90 Elbow Female 74° Cone Hydraulic Pipe Fittings
