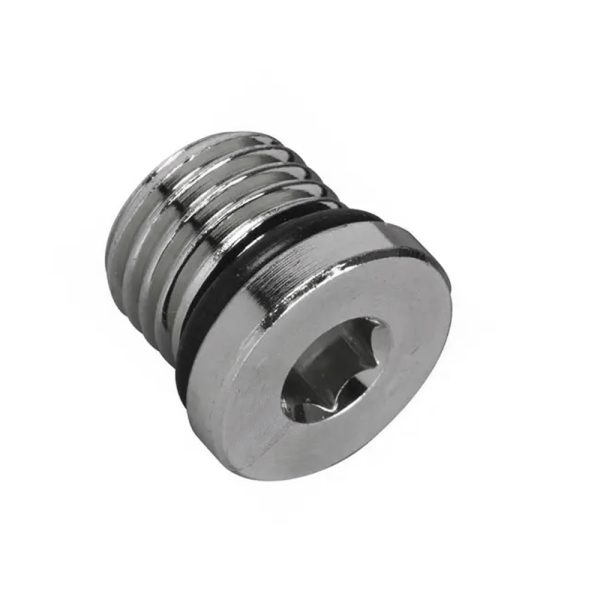

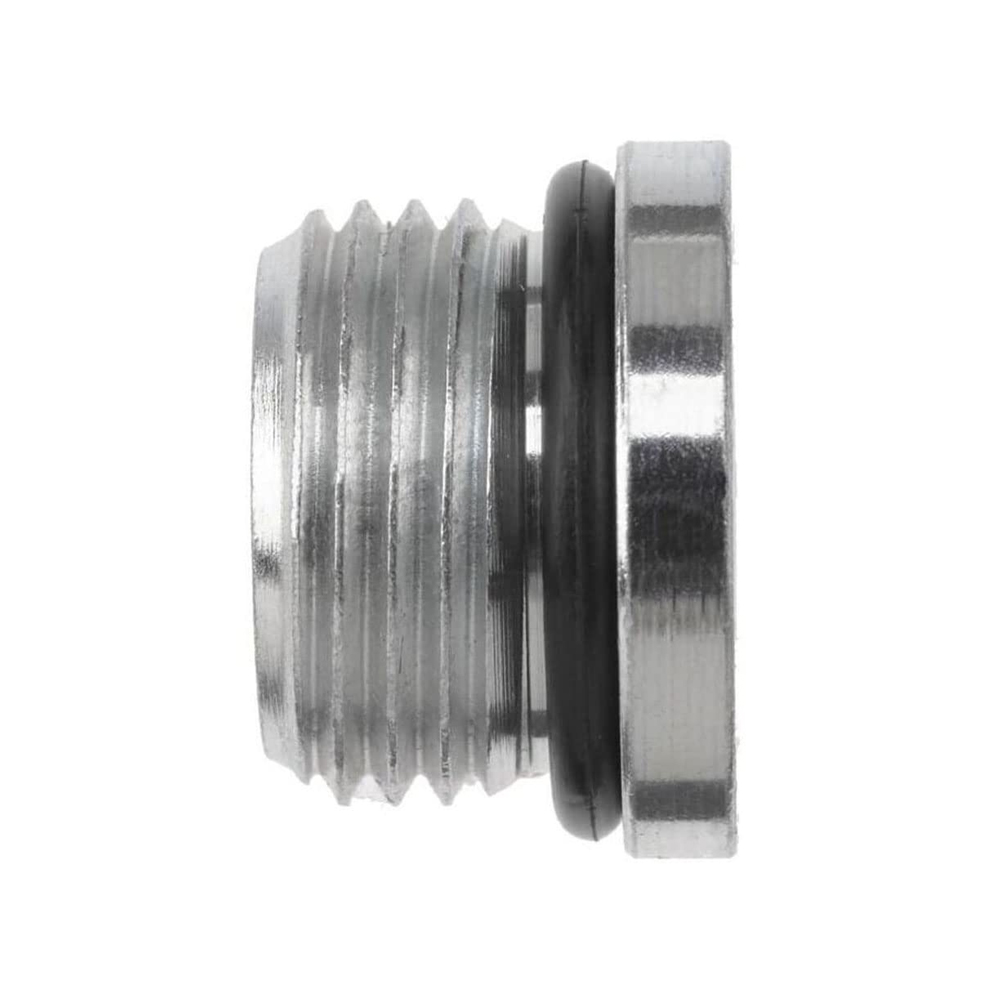

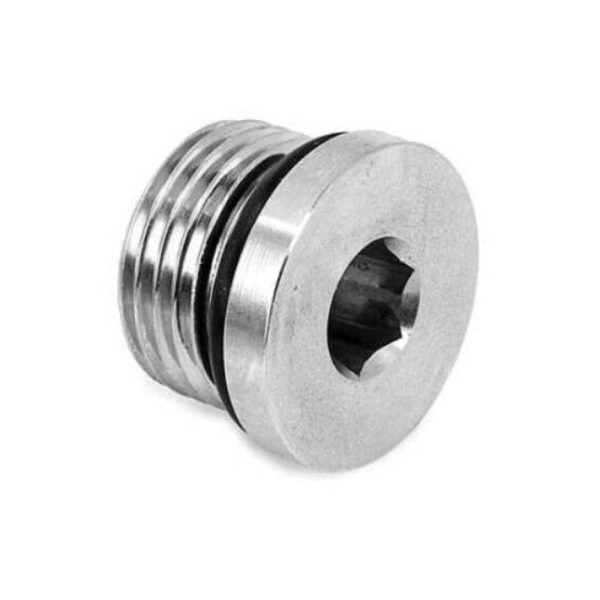

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

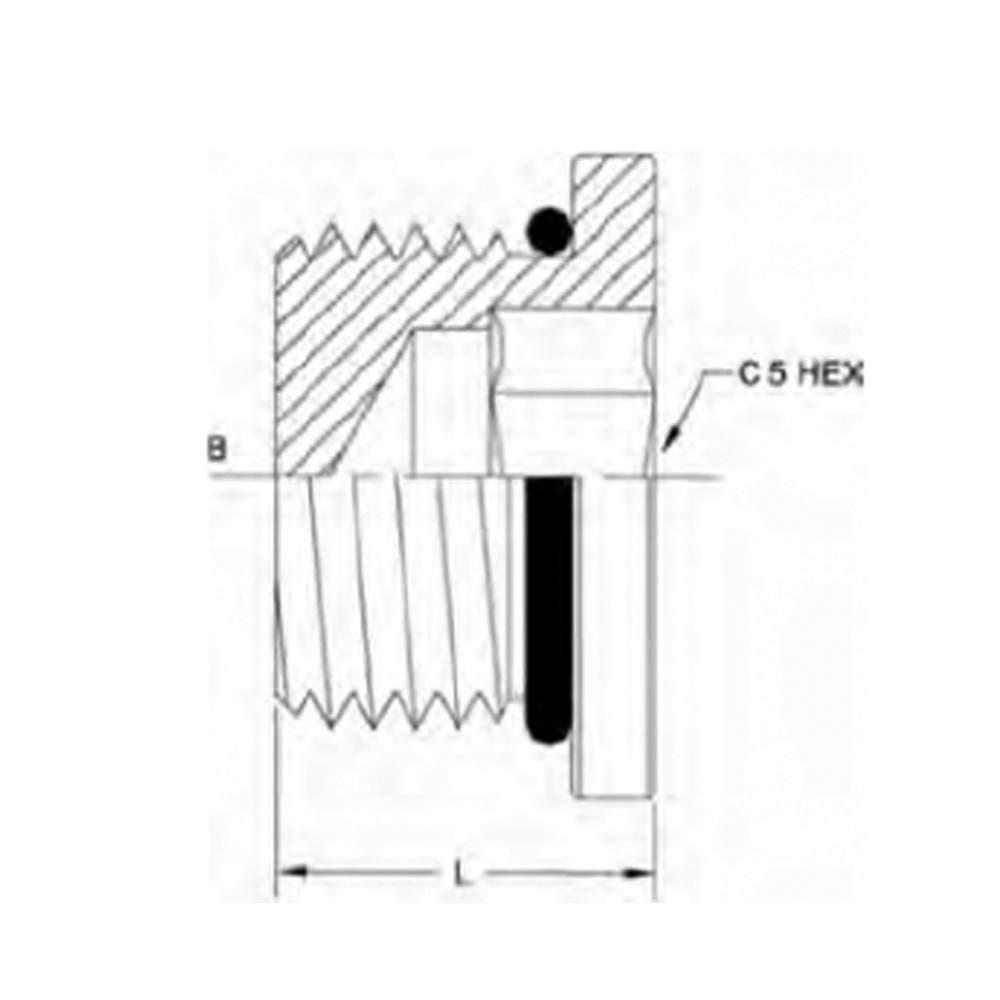

| PART NO | TUBE O.D.
(INCH) |
B
SAEORB |
L
(INCH) |
C5 HEX (INCH) |
| 6408-H02-0 | 1/8 | 5/16-24 | 0.40 | 0.125 |
| 6408-H03-O | 3/16 | 3/8-24 | 0.40 | 0.125 |
| 6408-H04-0 | 1/4 | 7/16-20 | 0.47 | 0.188 |
| 6408-H05-0 | 5/16 | 1/2-20 | 0.47 | 0.188 |
| 6408-H06-0 | 3/8 | 9/16-18 | 0.50 | 0.250 |
| 6408-H08-0 | 1/2 | 3/4-16 | 0.58 | 0.312 |
| 6408-H10-0 | 5/8 | 7/8-14 | 0.65 | 0.375 |
| 6408-H12-O | 3/4 | 1-1/16-12 | 0.77 | 0.562 |
| 6408-H14-O | 7/8 | 1-3/16-12 | 0.77 | 0.562 |
| 6408-H16-O | 1 | 1-5/16-12 | 0.77 | 0.625 |
| 6408-H20-0 | 1-1/4 | 1-5/8-12 | 0.77 | 0.750 |
| 6408-H24-O | 1-1/2 | 1-7/8-12 | 0.77 | 0.750 |
| 6408-H32-O | 2 | 2-1/2-12 | 0.77 | 0.750 |
