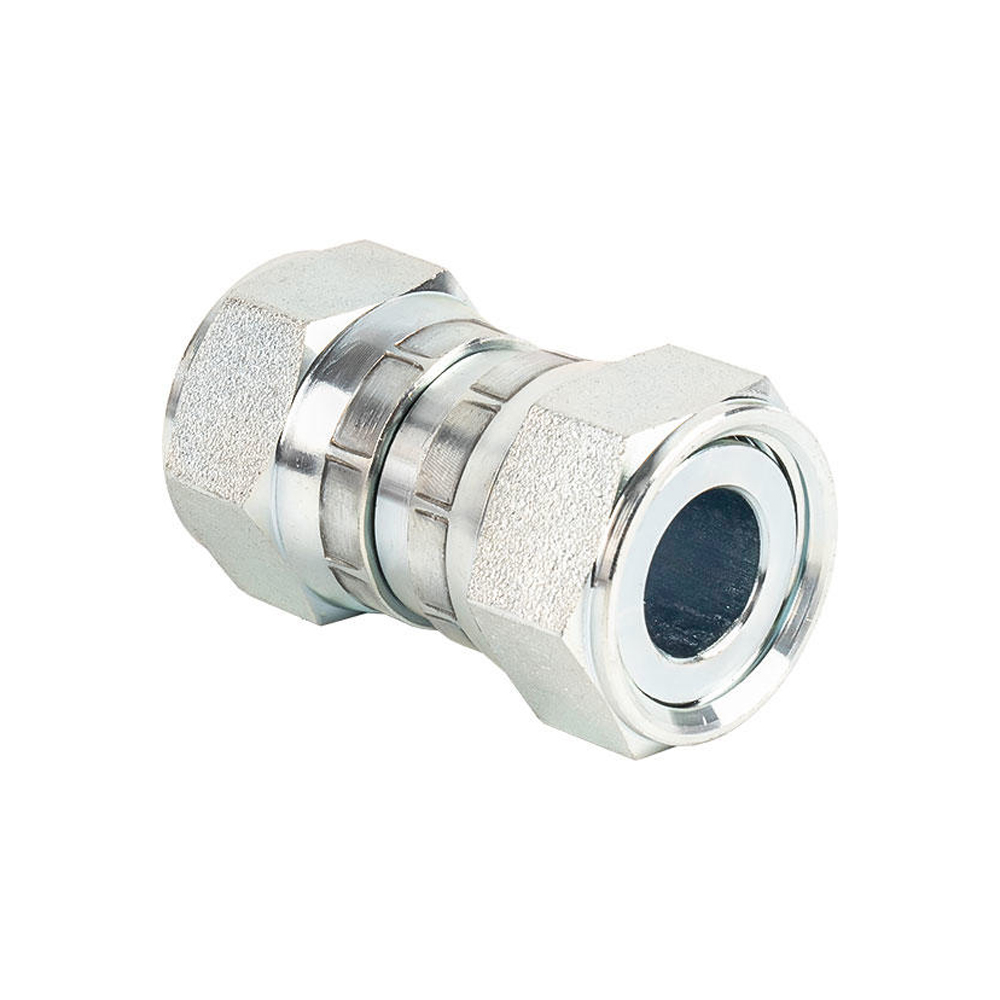

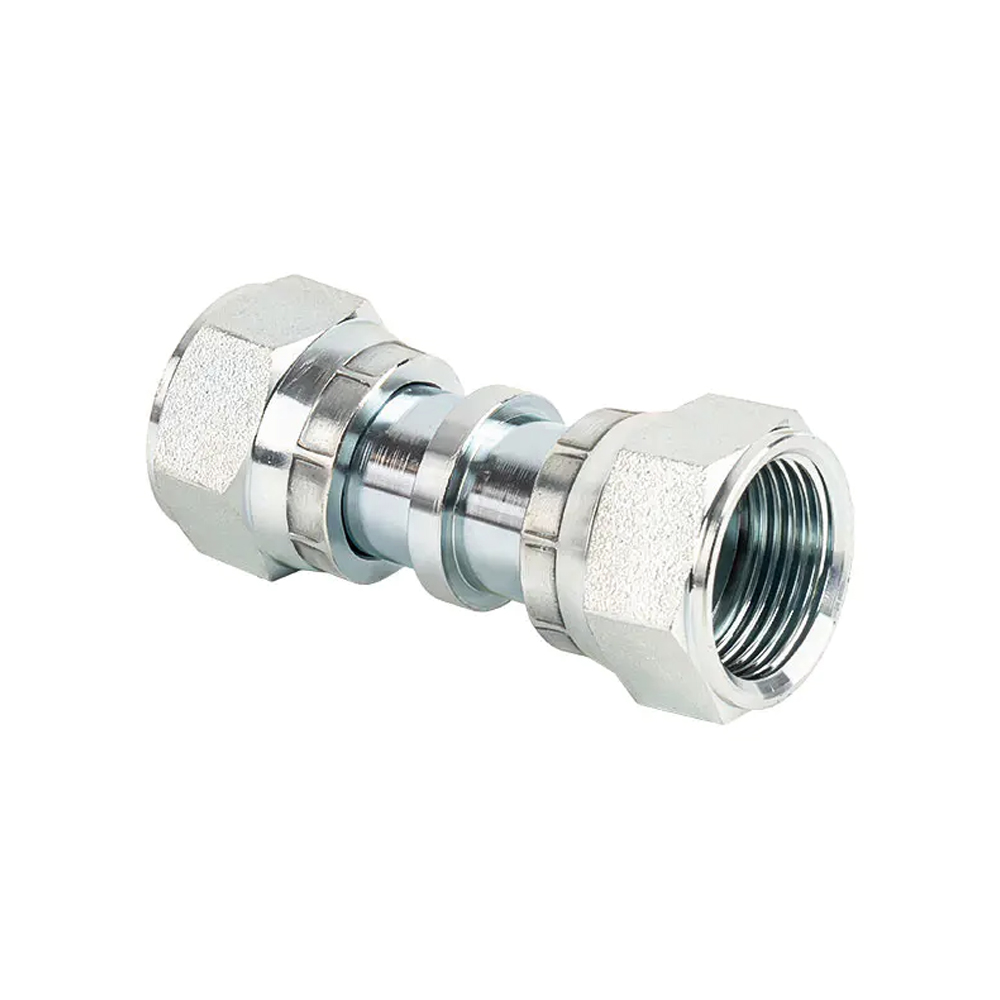

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
| PART NO. | THREAD | DIMENSIONS | |||||

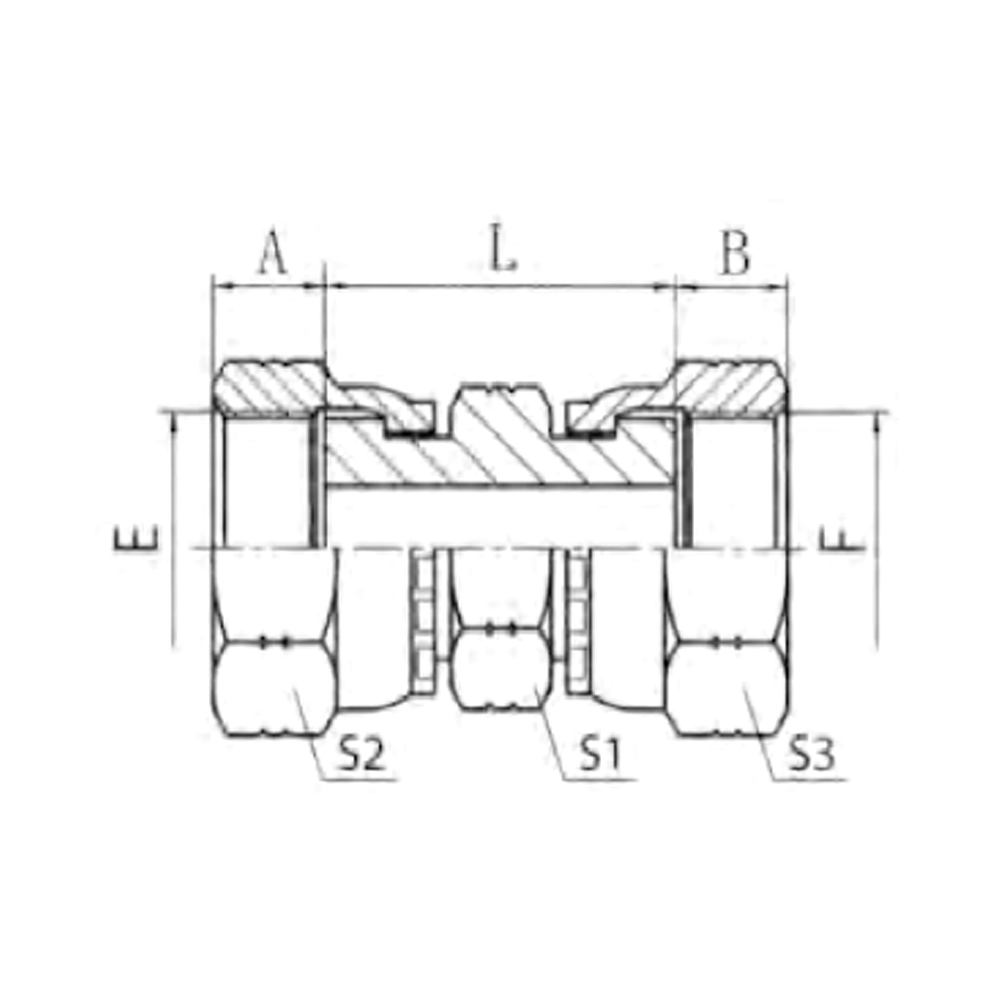

| E | F | A | B | L | S1 | S2 S3 | |
| 3F-04 | 9/16″X18 | 9/16″X18 | 7.5 | 7.5 | 33.5 | 19 | 19 |
| 3F-06 | 11/16″X16 | 11/16″X16 | 9.5 | 9.5 | 40.5 | 22 | 22 |
| 3F-08 | 13/16″X16 | 13/16″X16 | 11.5 | 11.5 | 44.5 | 27 | 27 |
| 3F-10 | 1″X14 | 1″X14 | 12.5 | 12.5 | 52.5 | 30 | 32 |
| 3F-12 | 1.3/16″X12 | 1.3/16″X12 | 13 | 13 | 56 | 36 | 36 |
| 3F-16 | 1.7/16″X12 | 1.7/16″X12 | 14 | 14 | 60 | 41 | 41 |
| 3F-20 | 1.11/16″X12 | 1.11/16″X12 | 15 | 15 | 59.5 | 50 | 50 |
| 3F-24 | 2″X12 | 2″X12 | 17 | 17 | 64 | 60 | 60 |
