1JO9 JIC to ORB 90° Elbow Hydraulic Adapter

Description:

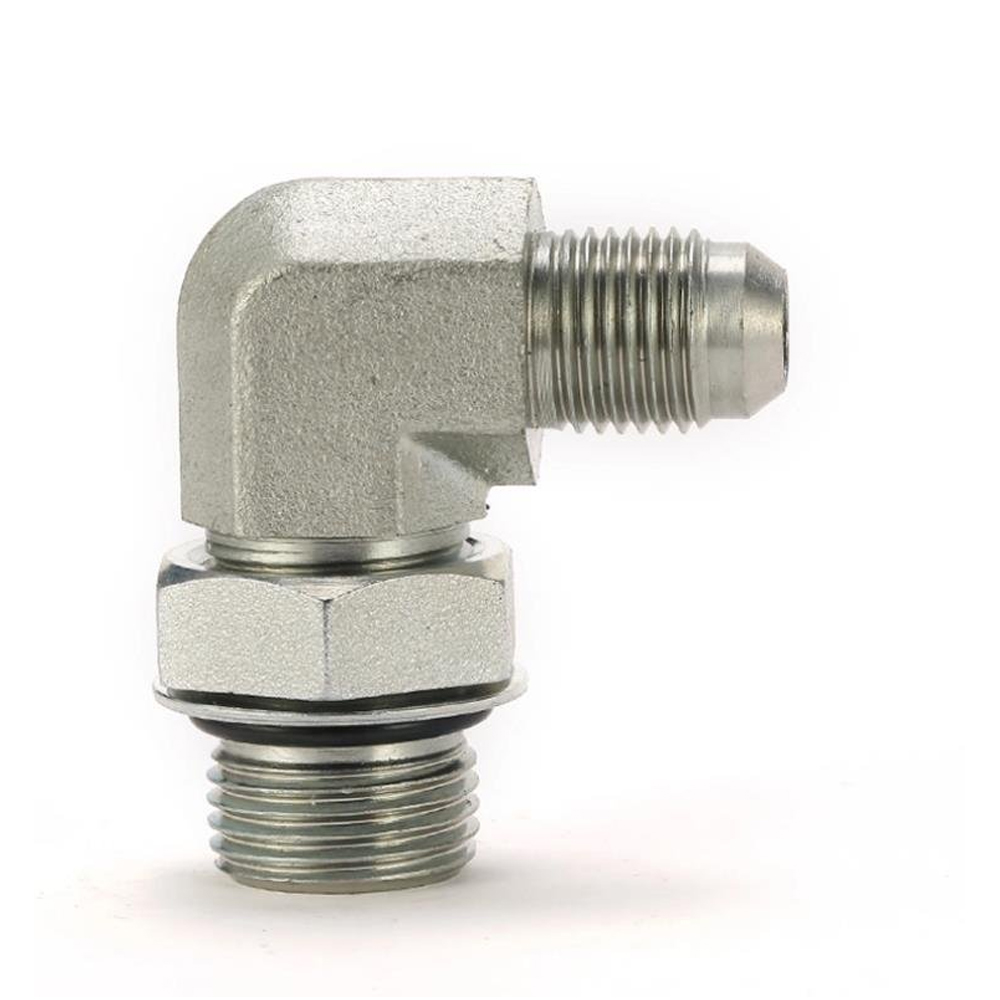

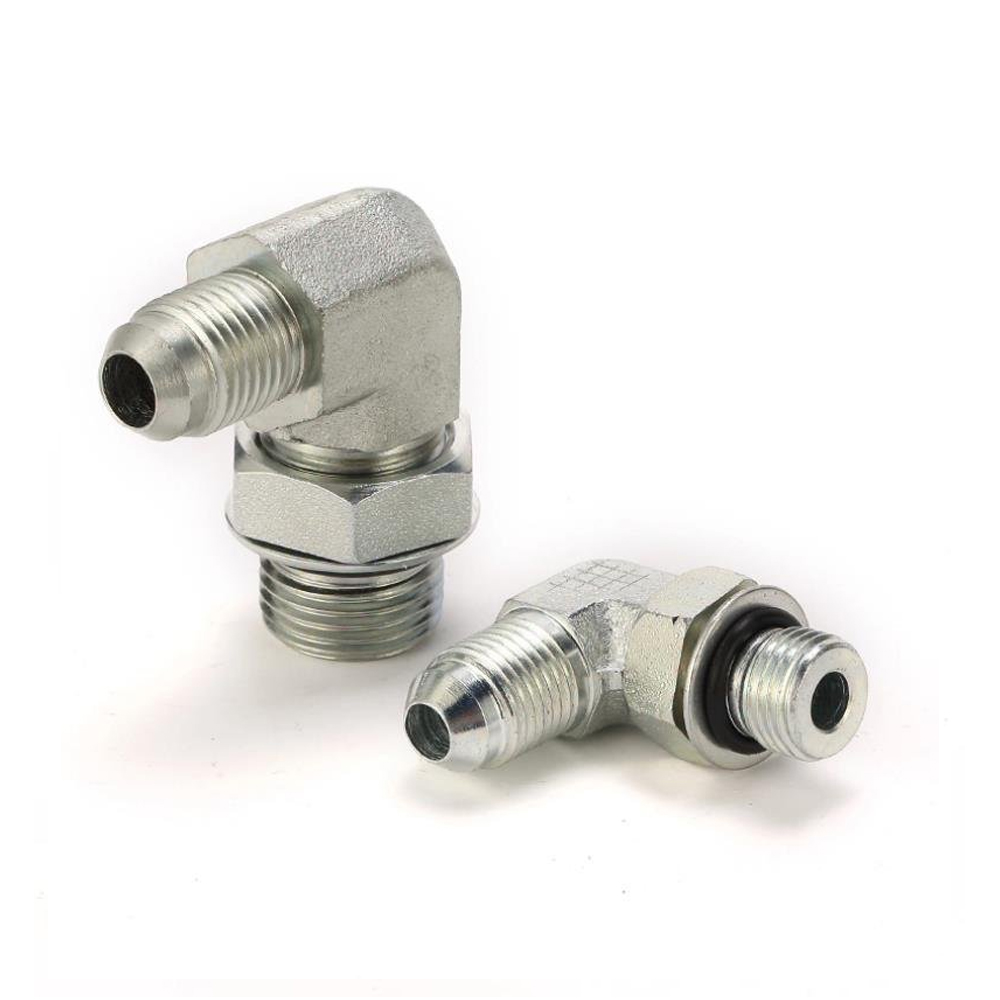

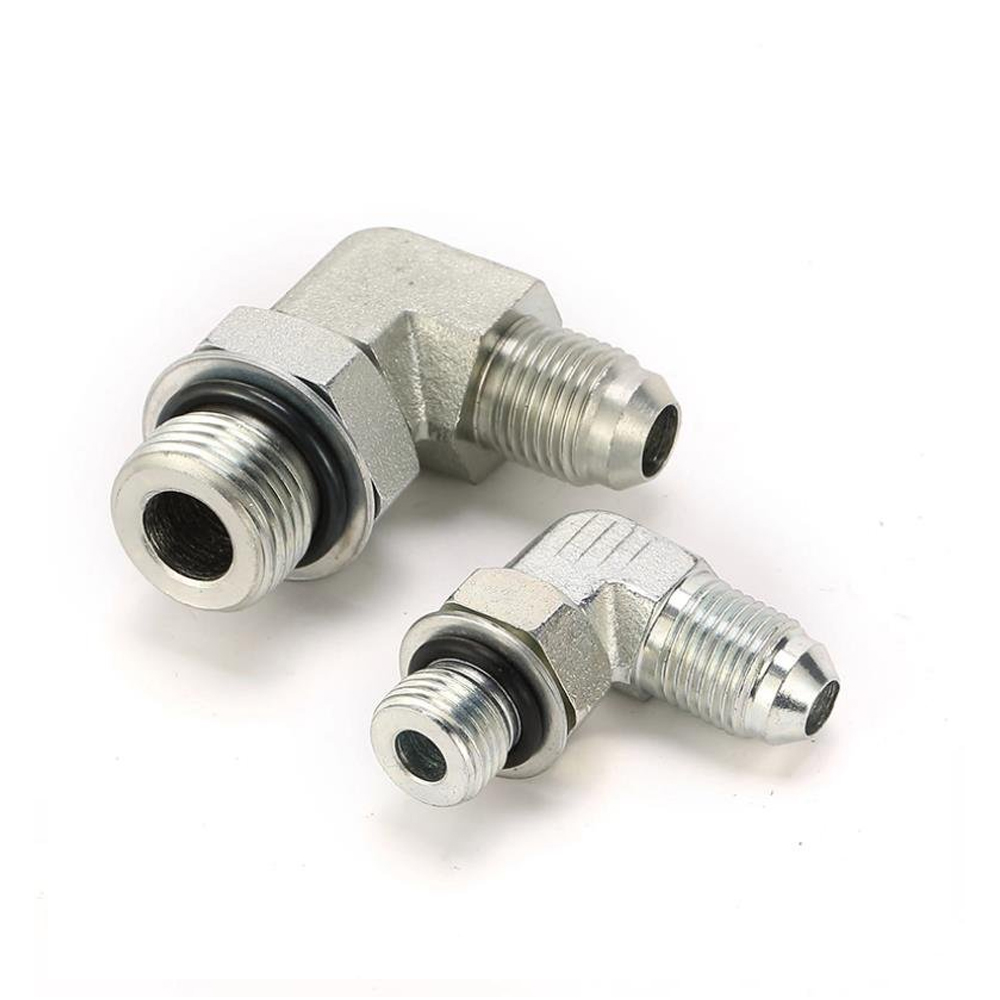

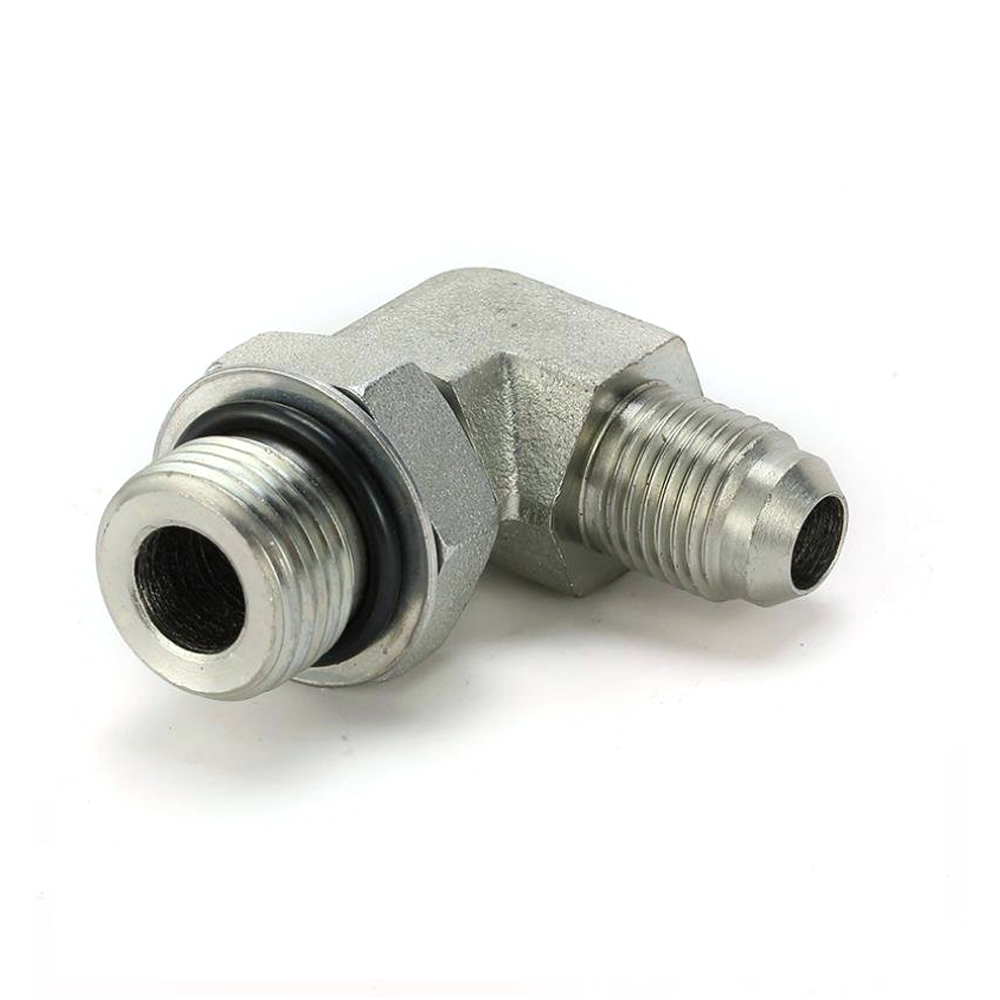

1JO9-OG-JIC to ORB hydraulic fitting is a 90-degree elbow fitting with two types of thread. JIC 37 hydraulic tube fittings 1JO4-OG are hose fittings with an o-ring boss seal.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

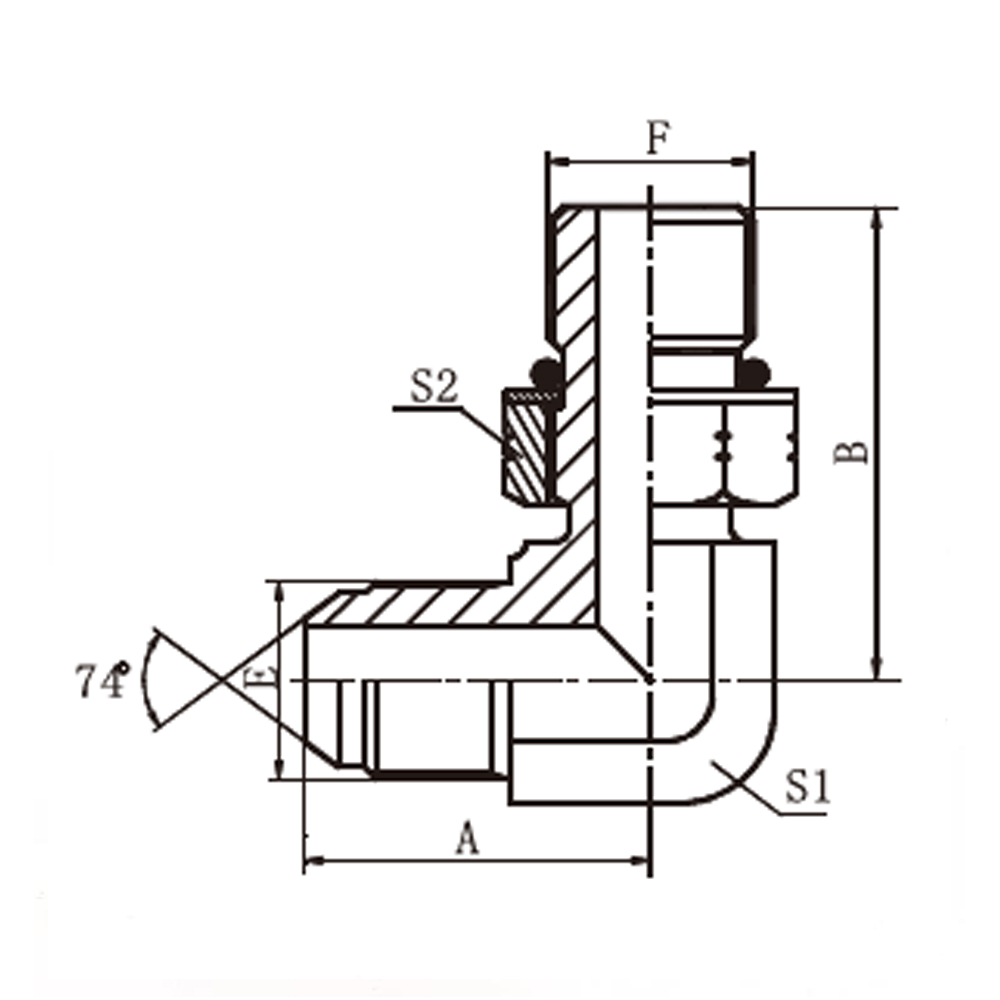

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	F	A	B	S1	S2
1JO9-04-03OG	7/16″X20	3/8″X24	O903	24.5	28	11	14
1JO9-04OG	7/16″X20	7/16″X20	O904	24.5	28.2	11	17
1JO9-04-05OG	7/16″X20	1/2″X20	O905	26.6	29.9	14	17
1JO9-04-06OG	7/16″X20	9/16″X18	O906	26.6	31.8	14	19
1JO9-05-04OG	1/2″X20	7/16″X20	O904	26.6	30	14	17
1JO9-05OG	1/2″X20	1/2″X20	O905	26.6	29	14	17
1JO9-05-06OG	1/2″X20	9/16″X18	O906	26.6	31.8	14	19
1JO9-06-04OG	9/16″X18	7/16″X20	O904	26.9	32	14	17
1JO9-06-05OG	9/16″X18	1/2″X20	O905	26.9	29.9	14	17
1JO9-06OG	9/16″X18	9/16″X18	O906	26.9	31.8	14	19
1JO9-06-08OG	9/16″X18	3/4″X16	O908	30	36.8	19	24
1JO9-08-04OG	3/4″X16	7/16″X20	O904	32	33	19	17
1JO9-08-06OG	3/4″X16	9/16″X18	O906	33	33.5	19	19
1JO9-08OG	3/4″X16	3/4″X16	O908	33	36.8	19	24
1JO9-08-10OG	3/4″X16	7/8″X14	O910	34.8	44	22	27
1JO9-08-12OG	3/4″X16	1.1/16″X12	O912	37.9	51	27	32
1JO9-10-08OG	7/8″X14	3/4″X16	O908	38	40	22	24
1JO9-10OG	7/8″X14	7/8″X14	O910	37.8	44	22	27
1JO9-10-12OG	7/8″X14	1.1/16″X12	O912	41	51	27	32
1JO9-12-08OG	1.1/16″X12	3/4″X16	O908	45	44	27	24
1JO9-12-10OG	1.1/16″X12	7/8″X14	O910	44.2	47	27	27
1JO9-12OG	1.1/16″X12	1.1/16″X12	O912	44.2	51	27	32
1JO9-12-16OG	1.1/16″X12	1.5/16″X12	O916	47.8	54.5	33	41
1JO9-14OG	1.3/16″X12	1.3/16″X12	O914	47.5	53	30	36
1JO9-14-16OG	1.3/16″X12	1.5/16″X12	O916	48.5	54.5	33	41
1JO9-16-12OG	1.5/16″X12	1.1/16″X12	O912	48.8	54.5	33	32
1JO9-16-14OG	1.5/16″X12	1.3/16″X12	O914	49	56	33	36
1JO9-16OG	1.5/16″X12	1.5/16″X12	O916	48.8	54.5	33	41
1JO9-16-20OG	1.5/16″X12	1.5/8″X12	O920	53.8	59	41	50
1JO9-20-16OG	1.5/8″X12	1.5/16″X12	O916	55.5	59.5	41	41
1JO9-20OG	1.5/8″X12	1.5/8″X12	O920	55.3	59	41	50
1JO9-20-24OG	1.5/8″X12	1.7/8″X12	O924	59.4	63	48	55
1JO9-24OG	1.7/8″X12	1.7/8″X12	O924	62.5	63	48	55
