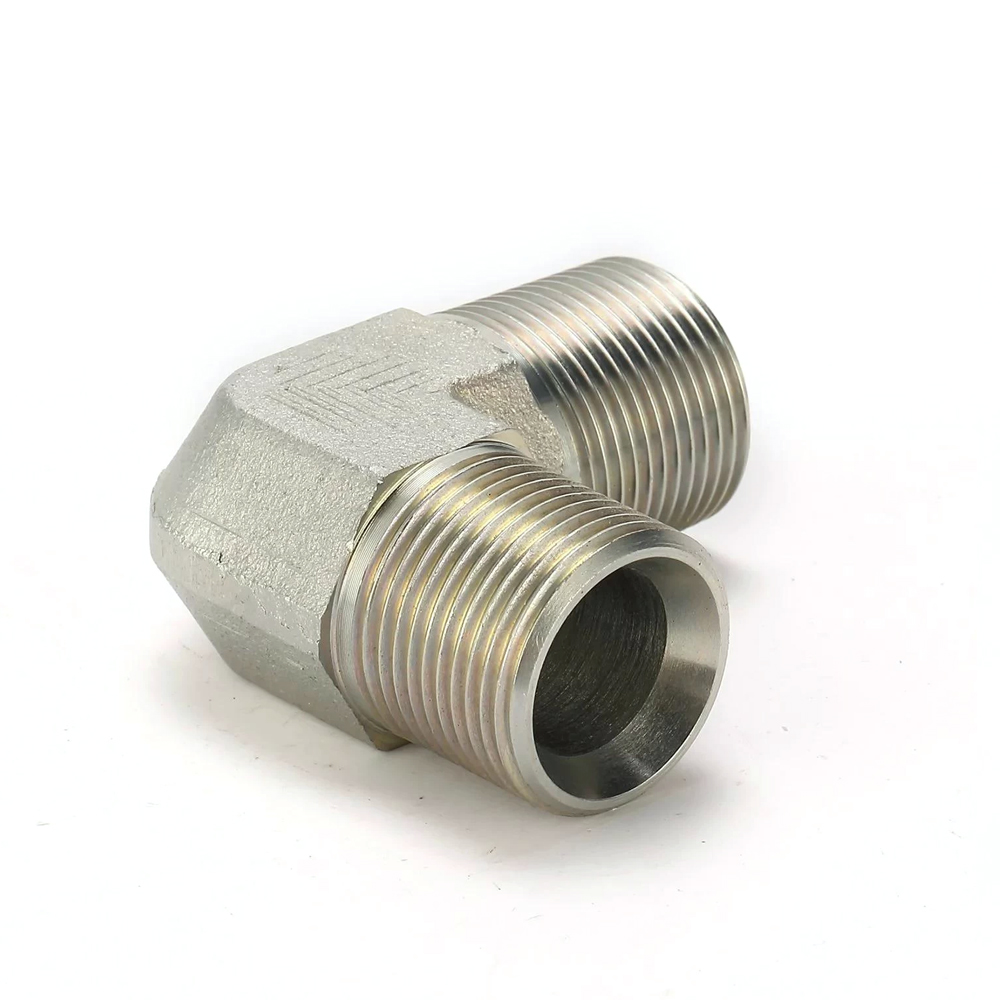

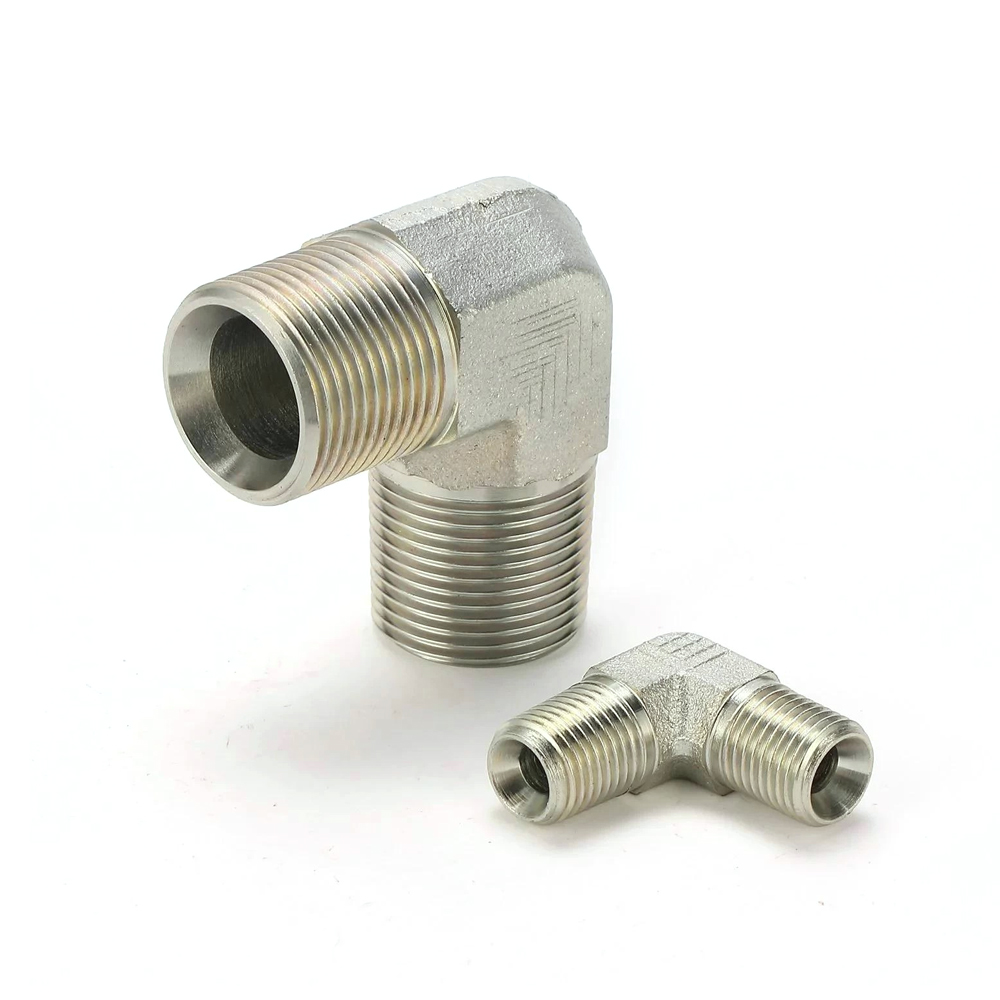

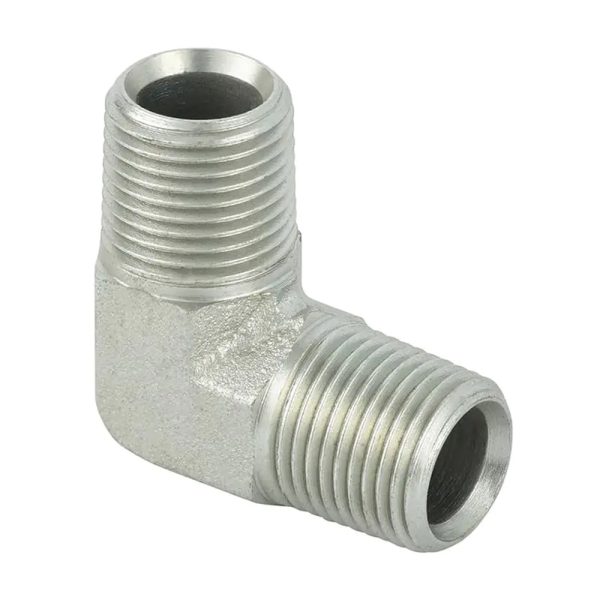

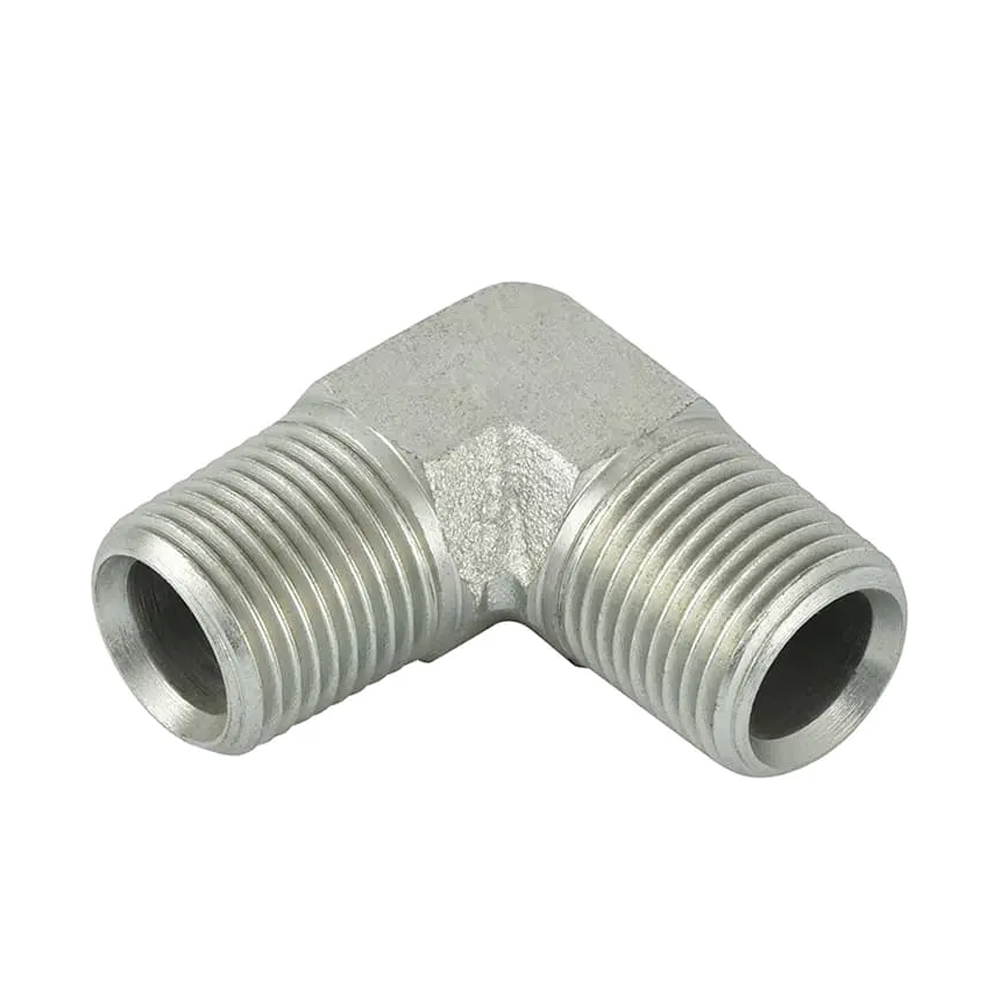

Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

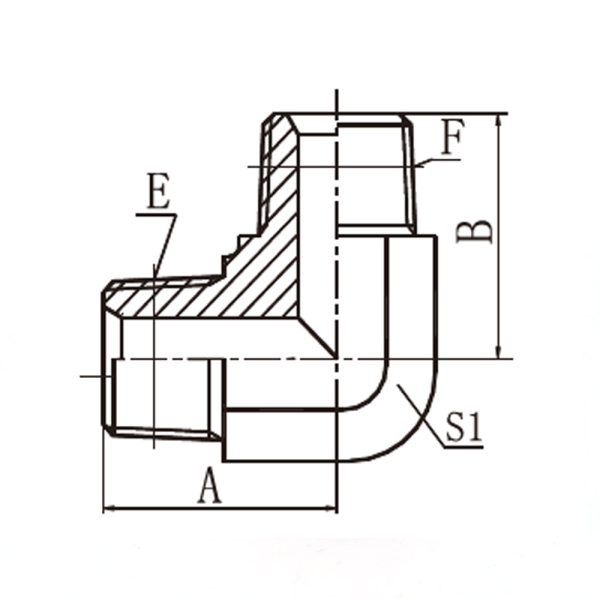

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 1N9-02 | Z1/8″X27 | Z1/8″X27 | 21 | 21 | 11 |
| 1N9-02-04 | Z1/8″X27 | Z1/4″X18 | 23.5 | 25.5 | 14 |
| 1N9-04 | Z1/4″X18 | Z1/4″X18 | 25.5 | 25.5 | 14 |
| 1N9-04-06 | Z1/4″X18 | Z3/8″X18 | 28 | 31 | 19 |
| 1N9-04-08 | Z1/4″X18 | Z1/2″X14 | 30.5 | 36.5 | 22 |
| 1N9-06 | Z3/8″X18 | Z3/8″X18 | 31 | 31 | 19 |
| 1N9-06-08 | Z3/8″X18 | Z1/2″X14 | 33.8 | 37.3 | 22 |
| 1N9-08 | Z1/2″X14 | Z1/2″X14 | 37.3 | 37.3 | 22 |
| 1N9-08-12 | Z1/2″X14 | Z3/4″X14 | 40 | 44 | 27 |
| 1N9-12 | Z3/4″X14 | Z3/4″X14 | 44 | 44 | 27 |
| 1N9-12-16 | Z3/4″X14 | Z1″X11.5 | 46.5 | 50 | 33 |
| 1N9-16 | Z1″X11.5 | Z1″X11.5 | 50 | 50 | 33 |
| 1N9-20 | Z1.1/4″X11.5 | Z1.1/4″X11.5 | 54 | 54 | 41 |
| 1N9-24 | Z1.1/2″X11.5 | Z1.1/2″X11.5 | 63 | 63 | 48 |
| 1N9-32 | Z2″X11.5 | Z2″X11.5 | 68 | 68 | 63 |
