5N NPT Male To Female Connector Fittings

Description:

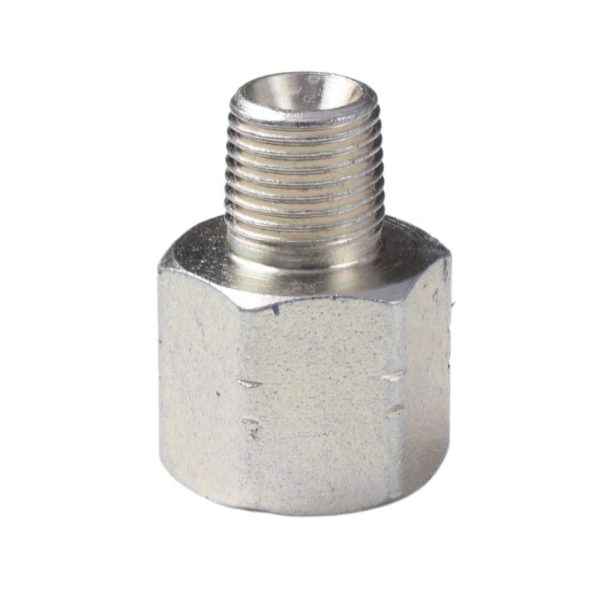

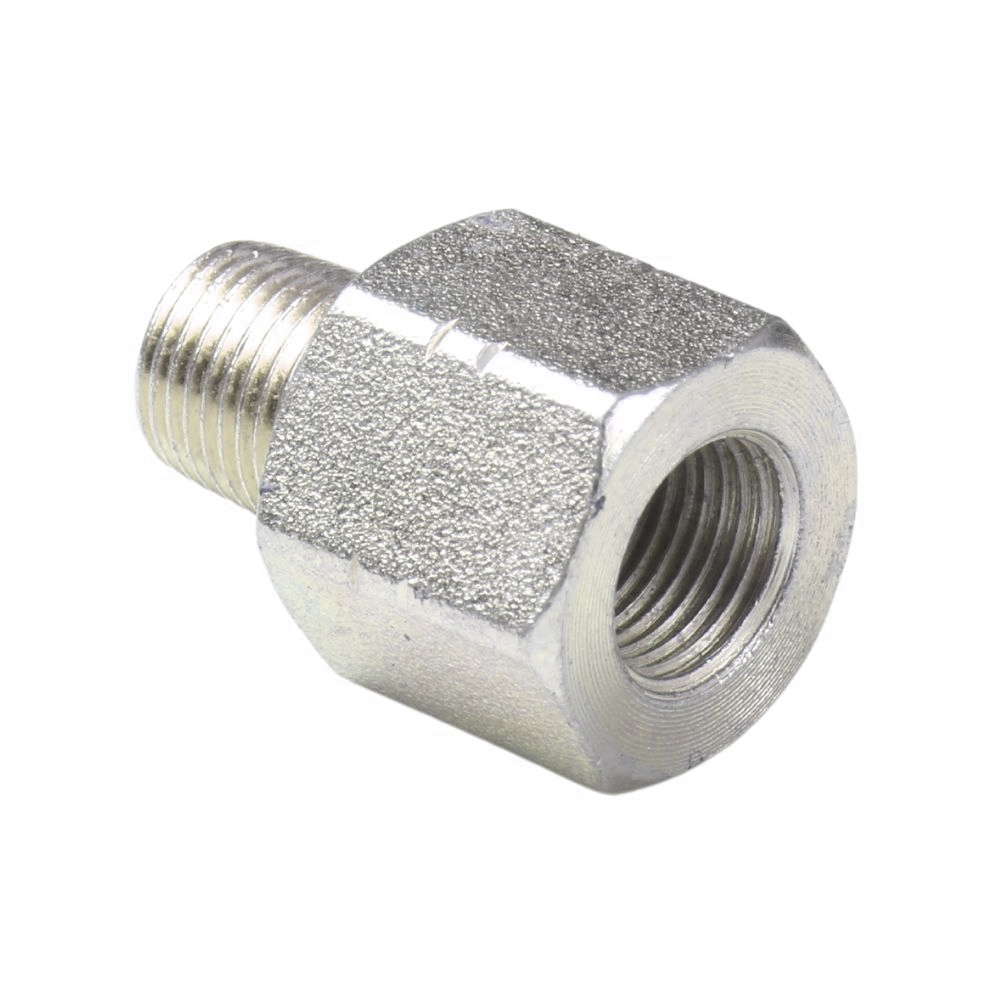

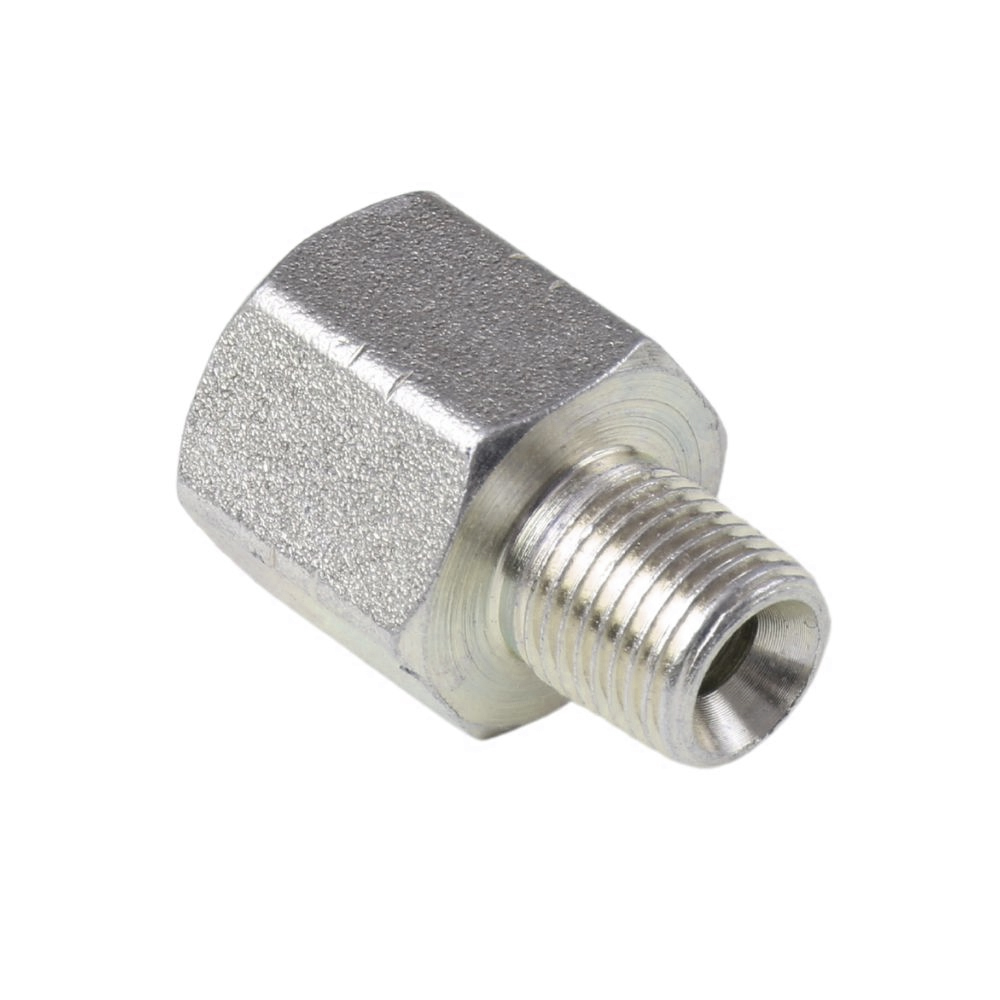

5N Straight male to female NPT pipe fitting is the NPT fitting that can connect pipes and tubes.

"*" indicates required fields

Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

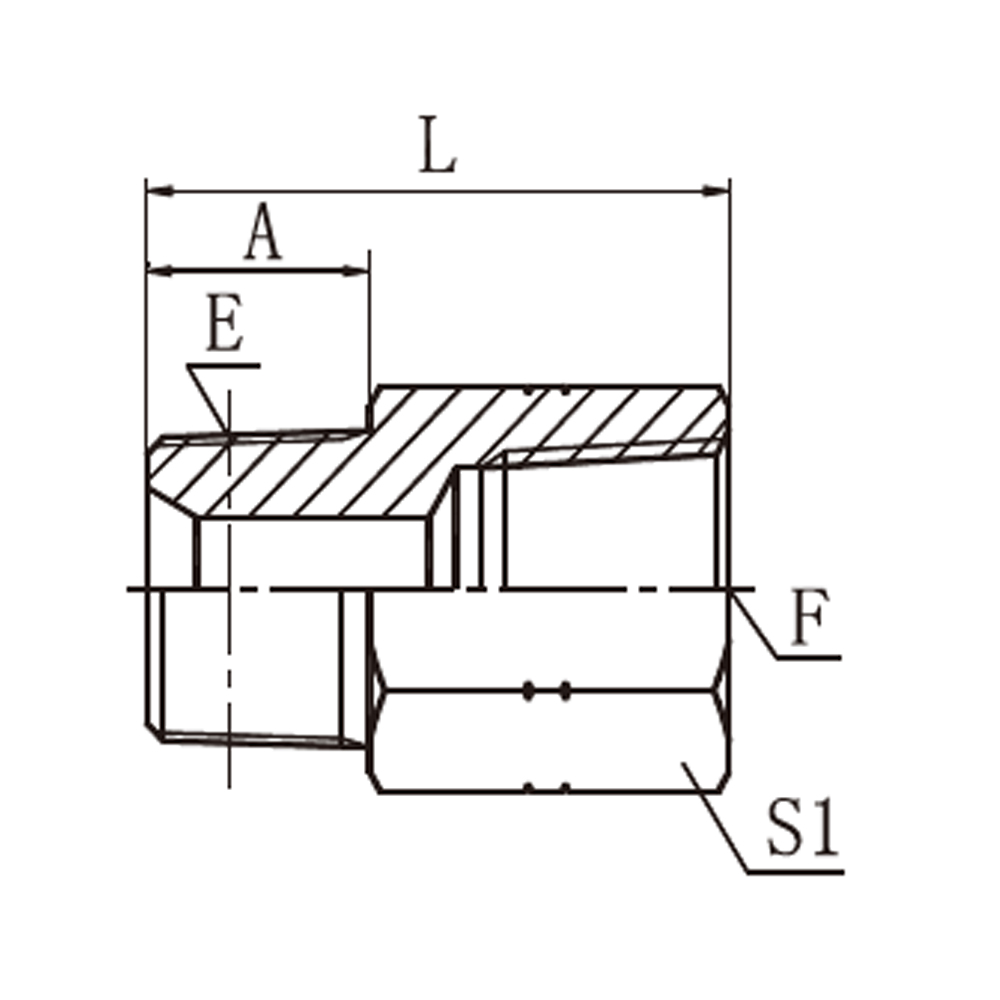

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	L	S1
5N-02	Z1/8″X27	Z1/8″X27	10.5	25.5	17
5N-02-04	Z1/8″X27	Z1/4″X18	10.5	31	19
5N-02-06	Z1/8″X27	Z3/8″X18	11	31	24
5N-04-02	Z1/4″X18	Z1/8″X27	15	22	17
5N-04	Z1/4″X18	Z1/4″X18	15	35.3	19
5N-04-06	Z1/4″X18	Z3/8″X18	15	36.6	24
5N-04-08	Z1/4″X18	Z1/2″X14	15	43	30
5N-06-02	Z3/8″X18	Z1/8″X27	16	22	19
5N-06-04	Z3/8″X18	Z1/4″X18	16	22	19
5N-06	Z3/8″X18	Z3/8″X18	16	37.6	24
5N-06-08	Z3/8″X18	Z1/2″X14	16	43.7	30
5N-06-12	Z3/8″X18	Z3/4″X14	16	46	36
5N-08-04	Z1/2″X14	Z1/4″X18	19.5	28	22
5N-08-06	Z1/2″X14	Z3/8″X18	19.5	28.5	22
5N-08	Z1/2″X14	Z1/2″X14	19.5	47.5	30
5N-08-12	Z1/2″X14	Z3/4″X14	19.5	49	36
5N-12-06	Z3/4″X14	Z3/8″X18	19.5	30.5	27
5N-12-08	Z3/4″X14	Z1/2″X14	19.5	30.5	27
5N-12	Z3/4″X14	Z3/4″X14	19.5	49	36
5N-12-16	Z3/4″X14	Z1″X11.5	19.5	55.5	41
5N-16-08	Z1″X11.5	Z1/2″X14	25.5	35.5	36
5N-16-12	Z1″X11.5	Z3/4″X14	25.5	36.5	36
5N-16	Z1″X11.5	Z1″X11.5	25.5	60.7	41
5N-16-20	Z1″X11.5	Z1.1/4″X11.5	25.5	63.5	50
5N-20-12	Z1.1/4″X11.5	Z3/4″X14	26.5	38.5	46
5N-20-16	Z1.1/4″X11.5	Z1″X11.5	26.5	41	46
5N-20	Z1.1/4″X11.5	Z1.1/4″X11.5	26.5	61.5	50
5N-20-24	Z1.1/4″X11.5	Z1.1/2″X11.5	26.5	62.5	60
5N-24-16	Z1.1/2″X11.5	Z1″X11.5	27.5	41.5	50
5N-24-20	Z1.1/2″X11.5	Z1.1/4″X11.5	27.5	41	50
5N-24	Z1.1/2″X11.5	Z1.1/2″X11.5	27.5	62.5	60
5N-24-32	Z1.1/2″X11.5	Z2″X11.5	27.5	66.5	70
5N-32-20	Z2″X11.5	Z1.1/4″X11.5	27.5	44.5	65
5N-32-24	Z2″X11.5	Z1.1/2″X11.5	27.5	45	65
5N-32	Z2″X11.5	Z2″X11.5	27.5	62.5	70

Click to enlarge

Category: NPT Hydraulic Adapter Tags: 5N, Sytraight adapter, Female, NPT, Male

Description
Package& Shipping

Description

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	L	S1
5N-02	Z1/8″X27	Z1/8″X27	10.5	25.5	17
5N-02-04	Z1/8″X27	Z1/4″X18	10.5	31	19
5N-02-06	Z1/8″X27	Z3/8″X18	11	31	24
5N-04-02	Z1/4″X18	Z1/8″X27	15	22	17
5N-04	Z1/4″X18	Z1/4″X18	15	35.3	19
5N-04-06	Z1/4″X18	Z3/8″X18	15	36.6	24
5N-04-08	Z1/4″X18	Z1/2″X14	15	43	30
5N-06-02	Z3/8″X18	Z1/8″X27	16	22	19
5N-06-04	Z3/8″X18	Z1/4″X18	16	22	19
5N-06	Z3/8″X18	Z3/8″X18	16	37.6	24
5N-06-08	Z3/8″X18	Z1/2″X14	16	43.7	30
5N-06-12	Z3/8″X18	Z3/4″X14	16	46	36
5N-08-04	Z1/2″X14	Z1/4″X18	19.5	28	22
5N-08-06	Z1/2″X14	Z3/8″X18	19.5	28.5	22
5N-08	Z1/2″X14	Z1/2″X14	19.5	47.5	30
5N-08-12	Z1/2″X14	Z3/4″X14	19.5	49	36
5N-12-06	Z3/4″X14	Z3/8″X18	19.5	30.5	27
5N-12-08	Z3/4″X14	Z1/2″X14	19.5	30.5	27
5N-12	Z3/4″X14	Z3/4″X14	19.5	49	36
5N-12-16	Z3/4″X14	Z1″X11.5	19.5	55.5	41
5N-16-08	Z1″X11.5	Z1/2″X14	25.5	35.5	36
5N-16-12	Z1″X11.5	Z3/4″X14	25.5	36.5	36
5N-16	Z1″X11.5	Z1″X11.5	25.5	60.7	41
5N-16-20	Z1″X11.5	Z1.1/4″X11.5	25.5	63.5	50
5N-20-12	Z1.1/4″X11.5	Z3/4″X14	26.5	38.5	46
5N-20-16	Z1.1/4″X11.5	Z1″X11.5	26.5	41	46
5N-20	Z1.1/4″X11.5	Z1.1/4″X11.5	26.5	61.5	50
5N-20-24	Z1.1/4″X11.5	Z1.1/2″X11.5	26.5	62.5	60
5N-24-16	Z1.1/2″X11.5	Z1″X11.5	27.5	41.5	50
5N-24-20	Z1.1/2″X11.5	Z1.1/4″X11.5	27.5	41	50
5N-24	Z1.1/2″X11.5	Z1.1/2″X11.5	27.5	62.5	60
5N-24-32	Z1.1/2″X11.5	Z2″X11.5	27.5	66.5	70
5N-32-20	Z2″X11.5	Z1.1/4″X11.5	27.5	44.5	65
5N-32-24	Z2″X11.5	Z1.1/2″X11.5	27.5	45	65
5N-32	Z2″X11.5	Z2″X11.5	27.5	62.5	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
