1JO4 JIC to ORB 45° Elbow Hydraulic Adapter

Description:

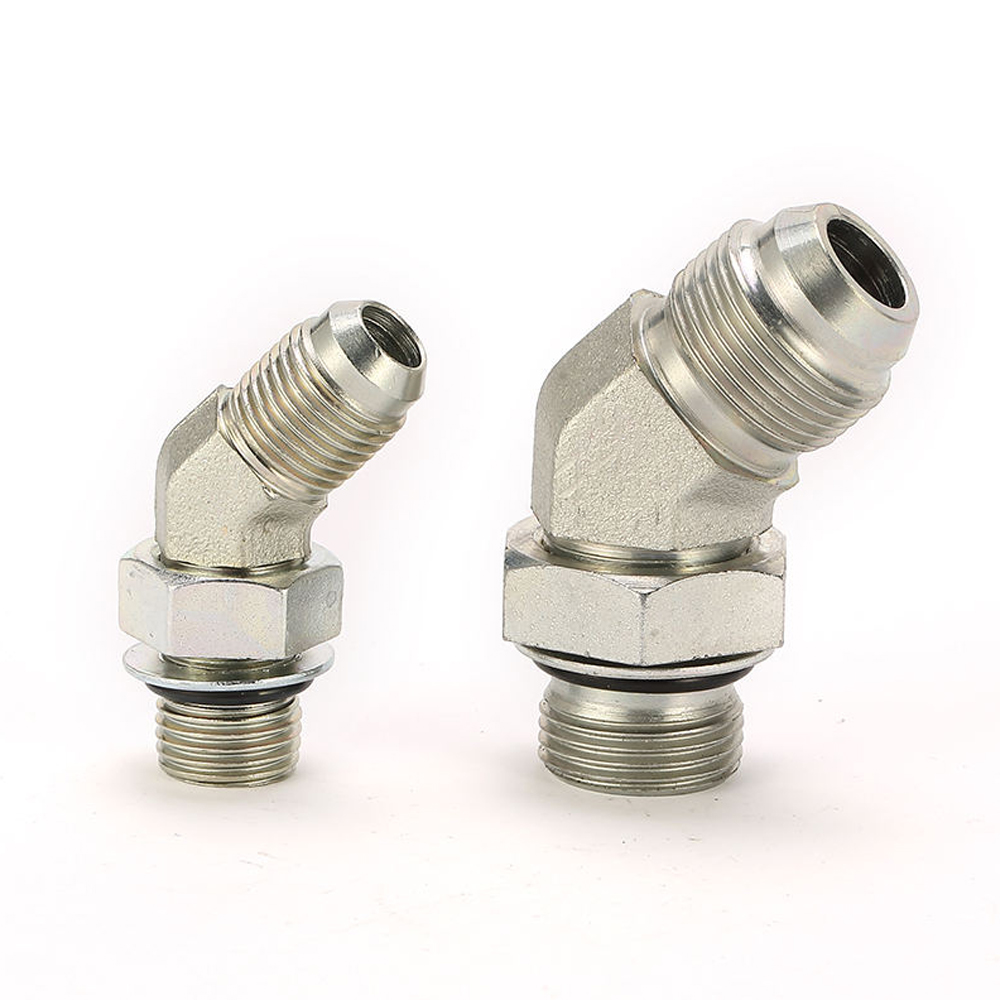

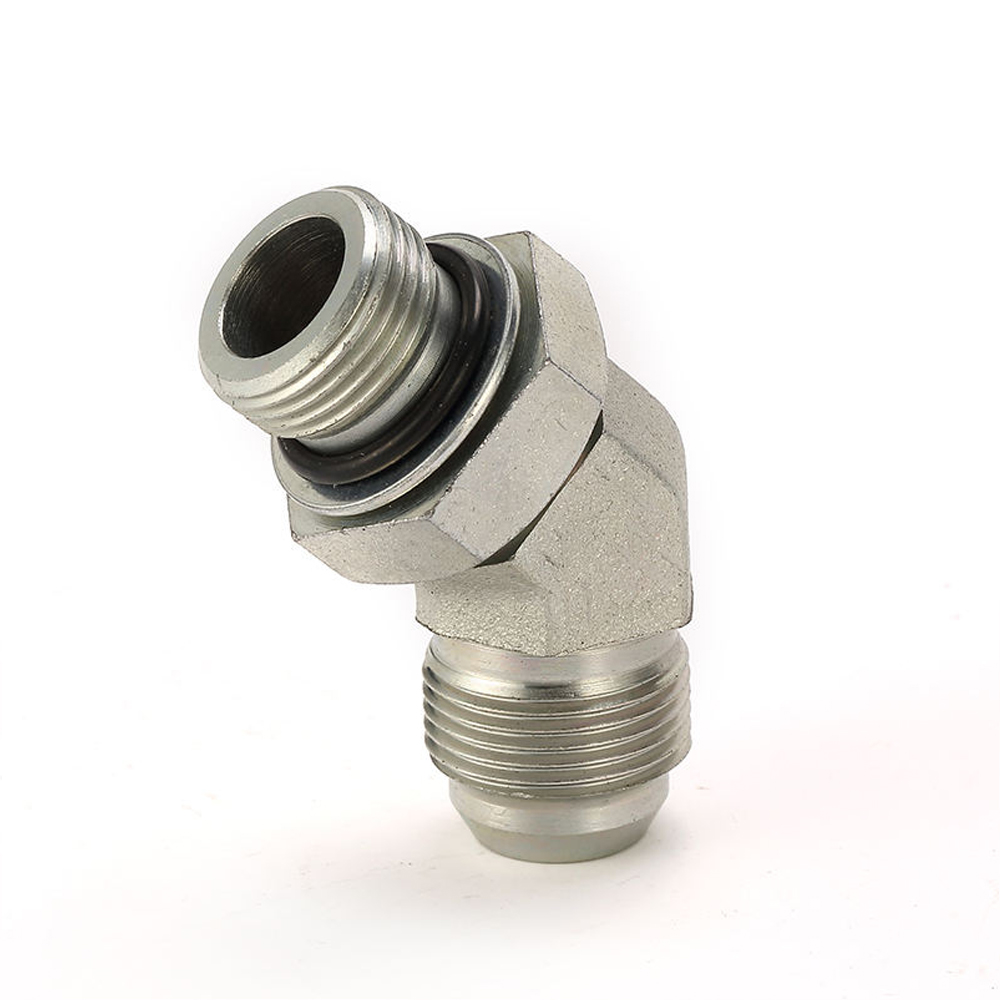

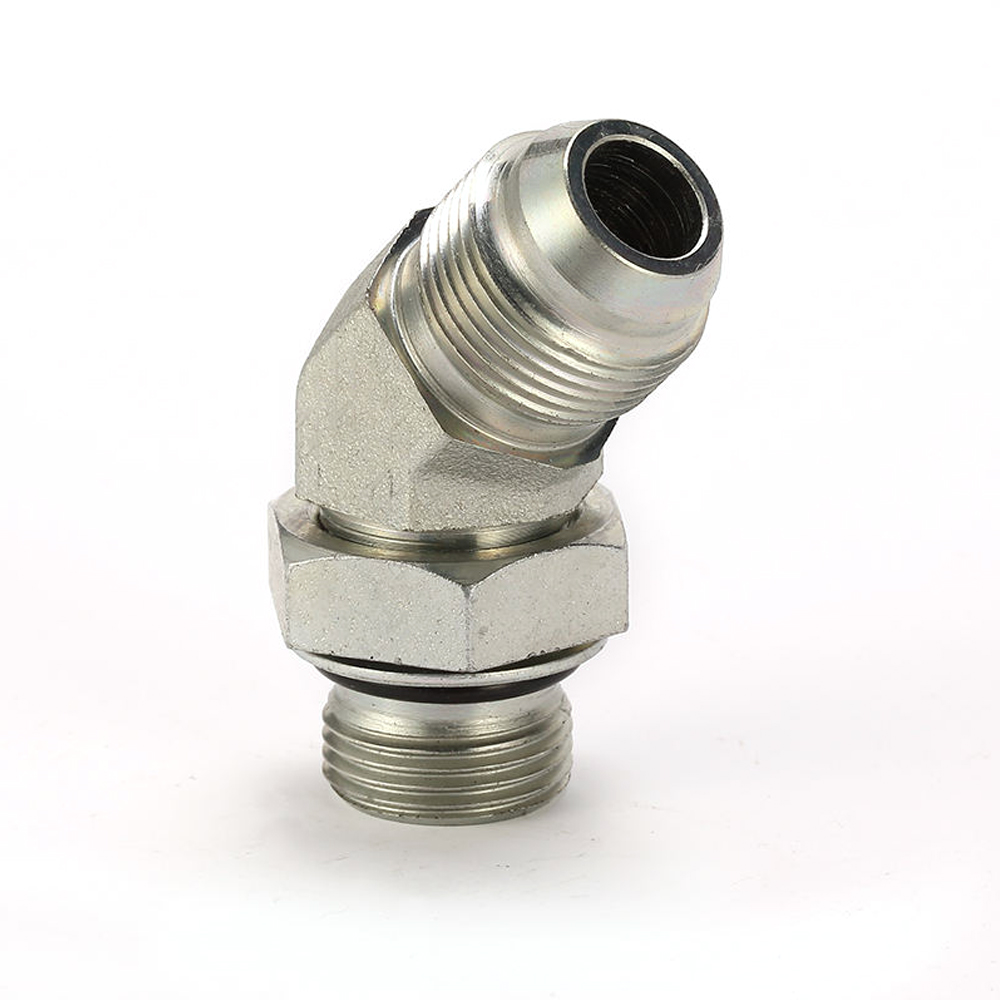

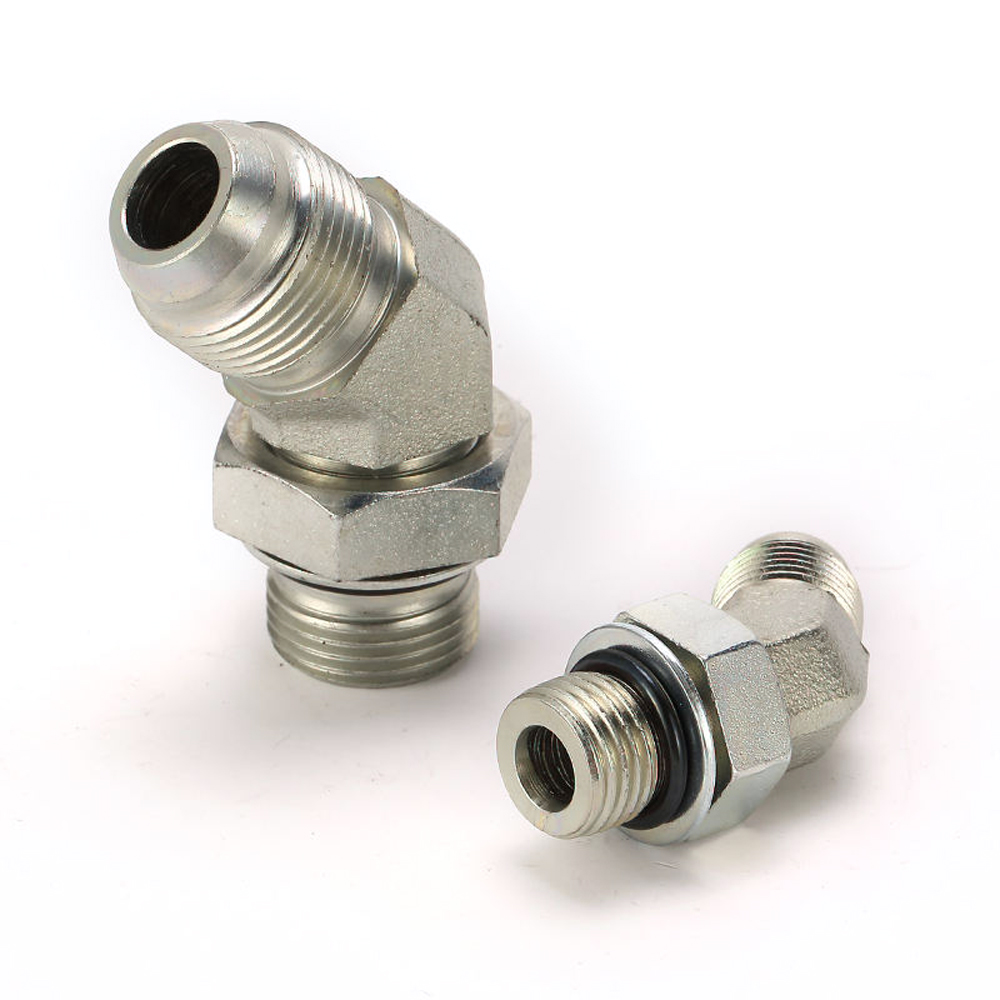

1JO4-OG-JIC to ORB hydraulic fitting is a 45-degree elbow fitting with two types of thread. JIC 37 hydraulic tube fittings 1JO4-OG are hose fittings with an o-ring boss seal.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

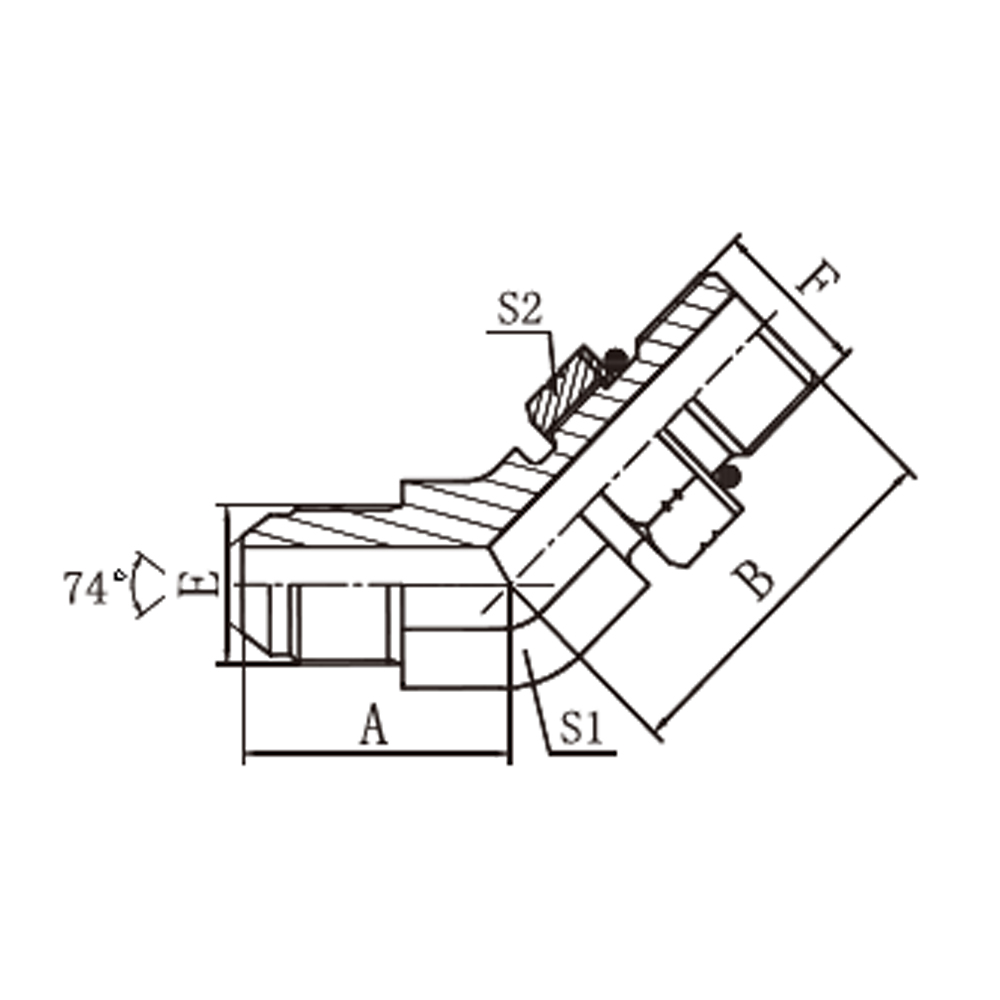

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F		A	B	S1	S2
1JO4-04OG	7/16″X20	7/16″X20	O904	21	24	11	17
1JO4-04-06OG	7/16″X20	9/16″X18	O906	22.3	27.5	14	19
1JO4-04-08OG	7/16″X20	3/4″X16	O908	23.5	31.5	19	24
1JO4-05OG	1/2″X20	1/2″X20	O905	22	26.7	14	17
1JO4-05-04OG	1/2″X20	7/16″X20	O904	22.3	26	14	17
1JO4-06OG	9/16″X18	9/16″X18	O906	23.5	28	14	19
1JO4-06-04OG	9/16″X18	7/16″X20	O904	22.8	26	14	17
1JO4-06-05OG	9/16″X18	1/2″X20	O905	22.8	26.5	14	17
1JO4-06-08OG	9/16″X18	3/4″X16	O908	23	32.5	19	24
1JO4-06-100G	9/16″X18	7/8″X14	O910	25.5	38.5	22	27
1JO4-08OG	3/4″X16	3/4″X16	O908	25.8	32.5	19	24
1JO4-08-06OG	3/4″X16	9/16″X18	O906	25.5	28	19	19
1JO4-08-10OG	3/4″X16	7/8″X14	O910	28	38.7	22	27
1JO4-08-12OG	3/4″X16	1.1/16″X12	O912	30	43.9	27	32
1JO4-10OG	7/8″X14	7/8″X14	O910	29.5	38.7	22	27
1JO4-10-08OG	7/8″X14	3/4″X16	O908	29.5	33	22	24
1JO4-10-12OG	7/8″X14	1.1/16″X12	O912	33	43.9	27	32
1JO4-120G	1.1/16″X12	1.1/16″X12	O912	34	43.5	27	32
1JO4-12-100G	1.1/16″X12	7/8″X14	O910	34	42	27	27
1JO4-12-16OG	1.1/16″X12	1.5/16″X12	O916	37	45.5	33	41
1JO4-140G	1.3/16″X12	1.3/16″X12	O914	37	44	30	36
1JO4-16OG	1.5/16″X12	1.5/16″X12	O916	38	45.5	33	41
1JO4-16-12OG	1.5/16″X12	1.1/16″X12	O912	38	45	33	32
1JO4-16-200G	1.5/16″X12	1.5/8″X12	O920	40.5	47	41	50
1JO4-200G	1.5/8″X12	1.5/8″X12	O920	42	48.5	41	50
1JO4-20-24OG	1.5/8″X12	1.7/8″X12	O924	46	50	48	55
1JO4-24OG	1.7/8″X12	1.7/8″X12	O924	48	50	48	55
