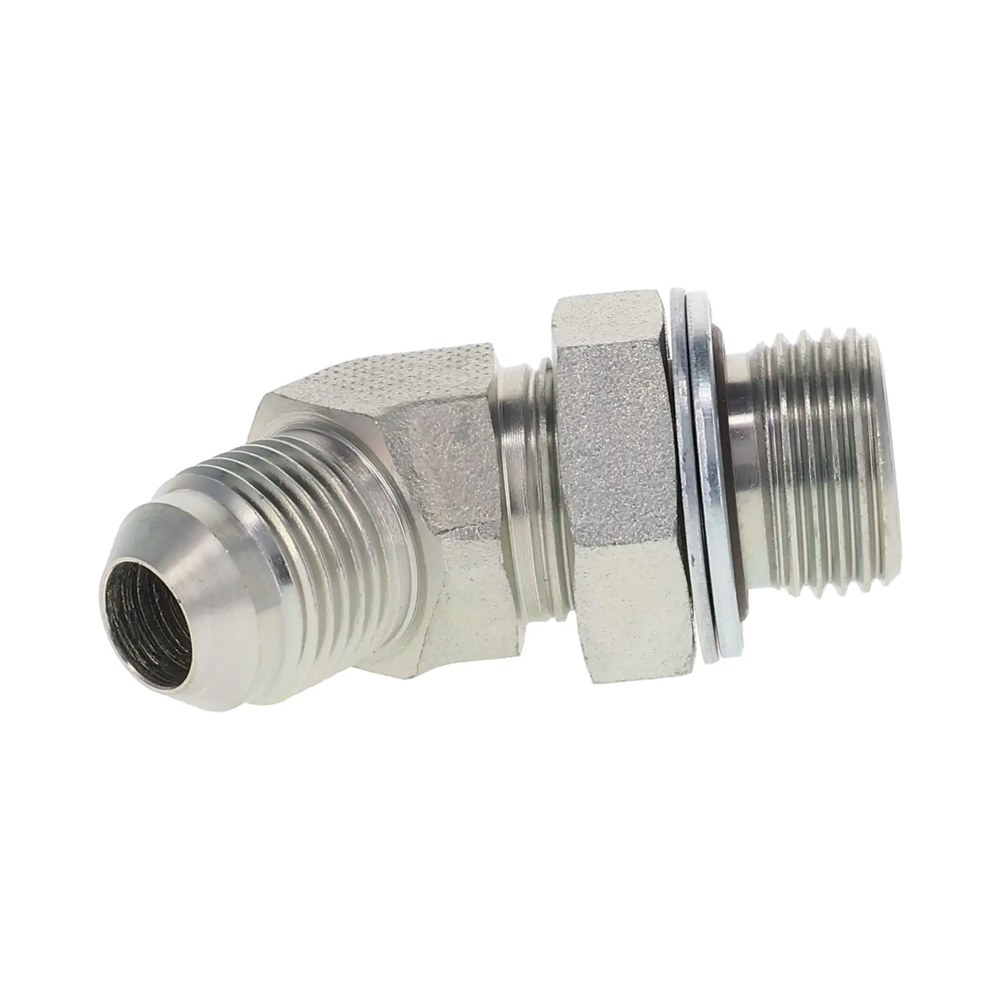

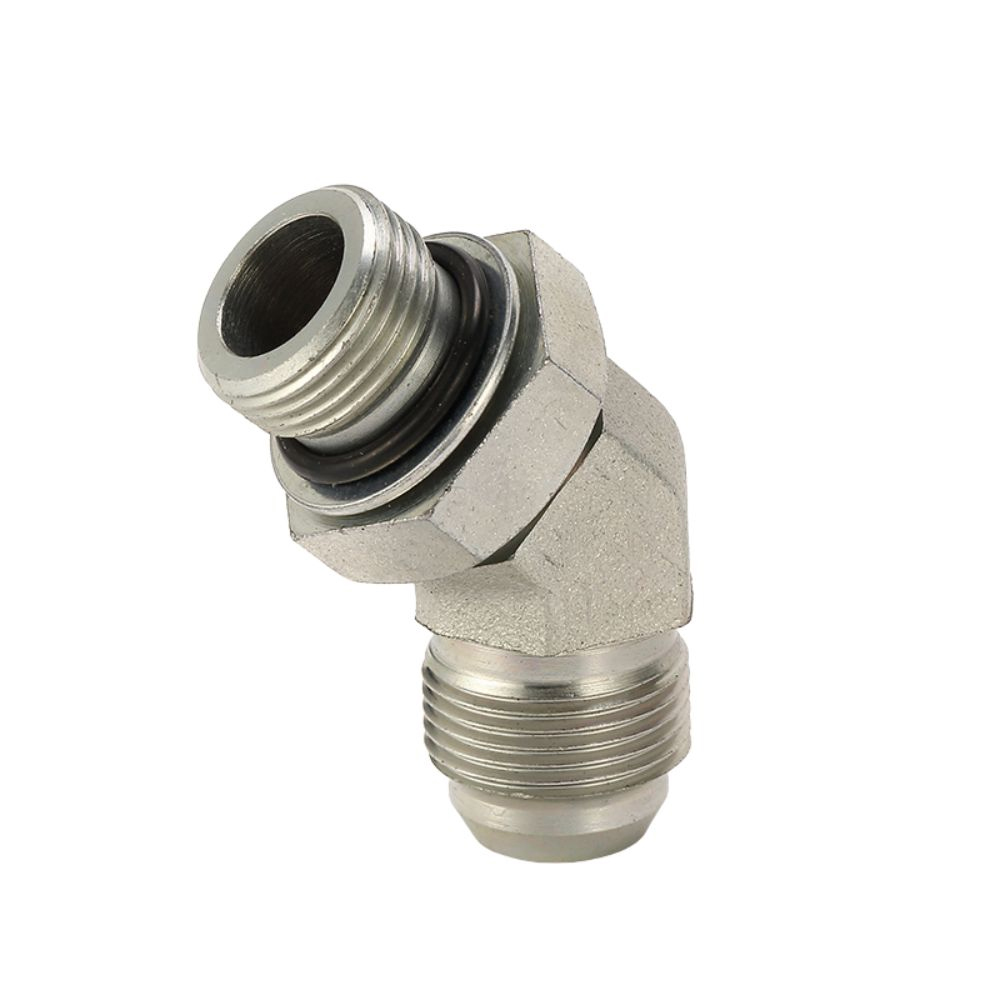

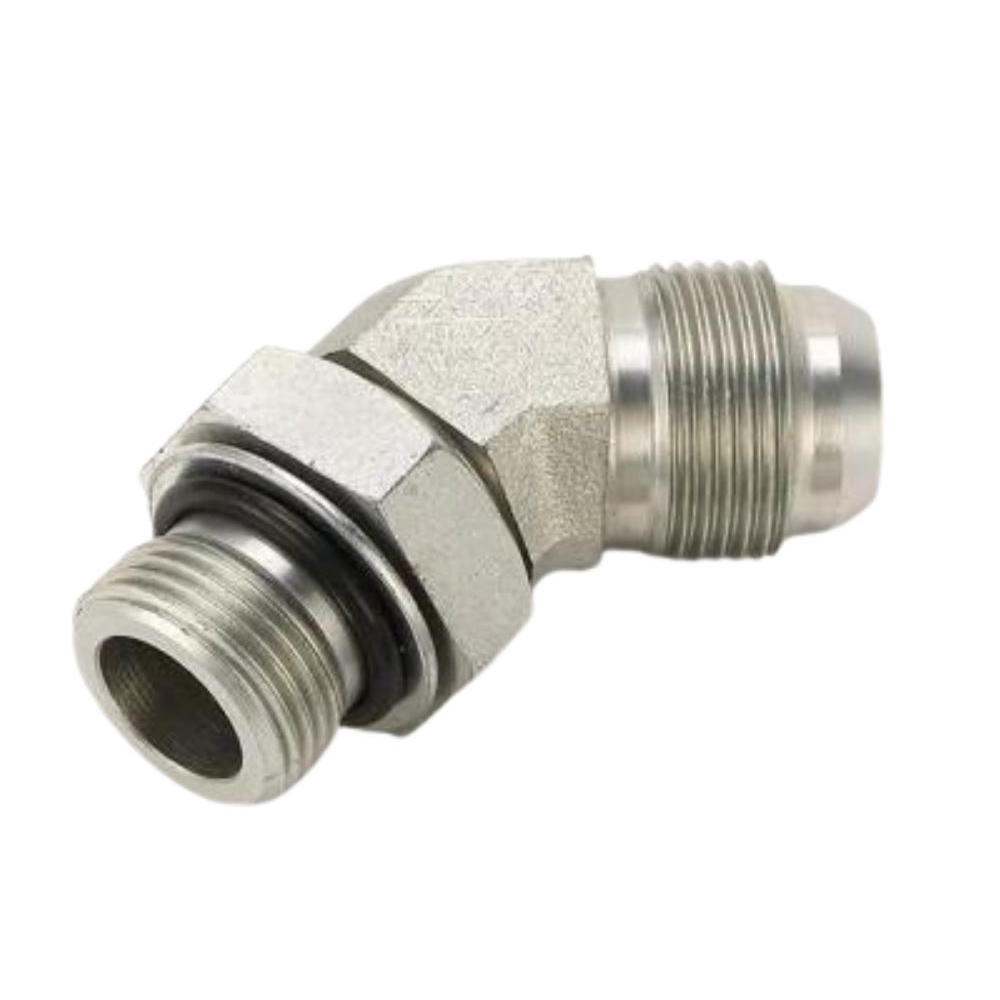

1JG4 JIC to BSP Male 45° Elbow Pipe Adapter

Description:

1JG4-OG-JIC to BSP hydraulic fitting has a BSPP (British Standard Parallel Pipe) connection on one end and a JIC (Joint Industry Council) connection on the other end.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		O-RING	DIMENSIONS

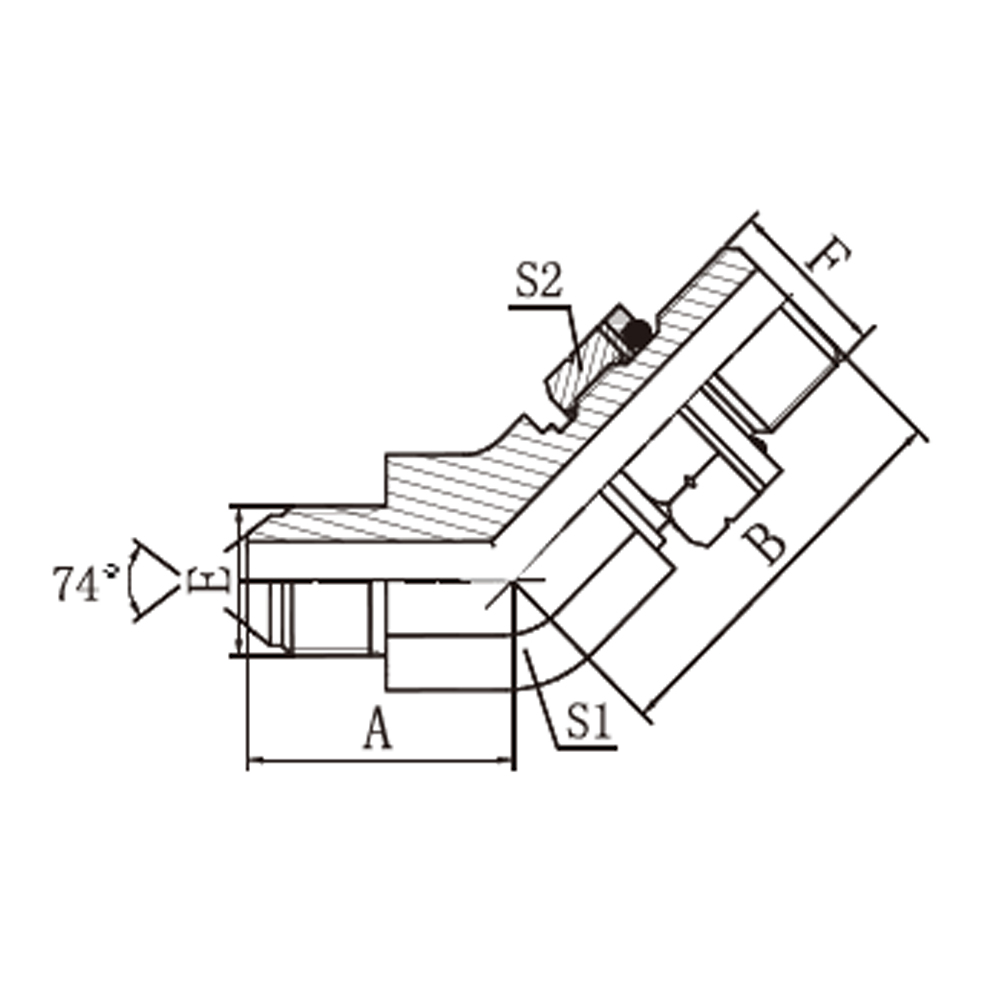

PART NO.	E	F	F	A	B	S1	S2
1JG4-04OG	7/16″X20	G1/4″X19	O111	21	28	14	19
1JG4-05-04OG	1/2″X20	G1/4″X19	O111	21	28	14	19
1JG4-06-04OG	9/16″X18	G1/4″X19	O111	22	28	14	19
1JG4-060G	9/16″X18	G3/8″X19	O113	23	32	19	22
1JG4-08-06OG	3/4″X16	G3/8″X19	O113	26.8	31	19	22
1JG4-080G	3/4″X16	G1/2″X14	O115	27	36	22	27
1JG4-10-08OG	7/8″X14	G1/2″X14	O115	29.5	38	22	27
1JG4-100G	7/8″X14	G5/8″X14	O910	29.5	38	22	30
1JG4-12-10OG	1.1/16″X12	G5/8″X14	O910	34	38.5	27	30
1JG4-12-16OG	1.1/16″X12	G1″X11	O217	37.5	44	33	41
1JG4-120G	1.1/16″X12	G3/4″X14	O119	34	42	27	32
1JG4-16-120G	1.5/16″X12	G3/4″X14	O119	38	44	33	32
1JG4-160G	1.5/16″X12	G1″X11	O217	38	44	33	41
1JG4-200G	1.5/8″X12	G1.1/4″X11	O222	43	47.5	41	50
1JG4-240G	1.7/8″X12	G1.1/2″X11	O224	49	51.5	48	55
