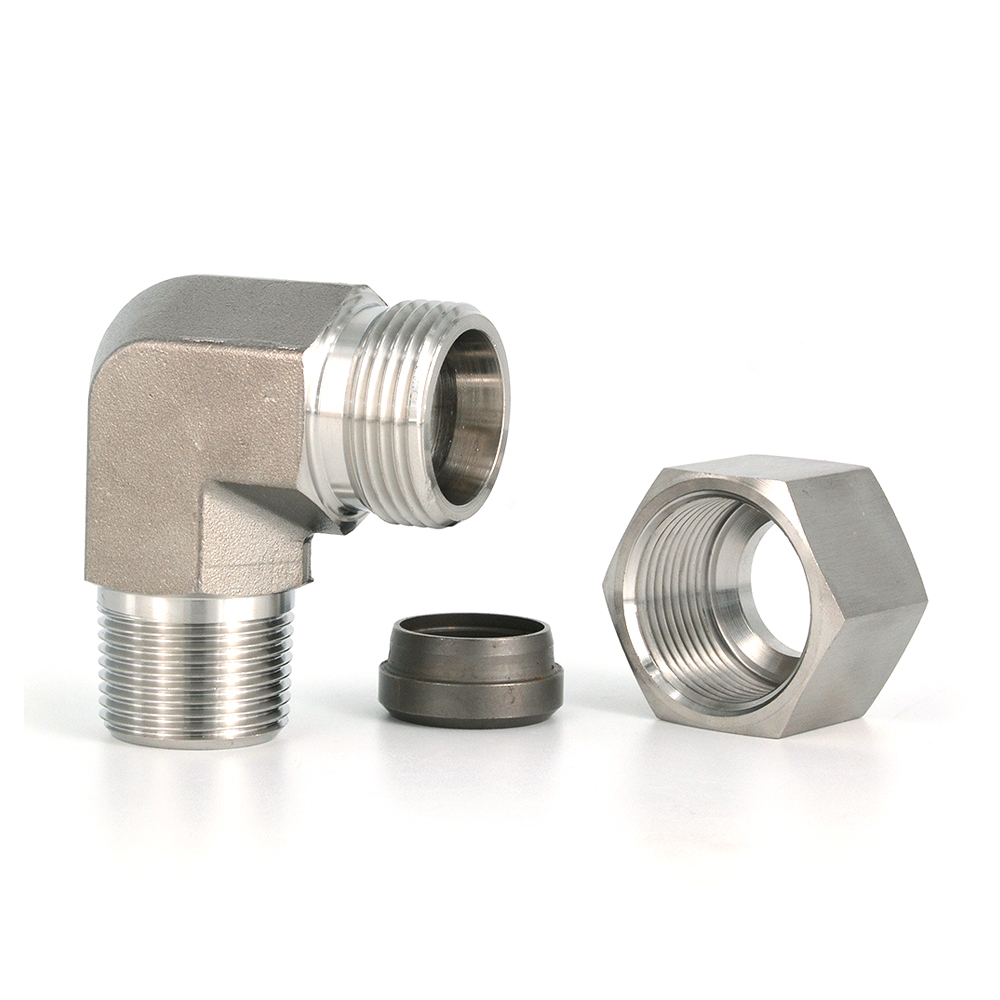

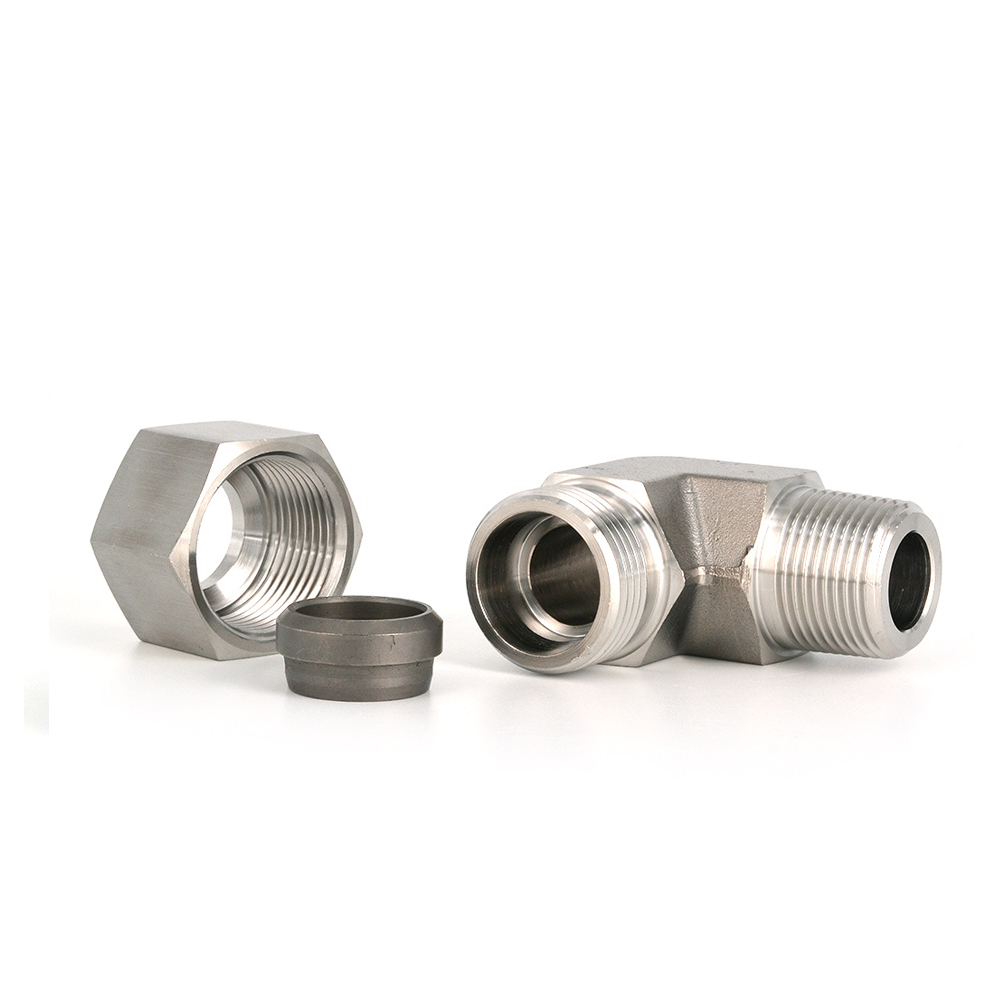

1CT9/1DT9 90°Elbow BSPT Metric Male Adapter

Description:

1CT9/1DT9 90° elbow metric BSPT adapter is a male adapter that has a male 24-degree cone metric thread, and an BSPT thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

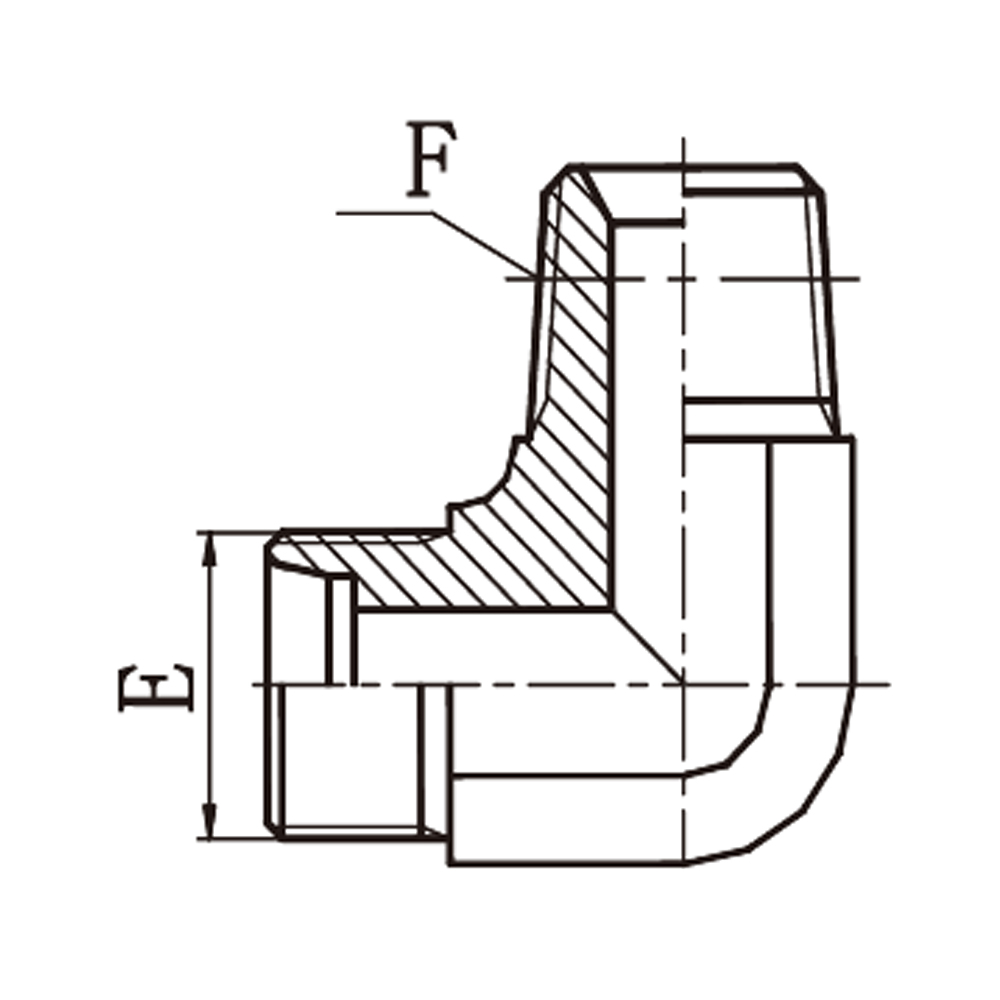

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	I1	L1	L2	S1	S2	MPa
1CT9-12-02SP	M12X1.5	R1/8″X28	6	13	20	21	11	14	25 L series
1CT9-12-04SP	M12X1.5	R1/4″X19	6	16.5	23.5	25.5	14	14
1CT9-14-02SP	M14X1.5	R1/8″X28	8	15.5	22.5	23.5	14	17
1CT9-14-04SP	M14X1.5	R1/4″X19	8	15.5	22.5	25.5	14	17
1CT9-16-04SP	M16X1.5	R1/4″X19	10	17.5	24.5	26.5	16	19
1CT9-16-06SP	M16X1.5	R3/8″X19	10	17.5	24.5	28.5	16	19
1CT9-16-08SP	M16X1.5	R1/2″X14	10	21	28	36	22	19
1CT9-18-04SP	M18X1.5	R1/4″X19	12	19	26	28	19	22
1CT9-18-06SP	M18X1.5	R3/8″X19	12	19	26	30	19	22
1CT9-18-08SP	M18X1.5	R1/2″X14	12	21	28	36	22	22
1CT9-22-06SP	M22X1.5	R3/8″X19	15	22	29	32	22	27
1CT9-22-08SP	M22X1.5	R1/2″X14	15	22	29	36	22	27
1CT9-22-12SP	M22X1.5	R3/4″X14	15	25.5	32.5	43.5	27	27
1CT9-26-08SP	M26X1.5	R1/2″X14	18	25.5	33	39.5	27	32	16 L series
1CT9-26-12SP	M26X1.5	R3/4″X14	18	25.5	33	43.5	27	32
1CT9-30-12SP	M30X2	R3/4″X14	22	29.3	36.8	45.3	30	36
1CT9-30-16SP	M30X2	R1″X11	22	32	39.5	50	33	36
1CT9-36-16SP	M36X2	R1″X11	28	33	40.5	52	36	41
1CT9-36-20SP	M36X2	R1.1/4″X11	28	38.7	46.2	57	41	41
1CT9-45-20SP	M45X2	R1.1/4″X11	35	39	49.5	61	48	50
1CT9-52-24SP	M52X2	R1.1/2″X11	42	38.7	49.7	62.2	48	60
1DT9-14-04SP	M14X1.5	R1/4″X19	6	17.5	24.5	25.5	14	17	40 S series
1DT9-16-04SP	M16X1.5	R1/4″X19	8	18.5	25.5	26.5	16	19
1DT9-18-06SP	M18X1.5	R3/8″X19	10	19.5	27	30.5	19	22
1DT9-20-04SP	M20X1.5	R1/4″X19	12	19.5	27	28	19	24
1DT9-20-06SP	M20X1.5	R3/8″X19	12	19.5	27	30.5	19	24
1DT9-22-06SP	M22X1.5	R3/8″X19	14	23	31	32.5	22	27
1DT9-22-08SP	M22X1.5	R1/2″X14	14	23	31	36	22	27
1DT9-24-06SP	M24X1.5	R3/8″X19	16	24	32.5	33.5	24	30
1DT9-24-08SP	M24X1.5	R1/2″X14	16	24	32.5	37.5	24	30
1DT9-30-08SP	M30X2	R1/2″X14	20	28	38.5	41	30	36	25 S series
1DT9-30-12SP	M30X2	R3/4″X14	20	28	38.5	45	30	36
1DT9-36-12SP	M36X2	R3/4″X14	25	32.5	44.5	49	36	46
1DT9-36-16SP	M36X2	R1″X11	25	32.5	44.5	52.5	36	46
1DT9-42-16SP	M42X2	R1″X11	30	36	49.5	55	41	50
1DT9-42-20SP	M42X2	R1.1/4″X11	30	36	49.5	57	41	50
1DT9-52-20SP	M52X2	R1.1/4″X11	38	41.5	57.5	60	50	60
1DT9-52-24SP	M52X2	R1.1/2″X11	38	41.5	57.5	61	50	60

Click to enlarge

Category: DIN Hose Adapters Tags: BSPT adapter, 1CT9, Carbon Steel, Metric

Description
Package& Shipping

Description

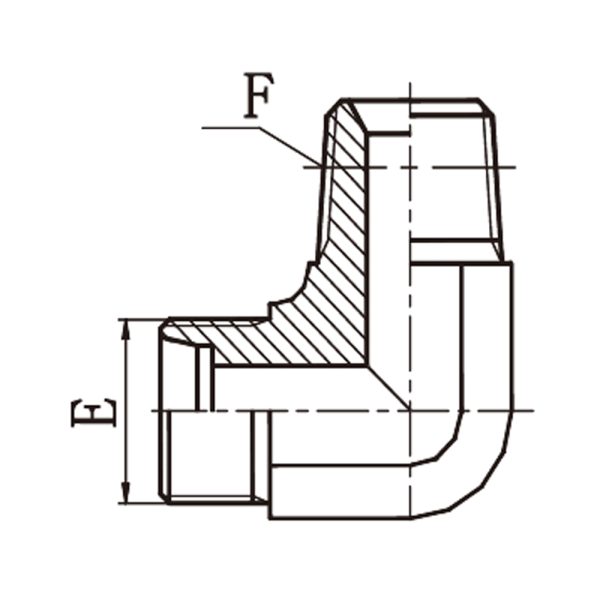

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	I1	L1	L2	S1	S2	MPa
1CT9-12-02SP	M12X1.5	R1/8″X28	6	13	20	21	11	14	25 L series
1CT9-12-04SP	M12X1.5	R1/4″X19	6	16.5	23.5	25.5	14	14
1CT9-14-02SP	M14X1.5	R1/8″X28	8	15.5	22.5	23.5	14	17
1CT9-14-04SP	M14X1.5	R1/4″X19	8	15.5	22.5	25.5	14	17
1CT9-16-04SP	M16X1.5	R1/4″X19	10	17.5	24.5	26.5	16	19
1CT9-16-06SP	M16X1.5	R3/8″X19	10	17.5	24.5	28.5	16	19
1CT9-16-08SP	M16X1.5	R1/2″X14	10	21	28	36	22	19
1CT9-18-04SP	M18X1.5	R1/4″X19	12	19	26	28	19	22
1CT9-18-06SP	M18X1.5	R3/8″X19	12	19	26	30	19	22
1CT9-18-08SP	M18X1.5	R1/2″X14	12	21	28	36	22	22
1CT9-22-06SP	M22X1.5	R3/8″X19	15	22	29	32	22	27
1CT9-22-08SP	M22X1.5	R1/2″X14	15	22	29	36	22	27
1CT9-22-12SP	M22X1.5	R3/4″X14	15	25.5	32.5	43.5	27	27
1CT9-26-08SP	M26X1.5	R1/2″X14	18	25.5	33	39.5	27	32	16 L series
1CT9-26-12SP	M26X1.5	R3/4″X14	18	25.5	33	43.5	27	32
1CT9-30-12SP	M30X2	R3/4″X14	22	29.3	36.8	45.3	30	36
1CT9-30-16SP	M30X2	R1″X11	22	32	39.5	50	33	36
1CT9-36-16SP	M36X2	R1″X11	28	33	40.5	52	36	41
1CT9-36-20SP	M36X2	R1.1/4″X11	28	38.7	46.2	57	41	41
1CT9-45-20SP	M45X2	R1.1/4″X11	35	39	49.5	61	48	50
1CT9-52-24SP	M52X2	R1.1/2″X11	42	38.7	49.7	62.2	48	60
1DT9-14-04SP	M14X1.5	R1/4″X19	6	17.5	24.5	25.5	14	17	40 S series
1DT9-16-04SP	M16X1.5	R1/4″X19	8	18.5	25.5	26.5	16	19
1DT9-18-06SP	M18X1.5	R3/8″X19	10	19.5	27	30.5	19	22
1DT9-20-04SP	M20X1.5	R1/4″X19	12	19.5	27	28	19	24
1DT9-20-06SP	M20X1.5	R3/8″X19	12	19.5	27	30.5	19	24
1DT9-22-06SP	M22X1.5	R3/8″X19	14	23	31	32.5	22	27
1DT9-22-08SP	M22X1.5	R1/2″X14	14	23	31	36	22	27
1DT9-24-06SP	M24X1.5	R3/8″X19	16	24	32.5	33.5	24	30
1DT9-24-08SP	M24X1.5	R1/2″X14	16	24	32.5	37.5	24	30
1DT9-30-08SP	M30X2	R1/2″X14	20	28	38.5	41	30	36	25 S series
1DT9-30-12SP	M30X2	R3/4″X14	20	28	38.5	45	30	36
1DT9-36-12SP	M36X2	R3/4″X14	25	32.5	44.5	49	36	46
1DT9-36-16SP	M36X2	R1″X11	25	32.5	44.5	52.5	36	46
1DT9-42-16SP	M42X2	R1″X11	30	36	49.5	55	41	50
1DT9-42-20SP	M42X2	R1.1/4″X11	30	36	49.5	57	41	50
1DT9-52-20SP	M52X2	R1.1/4″X11	38	41.5	57.5	60	50	60
1DT9-52-24SP	M52X2	R1.1/2″X11	38	41.5	57.5	61	50	60

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
