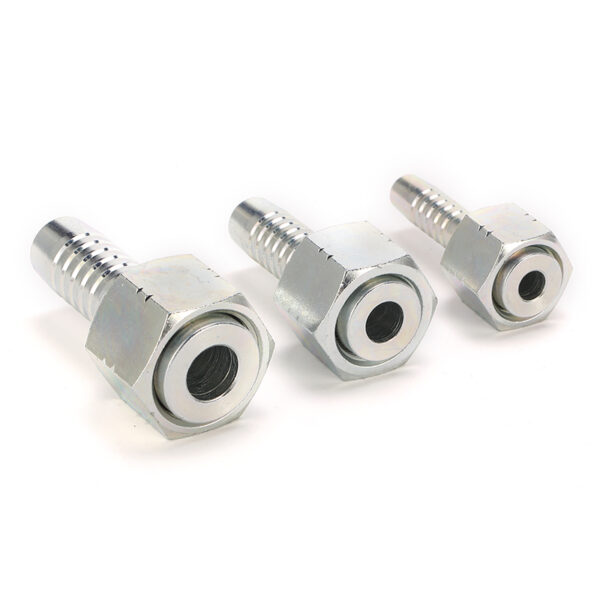

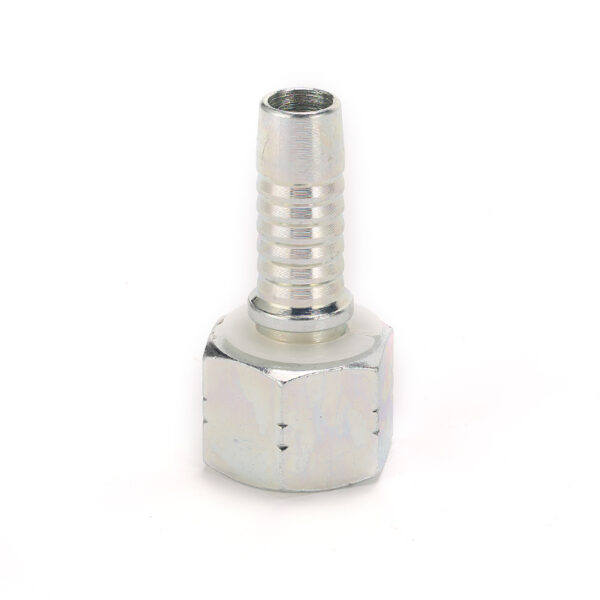

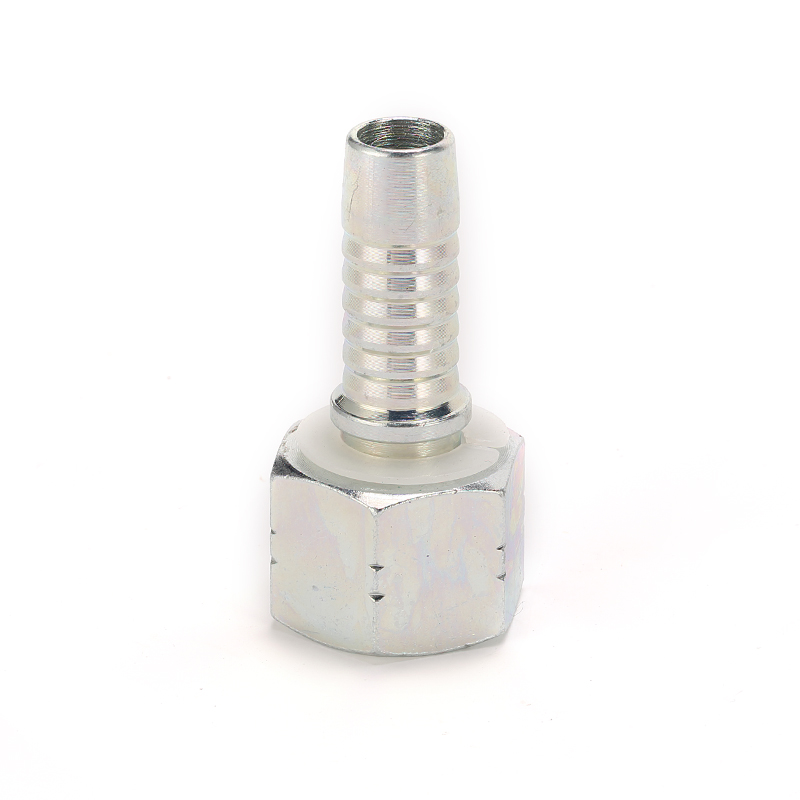

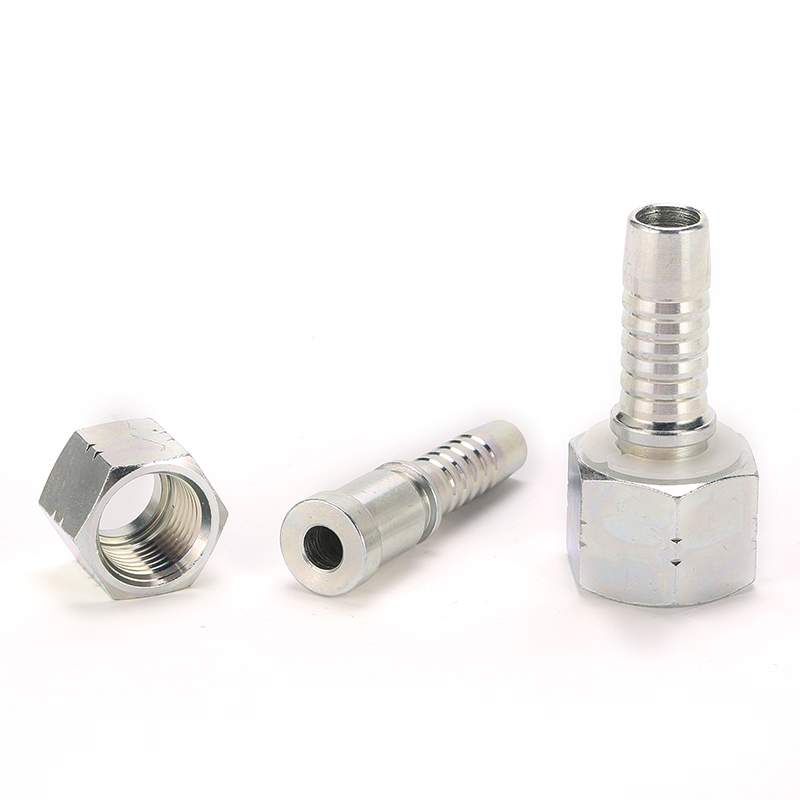

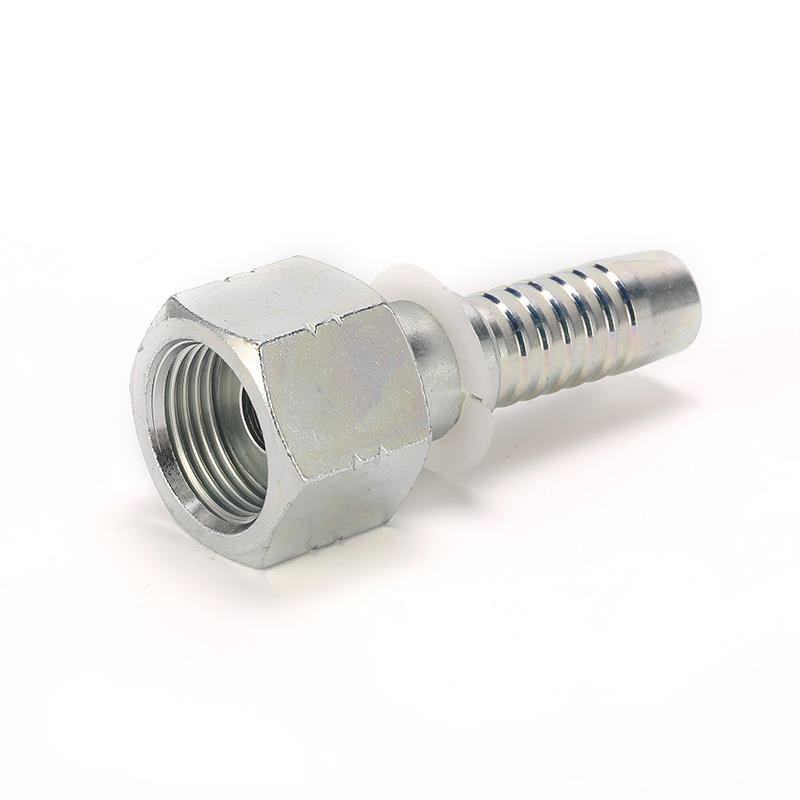

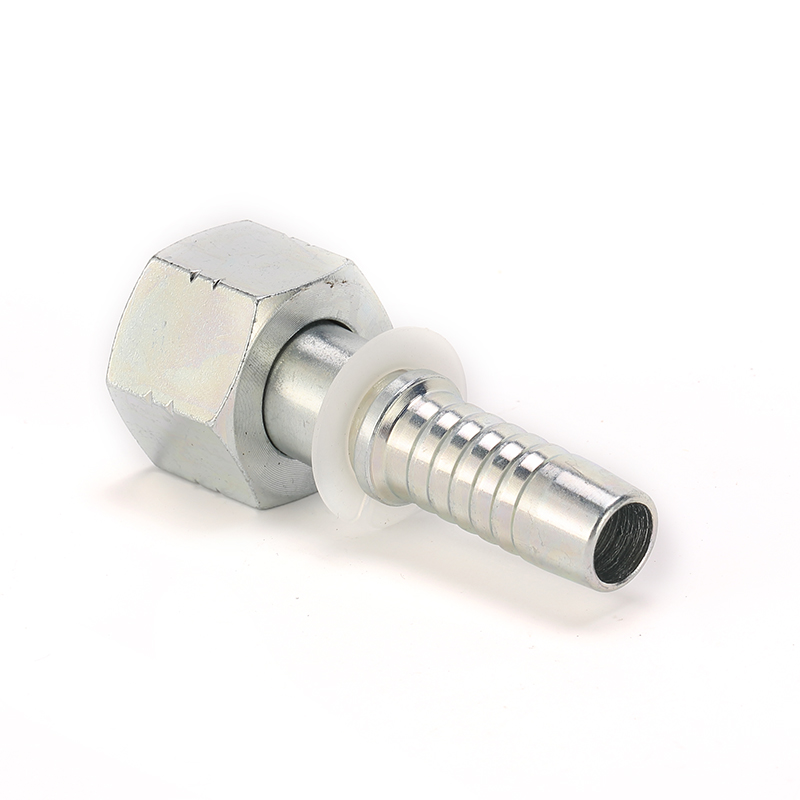

ORFS hydraulic hose fitting is the hose fitting with an o-ring face seal. Topol Power can provide ORFS hydraulic hose fittings of different shapes and sizes. They can suit a wide variety of industrial applications.

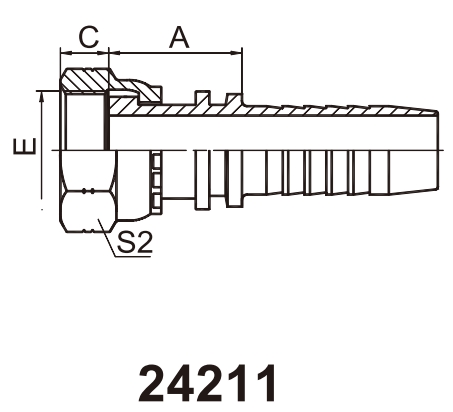

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 24211-04-04 | 9/16″X18 | 6 | 04 | 22.5 | 8.5 | 19 |
| 24211-04-05 | 9/16″X18 | 8 | 05 | 22.5 | 8.5 | 19 |
| 24211-04-06 | 9/16″X18 | 10 | 06 | 22.5 | 8.5 | 19 |
| 24211-06-04T | 11/16″X16 | 6 | 04 | 23.5 | 10 | 22 |
| 24211-06-05T | 11/16″X16 | 8 | 05 | 23.5 | 10 | 22 |
| 24211-06-06 | 11/16″X16 | 10 | 06 | 25.5 | 10 | 22 |
| 24211-06-08 | 11/16″X16 | 12 | 08 | 26 | 10 | 22 |
| 24211-08-05T | 13/16″X16 | 8 | 05 | 25 | 11 | 27 |
| 24211-08-06T | 13/16″X16 | 10 | 06 | 25 | 11 | 27 |
| 24211-08-08 | 13/16″X16 | 12 | 08 | 28 | 11 | 27 |
| 24211-08-10 | 13/16″X16 | 16 | 10 | 29 | 11 | 27 |
| 24211-10-08T | 1″X14 | 12 | 08 | 29.5 | 13.5 | 30 |
| 24211-10-10 | 1″X14 | 16 | 10 | 33 | 13.5 | 30 |
| 24211-10-12 | 1″X14 | 20 | 12 | 33.5 | 13.5 | 30 |
| 24211-12-08T | 1.3/16″X12 | 12 | 08 | 30.5 | 15 | 36 |
| 24211-12-10T | 1.3/16″X12 | 16 | 10 | 31.5 | 15 | 36 |
| 24211-12-12 | 1.3/16″X12 | 20 | 12 | 35 | 15 | 36 |
| 24211-12-16 | 1.3/16″X12 | 25 | 16 | 36 | 15 | 36 |
| 24211-16-12T | 1.7/16″X12 | 20 | 12 | 35 | 14.8 | 41 |
| 24211-16-14T | 1.7/16″X12 | 22 | 14 | 35 | 14.8 | 41 |
| 24211-16-16T | 1.7/16″X12 | 25 | 16 | 35 | 14.8 | 41 |
| 24211-16-20 | 1.7/16″X12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 24211-20-16T | 1.11/16″X12 | 25 | 16 | 35 | 15 | 50 |
| 24211-20-20W | 1.11/16″X12 | 32 | 20 | 42.5 | 15 | 50 |
| 24211-20-24W | 1.11/16″X12 | 40 | 24 | 42.5 | 15 | 50 |
| 24211-24-20T | 2″X12 | 32 | 20 | 36 | 14.8 | 60 |
| 24211-24-24T | 2″X12 | 40 | 24 | 36 | 14.8 | 60 |
