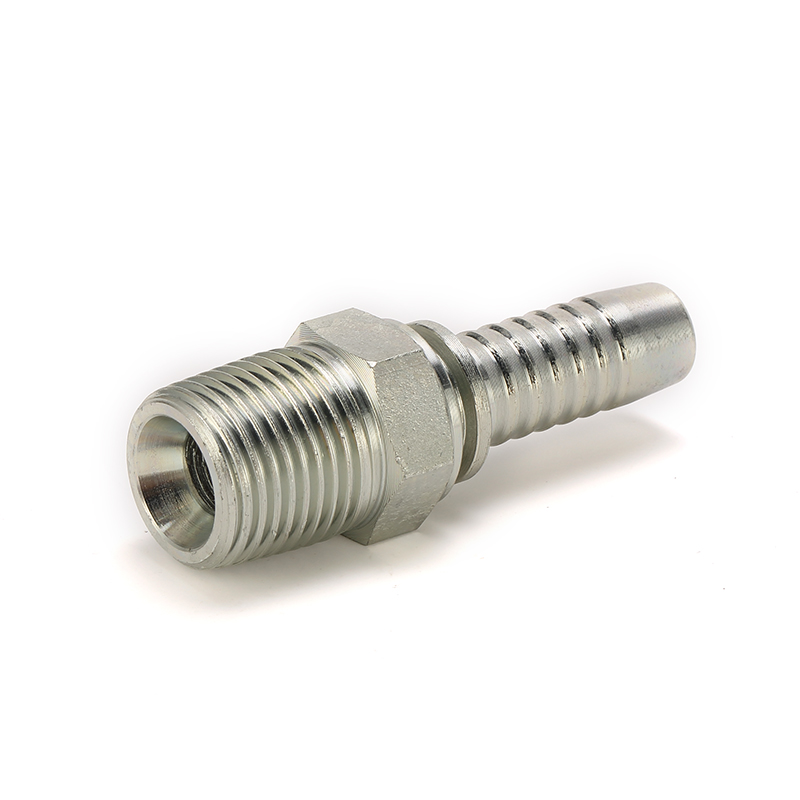

13011-SP BSP O-Ring Seal Hose Fittings

Description:

The 13011-SP BSPT hydraulic hose fitting is a straight male hydraulic fitting featuring a 60-degree cone BSP thread. BSP stands for British Standard Pipe Tapered, which refers to a widely recognized tapered thread commonly used for the interconnection and sealing.

"*" indicates required fields

Our BSP fittings feature high-quality stainless steel construction that can withstand strong working conditions. British Fittings are manufactured using British threads such as British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT). Topol Power directly supplies a wide range of stainless steel BSP fittings.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
13011-02-03SP	R1/8″X28	5	03	22	10	12
13011-02-04SP	R1/8″X28	6	04	22.5	10	12
13011-04-04SP	R1/4″X19	6	04	27	14.5	14
13011-04-05SP	R1/4″X19	8	05	25	15.4	14
13011-04-06SP	R1/4″X19	10	06	27	14.5	17
13011-06-04SP	R3/8″X19	6	04	27.5	15	17
13011-06-05SP	R3/8″X19	8	05	26.5	15	17
13011-06-06SP	R3/8″X19	10	06	27.5	15	17
13011-06-08SP	R3/8″X19	12	08	30	15	19
13011-08-06SP	R1/2″X14	10	06	34.5	20	22
13011-08-08SP	R1/2″X14	12	08	35	20	22
13011-08-10SP	R1/2″X14	16	10	38	20	22
13011-08-12SP	R1/2″X14	20	12	38	20	27
13011-12-08SP	R3/4″X14	12	08	37	20	27
13011-12-08SP	R3/4″X14	12	08	37	20	27
13011-12-10SP	R3/4″X14	16	10	38	20	27
13011-12-12SP	R3/4″X14	20	12	38.5	20	27
13011-12-16SP	R3/4″X14	25	16	39.5	20	32
13011-16-12SP	R1″X11	20	12	44	25.5	36
13011-16-16SP	R1″X11	25	16	45	25.5	36
13011-20-20SP	R1.1/4X11	32	20	49.5	26.5	46
13011-24-24SP	R1.1/2″X11	40	24	52.5	26.5	50
13011-32-24SP	R2″X11	40	24	57	30	65
13011-32-32SP	R2″X11	50	32	57	30	65

Click to enlarge

Category: BSP Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
13011-02-03SP	R1/8″X28	5	03	22	10	12
13011-02-04SP	R1/8″X28	6	04	22.5	10	12
13011-04-04SP	R1/4″X19	6	04	27	14.5	14
13011-04-05SP	R1/4″X19	8	05	25	15.4	14
13011-04-06SP	R1/4″X19	10	06	27	14.5	17
13011-06-04SP	R3/8″X19	6	04	27.5	15	17
13011-06-05SP	R3/8″X19	8	05	26.5	15	17
13011-06-06SP	R3/8″X19	10	06	27.5	15	17
13011-06-08SP	R3/8″X19	12	08	30	15	19
13011-08-06SP	R1/2″X14	10	06	34.5	20	22
13011-08-08SP	R1/2″X14	12	08	35	20	22
13011-08-10SP	R1/2″X14	16	10	38	20	22
13011-08-12SP	R1/2″X14	20	12	38	20	27
13011-12-08SP	R3/4″X14	12	08	37	20	27
13011-12-08SP	R3/4″X14	12	08	37	20	27
13011-12-10SP	R3/4″X14	16	10	38	20	27
13011-12-12SP	R3/4″X14	20	12	38.5	20	27
13011-12-16SP	R3/4″X14	25	16	39.5	20	32
13011-16-12SP	R1″X11	20	12	44	25.5	36
13011-16-16SP	R1″X11	25	16	45	25.5	36
13011-20-20SP	R1.1/4X11	32	20	49.5	26.5	46
13011-24-24SP	R1.1/2″X11	40	24	52.5	26.5	50
13011-32-24SP	R2″X11	40	24	57	30	65
13011-32-32SP	R2″X11	50	32	57	30	65

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
