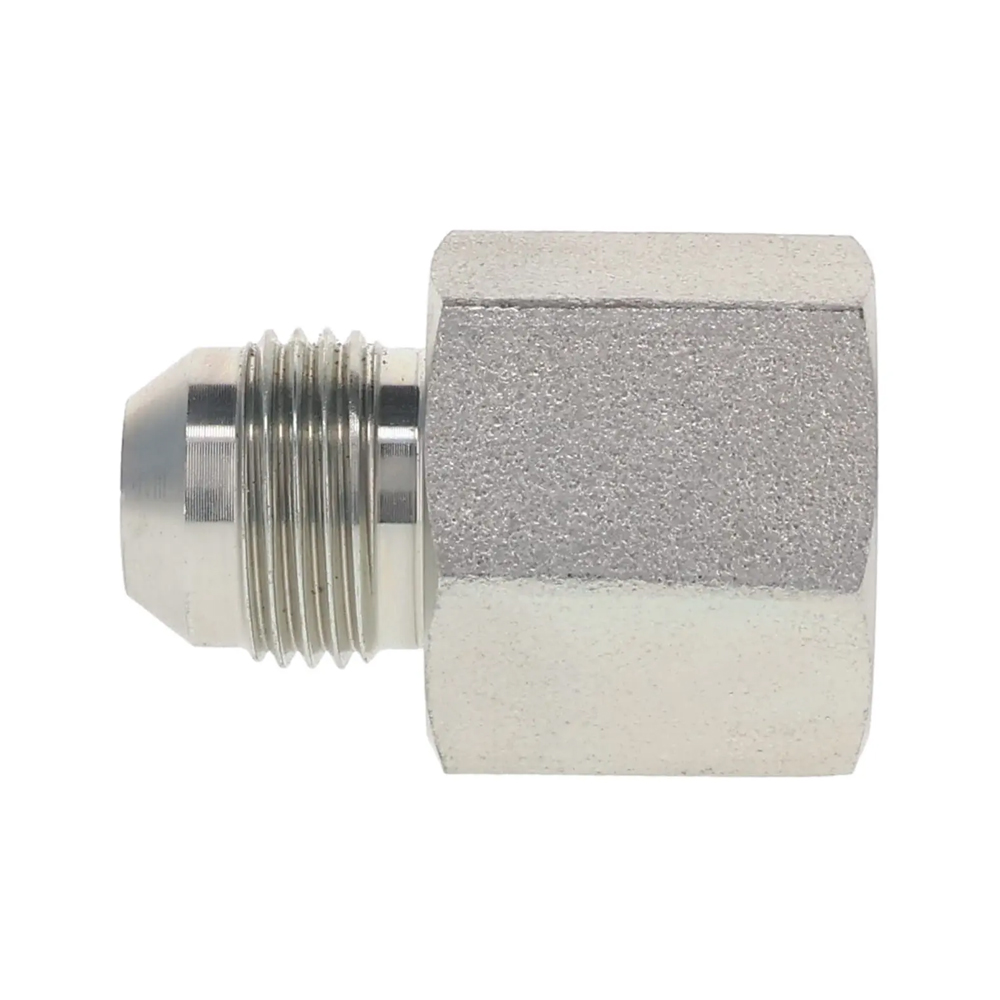

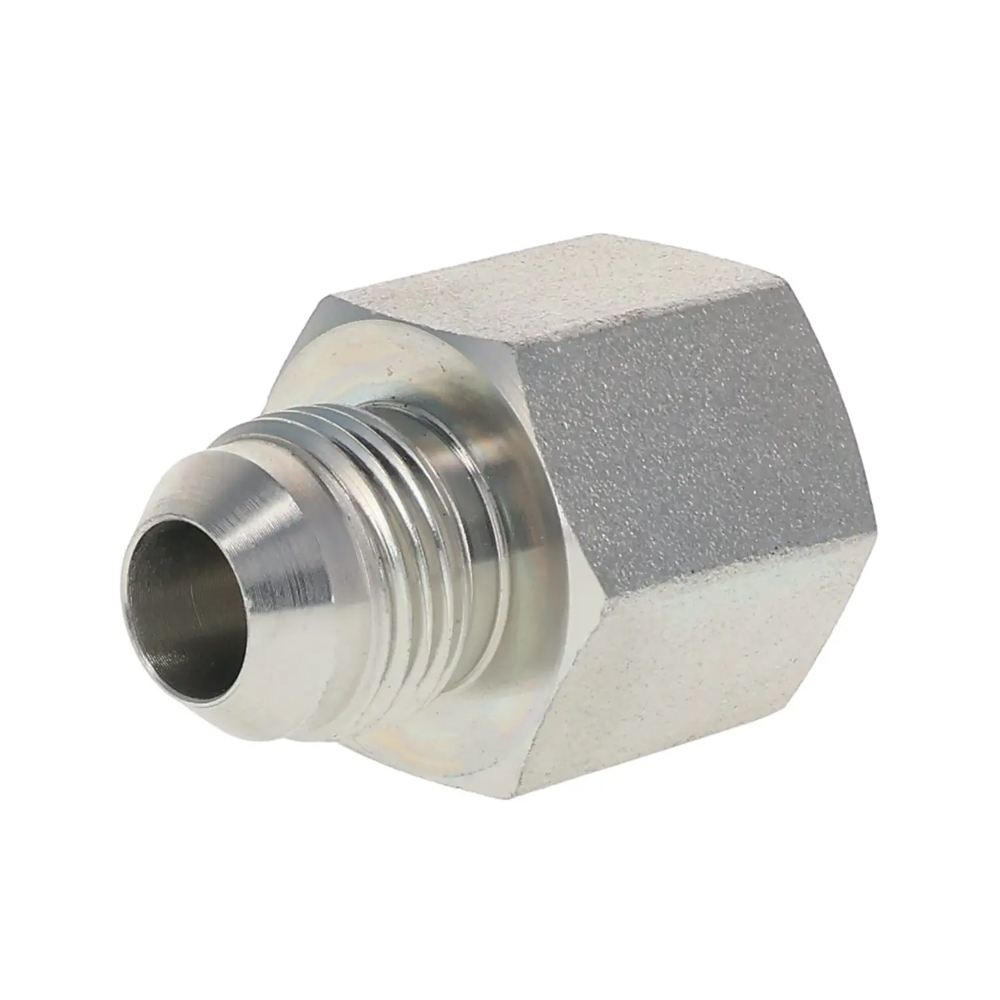

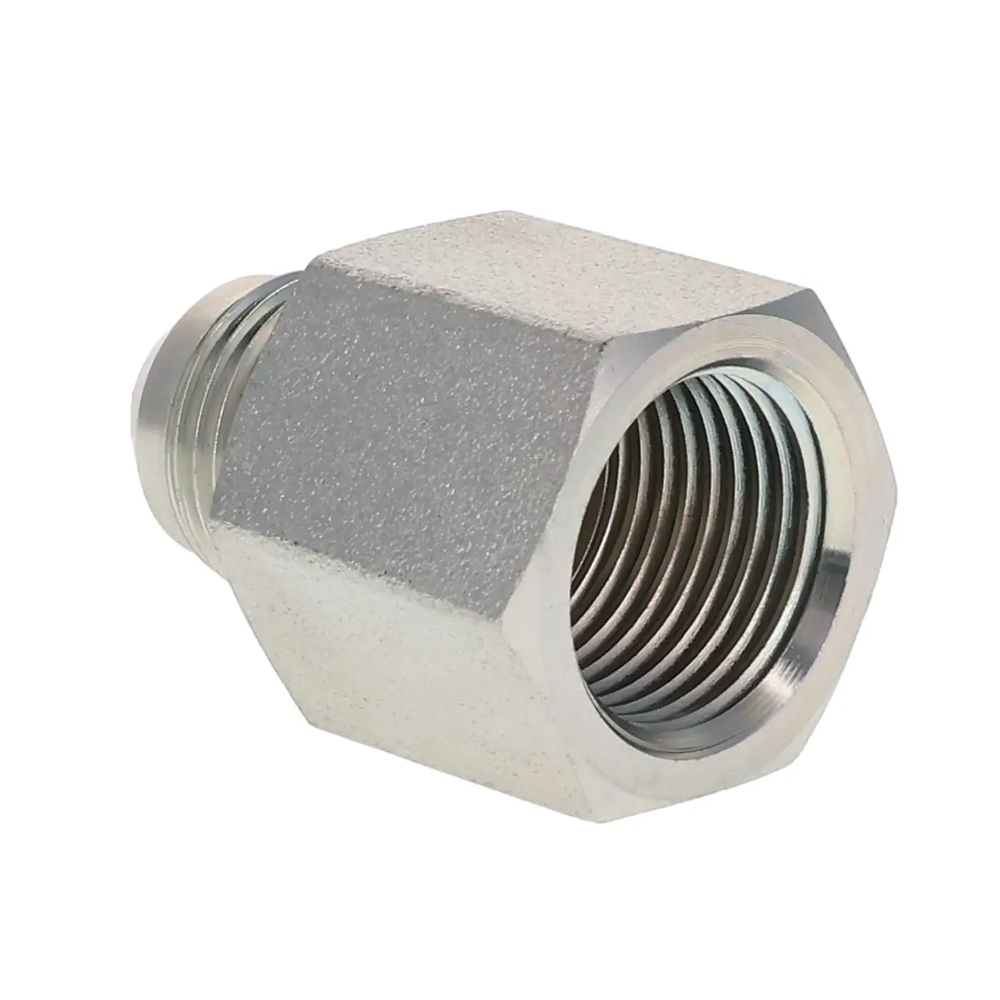

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

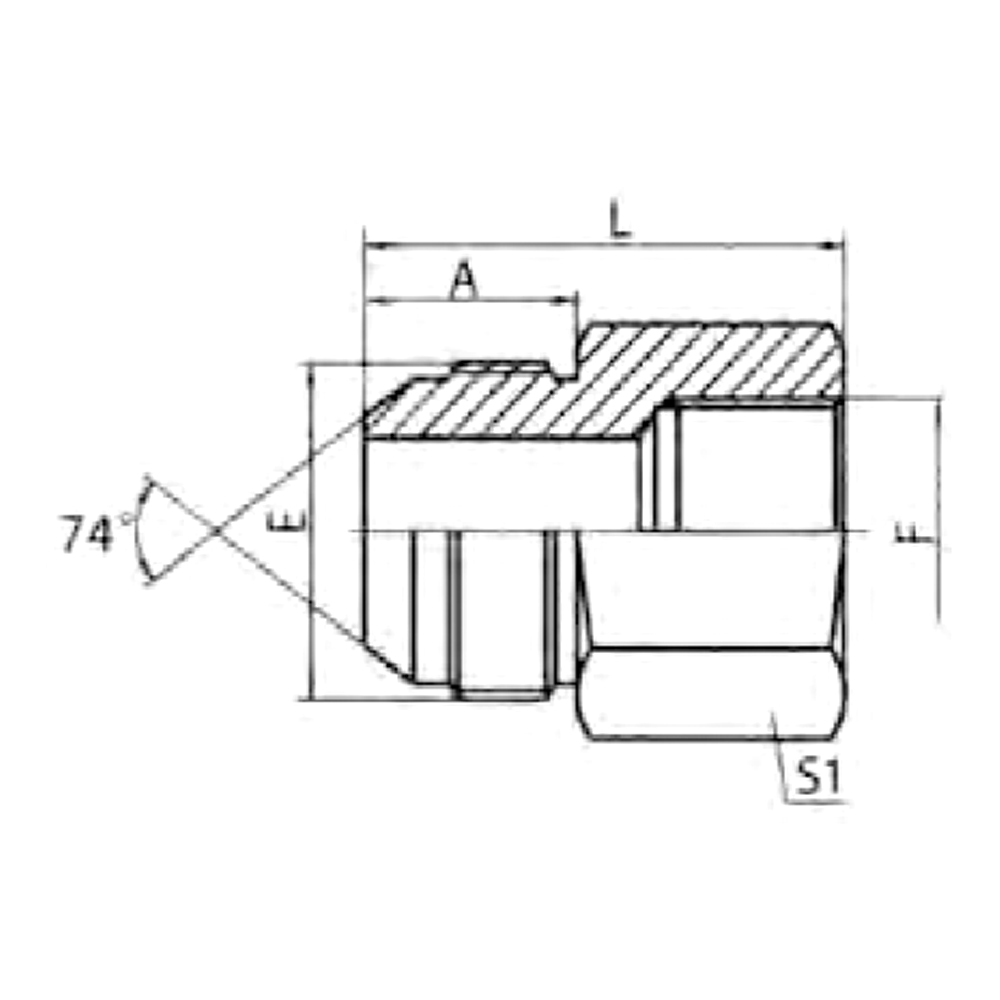

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | L | S1 | |
| 5JB-04 | 7/16″X20 | G1/4″X19 | 14 | 33 | 19 |
| 5JB-04-02 | 7/16″X20 | G1/8″X28 | 14 | 31 | 14 |
| 5JB-04-06 | 7/16″X20 | G3/8″X19 | 14 | 35.5 | 22 |
| 5JB-06 | 9/16″X18 | G3/8″X19 | 14.1 | 35 | 22 |
| 5JB-06-08 | 9/16″X18 | G1/2″X14 | 14.1 | 39.5 | 27 |
| 5JB-08 | 3/4″X16 | G1/2″X14 | 16.7 | 44 | 27 |
| 5JB-08-10 | 3/4″X16 | G5/8″X14 | 16.7 | 46 | 30 |
| 5JB-10-12 | 7/8″X14 | G3/4″X14 | 19.3 | 48 | 32 |
| 5JB-12 | 1.1/16″X12 | G3/4″X14 | 21.9 | 50 | 36 |
| 5JB-12-16 | 1.1/16″X12 | G1″X11 | 21.9 | 53 | 41 |
| 5JB-16 | 1.5/16″X12 | G1″X11 | 23.1 | 52.5 | 41 |
| 5JB-16-20 | 1.5/16″X12 | G1.1/4″X11 | 23.1 | 57 | 50 |
| 5JB-20 | 1.5/8″X12 | G1.1/4″X11 | 24.3 | 57 | 50 |
| 5JB-24 | 1.7/8″X12 | G1.1/2″X11 | 27.5 | 62 | 55 |
| 5JB-32 | 2.1/2″X12 | G2″X11 | 33.9 | 67 | 70 |
