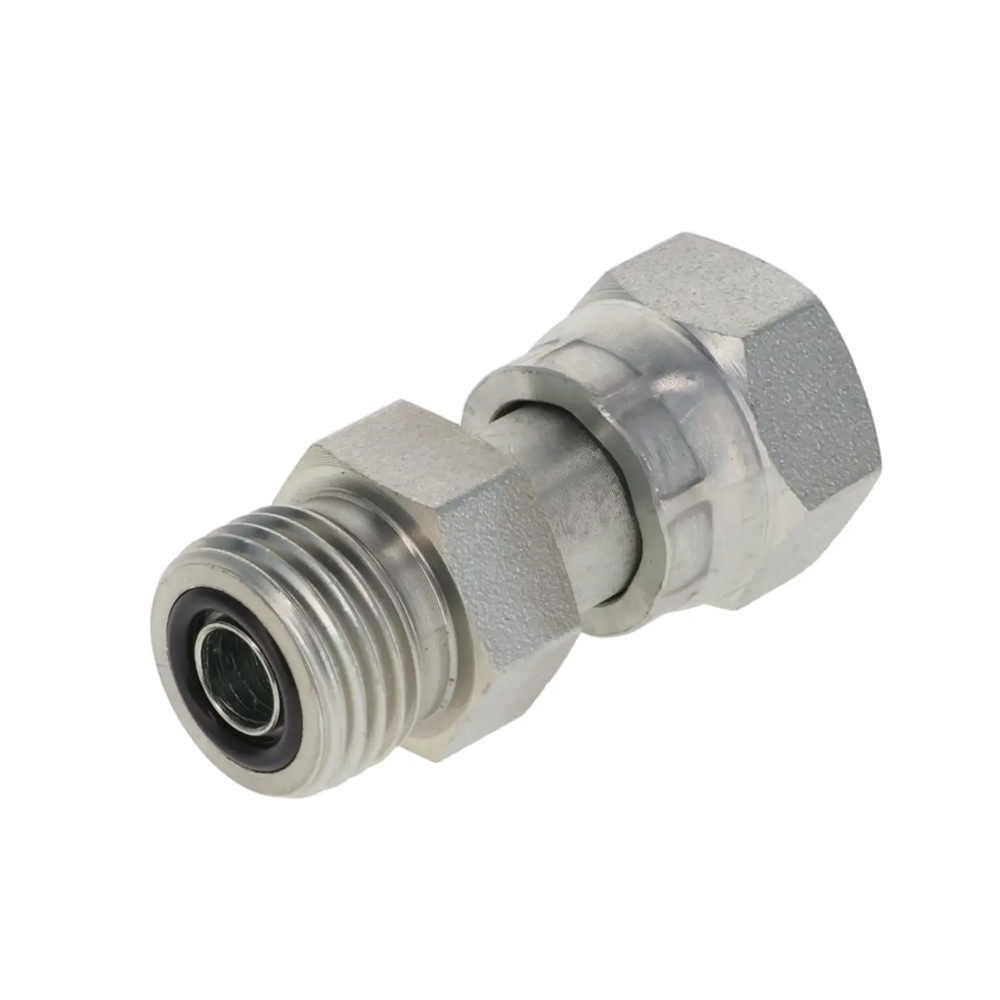

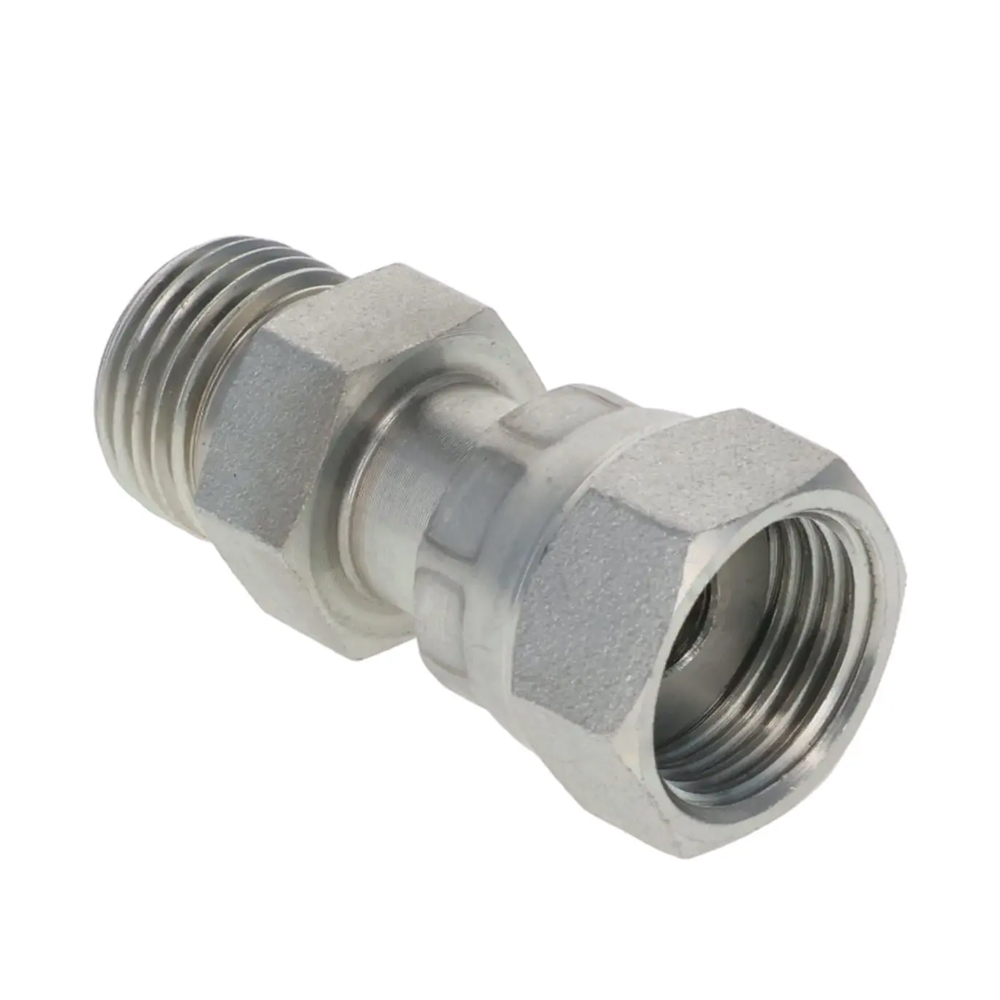

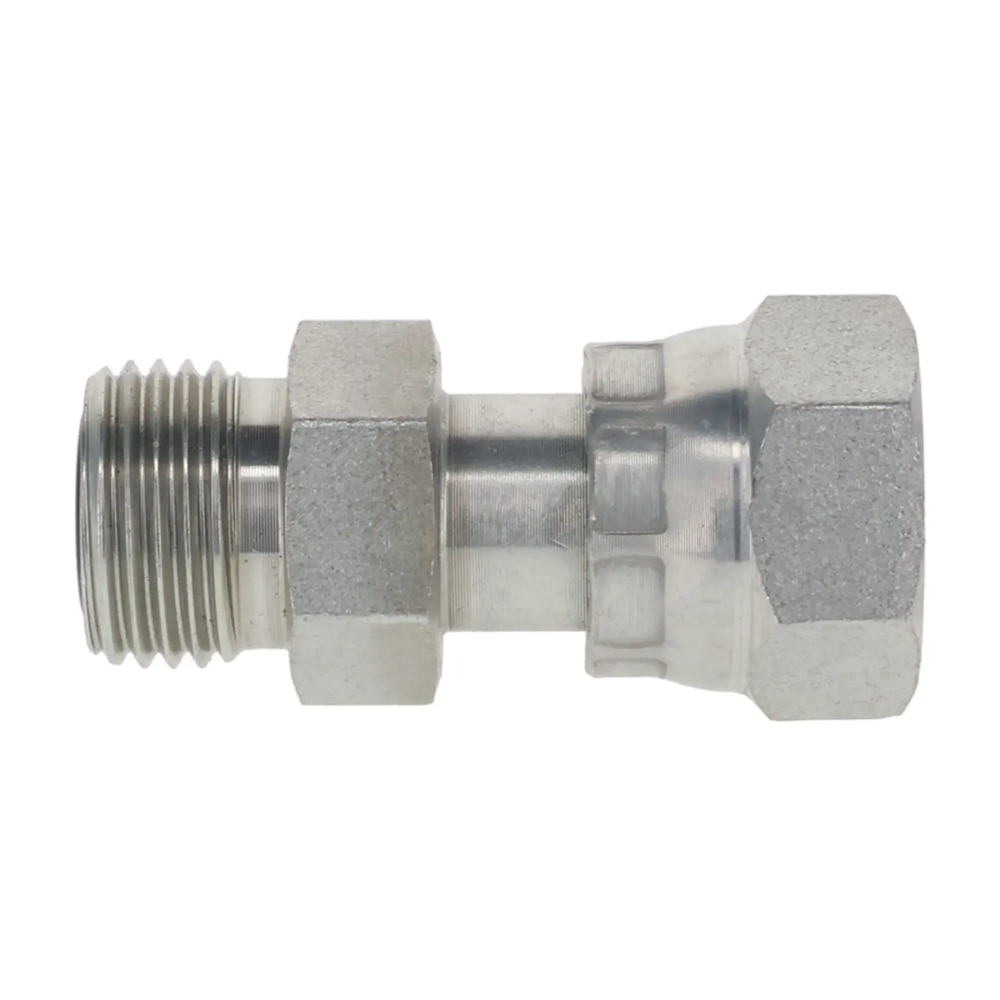

2F ORFS Male X Female O-Ring Swivel Adapter

Description:

2F-ORFS male hydraulic fitting is a male to female that has the o-ring face seal end and SAE O-ring boss s-series thread.

"*" indicates required fields

O-Ring Face Seal adapter [ORFS] fittings use a straight thread with a machined groove in the face of the male fitting to accept an O-Ring. Combined with a female fitting, this creates a leak-proof seal. Topol Power manufactures a comprehensive range of precision dapters to accommodate diverse hydraulic configuration requirements.

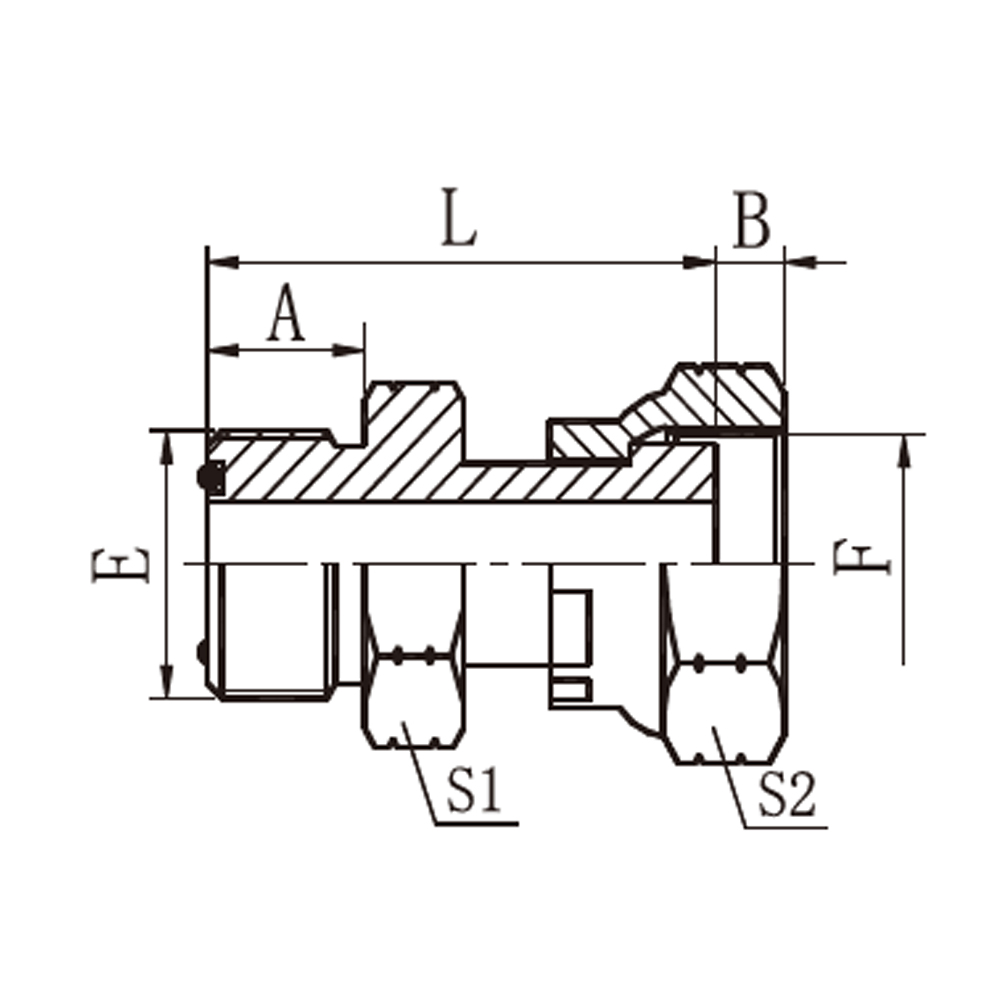

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	E	A	B	L	S1	S2
2F-04	9/16″X18	9/16″X18	O011	9.8	7.5	33	17	19
2F-04-06	9/16″X18	11/16″X16	O011	9.8	9.5	34.5	17	22
2F-04-08	9/16″X18	13/16″X16	O011	9.8	11.5	36.5	19	27
2F-06-04	11/16″X16	9/16″X18	O012	11.2	7.5	35.5	19	19
2F-06	11/16″X16	11/16″X16	O012	11.2	9.5	38.5	19	22
2F-06-08	11/16″X16	13/16″X16	O012	11.2	11.5	37.7	19	27
2F-06-10	11/16″X16	1″X14	O012	11.2	12.5	43.7	24	32
2F-08-06	13/16″X16	11/16″X16	O014	12.8	9.5	41	22	22
2F-08	13/16″X16	13/16″X16	O014	12.8	11.5	43	22	27
2F-08-10	13/16″X16	1″X14	O014	12.8	12.5	45.5	24	32
2F-08-12	13/16″X16	1.3/16″X12	O014	12.8	13	49	30	36
2F-10-08	1″X14	13/16″X16	O016	15.5	11.5	47.5	27	27
2F-10	1″X14	1″X14	O016	15.5	12.5	51.5	27	32
2F-10-12	1″X14	1.3/16″X12	O016	15.5	13	51.5	30	36
2F-10-16	1″X14	1.7/16″X12	O016	15.5	14	56	36	41
2F-12-08	1.3/16″X12	13/16″X16	O018	17	11.5	50.5	32	27
2F-12-10	1.3/16″X12	1″X14	O018	17	12.5	54.5	32	32
2F-12	1.3/16″X12	1.3/16″X12	O018	17	13	56	32	36
2F-12-16	1.3/16″X12	1.7/16″X12	O018	17	14	58	36	41
2F-16-12	1.7/16″X12	1.3/16″X12	O021	17.5	13	58	38	36
2F-16	1.7/16″X12	1.7/16″X12	O021	17.5	14	60	38	41
2F-16-20	1.7/16″X12	1.11/16″X12	O021	17.5	15	58	41	50
2F-20-16	1.11/16″X12	1.7/16″X12	O025	17.5	14	58.5	46	41
2F-20	1.11/16″X12	1.11/16″X12	O025	17.5	15	58	46	50
2F-20-24	1.11/16″X12	2″X12	O025	17.5	17	65.5	50	60
2F-24-20	2″X12	1.11/16″X12	O029	17.5	15	64	55	50
2F-24	2″X12	2″X12	O029	17.5	17	61.5	55	60
