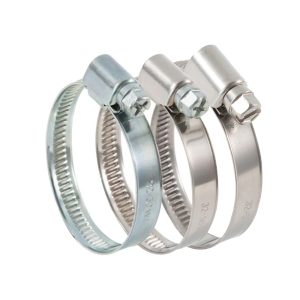

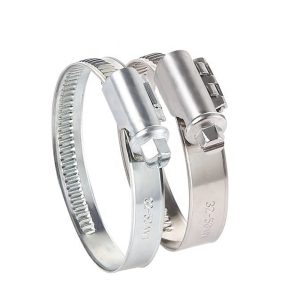

German Type Hose Clamps, also known as solid band or non-perforated hose clamps, are engineered for secure and reliable fastening of hoses and pipes. They provides a uniform clamping force and minimizes the risk of damaging softer hose materials. These clamps are widely used in automotive, industrial, and agricultural applications where a tight, leak-proof seal and hose integrity are critical.
| Size | Band Width | Thickness | Install Torque |
| mm | mm | mm | Nm |
| 25–100 | 9 | 0.8 | 2.6 |
| 25–125 | 9 | 0.8 | 2.6 |
| 25–150 | 9 | 0.8 | 2.6 |
| 25–175 | 9 | 0.8 | 2.6 |
| 25–200 | 9 | 0.8 | 2.6 |
| 25–225 | 9 | 0.8 | 2.6 |
| 25–250 | 9 | 0.8 | 2.6 |
| 25–275 | 9 | 0.8 | 2.6 |
| 25–300 | 9 | 0.8 | 2.6 |
| 25–350 | 9 | 0.8 | 2.6 |
| 25–400 | 9 | 0.8 | 2.6 |
| 25–450 | 9 | 0.8 | 2.6 |
| 25–500 | 9 | 0.8 | 2.6 |
| 25–550 | 9 | 0.8 | 2.6 |
| 25–600 | 9 | 0.8 | 2.6 |
| 25–650 | 9 | 0.8 | 2.6 |
| 25–700 | 9 | 0.8 | 2.6 |
| 25–750 | 9 | 0.8 | 2.6 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
