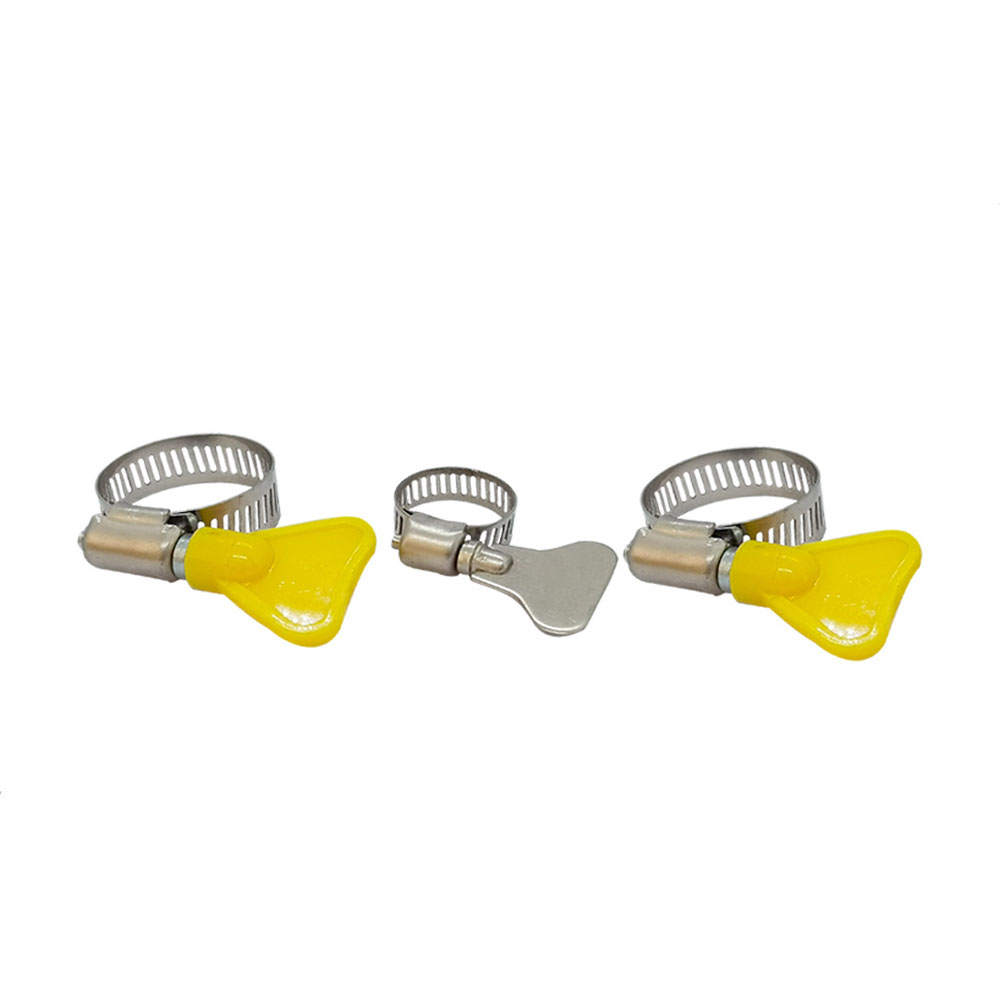

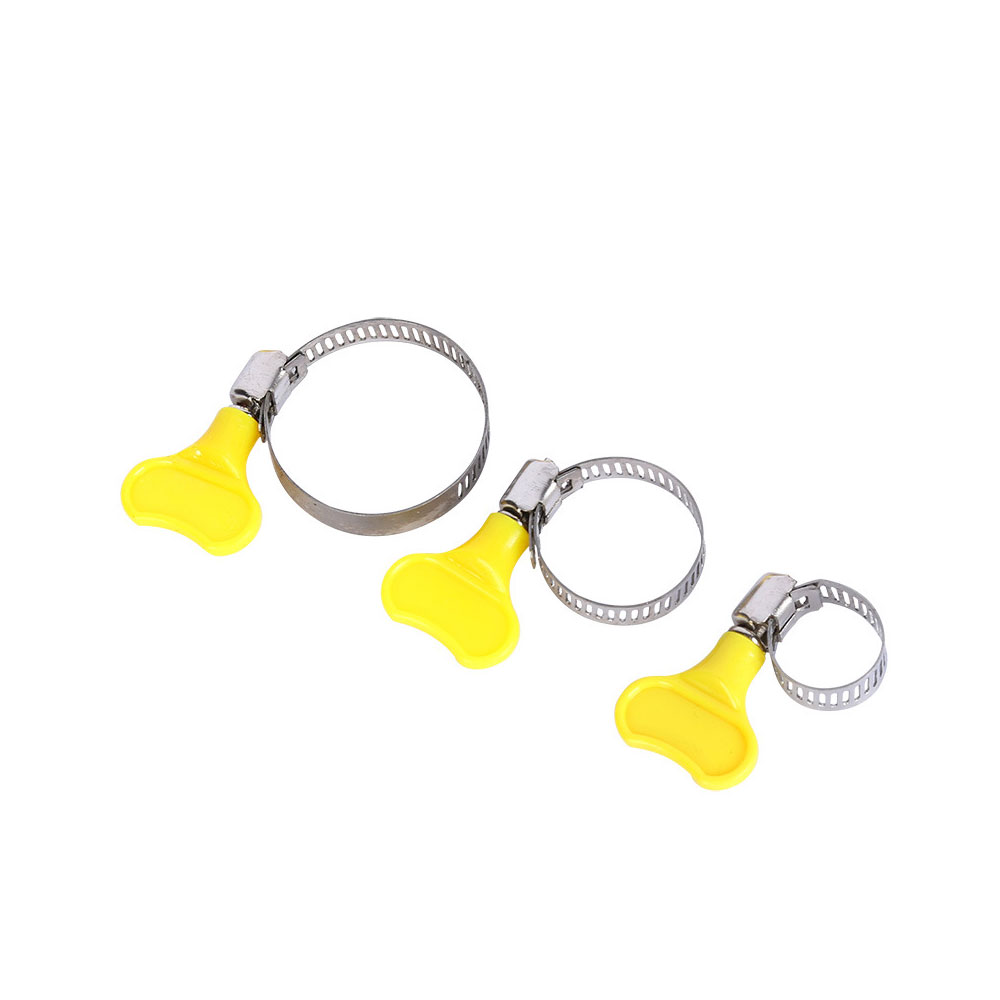

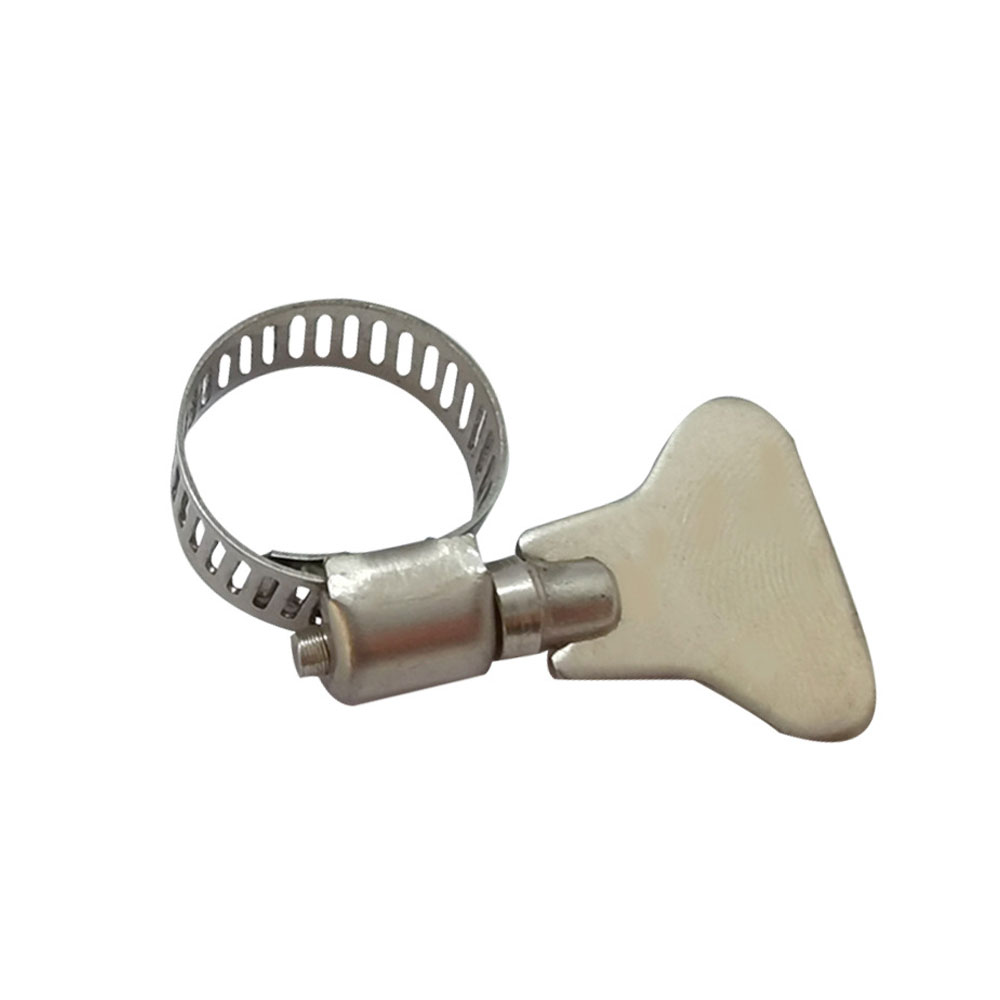

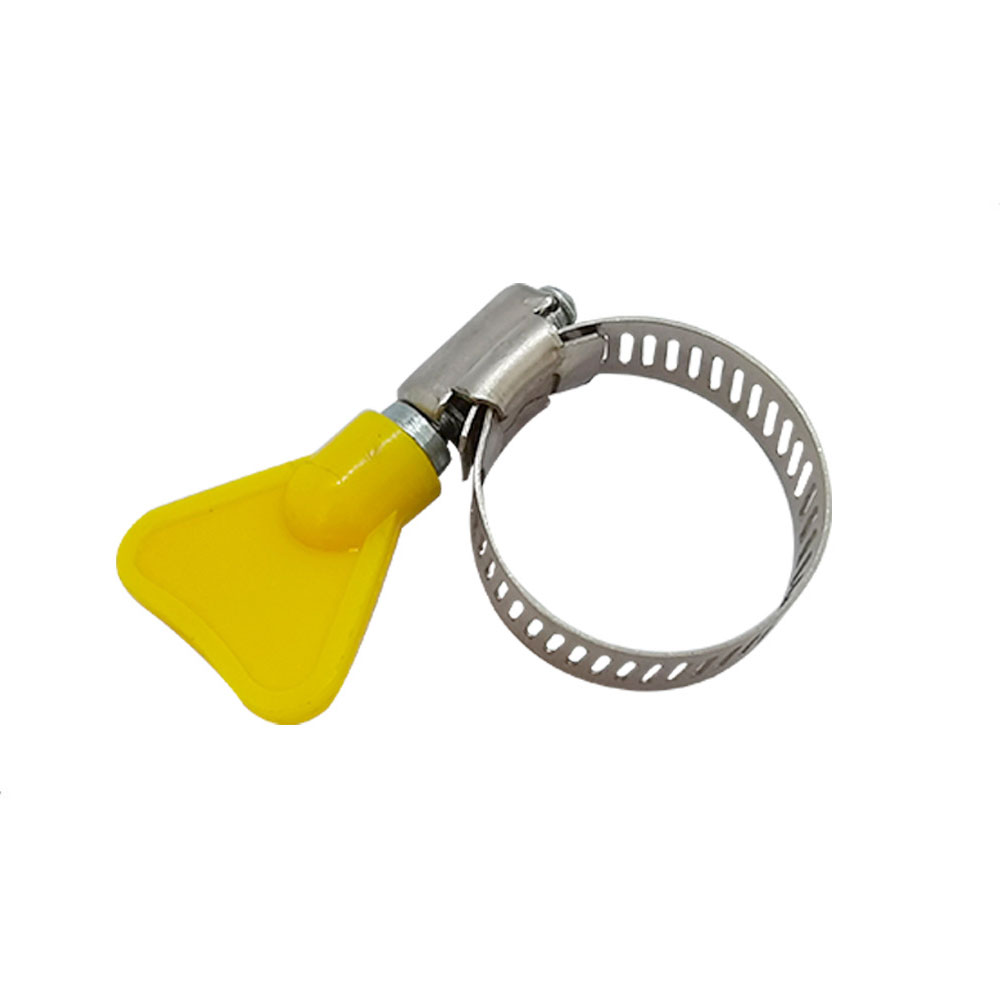

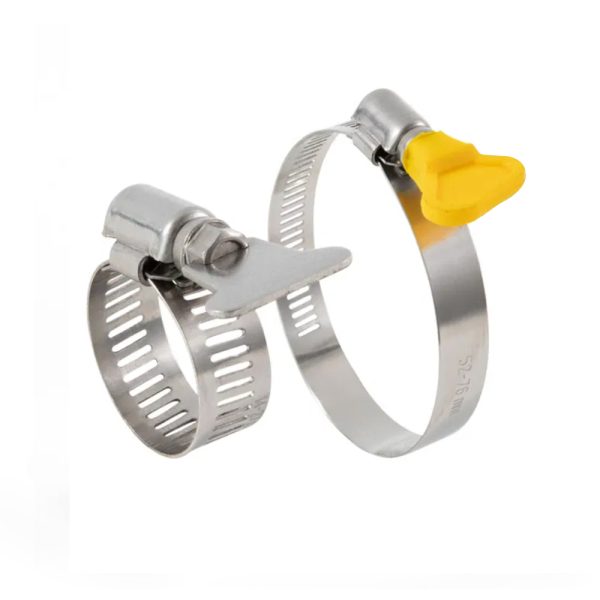

American-style hose clamps, also known as worm-gear hose clamps, are versatile fasteners with a wide range of applications. They are specifically designed to secure hoses to fittings such as barb connectors, threaded fittings, and pipe nozzles. Their distinctive feature lies in the mechanism incorporating a ratchet band and screw, enabling effortless adjustment while ensuring a tight and reliable seal.
| SAE NO | Size | Size | Band Width | Thickness | Max Torque | Pcs/CTN |
| mm | inch | mm | mm | Nm | ||
| 6 | 11-20 | 0.44″-0.78″ | 8 | 0.6 | 2 | 500 |
| 8 | 13-23 | 0.5″-0.91″ | 8 | 0.6 | 2 | 500 |
| 10 | 14-27 | 0.56″-1.06″ | 8 | 0.6 | 2 | 500 |
| 12 | 18-32 | 0.69″-1.25″ | 8 | 0.6 | 2 | 500 |
| 16 | 21-38 | 0.81″-1.5″ | 12.7 | 0.6 | 6 | 250 |
| 20 | 21-44 | 0.81″-1.75″ | 12.7 | 0.6 | 6 | 250 |
| 24 | 27-51 | 1.06″-2″ | 12.7 | 0.6 | 6 | 250 |
| 28 | 33-57 | 1.31″-2.25″ | 12.7 | 0.6 | 6 | 250 |
| 32 | 40-64 | 1.56″-2.5″ | 12.7 | 0.6 | 6 | 250 |
| 36 | 46-70 | 1.81″-2.75″ | 12.7 | 0.6 | 6 | 250 |
| 40 | 52-76 | 2.06″-3″ | 12.7 | 0.6 | 6 | 250 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
