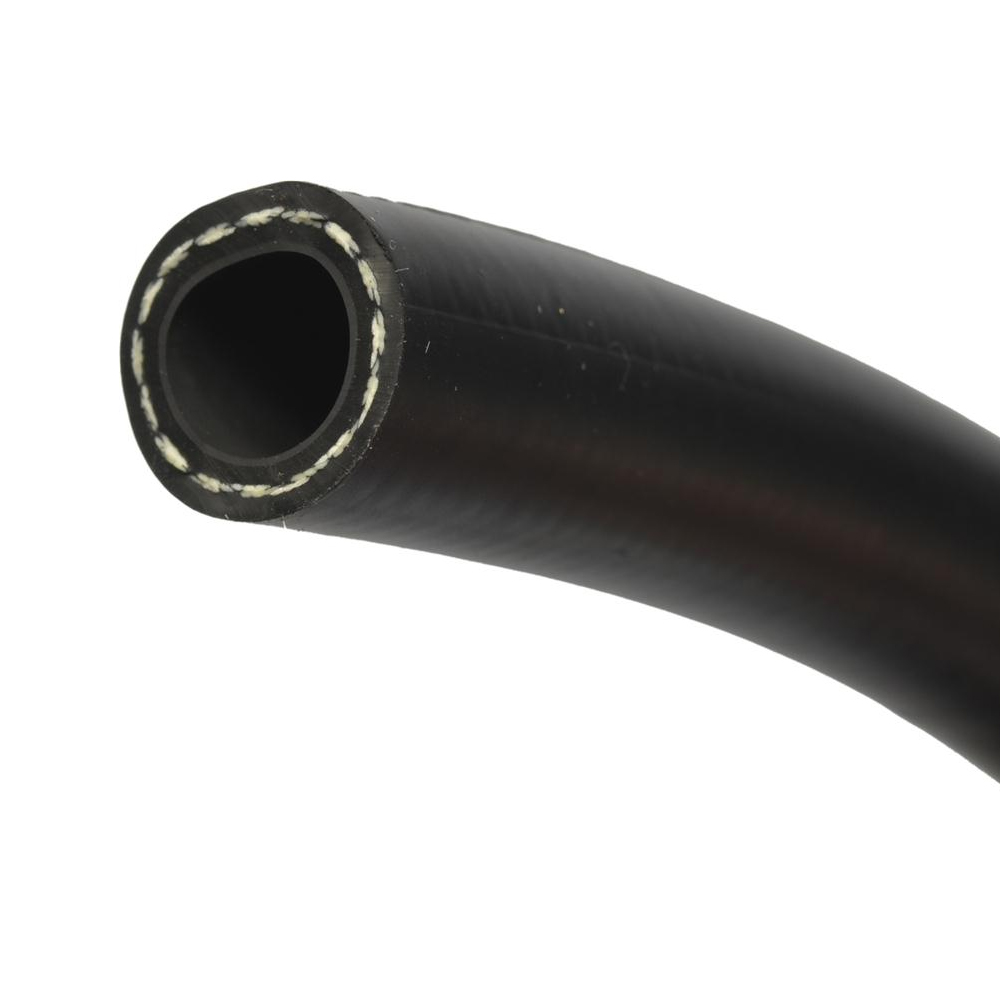

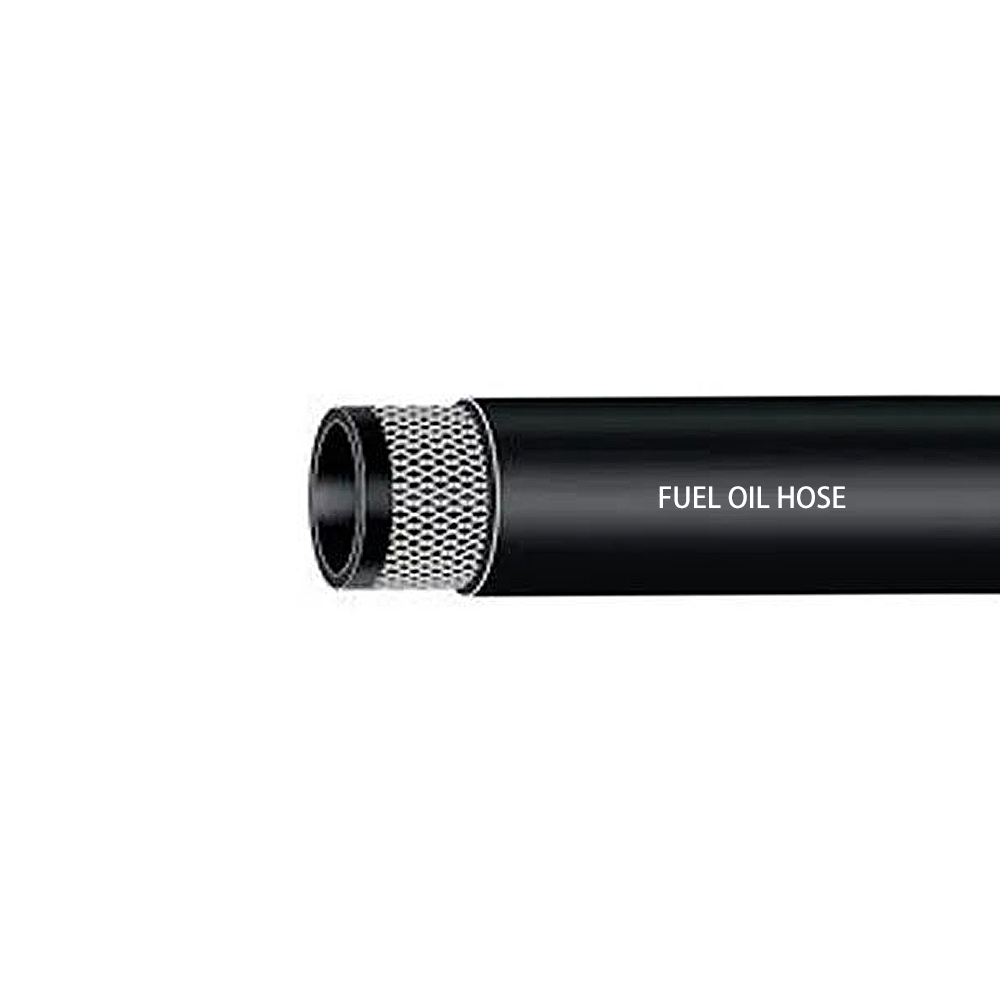

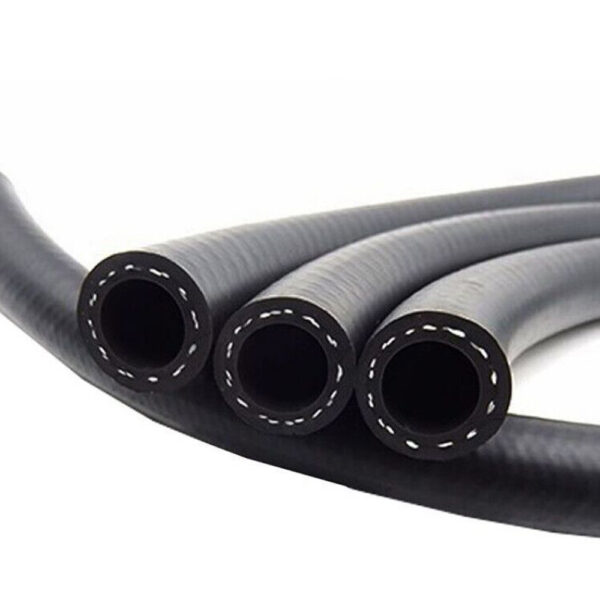

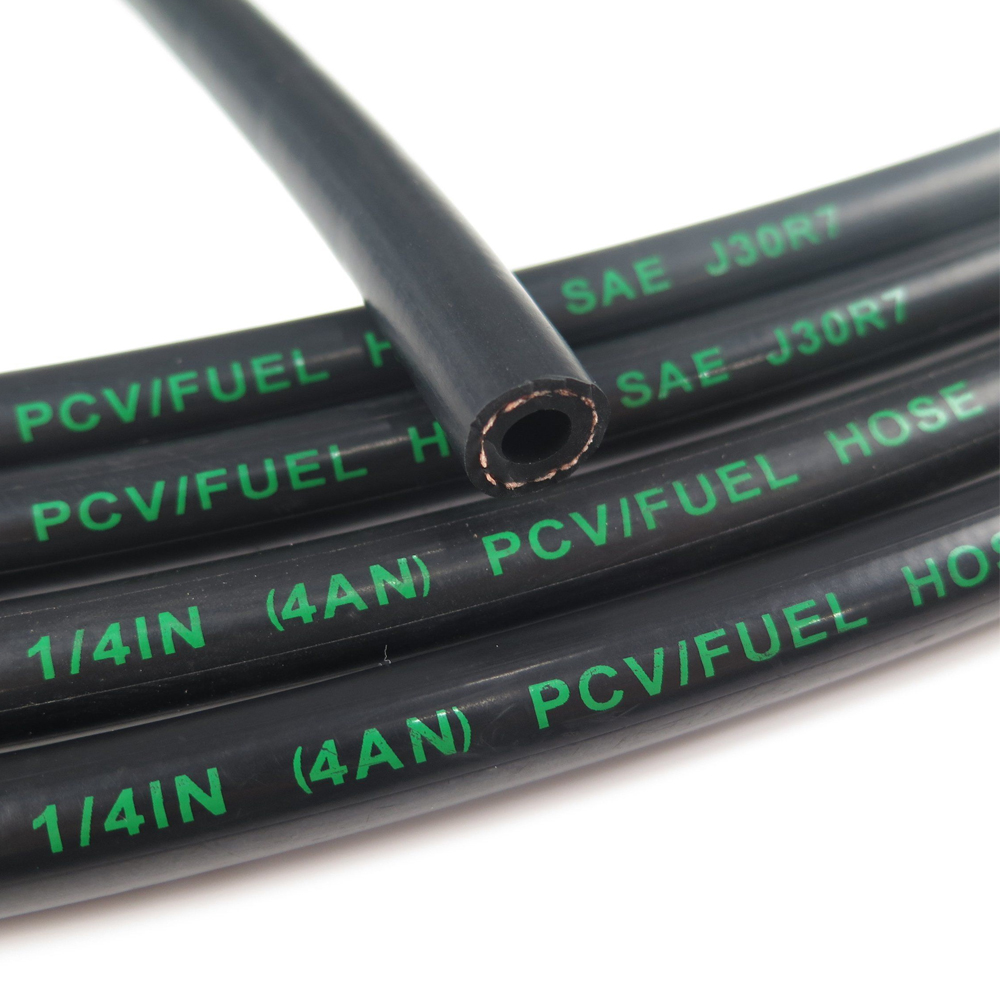

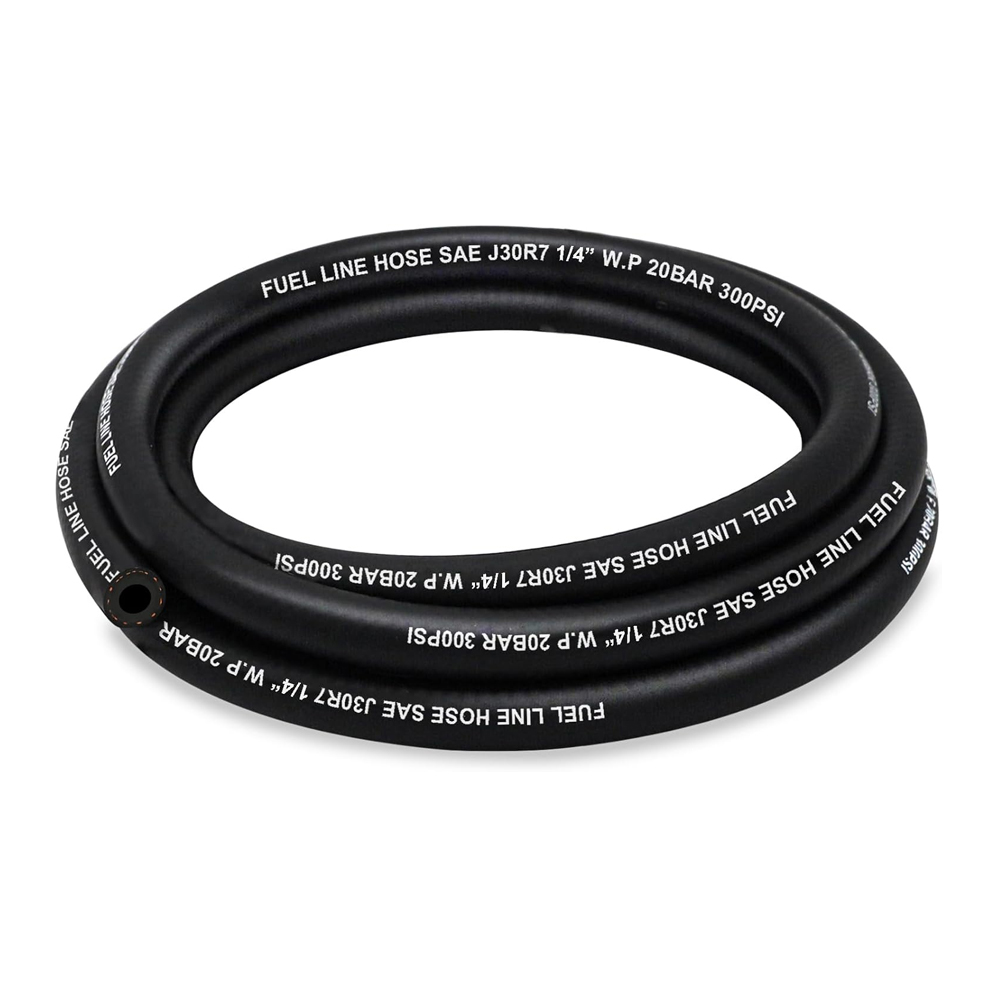

Fuel Oil Hose – also known as fuel oil rubber hose, reinforced fuel hose, or rubber reinforced fuel hose – is a durable, flexible tubing designed for safe and efficient fuel transfer. Constructed from high-quality rubber or other resilient materials, it is engineered to withstand the pressure, temperature, and chemical properties of various fuels.
| ID (inch) | ID | Wall | W.P. | B.P. | Length Max. | ||
| (mm) | (mm) | (bar) | (bar) | (mm) | (m) | (kg/m) | |
| 3/16″ | 5 | 3,5 | 20 | 60 | 30 | 100 | 0.15 |
| 1/4″ | 6 | 3,5 | 20 | 60 | 35 | 100 | 0.19 |
| 5/16″ | 8 | 3.5 | 20 | 60 | 50 | 100 | 0.23 |
| 3/8″ | 10 | 3.5 | 20 | 60 | 60 | 100 | 0.28 |
| 1/2″ | 13 | 4 | 20 | 60 | 60 | 100 | 0.41 |
| 5/8″ | 16 | 4 | 20 | 60 | 90 | 50 | 0.51 |
| 3/4” | 19 | 4.5 | 20 | 60 | 110 | 50 | 0.77 |
| 1” | 25 | 5,0 | 8 | 60 | 130 | 50 | 0.89 |
