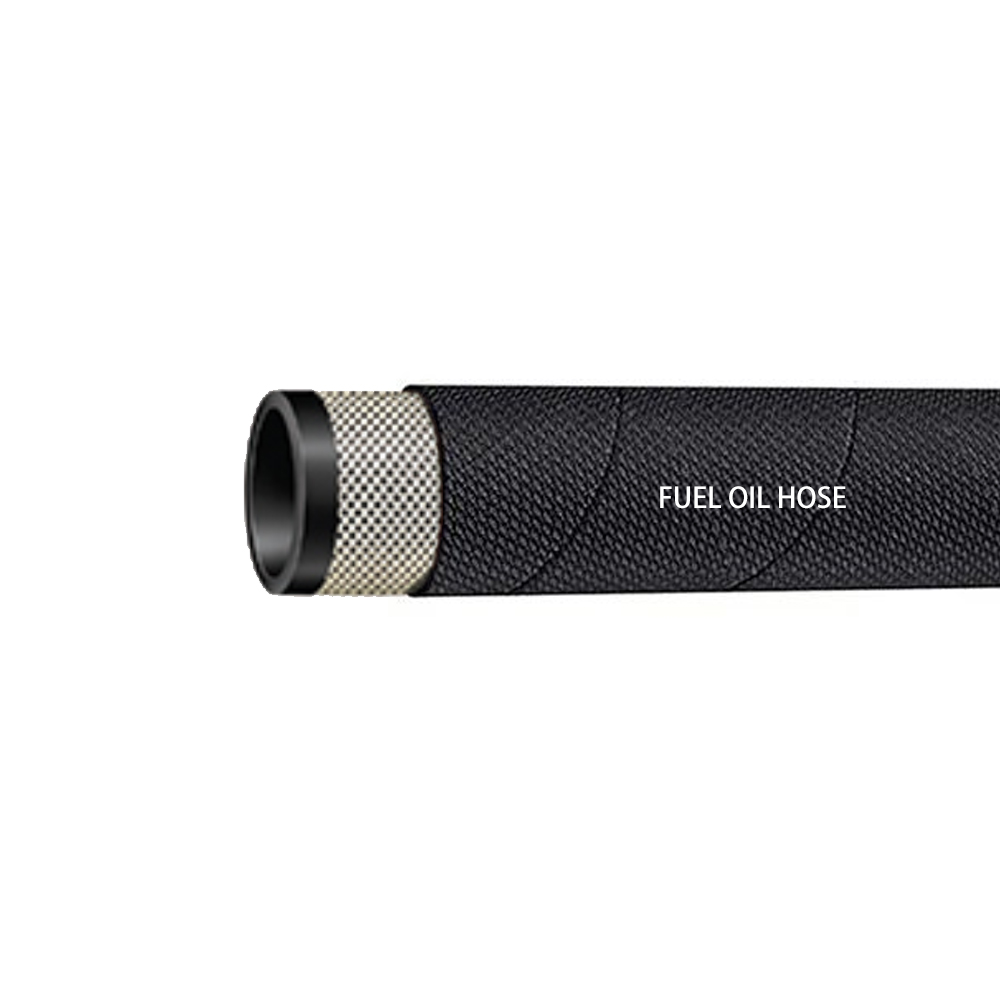

Fuel Oil Hose – also known as fuel oil rubber hose, reinforced fuel hose, or rubber reinforced fuel hose is a durable, flexible tubing designed for safe and efficient fuel transfer. Constructed from high-quality rubber or other resilient materials, it is engineered to withstand the pressure, temperature, and chemical properties of various fuels.
| ID (inch) | ID (mm) | Wall (mm) | W.P. (bar) | B.P. (bar) | Radius (mm) | Length Max. (m) | Weight (kg/m) |
| 1/4″ | 6 | 4.7 | 20 | 60 | 102 | 50 | 0.31 |
| 5/16″ | 8 | 4.7 | 20 | 60 | 114 | 50 | 0.32 |
| 3/8″ | 10 | 4.8 | 20 | 60 | 127 | 50 | 0.4 |
| 1/2″ | 13 | 5 | 20 | 60 | 178 | 50 | 0.55 |
| 5/8″ | 16 | 5 | 20 | 60 | 203 | 50 | 0.6 |
| 3/4” | 19 | 5.8 | 20 | 60 | 241 | 50 | 0.76 |
| 1” | 25 | 6.5 | 20 | 60 | 305 | 50 | 1.08 |
| 1-1/4” | 32 | 7 | 20 | 60 | 419 | 50 | 1.28 |
| 1-1/2” | 38 | 9 | 20 | 60 | 500 | 50 | 1.72 |
| 2” | 51 | 9 | 20 | 60 | 630 | 50 | 2.9 |
