Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

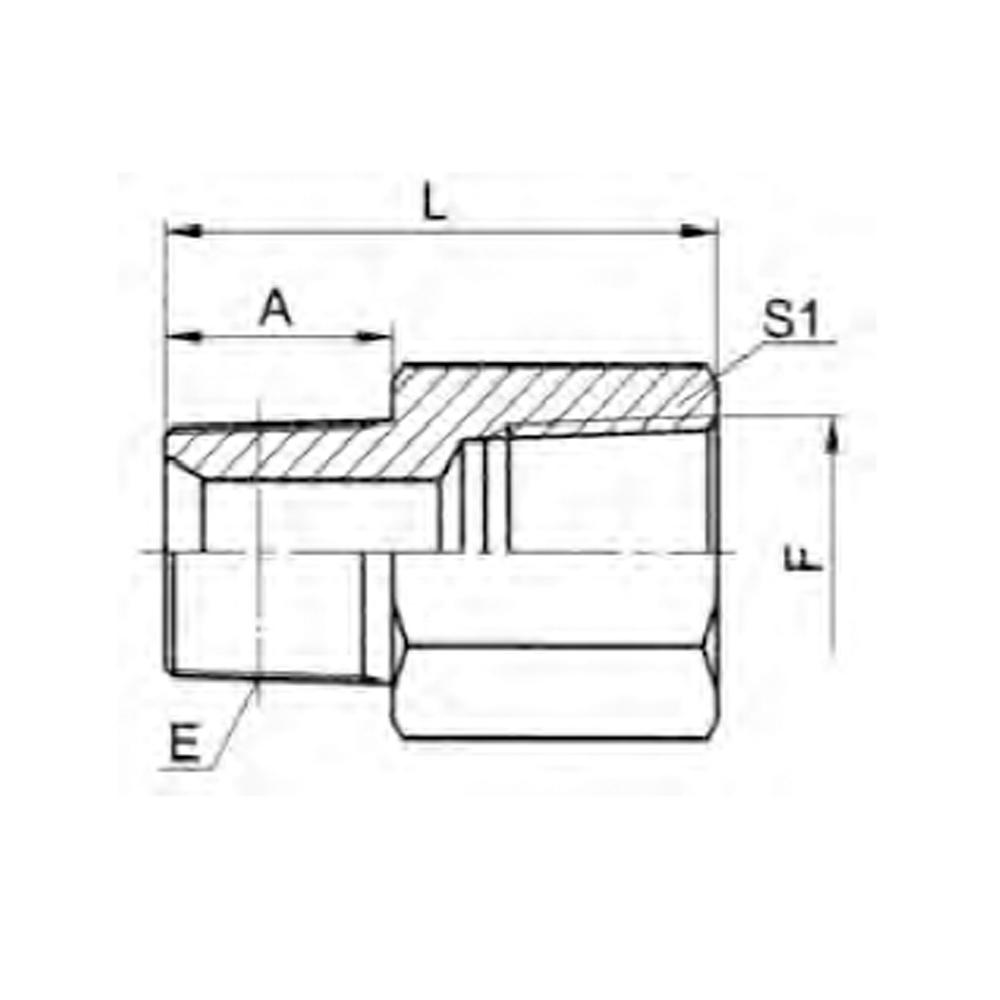

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | L | S1 | |
| 5TN-02SP | R1/8″X28 | Z1/8″X27 | 11 | 25 | 17 |
| 5TN-04-02SP | R1/4″×19 | Z1/8″X27 | 14.5 | 21.5 | 17 |
| 5TN-04SP | R1/4″X19 | Z1/4″X18 | 14.5 | 34.5 | 19 |
| 5TN-06-04SP | R3/8″X19 | Z1/4″X18 | 15 | 23 | 19 |
| 5TN-06SP | R3/8″X19 | Z3/8″X18 | 15 | 36.5 | 24 |
| 5TN-08-06SP | R1/2″X14 | Z3/8″X18 | 20 | 28.5 | 24 |
| 5TN-08SP | R1/2″X14 | Z1/2″X14 | 20 | 47 | 30 |
| 5TN-12-08SP | R3/4″X14 | Z1/2″X14 | 20 | 30.5 | 32 |
| 5TN-12SP | R3/4″X14 | Z3/4″X14 | 20 | 49 | 36 |
| 5TN-16-12SP | R1″X11 | Z3/4″X14 | 25.5 | 36.5 | 36 |
| 5TN-16SP | R1″X11 | Z1″X11.5 | 25.5 | 60 | 41 |
