Home Hose Assembly Industry Hose Air brake hose SAE J1402 High Tensile Air Brake Hose
Wire Reinforced 400PSI Air & Water Hoses
Back to products
SAE J20 R3 Silicone Heater Hose
Click to enlarge

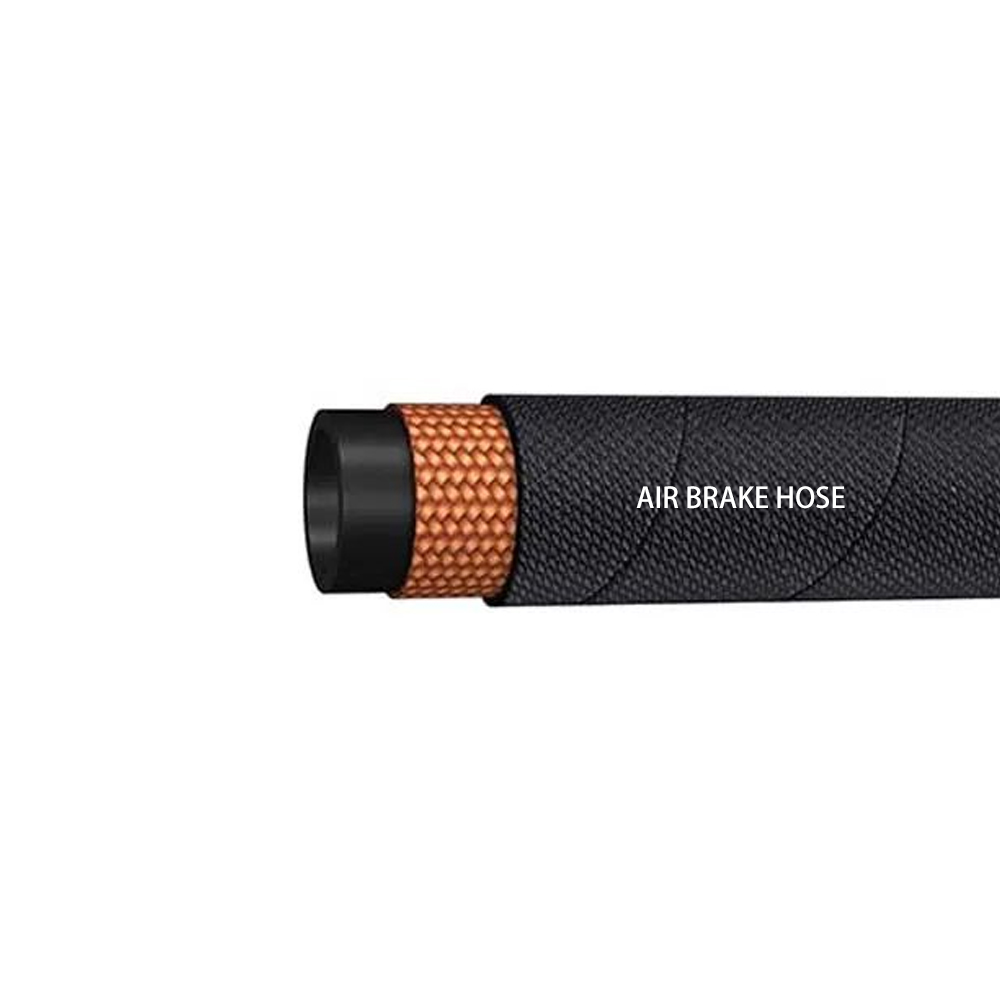

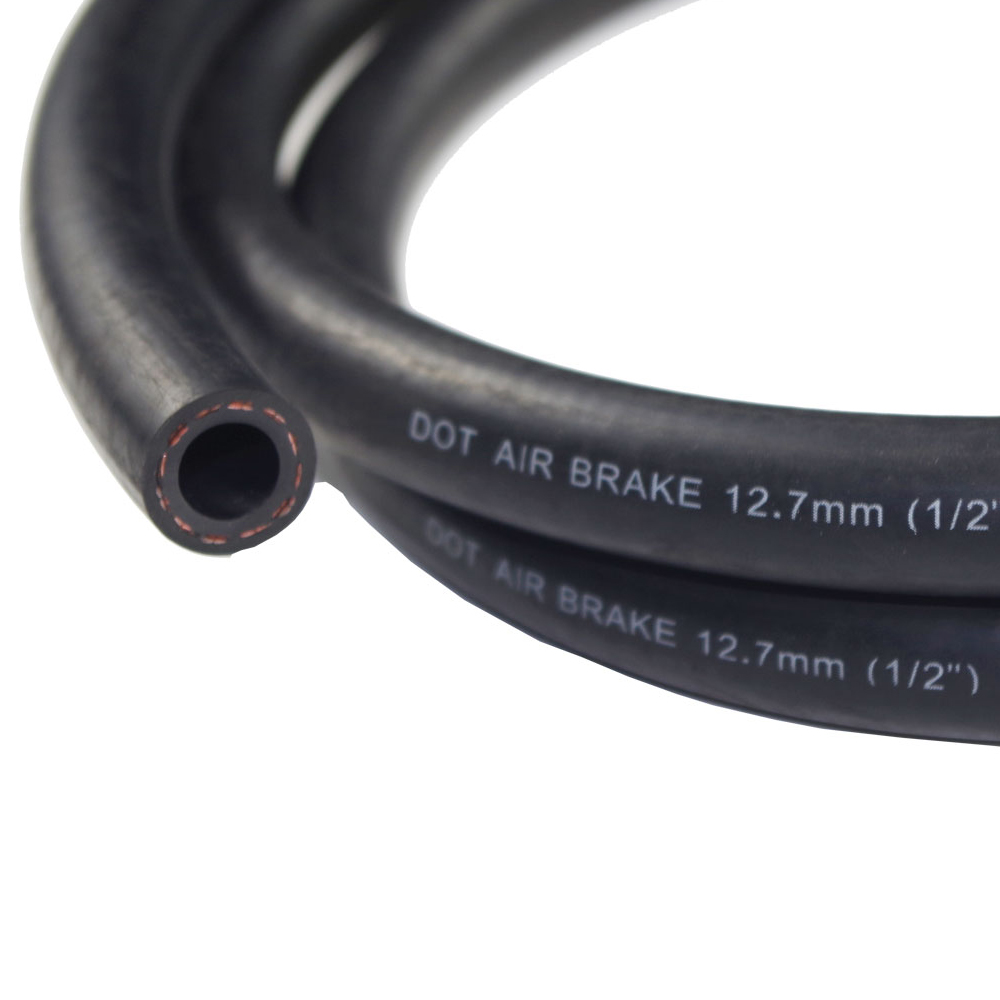

SAE J1402 High Tensile Air Brake Hose

Description:

Tube: SBR blended, black.
Reinforcement: High tensile synthetic yarn.
Cover: EPDM/SBR blended, black, red, yellow, and blue, weather and ozone resistant.
Temperaturer: -40 ℃ ~+120 ℃

INQUIRE NOW

"*" indicates required fields

Category: Air brake hose Tags: air brake hose, SAE J1402
Share:
  • Description
  • Package& Shipping
Description

Air and water hoses are versatile flexible tubes designed to transport air or water efficiently across various settings, including industrial, commercial, and residential environments. These durable hoses serve multiple purposes, such as supplying compressed air to power tools, delivering water for irrigation systems, facilitating pressure washing tasks, and supporting numerous other applications. Typically constructed from robust materials like rubber, PVC, or composite blends, they come in a wide range of sizes and lengths to meet diverse operational needs.

Hose Type
 Dash
I.D.
(mm)
O.D.
 (mm)
Wall Thickness
(mm)
Wall Diff Max
(Bar)
W.P.
(MPa)
B.P.
(Mini)
1 5.0±0.2 14.0±0.2 4.5 0.3 1.4 >12
2 6.0±0.2 15.0±0.4 4.5 0.3 1.4 >12
3 8.0±0.2 15.0±0.3 3.5 0.3 1.4 >12
4 10.0±0.4 17.0±0.4 3.75 0.3 1.4 >12
5 13.0±0.4 23.0±0.4 3.5 0.4 1.4 >12
6 16.0±0.5 24.0±0.5 4 0.4 1.4 >12
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
