Home Hydraulic Hose Ferrules 00210 Hydraulic Hose Ferrules For SAE 100R2
03310 Crimp Hose Ferrules For SAE 100R2
Back to products
01400 Hydraulic Hose Ferrules For R12
Click to enlarge

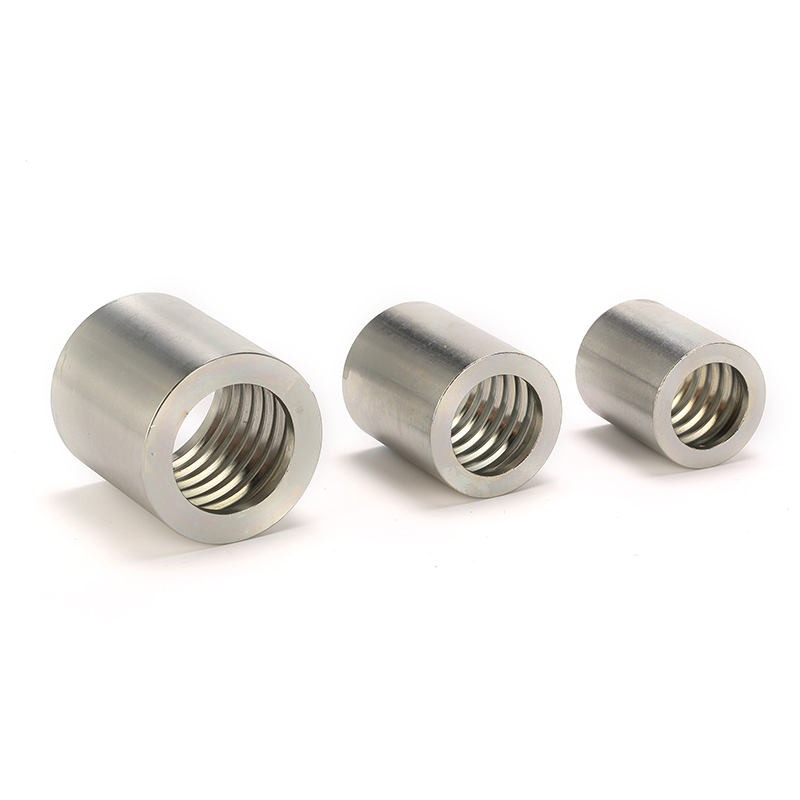

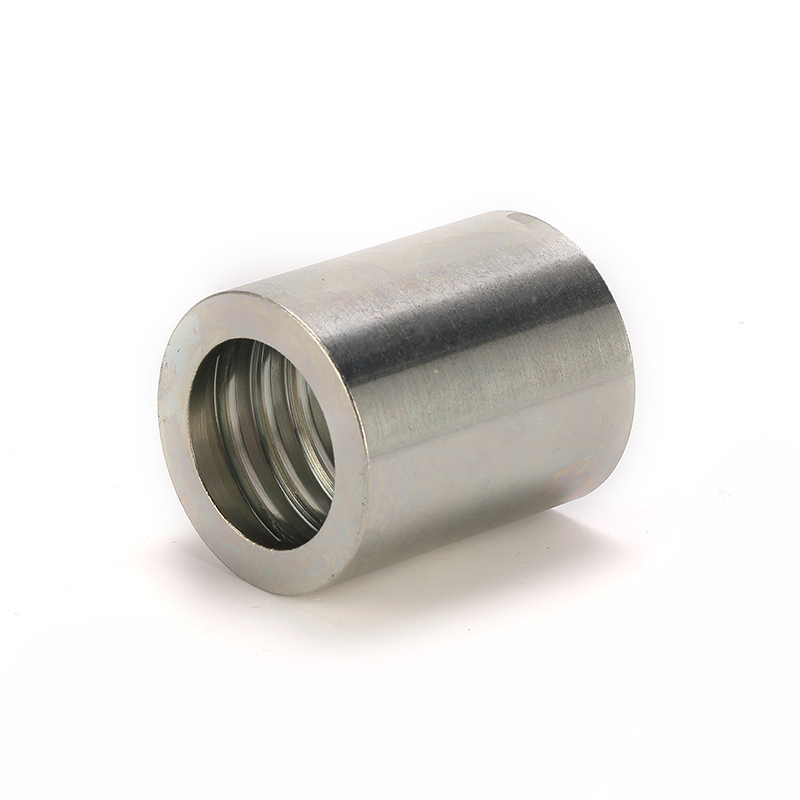

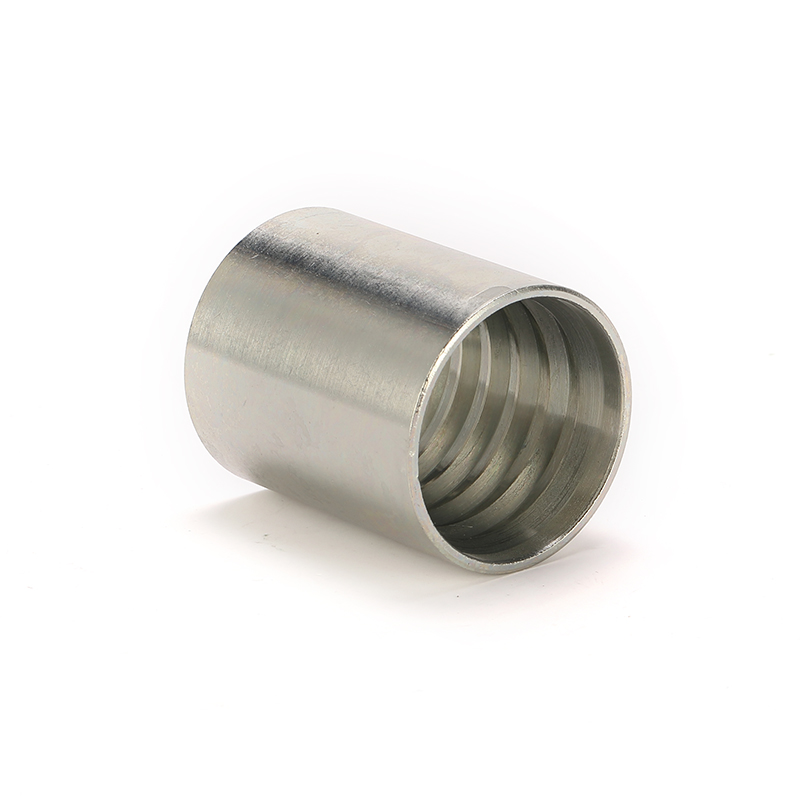

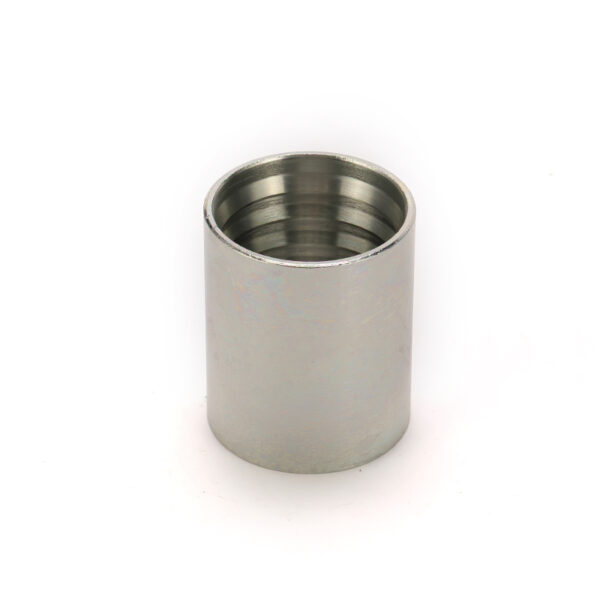

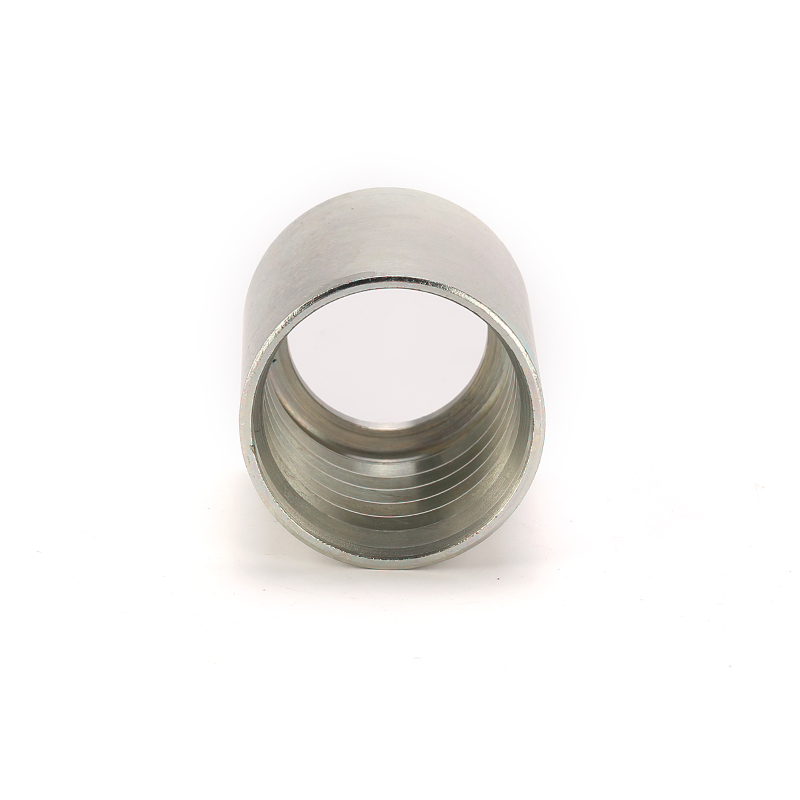

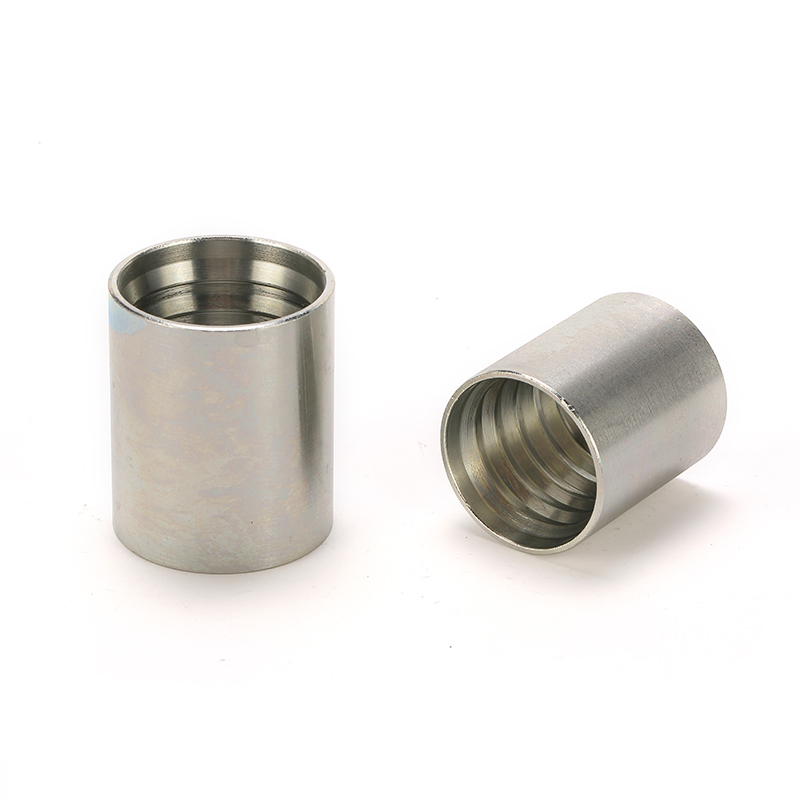

00210 Hydraulic Hose Ferrules For SAE 100R2

Description:

The 00210 Hydraulic rubber hose ferrule is a specific kind of hose ferrule which is utilized for hydraulic SAE 100R2AT/DIN 20022 2SN hoses. Typically, a hose sleeve or ferrule is compressed onto the end of a hydraulic hose so as to attach the hose firmly to a fitting, thereby allowing for the formation of a leak-free seal.

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Ferrules Tags: Hose Ferrules, Female, Carbon Steel
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

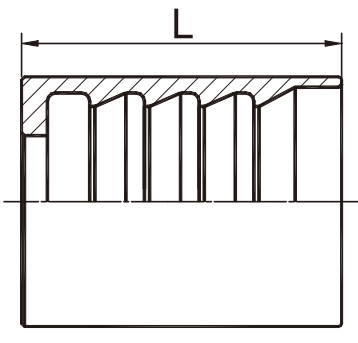

PART  NO. HOSE  BORE DIMENSIONS
DN DASH L
00210-03 5 3 27
00210-04 6 4 30
00210-05 8 5 31
00210-06 10 6 32
00210-08 12 8 34
00210-10 16 10 37
00210-12 20 12 43
00210-16 25 16 50
00210-20 32 20 59
00210-24 38 24 74
00210-32 51 32 78
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
